    Zu3
    Adaptation Project
    ask about the project

    Zu3

    37 ft²
    Variants: 1
    Comments: 3
    IF YOU HAVE ANY QUESTIONS CALL US
    (718) 810-5358Mon - Fri: 8:00 - 19:00 project.or_write
    Home project  - Nowoczesny pawilon usługowy do dowolnej aranżacji w konstrukcji drewnianej.

    Ground 37,1 ft²

    285,7 ft²
    60,4 ft²
    29,0 ft²
    24,0 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - Nowoczesny pawilon usługowy do dowolnej aranżacji w konstrukcji drewnianej.

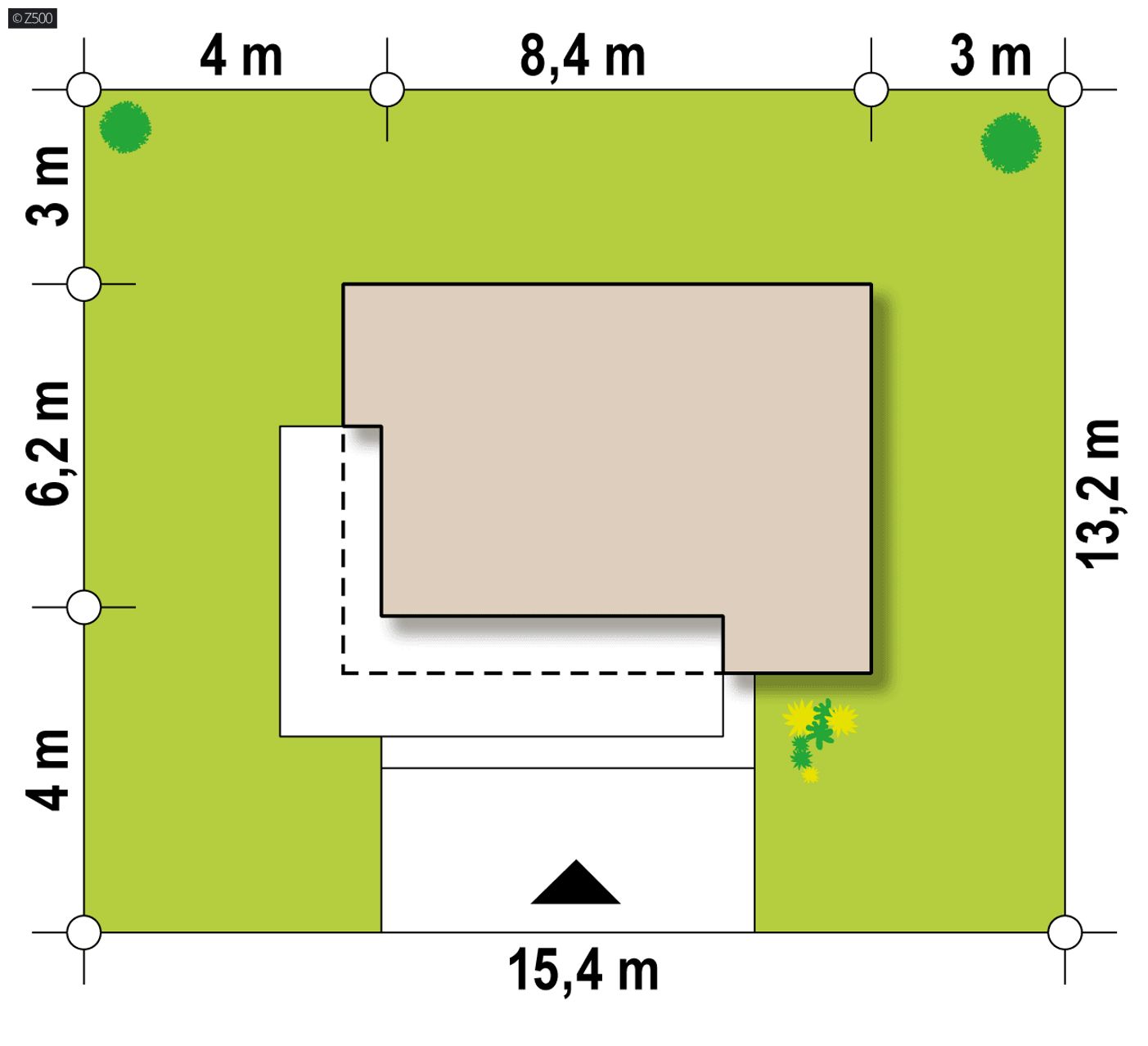

    Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
    Minimal plot

    width
    15,4 ft
    length
    13,2 ft
    Dimensions of the front elevation
    Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
    8,4 ft

    IF YOU HAVE ANY QUESTIONS CALL US

    (718) 810-5358

    Mon - Fri: 8:00 - 19:00

    ask about the project

    Area and dimensions

    Usable / net area
    37,1 ft²
    Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
    Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
    Living area
    44,9 ft²
    Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
    Cubic
    111,2 ft³
    Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
    The height of the house
    4,29 ft
    The height of the house - height from ground level to the ridge or attic.
    The angle of inclination of the roof
    1° / 4,9°
    The angle of inclination of the roof - the angle of the roof to the ground.
    Roof area
    45,3 ft²
    Roof area - total roof area with the exception of roof windows.
    Minimal plot
    15,4 x 13,2 ft


    Technology and construction

    Walls
    timber frame
    Ceiling (ground floor)
    wooden
    Roofing
    foil/bituminous
    technology
    wooden

    Thermal insulation

    heating system
    heat pump
    heating system - Type of heating provided for the project
    Ventilation type
    mechaniczna
    Primary energy (Ep)
    64,9 kWh/ft²/year
    Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
    Final energy (Ek)
    51,9 kWh/ft²/year
    Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.

    Additional informations about the project and order

    Produkty marki Z500™ objęte są prawami autorskimi zgodnie z ustawą o prawie autorskim i prawach pokrewnych (tj. Dz.U. 2017 poz. 880) zastrzega prawa autorskie i zakazuje wykorzystywania tego produktu do celów handlowych, reklamy oraz wprowadzania w nim zmian ponad wymienione w projekcie bez wiedzy i zgody podmiotu reprezentującego. Nabycie oryginalnego projektu obejmuje prawo zastosowania go do budowy tylko jednego domu wyłącznie na terytorium Rzeczypospolite Polskiej. Reprezentantem marki Z500™ w Polsce jest podmiot Z500 Sp.z o.o.
    Home project Zu3

    Zu3

    37 ft²
    wooden

    adaptation and changes to the project

    Do you want to build a house based on this project but you need to make some changes?

    Use our Adaptation Studio services:

    • free evaluation of changes and adaptations
    • over 100 proven architects throughout Poland
    • the best price offer for changes and adaptations
    Order adaptation
    Order adaptation
    Order adaptation
