Z95 A
119 ft²
Variants: 2
Comments: 11
Lot

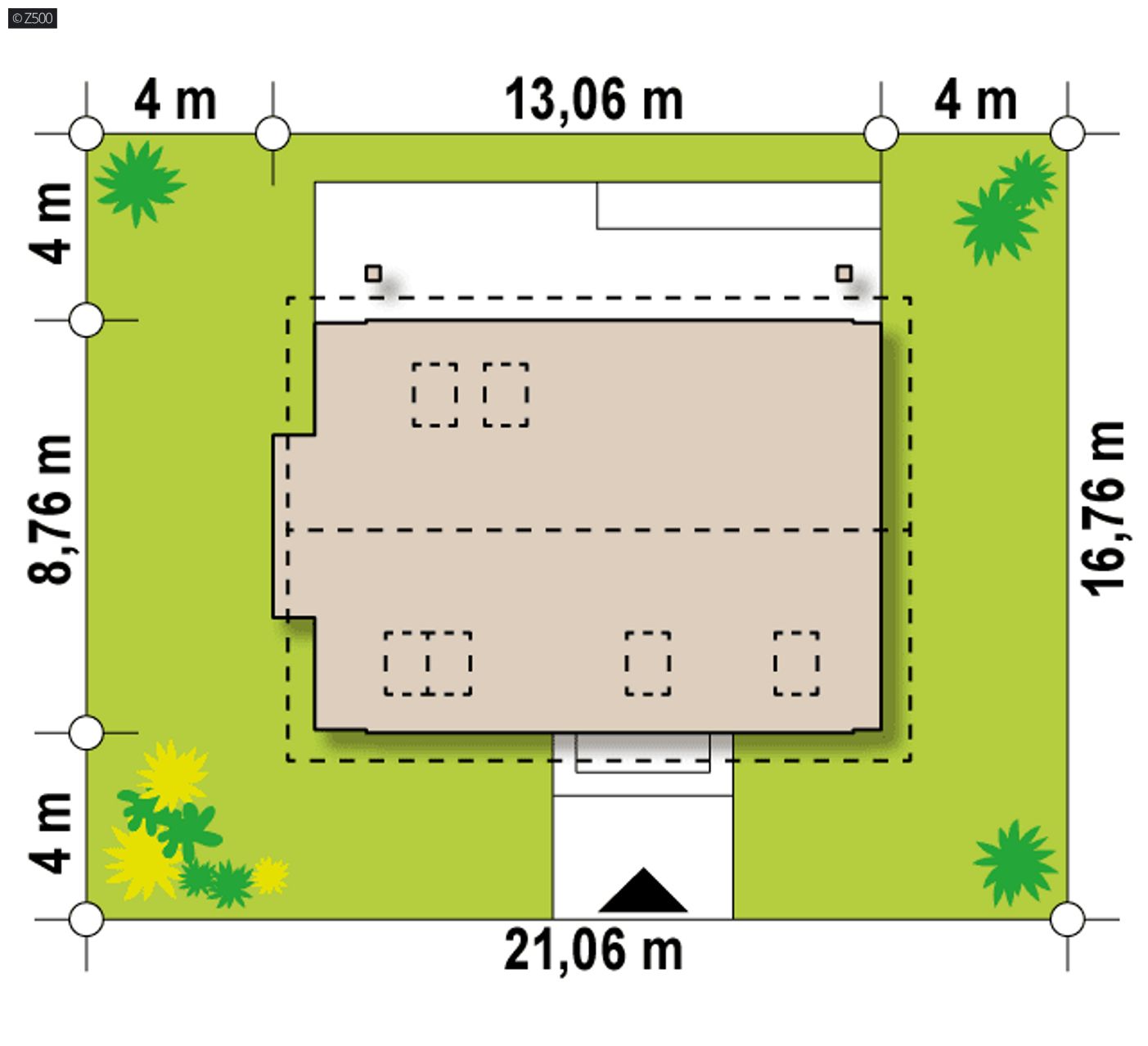

Minimal plot
Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
width
21,06 ft
length
16,76 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
13,06 ft
Usable / net area
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
118,7
/ 162,7
ft²
Living area
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
110,1 ft²
Cubic
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
386,56 ft³
The height of the house
The height of the house - height from ground level to the ridge or attic.
7,45 ft
The angle of inclination of the roof
The angle of inclination of the roof
- the angle of the roof to the ground.
35°
Roof area
Roof area - total roof area with the exception of roof windows.
155,89 ft²
The height of a dwarf wall
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
0,75 ft
Minimal plot
21,06
x
16,76 ft
Ceiling structure above the ground floor
beam and block
Roofing
tile
technology
brick
Roof construction
timber trusses
heating system
heating system - Type of heating provided for the project
biomass
Hot water installation
solars
Ventilation type
mechaniczna
Primary energy (Ep)
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
22,11 kWh/ft²/year
Final energy (Ek)
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
49,47 kWh/ft²/year
Additional informations about the project and order
Produkty marki Z500™ objęte są prawami autorskimi zgodnie z ustawą o prawie autorskim i prawach pokrewnych (tj. Dz.U. 2017 poz. 880) zastrzega prawa autorskie i zakazuje wykorzystywania tego produktu do celów handlowych, reklamy oraz wprowadzania w nim zmian ponad wymienione w projekcie bez wiedzy i zgody podmiotu reprezentującego. Nabycie oryginalnego projektu obejmuje prawo zastosowania go do budowy tylko jednego domu wyłącznie na terytorium Rzeczypospolite Polskiej. Reprezentantem marki Z500™ w Polsce jest podmiot Z500 Sp.z o.o.
Z95 A
119 ft²
brick
view color variants
view color variants
adaptation and changes to the project
Do you want to build a house based on this project but you need to make some changes?
Use our Adaptation Studio services:
- free evaluation of changes and adaptations
- over 100 proven architects throughout Poland
- the best price offer for changes and adaptations
