    Z192
    Adaptation Project
    ask about the project
    Home project Z192

    Z192 mirror image

    brick
    brick
    $1 310
    brick
    brick
    mirror image
    $1 310
    Home project Z192

    IF YOU HAVE ANY QUESTIONS CALL US

    (718) 810-5358

    Mon - Fri: 8:00 - 19:00

    ask about the project
    Home project  - Projekt domu z garażem i opcją wykorzystania jako dwulokalowy lub dwurodzinny.

    Ground 60,6 / 85,6 ft²

    33,9 ft²
    122,3 ft²
    35,6 ft²
    110,1 ft²
    242,6 ft²
    78,7 ft²
    37,2 ft²
    46,8 ft²
    225,6 ft²
    Garage
    16,8 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - Projekt domu z garażem i opcją wykorzystania jako dwulokalowy lub dwurodzinny.

    Garret 59,6 / 75,3 ft²

    55,9 ft²
    84,2 ft² / 161,4 ft²
    11,6 ft² / 63,3 ft²
    132,9 ft² / 150,2 ft²
    171,6 ft² / 214,6 ft²
    69,1 ft² / 83,3 ft²
    55,8 ft² / 76,9 ft²
    Closet
    1,3 ft² / 5,5 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - Projekt domu z garażem i opcją wykorzystania jako dwulokalowy lub dwurodzinny.

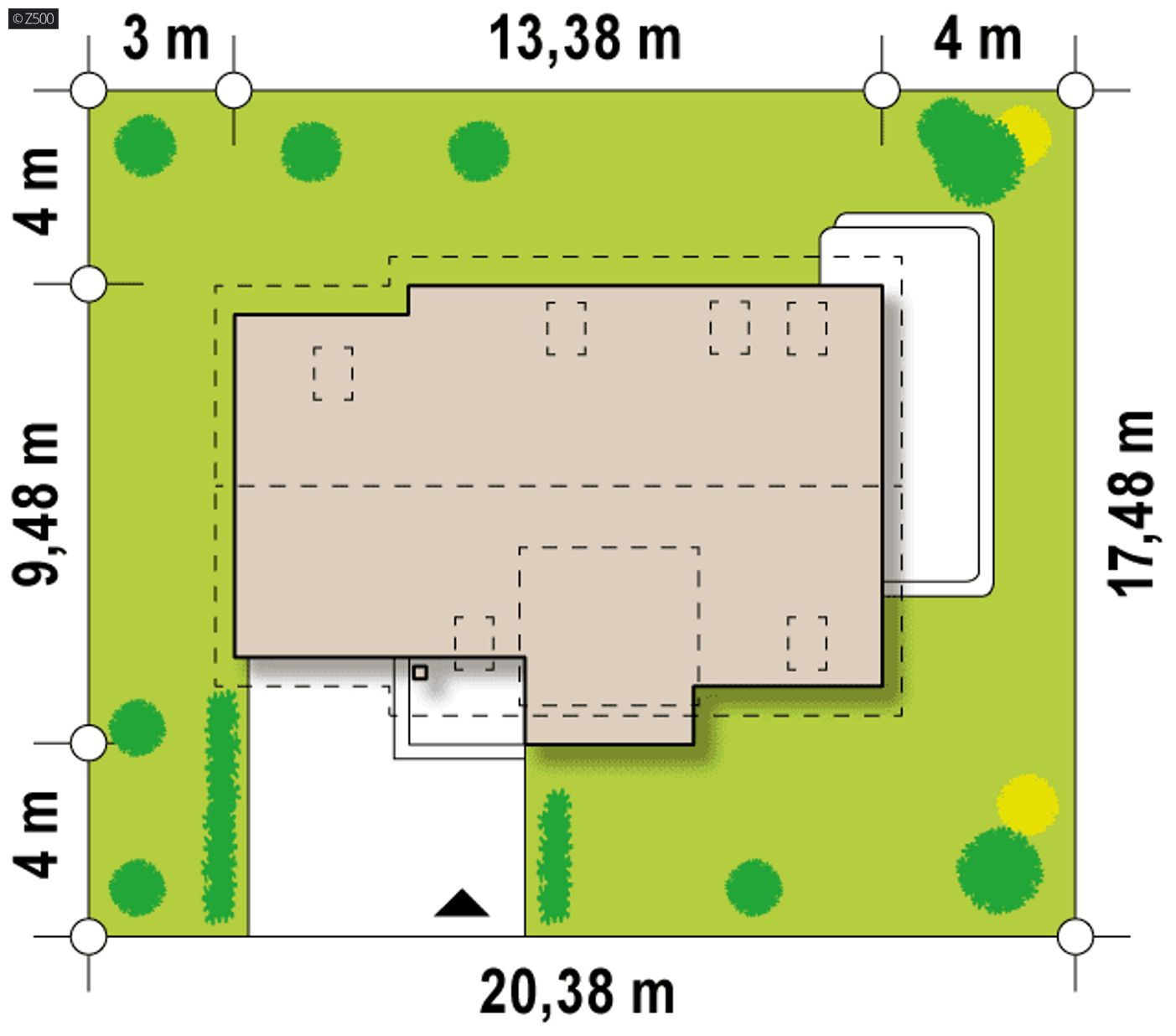

    Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
    Minimal plot

    width
    20,56 ft
    length
    17,66 ft
    Dimensions of the front elevation
    Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
    13,56 ft

    Area and dimensions

    Usable / net area
    120,3 / 160,9 ft²
    Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
    Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
    Living area
    114,8 ft²
    Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
    Garage area
    16,8 ft²
    Cubic
    354,06 ft³
    Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
    The height of the house
    8,42 ft
    The height of the house - height from ground level to the ridge or attic.
    The angle of inclination of the roof
    40° / 8°
    The angle of inclination of the roof - the angle of the roof to the ground.
    Roof area
    183,21 ft²
    Roof area - total roof area with the exception of roof windows.
    The height of a dwarf wall
    1,21 ft
    The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
    Minimal plot
    20,56 x 17,66 ft


    Technology and construction

    Walls
    aerated concrete/ceramics/silicates
    Ceiling (ground floor)
    beam and block
    Roofing
    shingle/plate/Metal tile/tile
    technology
    brick
    Roof construction
    timber trusses

    Thermal insulation

    heating system
    gas, heat pump
    heating system - Type of heating provided for the project
    Hot water installation
    gas
    Ventilation type
    mechaniczna

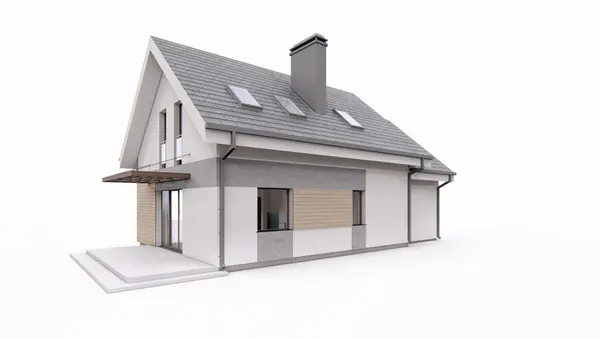

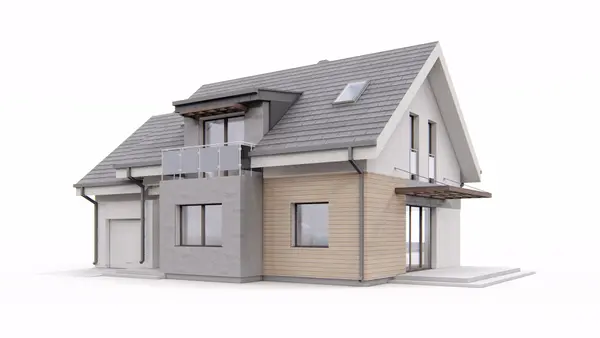

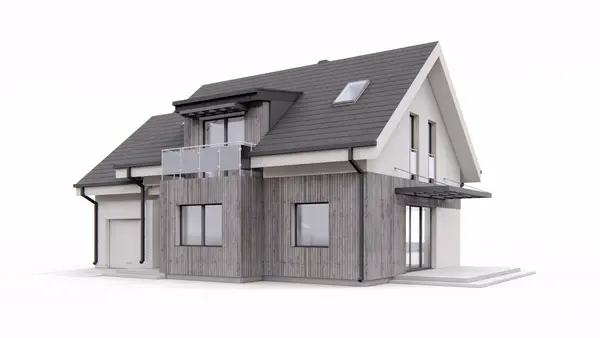

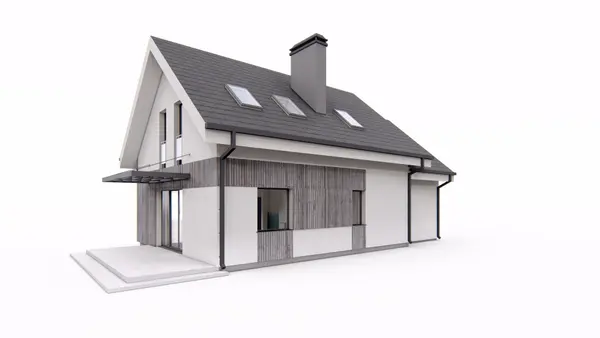

    view color variants

    view color variants

    adaptation and changes to the project

    Do you want to build a house based on this project but you need to make some changes?

    Use our Adaptation Studio services:

    • free evaluation of changes and adaptations
    • over 100 proven architects throughout Poland
    • the best price offer for changes and adaptations
    Order adaptation
