    Home project Zx39 GP2

    Zx39 GP2 mirror image

    concept
    concept
    project's availability 3 work days
    $4 570
    concept
    concept
    project's availability 3 work days
    mirror image
    $4 570
    Home project Zx39 GP2
    Home project Zx39 GP2
    Home project Zx39 GP2
    Home project Zx39 GP2

    IF YOU HAVE ANY QUESTIONS CALL US

    (718) 810-5358

    Mon - Fri: 8:00 - 19:00

    ask about the project
    Home project  - wersja z garażem dwustanowiskowym

    Ground 894,3 / 1429,3 ft²

    Salon
    346,5 ft²
    Kuchnia+jadalnia
    206,3 ft²
    WC
    25,3 ft²
    Pokój
    125,9 ft²
    Łazienka
    30,4 ft²
    Garderoba
    26,8 ft²
    Pom. gosp.
    55,8 ft²
    Spiżarka
    28,2 ft²
    Hol
    44,5 ft²
    Sień
    64,5 ft²
    Garaż
    435,4 ft²
    Pom. gosp.
    49,9 ft²
    Clear
    measurement
    check
    area
    check
    distance
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - wersja z garażem dwustanowiskowym

    Floor 1161,4 ft²

    Pokój
    242,4 ft²
    Gabinet
    130,7 ft²
    Łazienka
    74,6 ft²
    Garderoba
    46,5 ft²
    Pokój
    173,3 ft²
    Pralnia
    25,7 ft²
    Łazienka
    72,4 ft²
    Garderoba
    58,8 ft²
    Pokój
    226,2 ft²
    Hol
    120,6 ft²
    Clear
    measurement
    check
    area
    check
    distance
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - wersja z garażem dwustanowiskowym

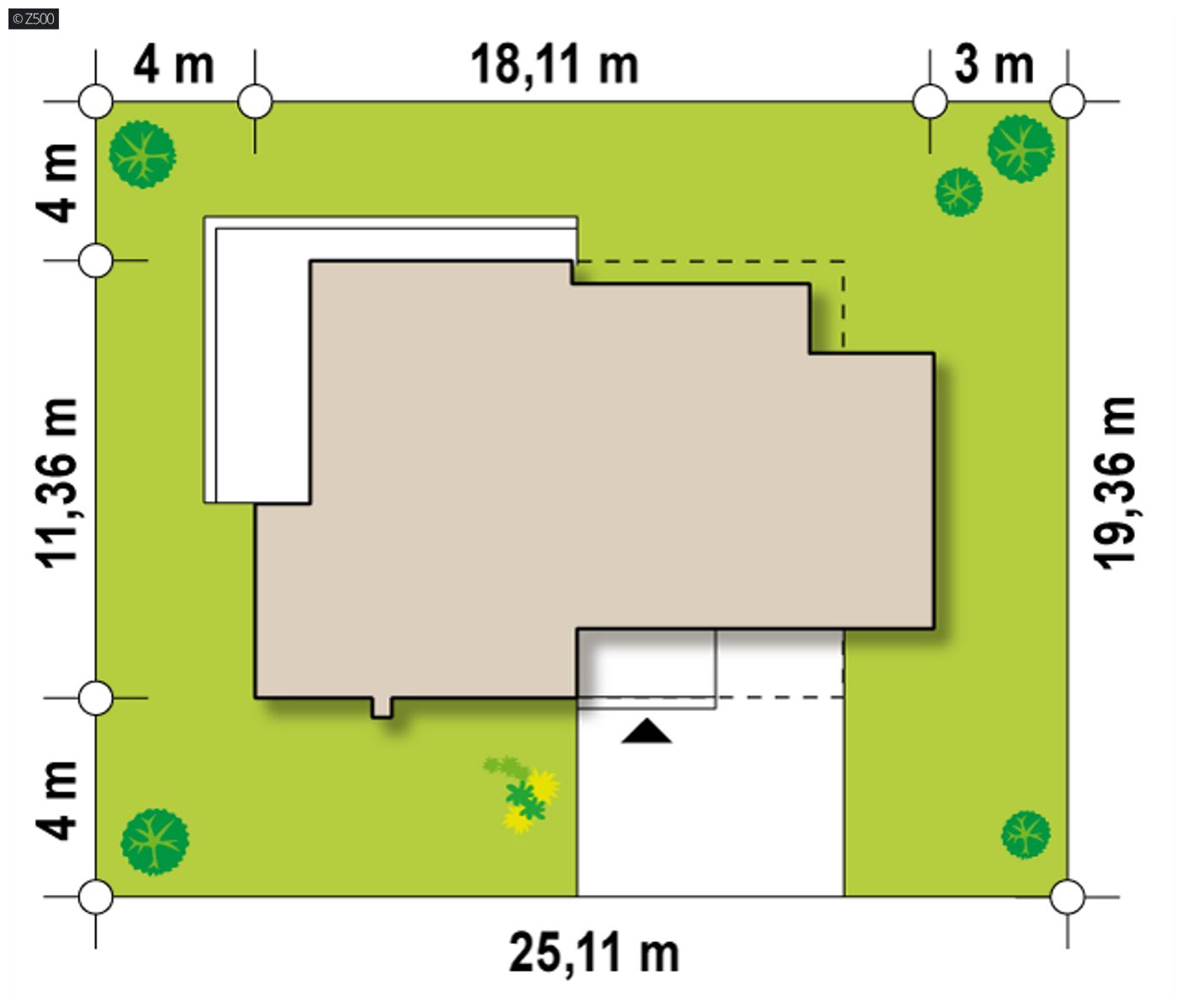

    Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
    Minimal plot

    width
    82,38 ft
    length
    63,52 ft
    Dimensions of the front elevation
    Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
    59,42 ft

    Area and dimensions

    Usable / net area
    2055,7 / 2590,8 ft²
    Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
    Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
    Living area
    1805,2 ft²
    Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
    Garage area
    481,7 ft²
    Cubic
    23 608,2 ft³
    Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
    The height of the house
    25,23 ft
    The height of the house - height from ground level to the ridge or attic.
    The angle of inclination of the roof
    The angle of inclination of the roof - the angle of the roof to the ground.
    Roof area
    1 370,57 ft²
    Roof area - total roof area with the exception of roof windows.
    Minimal plot
    82,38 x 63,52 ft


    Technology and construction

    Walls
    aerated concrete, ceramics, silicates
    Ceiling (ground floor)
    reinforced concrete
    Roof
    foil, bituminous
    technology
    brick

    Thermal insulation

    heating system
    gas, ERV
    heating system - Type of heating provided for the project
