    Adaptation Project
    ask about the project
    WT2017wybierz
    WT2021wybierz (+1000zł)
    Home project Zx14

    Zx14 mirror image

    brick
    brick
    project's availability 3 work days
    $5 370
    brick
    brick
    project's availability 3 work days
    mirror image
    $5 370
    Home project Zx14
    Home project Zx14

    IF YOU HAVE ANY QUESTIONS CALL US

    (718) 810-5358

    Mon - Fri: 8:00 - 19:00

    ask about the project
    Home project  - Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.

    Ground 937,0 / 1289,7 ft²

    Kuchnia
    200,6 ft²
    Salon+jadalnia
    356,2 ft²
    Spiżarka
    21,9 ft²
    Pom. gosp.
    31,5 ft²
    Garderoba
    69,4 ft²
    Sień
    49,9 ft²
    WC
    50,1 ft²
    Hol
    68,7 ft²
    Pom. gosp.
    88,7 ft²
    Garaż
    352,7 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.

    Floor 1281,1 ft²

    Pokój
    196,1 ft²
    Pokój
    190,6 ft²
    Pokój
    238,1 ft²
    Pokój+garderoba
    348,3 ft²
    Łazienka
    65,0 ft²
    Łazienka
    85,4 ft²
    Hol
    157,6 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.

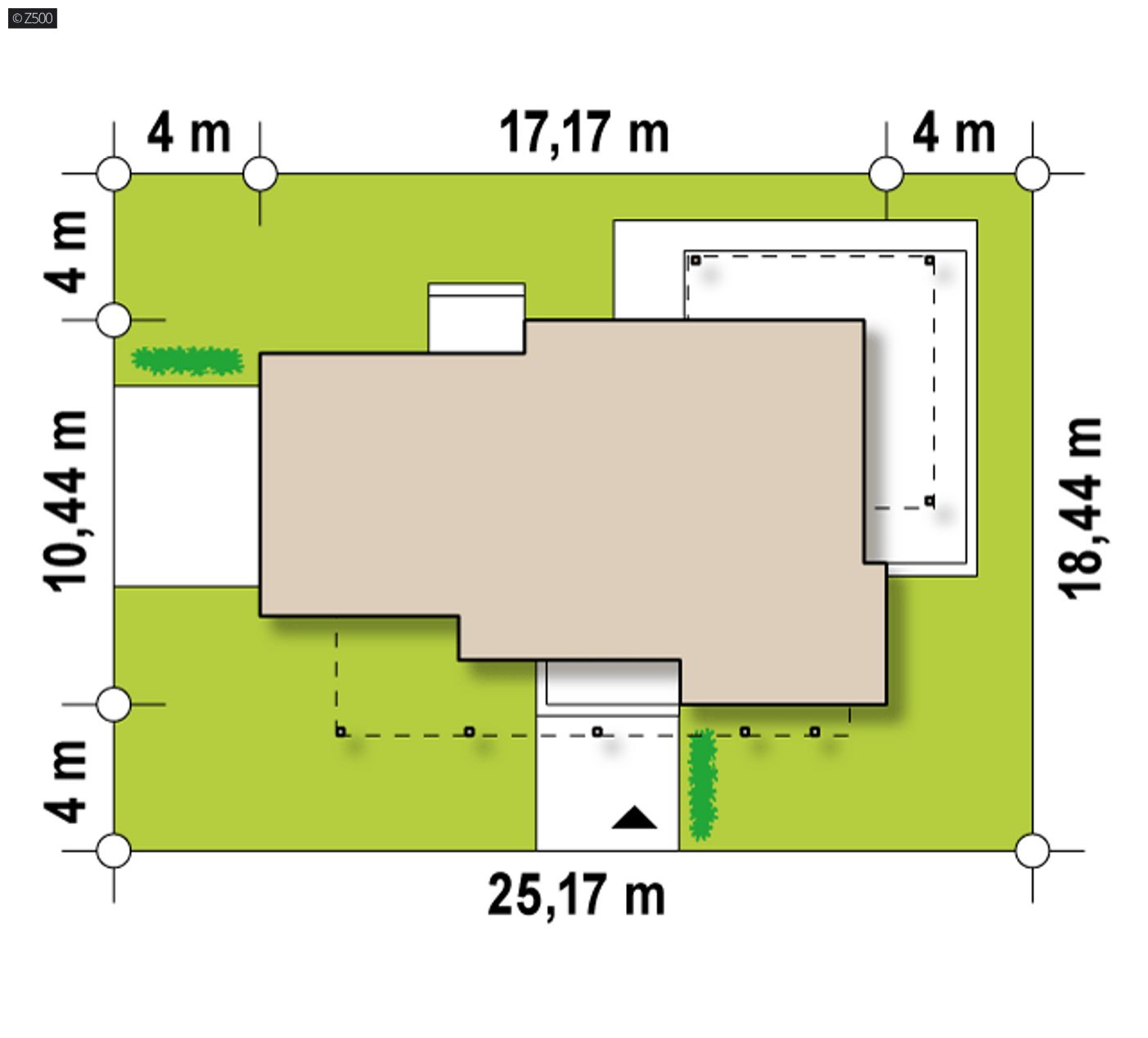

    Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
    Minimal plot

    width
    82,58 ft
    length
    60,5 ft
    Dimensions of the front elevation
    Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
    56,33 ft

    Area and dimensions

    Usable / net area
    2218,1 / 2570,9 ft²
    Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
    Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
    Living area
    1717,9 ft²
    Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
    Garage area
    352,7 ft²
    Cubic
    22 526,9 ft³
    Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
    The height of the house
    25,39 ft
    The height of the house - height from ground level to the ridge or attic.
    The angle of inclination of the roof
    4° / 2°
    The angle of inclination of the roof - the angle of the roof to the ground.
    Roof area
    1 641,5 ft²
    Roof area - total roof area with the exception of roof windows.
    Minimal plot
    82,58 x 60,5 ft


    Technology and construction

    Walls
    aerated concrete, ceramics, silicates
    Ceiling (ground floor)
    reinforced concrete
    Roof
    foil, bituminous
    technology
    brick

    Thermal insulation

    heating system
    gas, ERV
    heating system - Type of heating provided for the project
    Primary energy (Ep)
    71,9 kWh/ft²/year
    Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
    Final energy (Ek)
    59,9 kWh/ft²/year
    Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
    home project Zx14 – interior arrangement, Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.
    home project Zx14 – interior arrangement, Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.

    360-degrees animation

    adaptation and changes to the project

    Do you want to build a house based on this project but you need to make some changes?

    Use our Adaptation Studio services:

    • free evaluation of changes and adaptations
    • over 100 proven architects throughout Poland
    • the best price offer for changes and adaptations
    Order adaptation
    Order adaptation
    Order adaptation
