    Adaptation Project
    ask about the project
    Project is unavailable. If you are interested, contact us by phone or e-mail.
    WT2017wybierz
    WT2021wybierz (+1000zł)
    Home project Z99 HB

    Z99 HB mirror image

    H-BLOCK
    NEW!
    H-BLOCK
    NEW!
    mirror image
    Home project Z99 HB

    IF YOU HAVE ANY QUESTIONS CALL US

    (718) 810-5358

    Mon - Fri: 8:00 - 19:00

    ask about the project
    Home project  - Mały, funkcjonalny dom w technologii H-Block firmy Solcraft

    Ground 671,2 ft²

    Sień
    33,6 ft²
    Hol
    41,3 ft²
    Pokój
    107,1 ft²
    Salon+jadalnia
    288,2 ft²
    Kuchnia
    100,0 ft²
    WC
    43,7 ft²
    Pom. gosp.
    33,7 ft²
    Spiżarka
    23,7 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - Mały, funkcjonalny dom w technologii H-Block firmy Solcraft

    Garret 494,6 / 693,4 ft²

    Hol+schody
    74,8 ft²
    Balkon
    31,9 ft²
    Pokój
    125,3 ft²
    Pokój
    96,7 ft²
    Pokój
    111,8 ft²
    Łazienka
    86,0 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - Mały, funkcjonalny dom w technologii H-Block firmy Solcraft

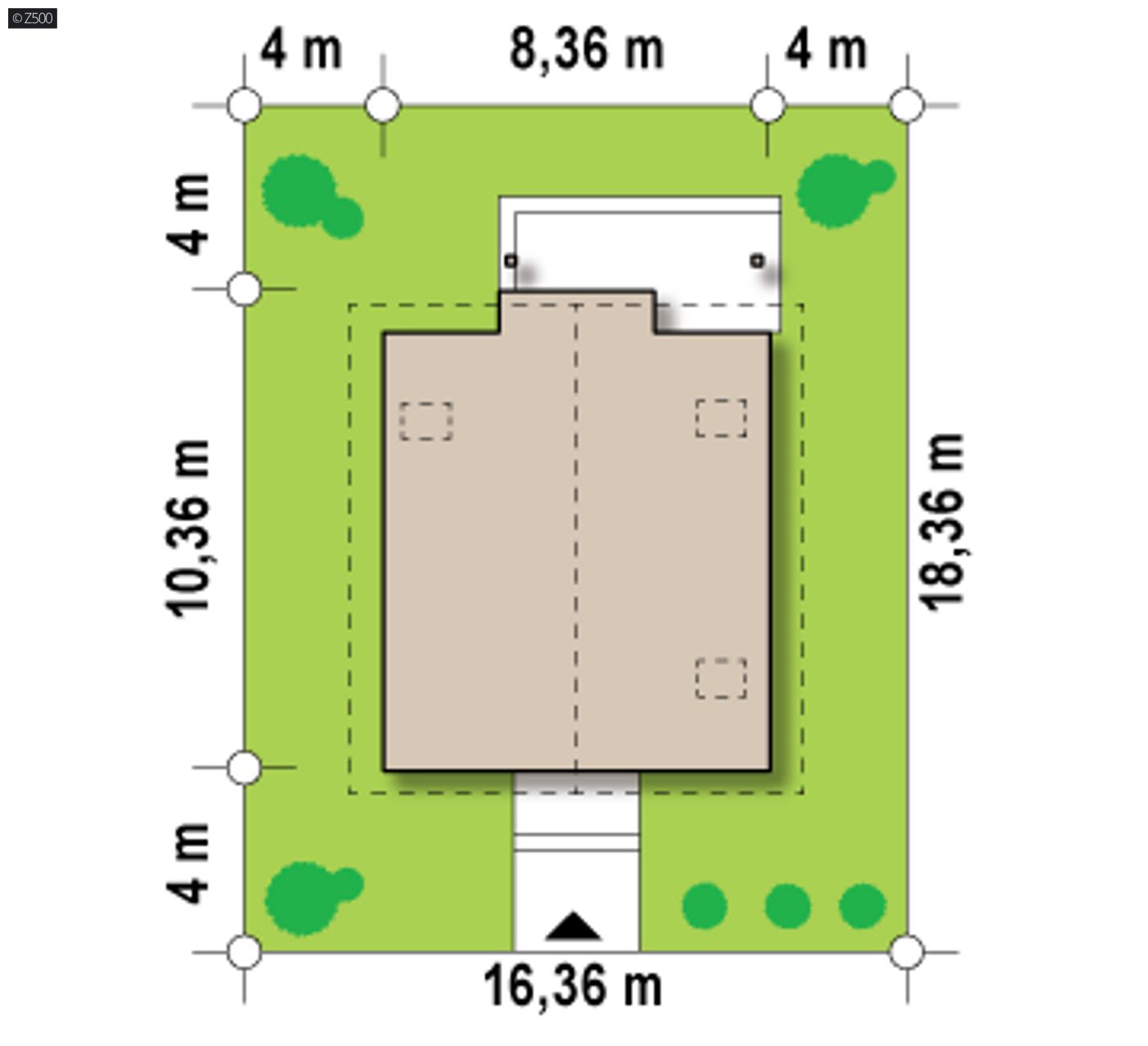

    Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
    Minimal plot

    width
    53,08 ft
    length
    59,65 ft
    Dimensions of the front elevation
    Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
    26,84 ft

    Area and dimensions

    Usable / net area
    1165,8 / 1364,7 ft²
    Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
    Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
    Living area
    884,9 ft²
    Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
    Cubic
    10 703,9 ft³
    Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
    The height of the house
    26,35 ft
    The height of the house - height from ground level to the ridge or attic.
    The angle of inclination of the roof
    42° / 30°
    The angle of inclination of the roof - the angle of the roof to the ground.
    Roof area
    1 493,38 ft²
    Roof area - total roof area with the exception of roof windows.
    The height of a dwarf wall
    2,69 ft
    The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
    Minimal plot
    53,08 x 59,65 ft


    Technology and construction

    Walls
    H-BLOCK
    Ceiling (ground floor)
    H-BLOCK
    Roof
    plate, Metal tile, tile
    technology
    H-BLOCK

    Thermal insulation

    heating system
    heat pump, ERV, floor heating
    heating system - Type of heating provided for the project
