Z463
150 + 31 ft²
Variants: 0
Comments: 8
$1 640
IF YOU HAVE ANY QUESTIONS CALL US
Usable / net area
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
149,6
/ 212,5
ft²
Living area
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
185,2 ft²
Garage area
30,9 ft²
Cubic
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
577,87 ft³
The height of the house
The height of the house - height from ground level to the ridge or attic.
7,47 ft
The angle of inclination of the roof
The angle of inclination of the roof
- the angle of the roof to the ground.
30° / 3°
Roof area
Roof area - total roof area with the exception of roof windows.
161,57 ft²
The height of a dwarf wall
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
0,44 ft
Minimal plot
22,56
x
22,26 ft
Ceiling (ground floor)
reinforced concrete
Roofing
bituminous/tile
technology
brick
Construction complies with the Eurocode standards.
heating system
heating system - Type of heating provided for the project
gas
Hot water installation
gas
Ventilation type
mechaniczna
Ground 109,3 / 144,2 ft²
Drawmirror imageClear
measurementcheck
areacheck
distance
measurementcheck
areacheck
distance
Click or touch on the image on the left to start the measure.
Hall
7,2 ft²
Hall
3,2 ft²
Utility room
4,0 ft²
Salon+kuchnia
20,4 ft²
Room
8,2 ft²
Library
3,8 ft²
Bathroom
3,8 ft²
Hall
3,7 ft²
Hol
4,7 ft²
Bathroom
5,7 ft²
Room
12,0 ft²
Salon+kuchnia
34,6 ft²
Pantry
2,1 ft²
Garage
30,9 ft²
Attic 40,2 / 68,3 ft²
Drawmirror imageClear
measurementcheck
areacheck
distance
measurementcheck
areacheck
distance
Click or touch on the image on the left to start the measure.
Hall + stairs
10,6 ft²
/ 10,6 ft²
Bathroom
3,9 ft²
/ 9,6 ft²
Room
8,1 ft²
/ 12,5 ft²
Room
9,0 ft²
/ 17,2 ft²
Room
8,8 ft²
/ 18,3 ft²

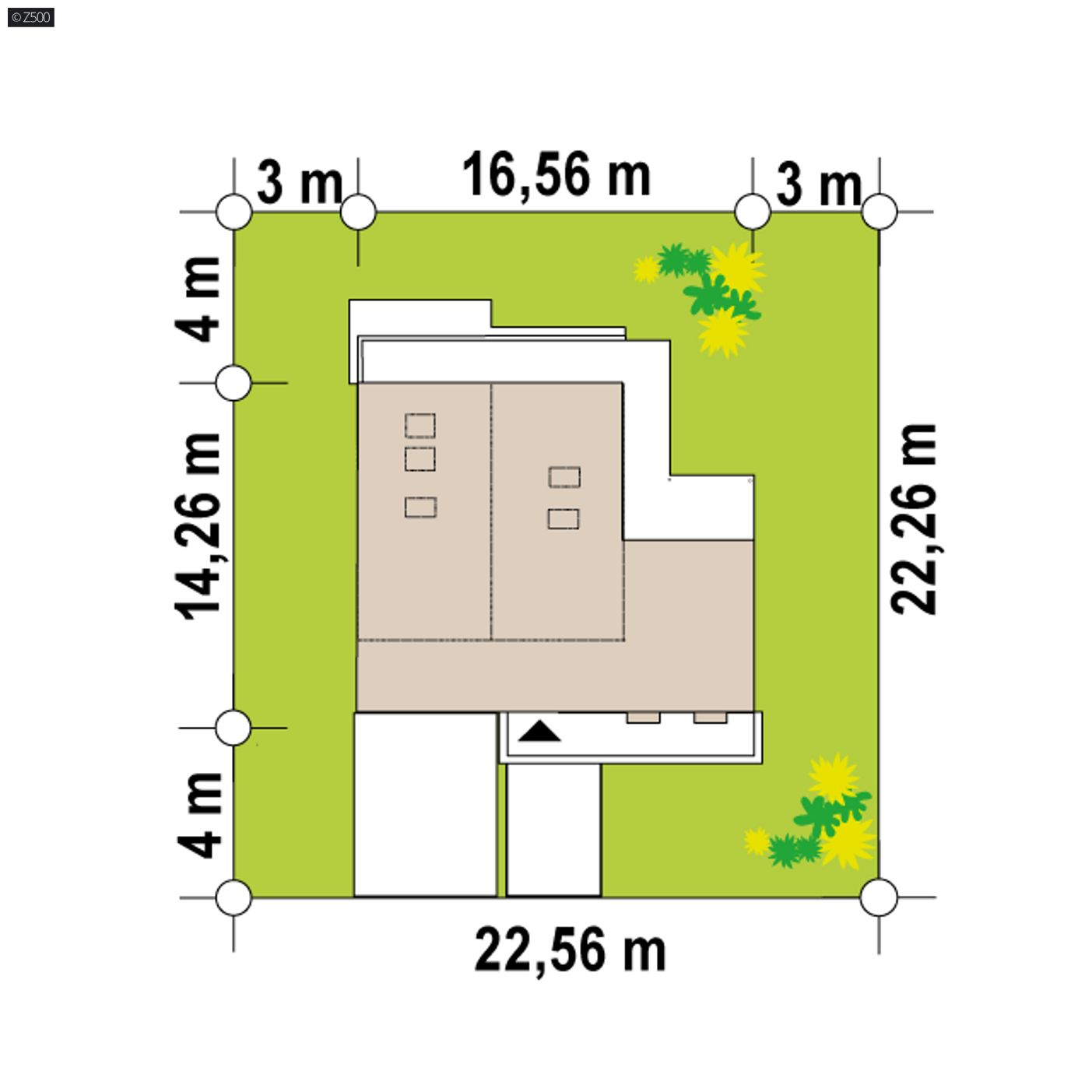

Lot
Minimal plot
Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
width
22,56 ft
length
22,26 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
16,56 ft
IF YOU HAVE ANY QUESTIONS CALL US
(718) 810-5358
Mon - Fri: 8:00 - 19:00
Additional informations about the project and order
Produkty marki Z500™ objęte są prawami autorskimi zgodnie z ustawą o prawie autorskim i prawach pokrewnych (tj. Dz.U. 2017 poz. 880) zastrzega prawa autorskie i zakazuje wykorzystywania tego produktu do celów handlowych, reklamy oraz wprowadzania w nim zmian ponad wymienione w projekcie bez wiedzy i zgody podmiotu reprezentującego. Nabycie oryginalnego projektu obejmuje prawo zastosowania go do budowy tylko jednego domu wyłącznie na terytorium Rzeczypospolite Polskiej. Reprezentantem marki Z500™ w Polsce jest podmiot Z500 Sp.z o.o.
Z463
150 + 31 ft²
brick
$1 640
adaptation and changes to the project
Do you want to build a house based on this project but you need to make some changes?
Use our Adaptation Studio services:
- free evaluation of changes and adaptations
- over 100 proven architects throughout Poland
- the best price offer for changes and adaptations
