    Adaptation Project
    ask about the project
    WT2017wybierz
    WT2021wybierz (+500zł)
    Ważne! Przeczytaj, zanim wybierzesz: zmiana warunków technicznych.
    Home project Z445 D

    Z445 D mirror image

    concept
    concept
    project's availability 3 work days
    $3 100
    concept
    concept
    project's availability 3 work days
    mirror image
    $3 100
    Home project Z445 D
    Home project Z445 D
    Home project Z445 D
    Home project Z445 D

    IF YOU HAVE ANY QUESTIONS CALL US

    (718) 810-5358

    Mon - Fri: 8:00 - 19:00

    ask about the project
    Home project  - Dom z antresolą, zadaszonym tarasem, główną sypialnią i przestronnym salonem

    Ground 742,9 / 814,4 ft²

    Sień
    68,2 ft²
    Pomieszczenie gospodarcze
    72,7 ft²
    Łazienka
    66,2 ft²
    Spiżarka
    49,2 ft²
    Hol
    53,0 ft²
    Kuchnia
    114,7 ft²
    Salon+jadalnia
    363,2 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - Dom z antresolą, zadaszonym tarasem, główną sypialnią i przestronnym salonem

    Garret 632,5 / 891,8 ft²

    Hol
    113,2 ft²
    Łazienka
    137,9 ft²
    Schowek
     ft² / 47,4 ft²
    Pokój
    134,0 ft² / 150,2 ft²
    Pokój
    133,8 ft² / 149,9 ft²
    Pokój
    164,7 ft² / 184,5 ft²
    Łazienka
    45,2 ft²
    Garderoba
    29,0 ft² / 38,3 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - Dom z antresolą, zadaszonym tarasem, główną sypialnią i przestronnym salonem

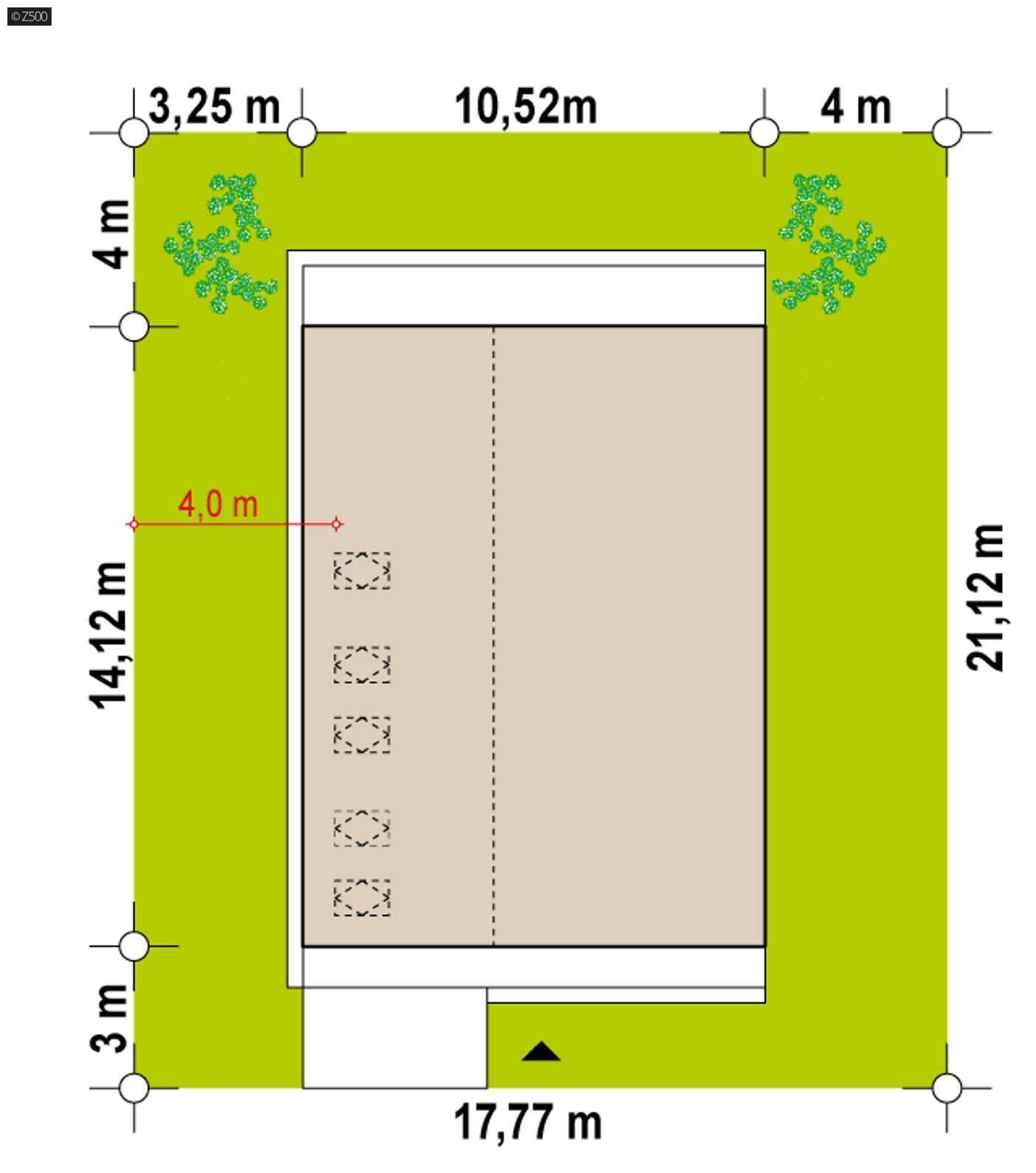

    Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
    Minimal plot

    width
    58,3 ft
    length
    69,29 ft
    Dimensions of the front elevation
    Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
    34,51 ft

    Area and dimensions

    Usable / net area
    1375,4 / 1706,2 ft²
    Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
    Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
    Living area
    1598,9 ft²
    Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
    Cubic
    15 484,4 ft³
    Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
    The height of the house
    27,43 ft
    The height of the house - height from ground level to the ridge or attic.
    The angle of inclination of the roof
    35° / 40°
    The angle of inclination of the roof - the angle of the roof to the ground.
    Roof area
    1 940,84 ft²
    Roof area - total roof area with the exception of roof windows.
    The height of a dwarf wall
    2,53 ft
    The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
    Minimal plot
    58,3 x 69,29 ft


    Technology and construction

    Walls
    timber frame
    Ceiling (ground floor)
    wooden
    Roof
    plate, Metal tile, tile
    technology
    wooden

    Thermal insulation

    heating system
    solid fuel, ERV
    heating system - Type of heating provided for the project
