    Home project Z351 D

    Z351 D mirror image

    wooden
    wooden
    project's availability 3 work days
    $3 970
    wooden
    wooden
    project's availability 3 work days
    mirror image
    $3 970
    Home project Z351 D
    Home project Z351 D
    Home project Z351 D
    Home project Z351 D
    Home project Z351 D
    Home project Z351 D
    Home project Z351 D
    Home project Z351 D

    IF YOU HAVE ANY QUESTIONS CALL US

    (718) 810-5358

    Mon - Fri: 8:00 - 19:00

    ask about the project
    Home project  - wersja w technologii drewnianej

    Ground 1080,9 / 1137,2 ft²

    Sień
    38,6 ft²
    Kuchnia+jadalnia
    146,0 ft²
    Salon
    221,4 ft²
    Hol+schody
    115,2 ft²
    Łazienka
    74,5 ft²
    Pomieszczenie gospodarcze
    56,3 ft²
    Sień
    38,6 ft²
    Kuchnia+jadalnia
    135,8 ft²
    Salon
    203,2 ft²
    Hol+schody
    86,9 ft²
    WC
    20,7 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - wersja w technologii drewnianej

    Garret 879,2 / 1094,3 ft²

    Hol
    95,7 ft²
    Garderoba
    38,0 ft² / 50,5 ft²
    Pokój
    126,4 ft² / 164,4 ft²
    Pokój
    118,5 ft² / 145,6 ft²
    Pokój
    82,7 ft² / 113,8 ft²
    Łazienka
    50,9 ft² / 70,1 ft²
    Hol
    31,8 ft²
    Schowek
    22,2 ft²
    Pokój
    121,6 ft² / 157,8 ft²
    Pokój
    151,3 ft² / 187,5 ft²
    Łazienka
    40,2 ft² / 55,0 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - wersja w technologii drewnianej

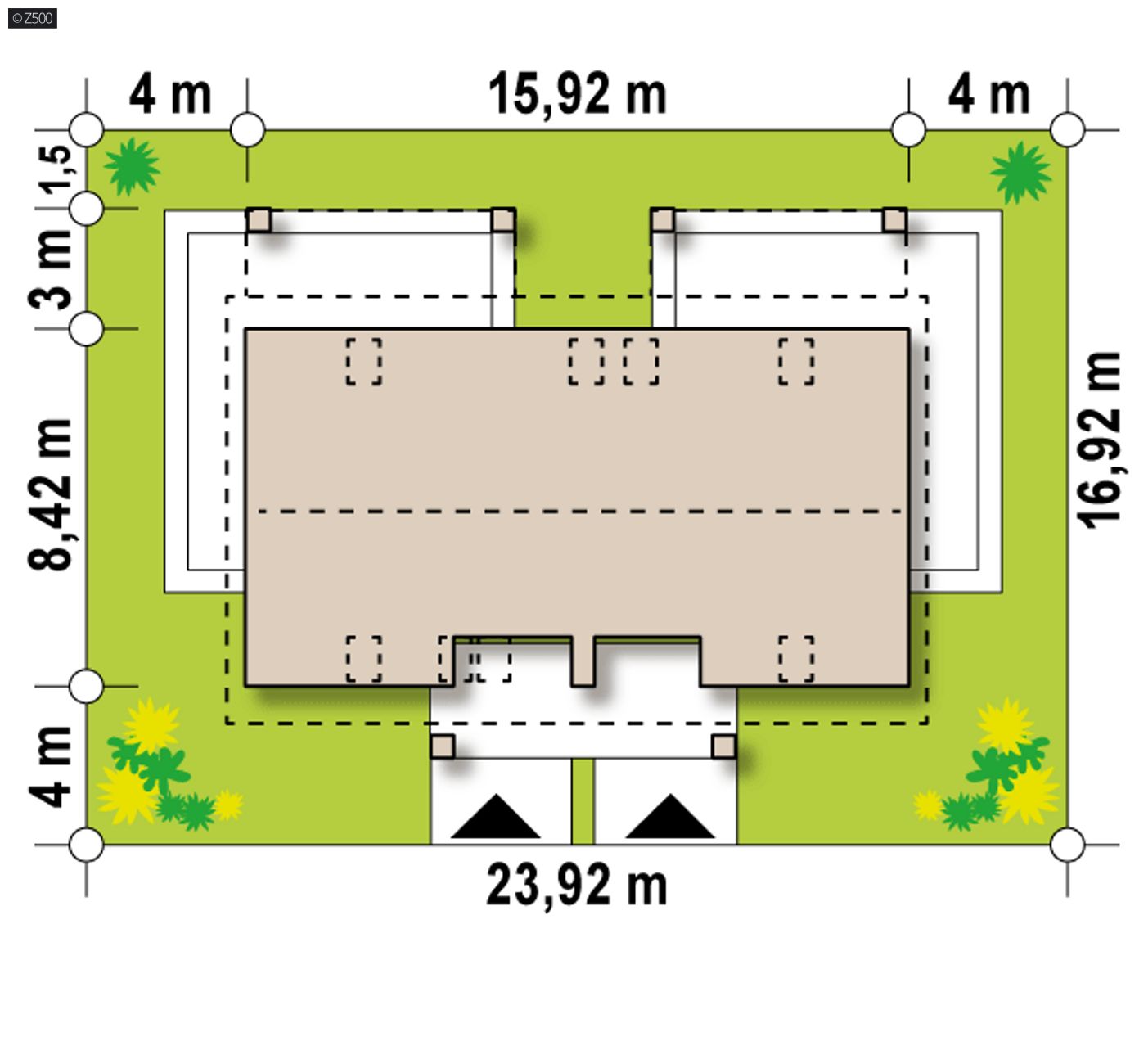

    Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
    Minimal plot

    width
    78,48 ft
    length
    55,51 ft
    Dimensions of the front elevation
    Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
    52,23 ft

    Area and dimensions

    Usable / net area
    1960,1 / 2231,5 ft²
    Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
    Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
    Living area
    1442,9 ft²
    Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
    Cubic
    18 557,2 ft³
    Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
    The height of the house
    27,69 ft
    The height of the house - height from ground level to the ridge or attic.
    The angle of inclination of the roof
    42°
    The angle of inclination of the roof - the angle of the roof to the ground.
    Roof area
    2 505,84 ft²
    Roof area - total roof area with the exception of roof windows.
    The height of a dwarf wall
    3,54 ft
    The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
    Minimal plot
    78,48 x 55,51 ft


    Technology and construction

    Walls
    timber frame
    Ceiling (ground floor)
    wooden
    Roof
    plate, Metal tile, tile
    technology
    wooden

    Thermal insulation

    heating system
    gas, ERV
    heating system - Type of heating provided for the project
    Primary energy (Ep)
    83 kWh/ft²/year
    Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
    Final energy (Ek)
    60,1 kWh/ft²/year
    Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.

    360-degrees animation

    adaptation and changes to the project
