    Home project Z195 GF2 HB

    Z195 GF2 HB mirror image

    H-BLOCK
    NEW!
    H-BLOCK
    NEW!
    mirror image

    IF YOU HAVE ANY QUESTIONS CALL US

    (718) 810-5358

    Mon - Fri: 8:00 - 19:00

    ask about the project
    Home project  - Wersja z garażem dwustanowiskowym

    Ground 1579,8 / 2074,2 ft²

    Sień
    47,7 ft²
    Hol
    85,4 ft²
    Pomieszczenie gospodarcze
    100,1 ft²
    Gabinet
    109,4 ft²
    Łazienka
    32,5 ft²
    Łazienka
    90,2 ft²
    Pokój
    160,0 ft²
    Pokój
    163,4 ft²
    Pokój
    171,5 ft²
    Hol
    98,7 ft²
    Salon+jadalnia
    494,7 ft²
    Kuchnia
    103,0 ft²
    Spiżarka
    23,5 ft²
    Garaż
    394,3 ft²
    mirror
    Draw
    Click or touch on the image on the left to start the measure.
    Draw sketch on image and click save icon.
    Sketch has been sent.
    Home project  - Wersja z garażem dwustanowiskowym

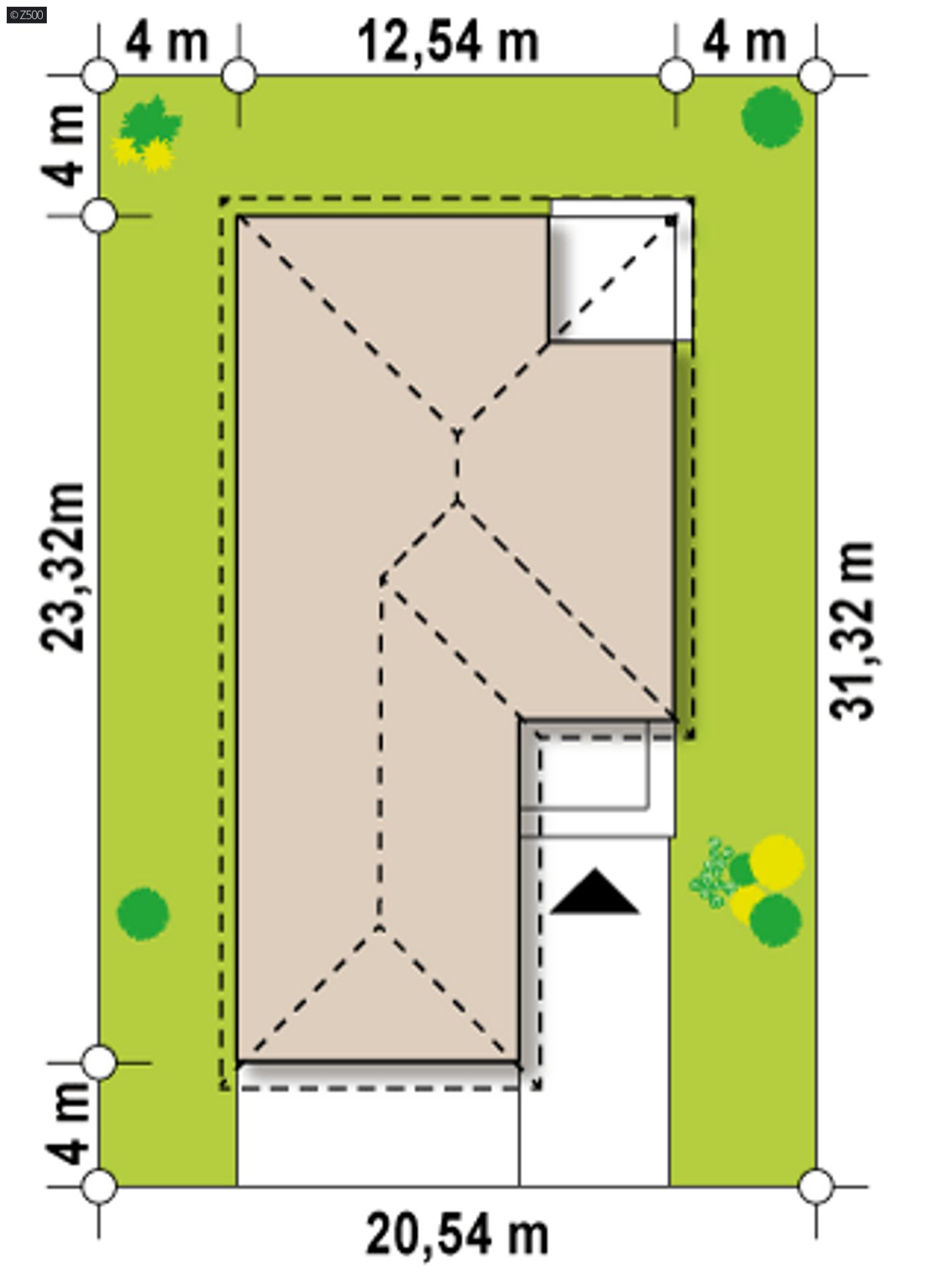

    Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
    Minimal plot

    width
    102,76 ft
    length
    67,39 ft
    Dimensions of the front elevation
    Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
    76,51 ft

    Area and dimensions

    Usable / net area
    1579,8 / 2074,2 ft²
    Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
    Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
    Living area
    2488,6 ft²
    Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
    Garage area
    394,3 ft²
    Cubic
    18 033,1 ft³
    Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
    The height of the house
    24,84 ft
    The height of the house - height from ground level to the ridge or attic.
    The angle of inclination of the roof
    30°
    The angle of inclination of the roof - the angle of the roof to the ground.
    Roof area
    3 509,03 ft²
    Roof area - total roof area with the exception of roof windows.
    The height of a dwarf wall
    1,87 ft
    The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
    Minimal plot
    102,76 x 67,39 ft


    Technology and construction

    Walls
    H-BLOCK
    Ceiling (ground floor)
    H-BLOCK
    Roof
    Metal tile, tile
    technology
    H-BLOCK

    Thermal insulation

    heating system
    heat pump, ERV, floor heating
    heating system - Type of heating provided for the project
