Home project Zx46

Zx46 mirror image

brick
brick
project's availability 3 work days
$5 170
brick
brick
project's availability 3 work days
mirror image
$5 170
Home project Zx46
Home project Zx46
Home project Zx46
Home project Zx46
Home project Zx46
Home project Zx46

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Komfortowa rezydencja, nowoczesny design, optymalnie zaaranżowane wnętrze, z garażem.

Ground 1255,9 / 1546,7 ft²

Sień
49,7 ft²
Garderoba
50,6 ft²
Hol+schody
105,3 ft²
WC
15,8 ft²
Salon+jadalnia
349,5 ft²
Kuchnia
102,0 ft²
Spiżarka
26,9 ft²
Pom. gosp.
59,0 ft²
Pralnia
36,5 ft²
Pokój
232,7 ft²
Garderoba
60,1 ft²
Łazienka
78,8 ft²
Garaż+pom. gosp.
290,7 ft²
Hol
89,0 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Komfortowa rezydencja, nowoczesny design, optymalnie zaaranżowane wnętrze, z garażem.

Floor 732,9 ft²

Hol
97,0 ft²
Pokój
292,6 ft²
Garderoba
50,7 ft²
Łazienka
70,5 ft²
Pokój
222,2 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Komfortowa rezydencja, nowoczesny design, optymalnie zaaranżowane wnętrze, z garażem.

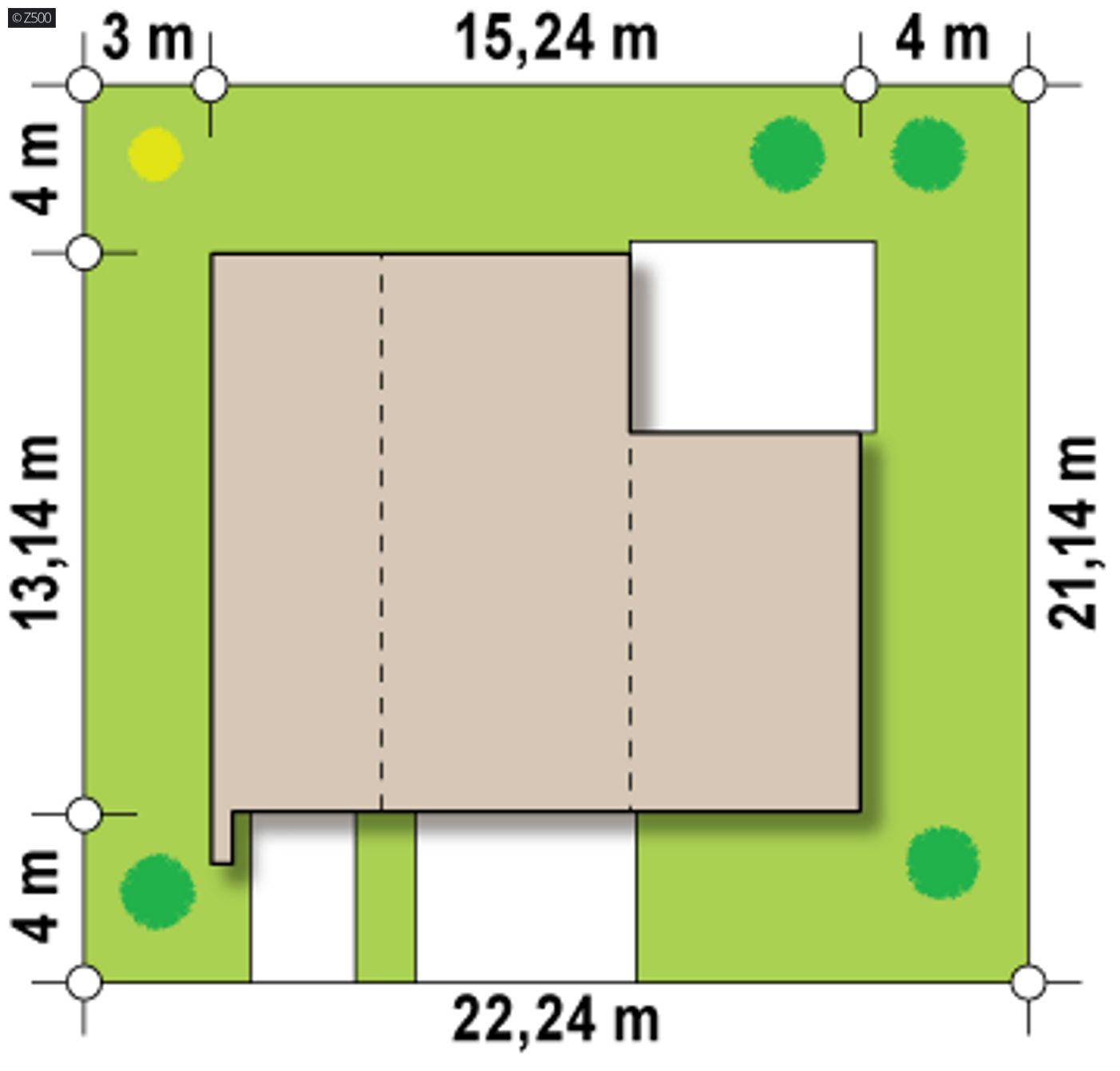

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
73,29 ft
length
72,97 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
50 ft

Area and dimensions

Usable / net area
1988,9 / 2279,6 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2097,4 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
290,7 ft²
Cubic
19 778,7 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
23,29 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 287,58 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
73,29 x 72,97 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
reinforced concrete
Roof
plate, bituminous
technology
brick

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
92,79 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
78,5 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.

360-degrees animation

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
