Home project Zx143

Zx143 mirror image

brick
concept
project's availability 27 work days
$5 070
brick
concept
project's availability 27 work days
mirror image
$5 070
Home project Zx143
Home project Zx143
Home project Zx143
Home project Zx143

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Dom jednorodzinny z pełnym piętrem i garażem dwustanowiskowym.

Basement 135,1 / 526,3 ft²

Garaż
391,2 ft²
Hol+schody
100,5 ft²
Sień
34,6 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Dom jednorodzinny z pełnym piętrem i garażem dwustanowiskowym.

Ground 1271,2 ft²

Sień
53,4 ft²
Hol+schody
191,9 ft²
Pom. gosp.
117,2 ft²
Łazienka
113,3 ft²
Pokój kinowy
180,7 ft²
Salon+jadalnia
472,1 ft²
Kuchnia
108,5 ft²
Spiżarka
34,0 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Dom jednorodzinny z pełnym piętrem i garażem dwustanowiskowym.

Floor 784,8 ft²

Hol
135,4 ft²
Pokój
138,8 ft²
Garderoba
26,5 ft²
Pokój
138,6 ft²
Garderoba
26,5 ft²
Pokój
171,4 ft²
Garderoba
34,1 ft²
Łazienka
27,0 ft²
Łazienka
86,5 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Dom jednorodzinny z pełnym piętrem i garażem dwustanowiskowym.

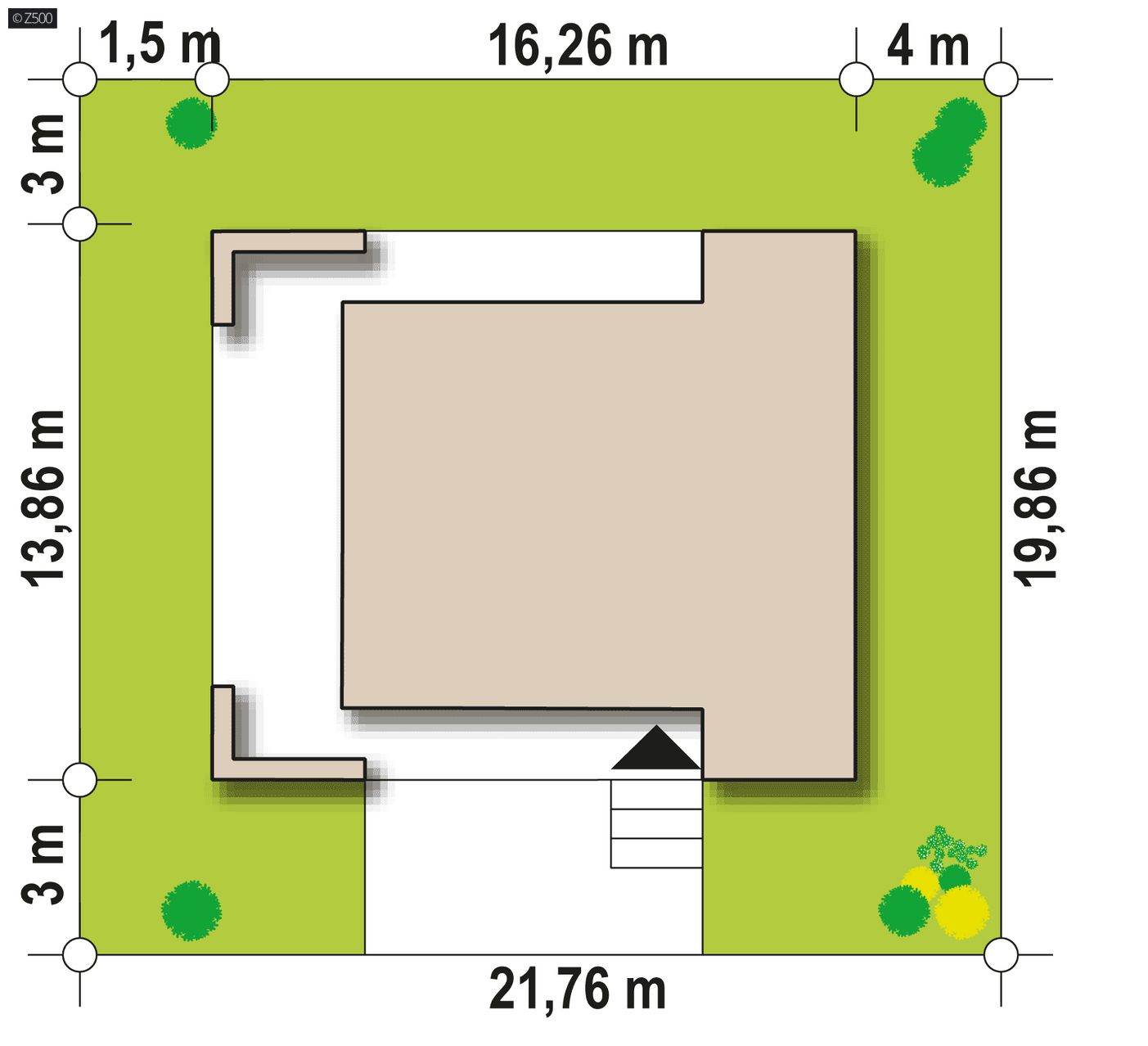

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
71,39 ft
length
65,16 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
53,35 ft

Area and dimensions

Usable / net area
2191,1 / 2582,3 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2425,8 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
391,2 ft²
Cubic
18 249,9 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
23,62 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
1° / 0,86°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 776,05 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
71,39 x 65,16 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
reinforced concrete
Roof
bituminous
technology
brick

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project
