Home project Z59

Z59 mirror image

brick
brick
brick
brick
mirror image
Home project Z59
Home project Z59

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Rezydencja z wygodnym wnętrzem, wysoką ścianką kolankową i garażem na dwa auta.

Ground 1586,8 / 2052,1 ft²

Sień
46,1 ft²
Hol+schody
231,3 ft²
Salon+jadalnia
598,2 ft²
Gabinet
120,8 ft²
Pokój
115,4 ft²
Kuchnia
196,1 ft²
Spiżarka
45,8 ft²
Pom. gosp.
143,7 ft²
WC
41,3 ft²
Garaż
465,3 ft²
Garderoba
48,2 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Rezydencja z wygodnym wnętrzem, wysoką ścianką kolankową i garażem na dwa auta.

Garret 1500,3 / 1791,1 ft²

Hol
236,8 ft²
Pokój
234,0 ft²
Pokój
185,5 ft²
Pokój
184,7 ft²
Łazienka
64,8 ft²
Łazienka
119,7 ft²
Strych
407,5 ft²
Hol
67,3 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Rezydencja z wygodnym wnętrzem, wysoką ścianką kolankową i garażem na dwa auta.

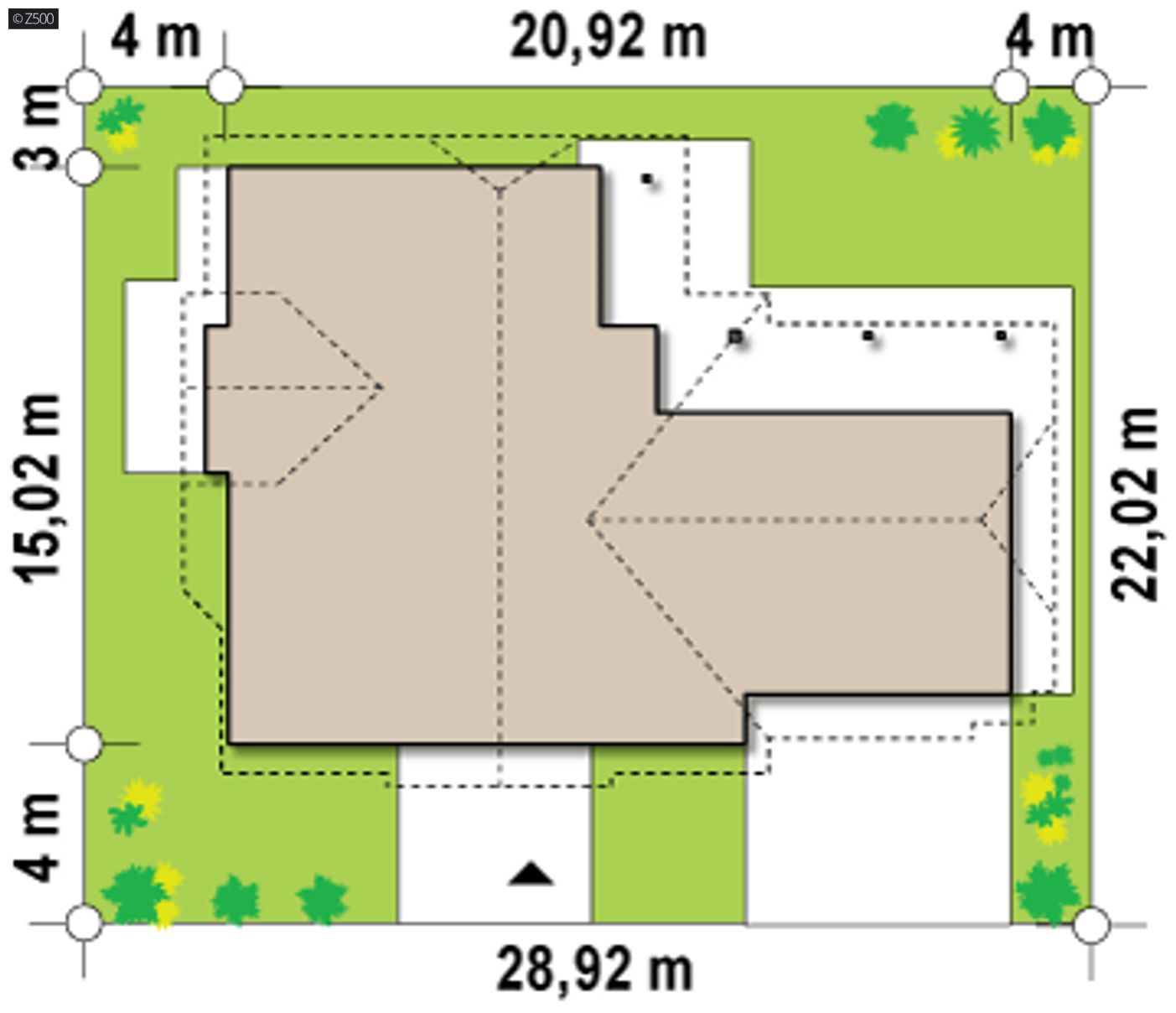

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
91,6 ft
length
72,24 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
68,64 ft

Area and dimensions

Usable / net area
3087,1 / 3843,3 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2527,3 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
465,3 ft²
Cubic
33 050,6 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
29,49 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
40° / 35°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
4 530,75 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
91,6 x 72,24 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
beam and block
Roof
Metal tile, tile
technology
brick

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
114,5 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
105,5 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
