Z241 GP2
92 + 30 ft²
Variants: 5
Comments: 2
$1 360
IF YOU HAVE ANY QUESTIONS CALL US
Usable / net area
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
91,8
/ 131,0
ft²
Living area
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
165,2 ft²
Garage area
29,7 ft²
Cubic
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
371,82 ft³
The height of the house
The height of the house - height from ground level to the ridge or attic.
6,68 ft
The angle of inclination of the roof
The angle of inclination of the roof
- the angle of the roof to the ground.
30°
Roof area
Roof area - total roof area with the exception of roof windows.
236,86 ft²
The height of a dwarf wall
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
0,76 ft
Minimal plot
27,46
x
16,46 ft
Ceiling (ground floor)
trusses
Roofing
tile
technology
brick
Roof construction
prefabricated trusses
heating system
heating system - Type of heating provided for the project
gas
Hot water installation
gas, solars
Ventilation type
mechaniczna
Primary energy (Ep)
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
59,04 kWh/ft²/year
Final energy (Ek)
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
62,1 kWh/ft²/year
Ground 91,8 / 131,0 ft²
Drawmirror image
Click or touch on the image on the left to start the measure.
148,8 ft²
Hall
4,0 ft²
Hol
9,3 ft²
22,4 ft²
47,2 ft²
WC
1,6 ft²
Pantry
3,9 ft²
53,6 ft²
Kitchen
7,1 ft²
17,2 ft²
Salon
23,0 ft²
58,8 ft²
Room
13,7 ft²
40,9 ft²
Room
11,3 ft²
327,1 ft²
Bathroom
5,4 ft²
115,0 ft²
123,3 ft²
Room
10,6 ft²
424,9 ft²
Hall
2,0 ft²
43,4 ft²
Garage
29,7 ft²
Utility room
9,5 ft²
Lot

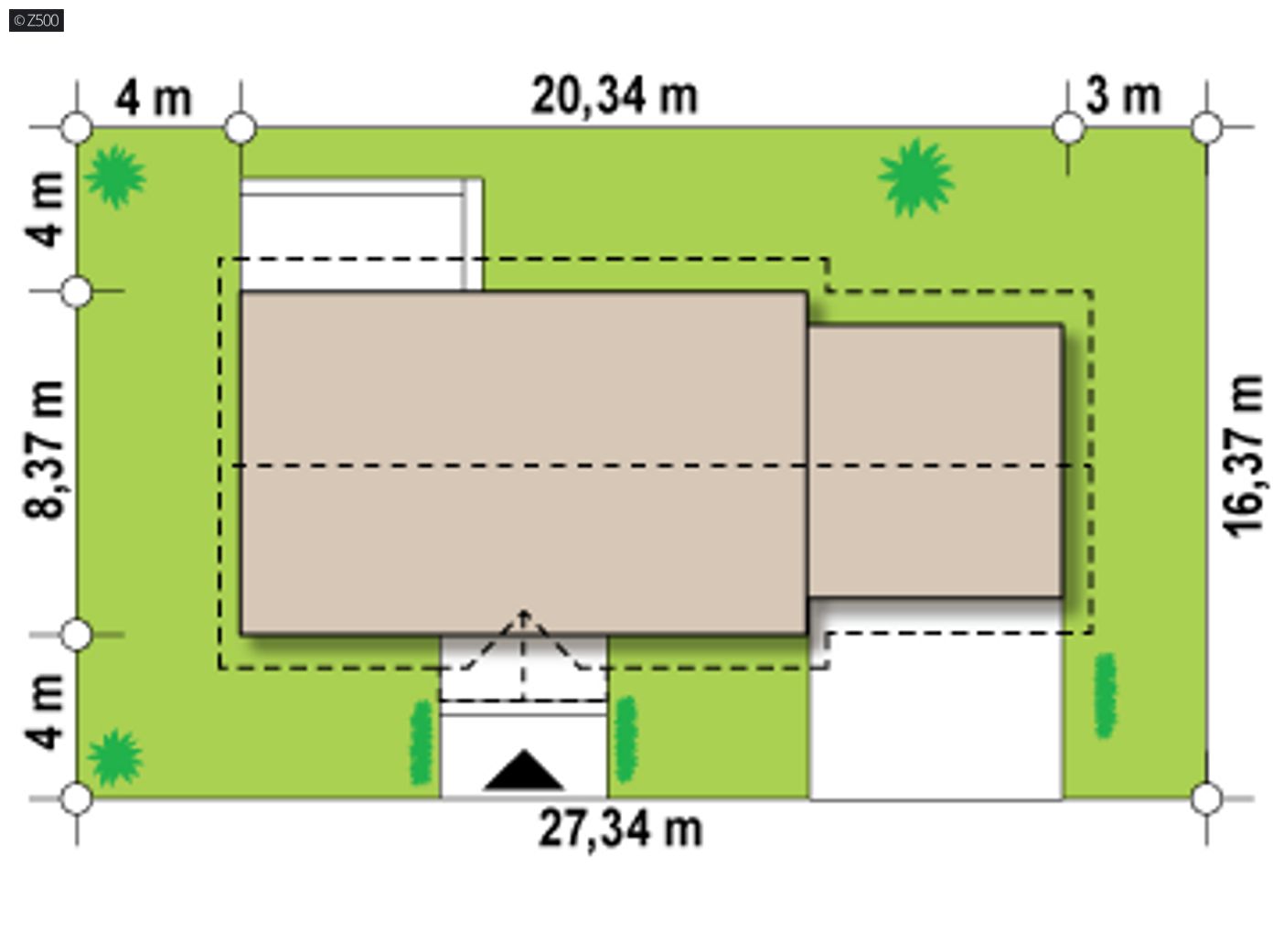

Minimal plot
Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
width
27,46 ft
length
16,46 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
20,46 ft
