Z142
187 + 40 ft²
Variants: 0
Comments: 32
IF YOU HAVE ANY QUESTIONS CALL US
Usable / net area
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
187,2
/ 246,8
ft²
Living area
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
170,0 ft²
Garage area
40,4 ft²
Cubic
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
631,4 ft³
The height of the house
The height of the house - height from ground level to the ridge or attic.
8,55 ft
The angle of inclination of the roof
The angle of inclination of the roof
- the angle of the roof to the ground.
40°
Roof area
Roof area - total roof area with the exception of roof windows.
214,4 ft²
The height of a dwarf wall
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
1,13 ft
Minimal plot
24,54
x
20,48 ft
Ceiling (ground floor)
beam and block
Roofing
Metal tile/tile
technology
brick
heating system
heating system - Type of heating provided for the project
gas
Hot water installation
gas
Ventilation type
mechaniczna
Ground 97,3 / 139,1 ft²
Drawmirror image
Click or touch on the image on the left to start the measure.
Hall
4,5 ft²
Pom. gosp.
4,7 ft²
Salon
31,3 ft²
Kitchen
15,6 ft²
/ 15,6 ft²
Closet
1,3 ft²
/ 2,8 ft²
Room
15,9 ft²
Bathroom
4,2 ft²
WC
3,3 ft²
/ 3,2 ft²
Pom. gosp.
3,2 ft²
Garage
40,4 ft²
145,0 ft²
/ 145,4 ft²
Attic 89,9 / 107,6 ft²
Drawmirror image
Click or touch on the image on the left to start the measure.
Hol
7,3 ft²
Room
19,4 ft²
/ 23,3 ft²
Room
20,0 ft²
/ 24,0 ft²
Garderoba
6,4 ft²
/ 8,4 ft²
Bathroom
17,9 ft²
/ 21,6 ft²
Room
19,0 ft²
/ 23,0 ft²

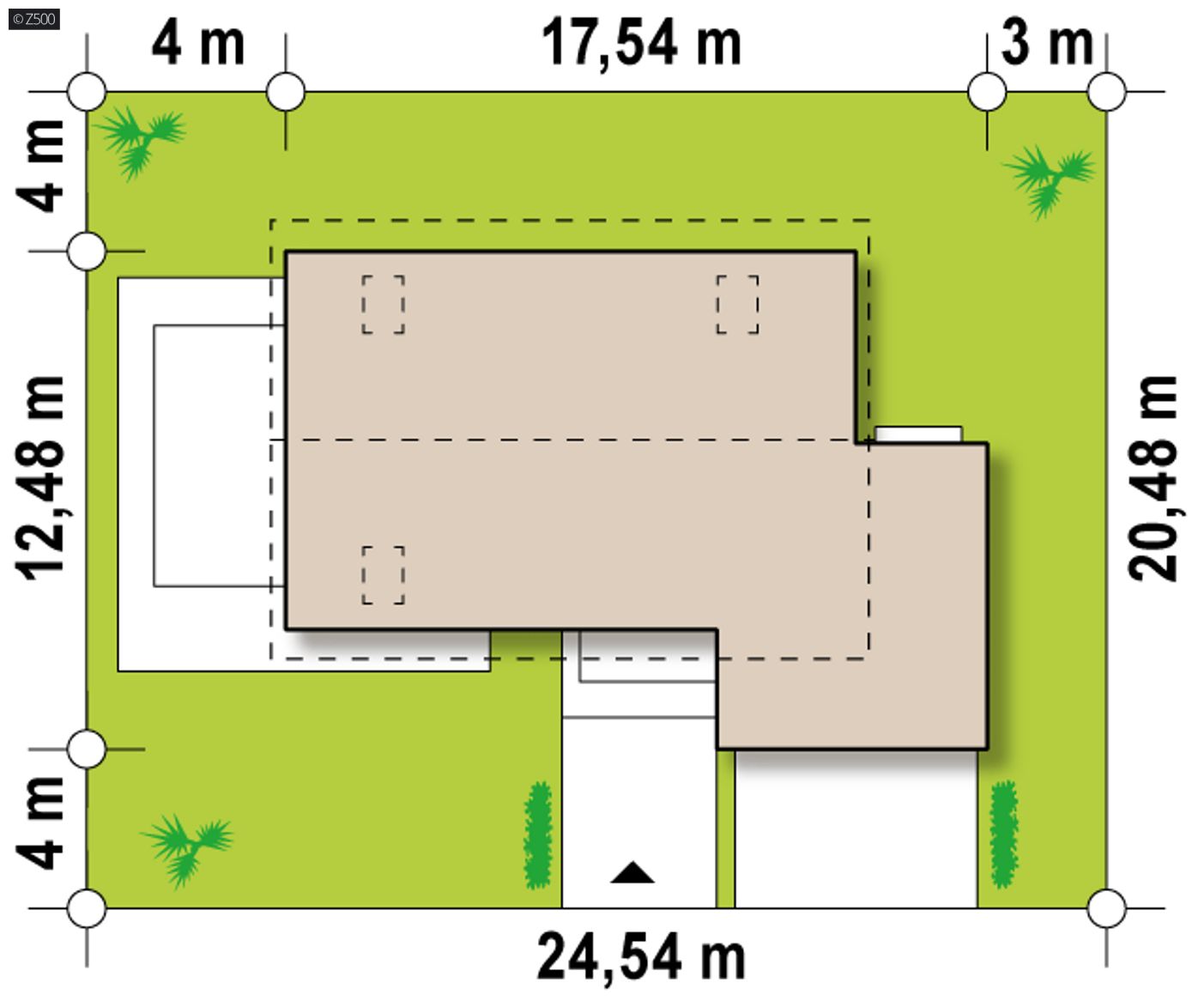

Lot
Minimal plot
Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
width
24,54 ft
length
20,48 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
17,54 ft
