Home project  - A modern 2-family house with glazing


A modern 2-family house with glazing
project's availability 18 work days

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - A modern 2-family house with glazing

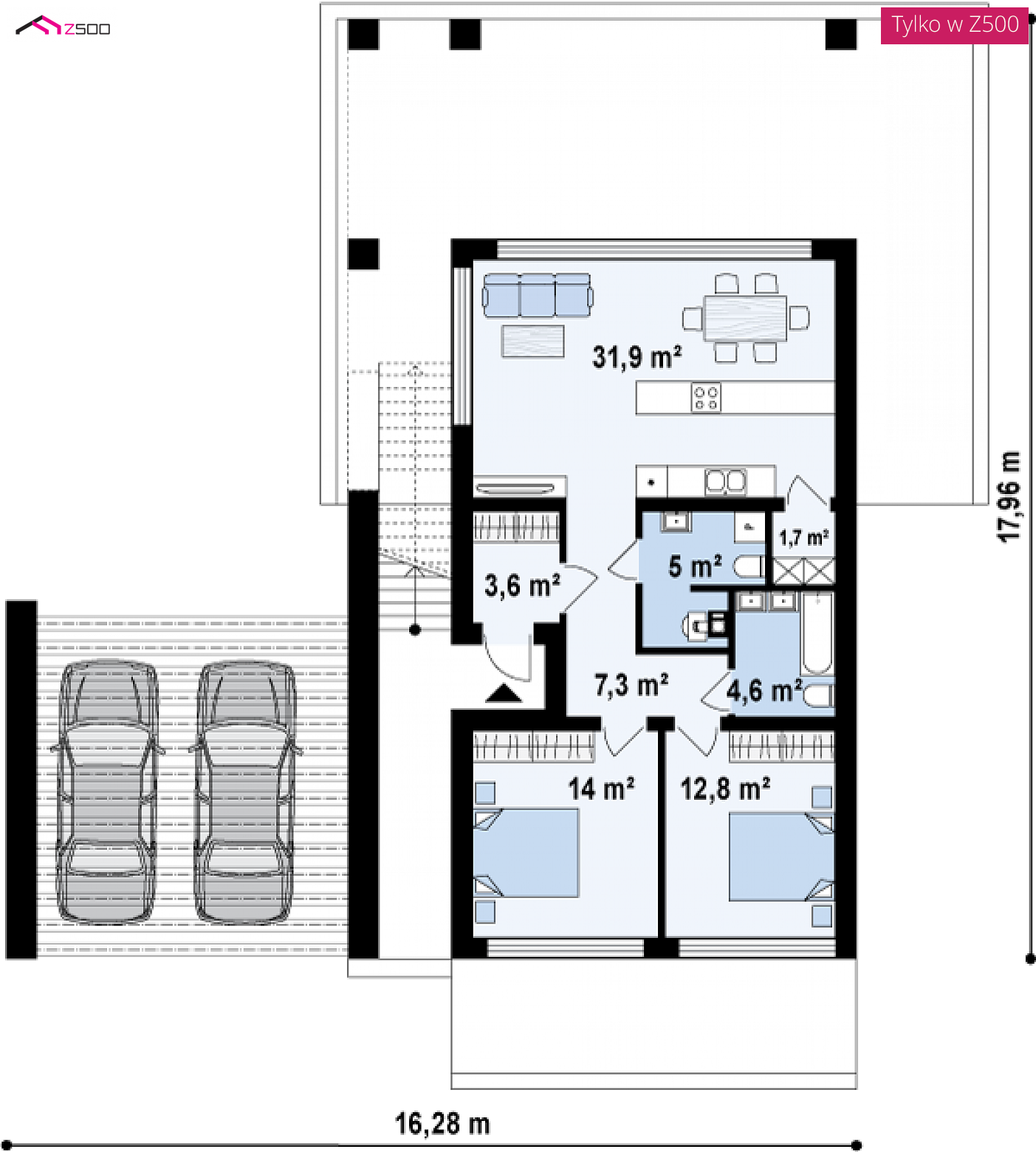

Ground 869,3 ft²

38,2 ft²
78,4 ft²
49,6 ft²
53,7 ft²
18,1 ft²
342,8 ft²
137,9 ft²
150,6 ft²
Click or touch on the image on the left to start the measure.
Home project  - A modern 2-family house with glazing

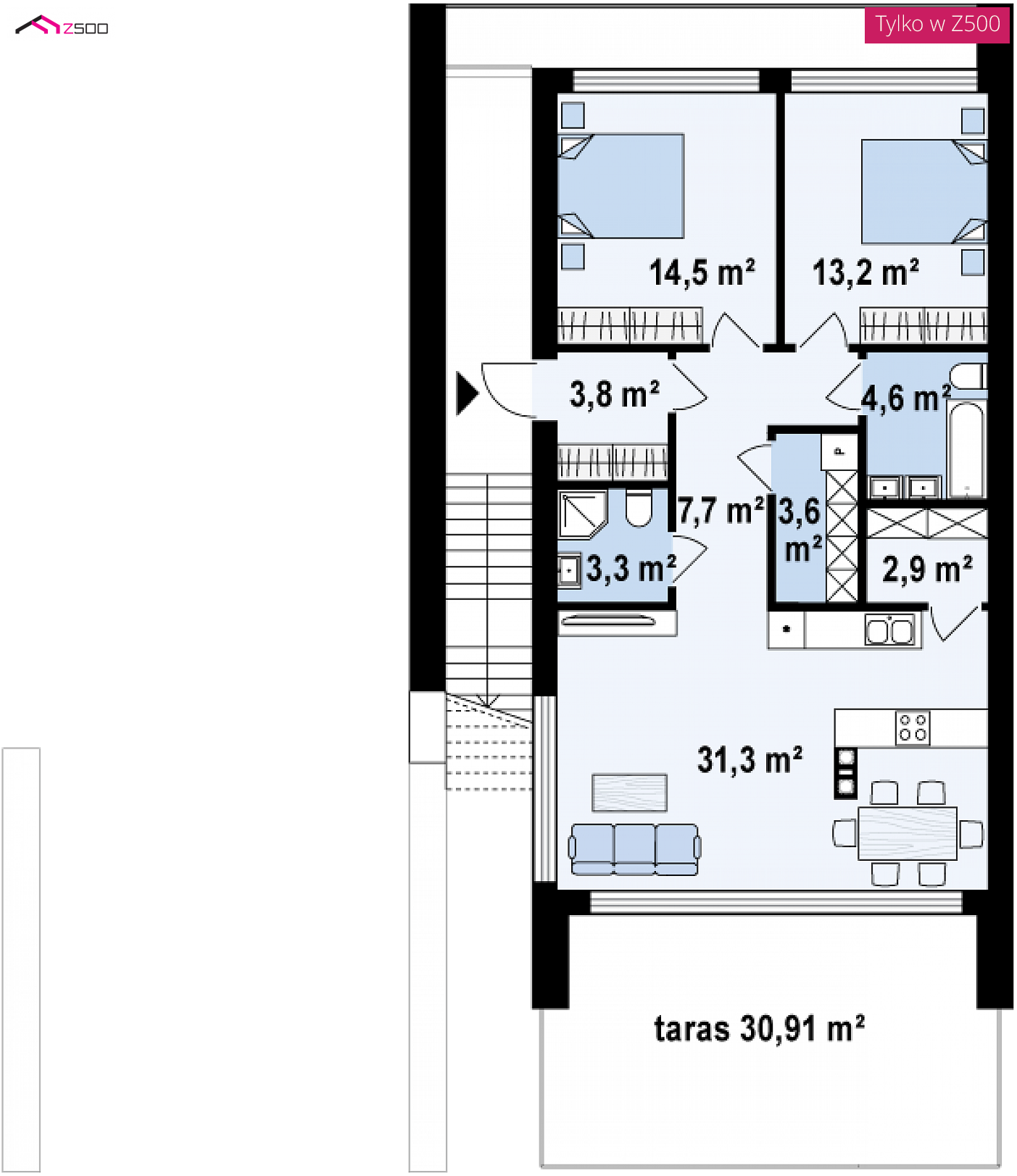

Floor 914,3 ft²

40,5 ft²
83,1 ft²
39,1 ft²
31,7 ft²
49,4 ft²
337,2 ft²
155,5 ft²
142,4 ft²
35,4 ft²
332,7 ft²
Click or touch on the image on the left to start the measure.
Home project  - A modern 2-family house with glazing

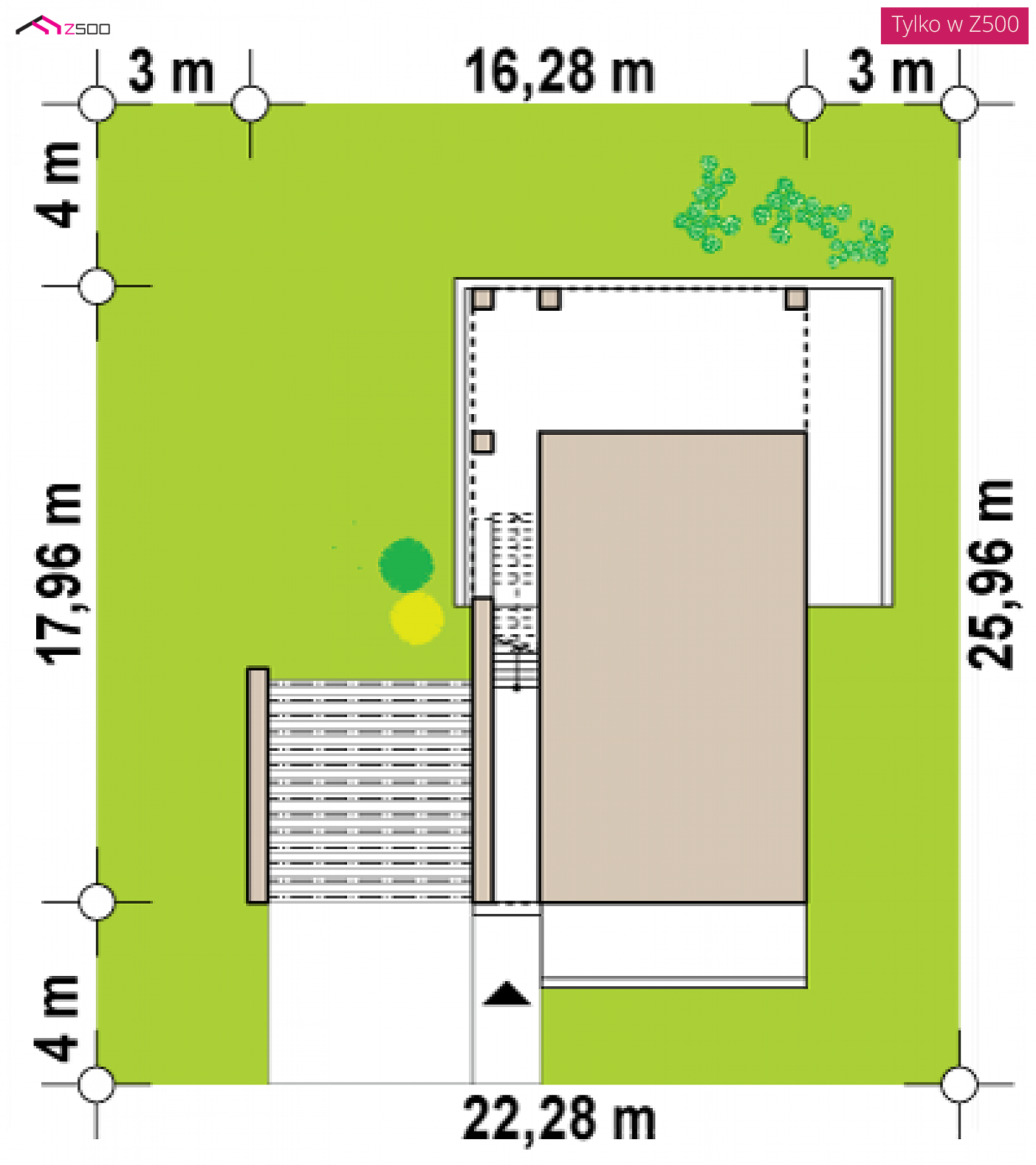

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

73,1 ft
85,17 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
53,41 ft

Area and dimensions

Usable / net
1783,6 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2364,4 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
17 554,9 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
23,79 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 535,36 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
73,1 x 85,17 ft

Technology and construction

aerated concrete, ceramics, silicates
beam and block, reinforced concrete

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
project's availability 18 work days

Zb31 to projekt domu dwulokalowego z osobnym wejściem (zewnętrznym) do każdego lokalu mieszkalnego. Niezwykłym atutem tego domu jest możliwość zbliźniaczenia oraz stworzenia domków szeregowych. Każdy lokal posiada intymną przestrzeń. Dzięki przesunięciu jednej kondygnacji, na parterze tworzy się zadaszenie, a na piętrze duży taras. Kolejną alternatywą jest także rezygnacja z wiaty i zaprojektowanie w tym miejscu garażu na dwa stanowiska.

Dom Zb31 będzie idealną alternatywą dla deweloperów, którzy chcą wybudować klimatyczne, eleganckie osiedle i wyróżnić się niestandardowymi rozwiązaniami. Domki mogą łączyć się zarówno wiatą jak i boczną elewacją. Ponadto, inwestor może zrezygnować z wiaty (tworząc miejsca parkingowe na działce).

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
