Home project Zb27 - Nowoczesny bliźniak 4-lokalowy z osobnymi wejściami

Zb27 mirror image

Nowoczesny bliźniak 4-lokalowy z osobnymi wejściami
brick
concept
brick
concept
mirror image
Home project Zb27 - Nowoczesny bliźniak 4-lokalowy z osobnymi wejściami
Home project Zb27 - Nowoczesny bliźniak 4-lokalowy z osobnymi wejściami
Home project Zb27 - Nowoczesny bliźniak 4-lokalowy z osobnymi wejściami
Home project Zb27 - Nowoczesny bliźniak 4-lokalowy z osobnymi wejściami

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project

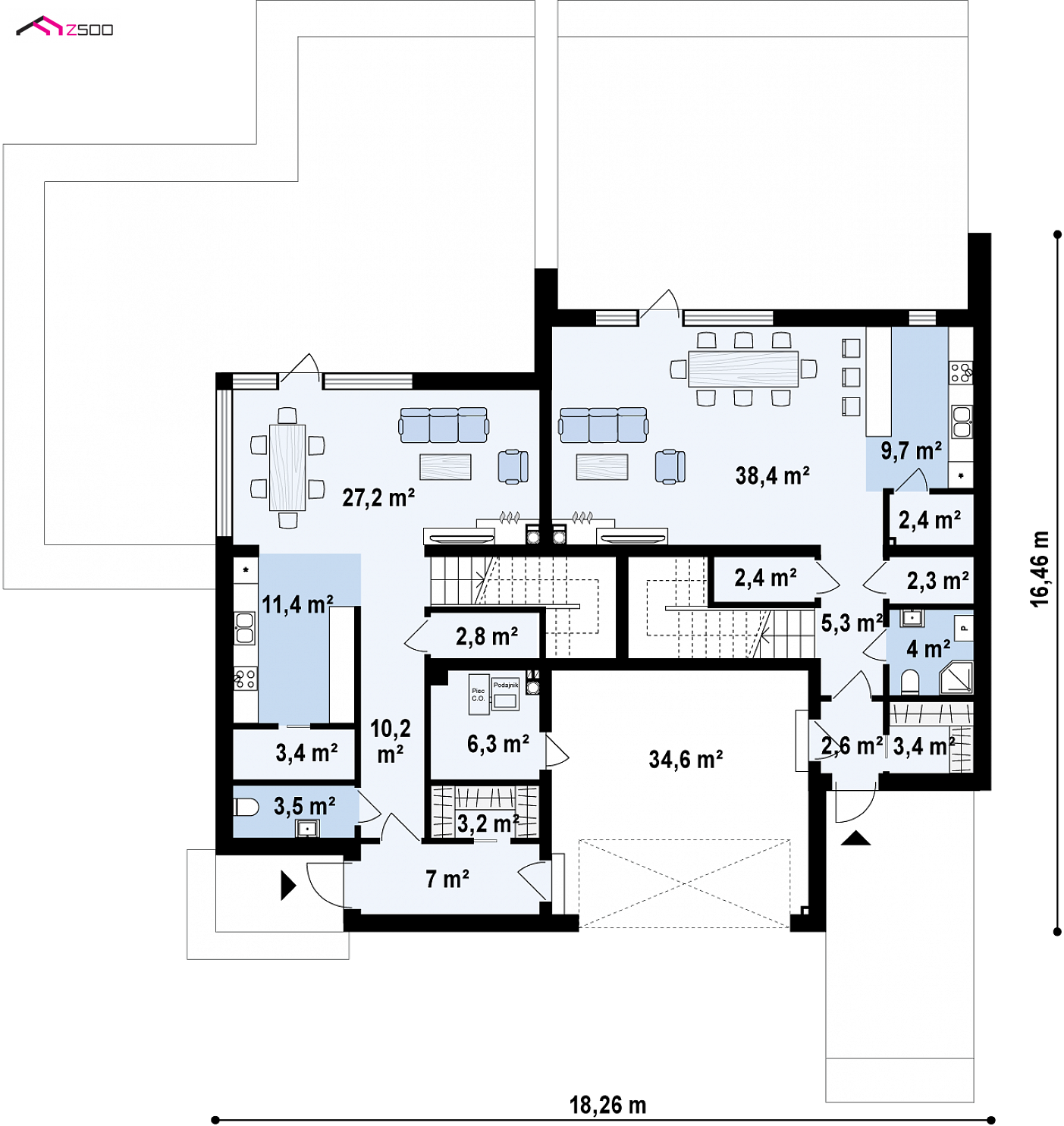

Home project  - Nowoczesny bliźniak 4-lokalowy z osobnymi wejściami

Ground 1496,8 / 1937,9 ft²

Sień
75,8 ft²
Garderoba
34,3 ft²
WC
37,9 ft²
Spiżarka
36,6 ft²
Kuchnia
123,1 ft²
Hol
109,6 ft²
Salon+jadalnia
292,7 ft²
Schowek
28,9 ft²
Pomieszczenie gospodarcze
68,2 ft²
Garaż
372,9 ft²
Sień
27,7 ft²
Garderoba
36,4 ft²
Hol
57,4 ft²
Łazienka
43,5 ft²
Schowek
24,3 ft²
Spiżarka
25,3 ft²
Kuchnia
104,1 ft²
Salon+jadalnia
413,3 ft²
Schowek
26,1 ft²
mirror
Click or touch on the image on the left to start the measure.

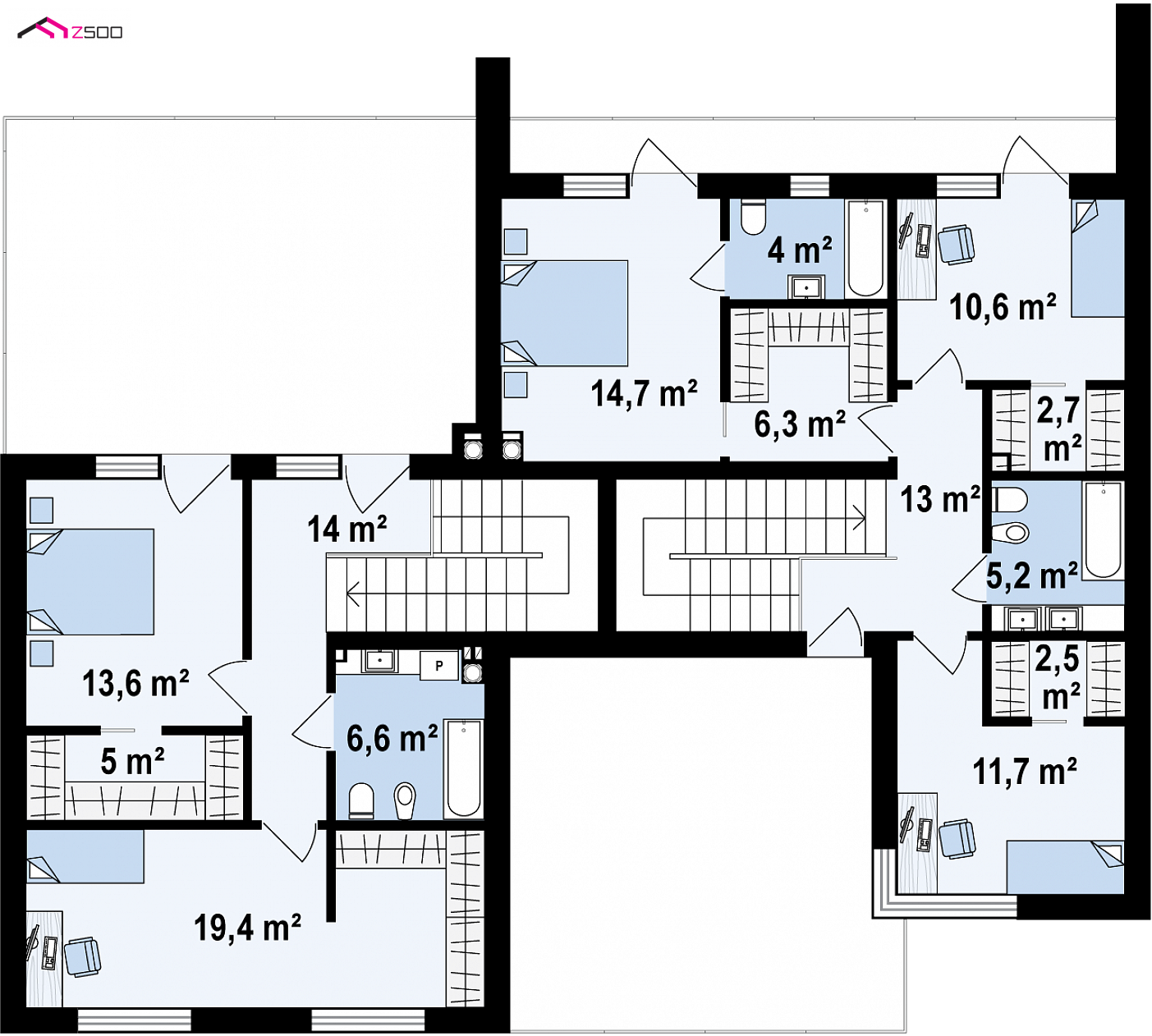

Home project  - Nowoczesny bliźniak 4-lokalowy z osobnymi wejściami

Floor 1386,3 ft²

Łazienka
89,1 ft²
Hol+schody
131,9 ft²
Pokój
149,6 ft²
Garderoba
54,8 ft²
Pokój
163,7 ft²
Garderoba
35,4 ft²
Hol+schody
140,4 ft²
Garderoba
27,3 ft²
Pokój
125,7 ft²
Garderoba
29,4 ft²
Pokój
113,7 ft²
Garderoba
67,9 ft²
Pokój
157,7 ft²
Łazienka
56,2 ft²
Łazienka
43,5 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Nowoczesny bliźniak 4-lokalowy z osobnymi wejściami

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
82,87 ft
length
73,69 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
59,91 ft

Area and dimensions

Usable / net
2883,1 / 3324,2 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2701,4 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
372,9 ft²
Cubic
32 492,3 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
24,61 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
2° / 6,7°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 460,99 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
82,87 x 73,69 ft


Technology and construction

Walls
aerated concrete, ceramics
Ceiling (ground floor)
reinforced concrete
Roof
bituminous
technology
brick

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
brick
concept

Zb27 to prawie 270 m2 piętrowego domu dwurodzinnego projektowanego z możliwością łączenia segmentów w zabudowę bliźniaczą lub zabudowę szeregową. Jeden segment domu przewiduje dwa oddzielne wejścia, co znacznie zwiększa komfort i prywatność obu rodzin. Jedyną częścią wspólną w projekcie jest garaż dwustanowiskowy z pomieszczeniem gospodarczym. Każda z rodzin ma własny ogród, parter ze strefą dzienną, pełne piętro ze strefą nocną oraz duży taras. Budynek przeznaczony jest dla rodziny 2+1 oraz 2+2.

Powierzchnia mieszkania 2+1:
parter - 68.64 m2
piętro - 58.02 m2

Powierzchnia mieszkania 2+2:
parter - 70.42 m2
piętro - 70.77 m2

Części wspólne:
garaż - 34.64 m2
pomieszczenie gospodarcze - 6.34 m2

Materiały wykorzystane na elewacjach to beton elewacyjny i tynk cienkowarstwowy z elementami boniowania. Dopełnieniem całości jest szklana balustrada umiejscowiona na tarasach.

Zb27 to bliźniak pełen szyku i elegancji, zaprojektowany dla najbardziej wymagających inwestorów zainteresowanych domami dwulokalowymi (w jednym segmencie).


ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
