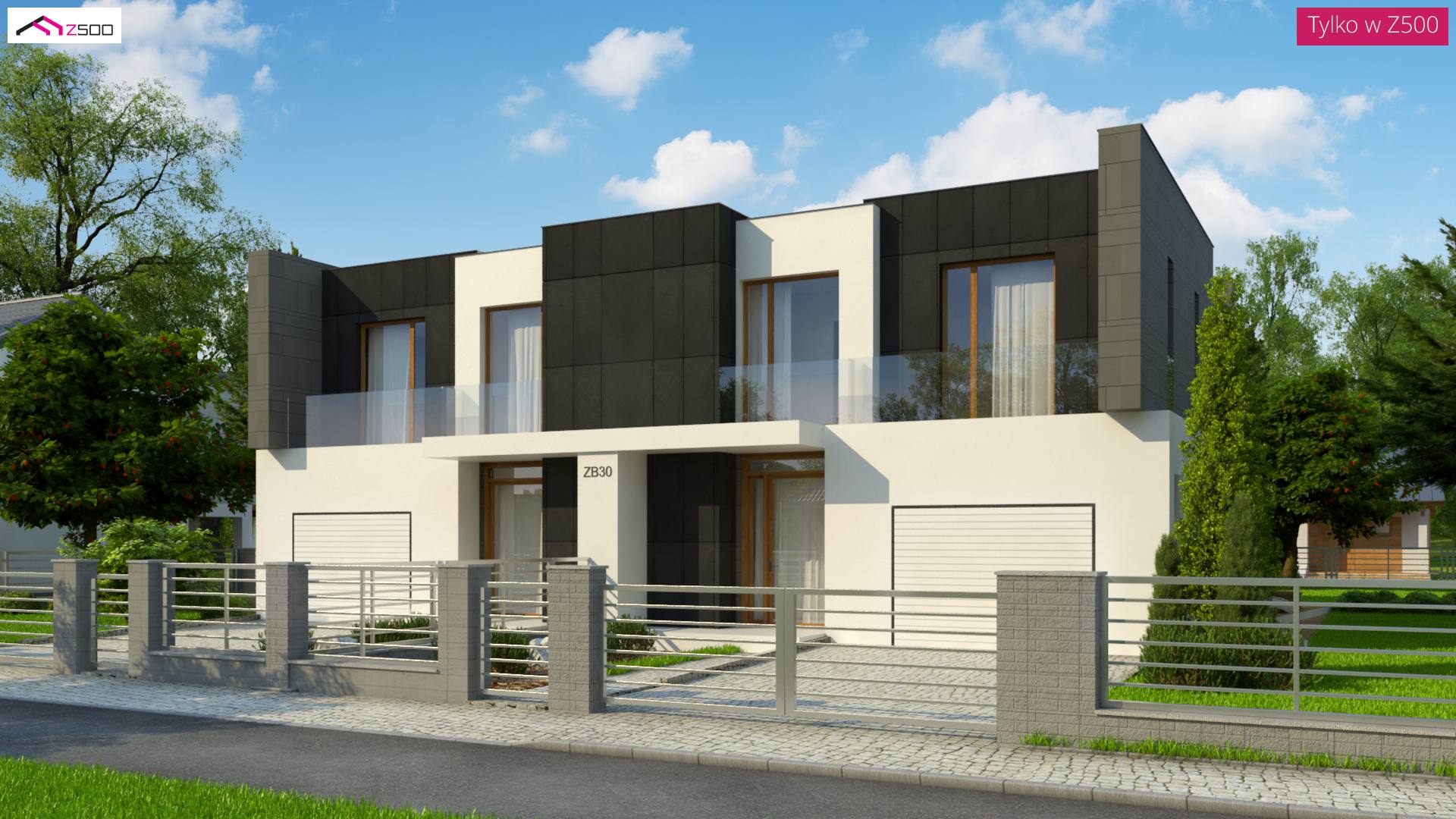

Home project Zb30

Zb30 mirror image

brick
concept
project's availability 3 work days
$3 070
(for the segment)
brick
concept
project's availability 3 work days
mirror image
$3 070
(for the segment)
Home project Zb30
Home project Zb30
Home project Zb30
Home project Zb30

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Piętrowy bliźniak z garażem jednostanowiskowym

Ground 545,2 / 841,7 ft²

Salon+kuchnia
331,9 ft²
Hol
86,1 ft²
WC
31,2 ft²
Sień
71,9 ft²
Pom. gosp.
64,6 ft²
Garaż
228,2 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Piętrowy bliźniak z garażem jednostanowiskowym

Floor 687,0 ft²

Pokój
130,9 ft²
Pokój
156,2 ft²
Pokój
144,5 ft²
Łazienka
76,4 ft²
Pralnia
87,5 ft²
Hol
105,5 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Piętrowy bliźniak z garażem jednostanowiskowym

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
51,38 ft
length
66,47 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
28,41 ft

Area and dimensions

Usable / net
1232,1 / 1528,7 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1092,5 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
228,2 ft²
Cubic
14 020,6 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
23,95 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
724,41 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
51,38 x 66,47 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
reinforced concrete
Roof
foil, bituminous
technology
brick

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project

360-degrees animation

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
