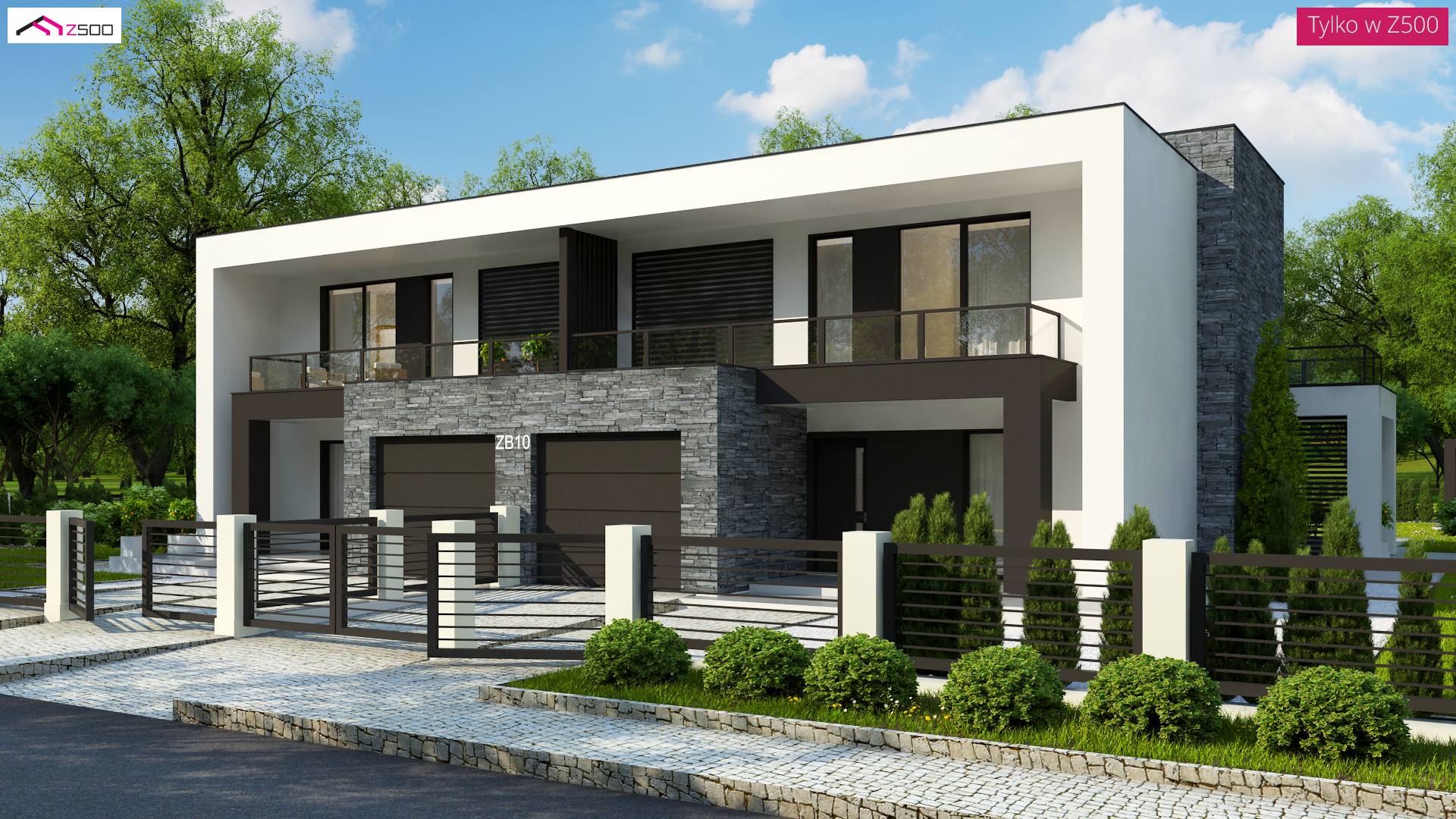

Home project Zb10

Zb10 mirror image

brick
concept
project's availability 3 work days
$3 170
(for the segment)
brick
concept
project's availability 3 work days
mirror image
$3 170
(for the segment)
Home project Zb10
Home project Zb10
Home project Zb10
Home project Zb10

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Nowoczesny segment bliźniaka z garażem, gabinetem w parterze oraz 3 sypialniami.

Ground 780,3 / 1060,5 ft²

Sień
35,5 ft²
Gabinet
100,3 ft²
Spiżarka
33,7 ft²
Kuchnia
123,1 ft²
Hol+schody
94,6 ft²
Salon+jadalnia
374,3 ft²
Łazienka
35,7 ft²
Pomieszczenie gospodarcze
55,0 ft²
Garaż
224,9 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Nowoczesny segment bliźniaka z garażem, gabinetem w parterze oraz 3 sypialniami.

Floor 744,8 ft²

Garderoba
45,0 ft²
Pokój
132,6 ft²
Pokój
173,6 ft²
Hol
49,7 ft²
Garderoba
34,4 ft²
Łazienka
39,9 ft²
Łazienka
76,6 ft²
Pokój
120,7 ft²
Garderoba
30,8 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Nowoczesny segment bliźniaka z garażem, gabinetem w parterze oraz 3 sypialniami.

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
55,97 ft
length
75,98 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
36,29 ft

Area and dimensions

Usable / net
1525,0 / 1805,2 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1417,1 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
224,9 ft²
Cubic
17 695,5 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
26,25 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
864,88 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
55,97 x 75,98 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
reinforced concrete
Roof
foil, bituminous
technology
brick

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project
