Home project  - Współczesna zabudowa bliźniacza o prostej bryle z garażem i przeszkleniami.

Zb5 D

Współczesna zabudowa bliźniacza o prostej bryle z garażem i przeszkleniami.
koka
concept
project's availability 18 work days

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
%}
Home project  - Współczesna zabudowa bliźniacza o prostej bryle z garażem i przeszkleniami.

Ground 663,7 / 871,3 ft²

Sień
55,5 ft²
Pom. gosp.
58,9 ft²
WC
25,3 ft²
Hol
108,2 ft²
Kuchnia
87,9 ft²
Salon+jadalnia
327,9 ft²
Garaż
207,6 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Współczesna zabudowa bliźniacza o prostej bryle z garażem i przeszkleniami.

Garret 779,7 / 805,5 ft²

Hol
70,4 ft²
Pokój
167,8 ft²
Łazienka
156,4 ft²
Garderoba
43,1 ft²
Pokój
169,3 ft²
Pokój
172,8 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Współczesna zabudowa bliźniacza o prostej bryle z garażem i przeszkleniami.

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
79,89 ft
length
68,57 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
27,4 ft

Area and dimensions

Usable / net
1443,4 / 1676,8 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1112,0 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
207,6 ft²
Cubic
14 491,4 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
30,61 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
35° / 5°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 155,29 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
5,28 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
79,89 x 68,57 ft


Technology and construction

Walls
timber frame
Ceiling
wooden
Roof
tile, Metal tile
technology
koka

Thermal insulation

heating system
gas
heating system - Type of heating provided for the project
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
koka
concept
project's availability 18 work days

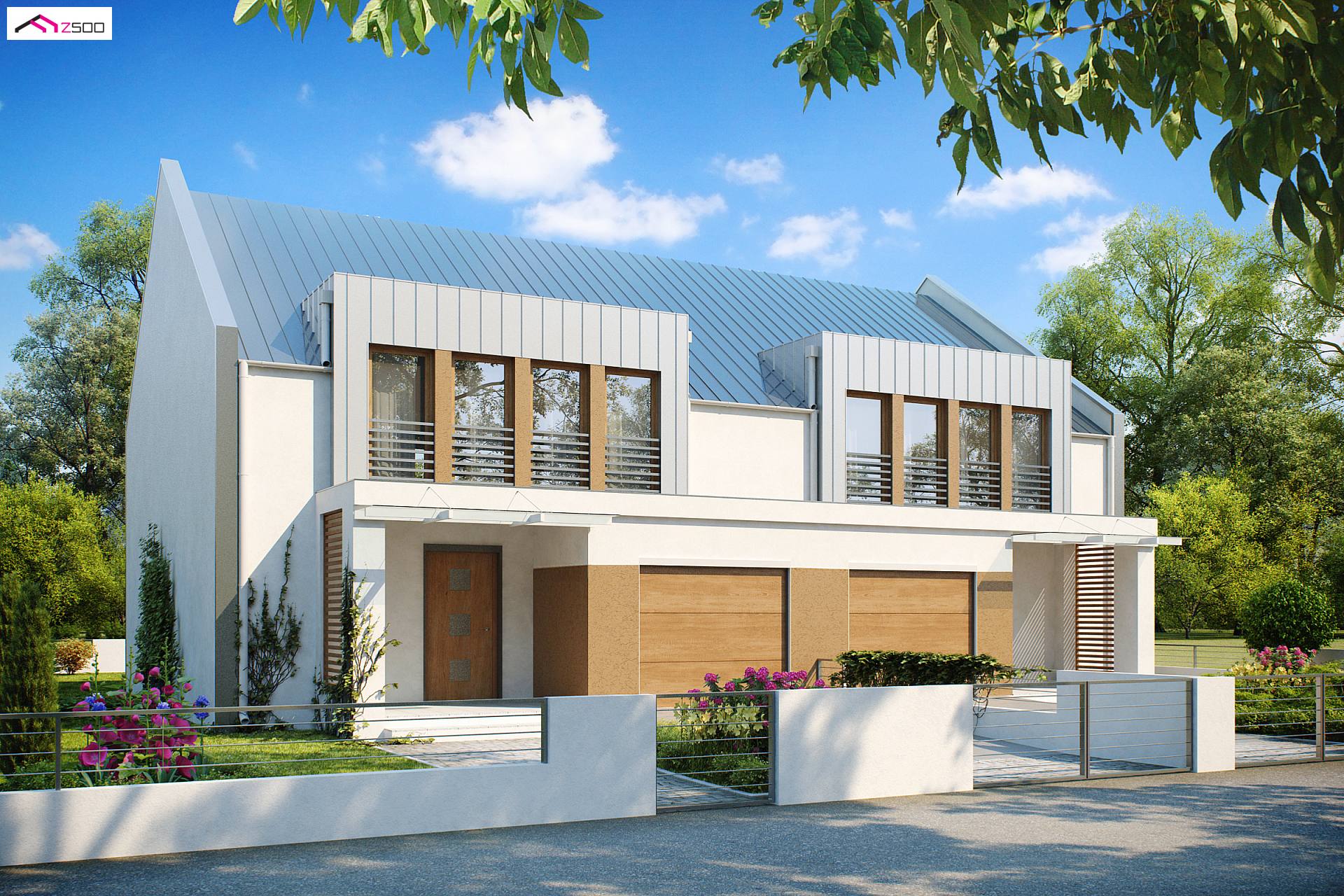

Zb5 to ciekawa propozycja domu do zabudowy bliźniaczej w nowoczesnym stylu.

Prosta konstrukcja oraz dwuspadowy dach czynią go tanią i łatwą w budowie inwestycją. Niespotykany wykusz od strony ogrodu oraz naturalne, drewniane okładziny elewacji uwydatniają nowatorski charakter zabudowy.Część dzienną segmentu stanowi przestronny, jasny salon z centralnie usytuowanym kominkiem. Otwarta kompozycja kuchni powiększy optycznie wnętrze a centralnie umieszczone otwarte schody mogą być ozdobą wnętrza. Duże powierzchnie przeszkleń pozwalają na naturalne doświetlanie i ogrzanie wnętrza.

Na parterze do dyspozycji mieszkańców znajduje się również niewielka toaleta oraz podręczne pomieszczenie gospodarcze. Na piętrze znajdują się trzy, przestronne sypialnie. Duża łazienka zapewni komfort codziennej toalety, a spora garderoba z łatwością pomieści ubrania domowników.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
