Home project Zb18

Zb18 mirror image

brick
concept
brick
concept
mirror image
Home project Zb18
Home project Zb18

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Segment do zabudowy bliźniaczej lub szeregowej z podpiwniczeniem oraz tarasem.

Basement 703,7 / 973,0 ft²

Hol
57,7 ft²
Pralnia
201,4 ft²
Garaż
195,6 ft²
Pomieszczenie gospodarcze
73,6 ft²
Pokój rekreacyjny
444,7 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Segment do zabudowy bliźniaczej lub szeregowej z podpiwniczeniem oraz tarasem.

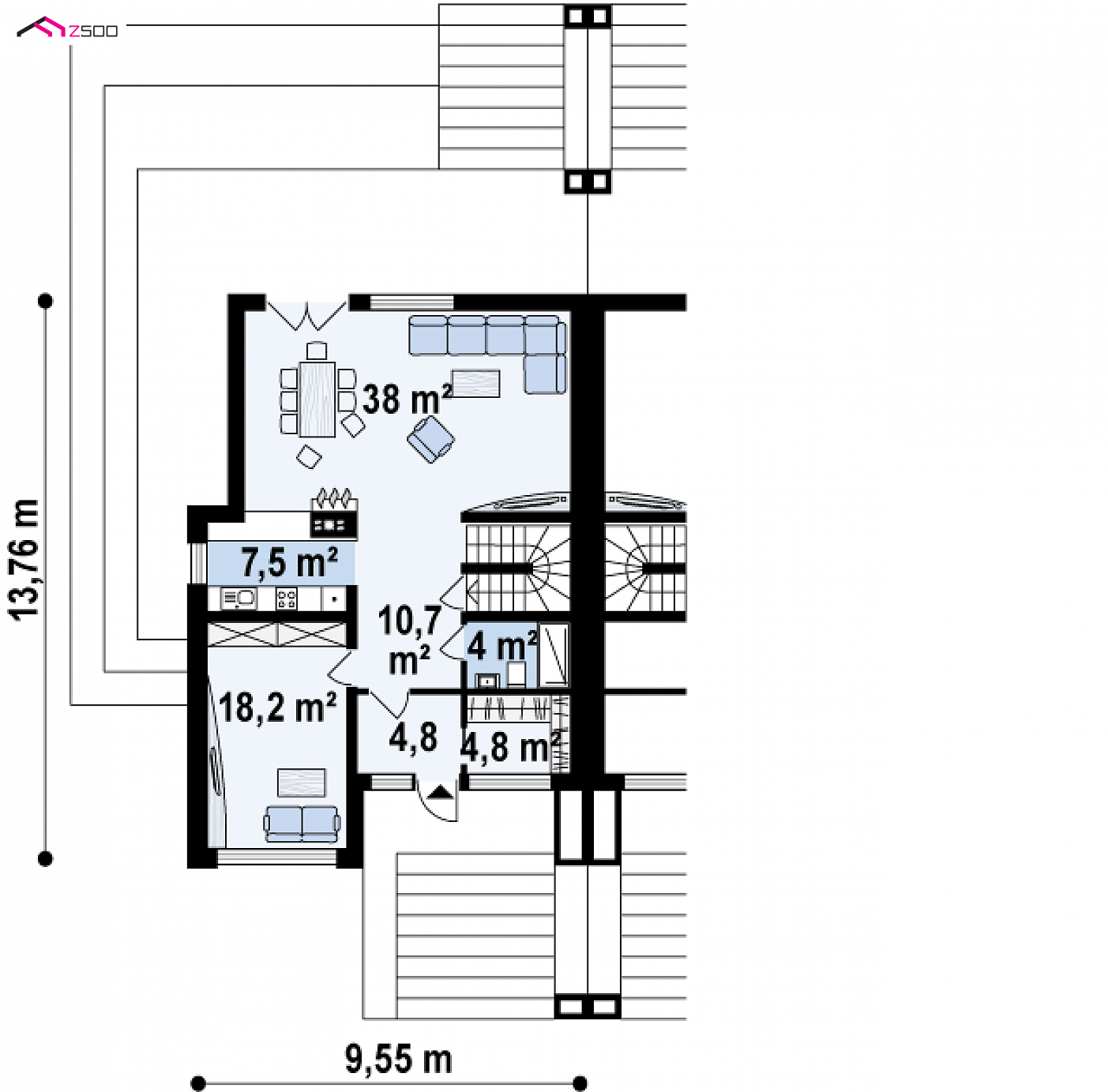

Ground 945,1 ft²

Sień
51,1 ft²
Garderoba
51,1 ft²
Łazienka
43,1 ft²
Hol
114,6 ft²
Salon+jadalnia
408,5 ft²
Kuchnia
81,1 ft²
Pokój
195,6 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Segment do zabudowy bliźniaczej lub szeregowej z podpiwniczeniem oraz tarasem.

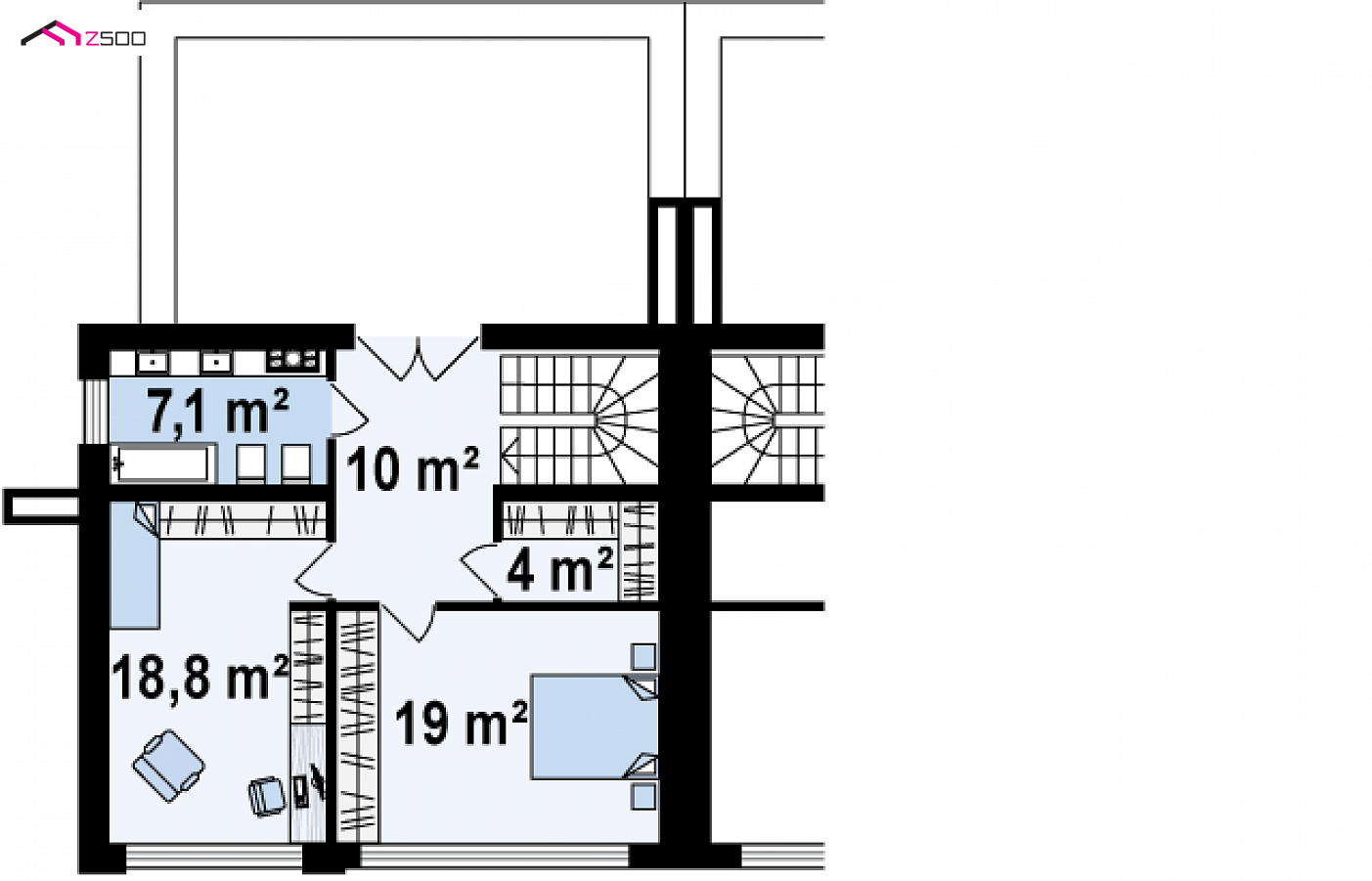

Floor 634,3 ft²

Hol
107,6 ft²
Łazienka
76,3 ft²
Pokój
202,6 ft²
Pokój
204,7 ft²
Garderoba
43,1 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Segment do zabudowy bliźniaczej lub szeregowej z podpiwniczeniem oraz tarasem.

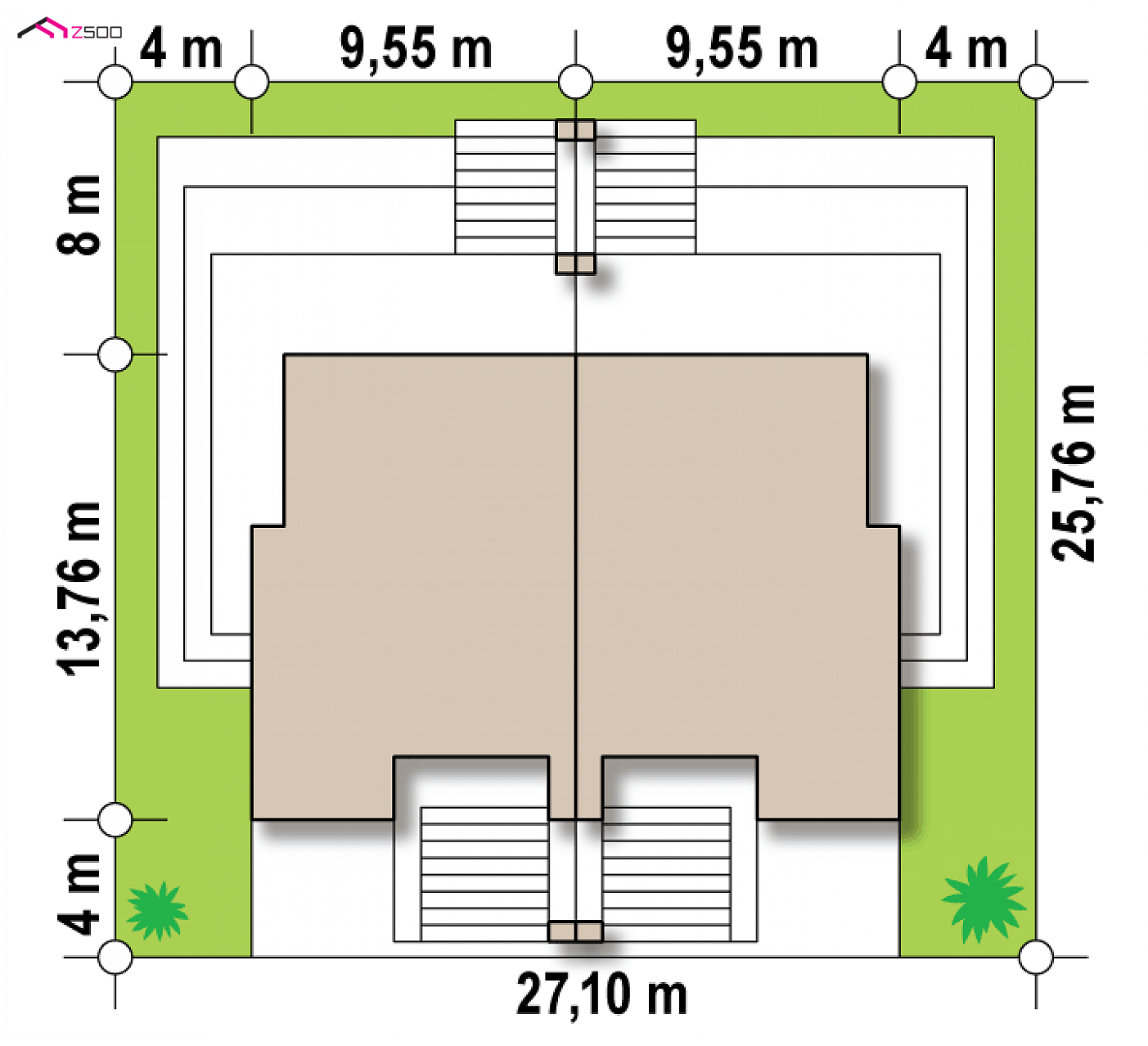

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
54,3 ft
length
84,51 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
31,33 ft

Area and dimensions

Usable / net
2283,1 / 2552,3 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1380,7 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
195,6 ft²
Cubic
22 749,3 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
29,95 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
677,48 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
54,3 x 84,51 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
beam and block
Roof
foil, bituminous, Metal tile
technology
brick

Thermal insulation

heating system
gas
heating system - Type of heating provided for the project

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
