Home project  - Nowoczesna zabudowa bliźniacza z dwoma osobnymi mieszkaniami oraz garażem

Zb16

Nowoczesna zabudowa bliźniacza z dwoma osobnymi mieszkaniami oraz garażem
ķieģeļu
ķieģeļu
project's availability 3 work days

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
%}
Home project  - Nowoczesna zabudowa bliźniacza z dwoma osobnymi mieszkaniami oraz garażem

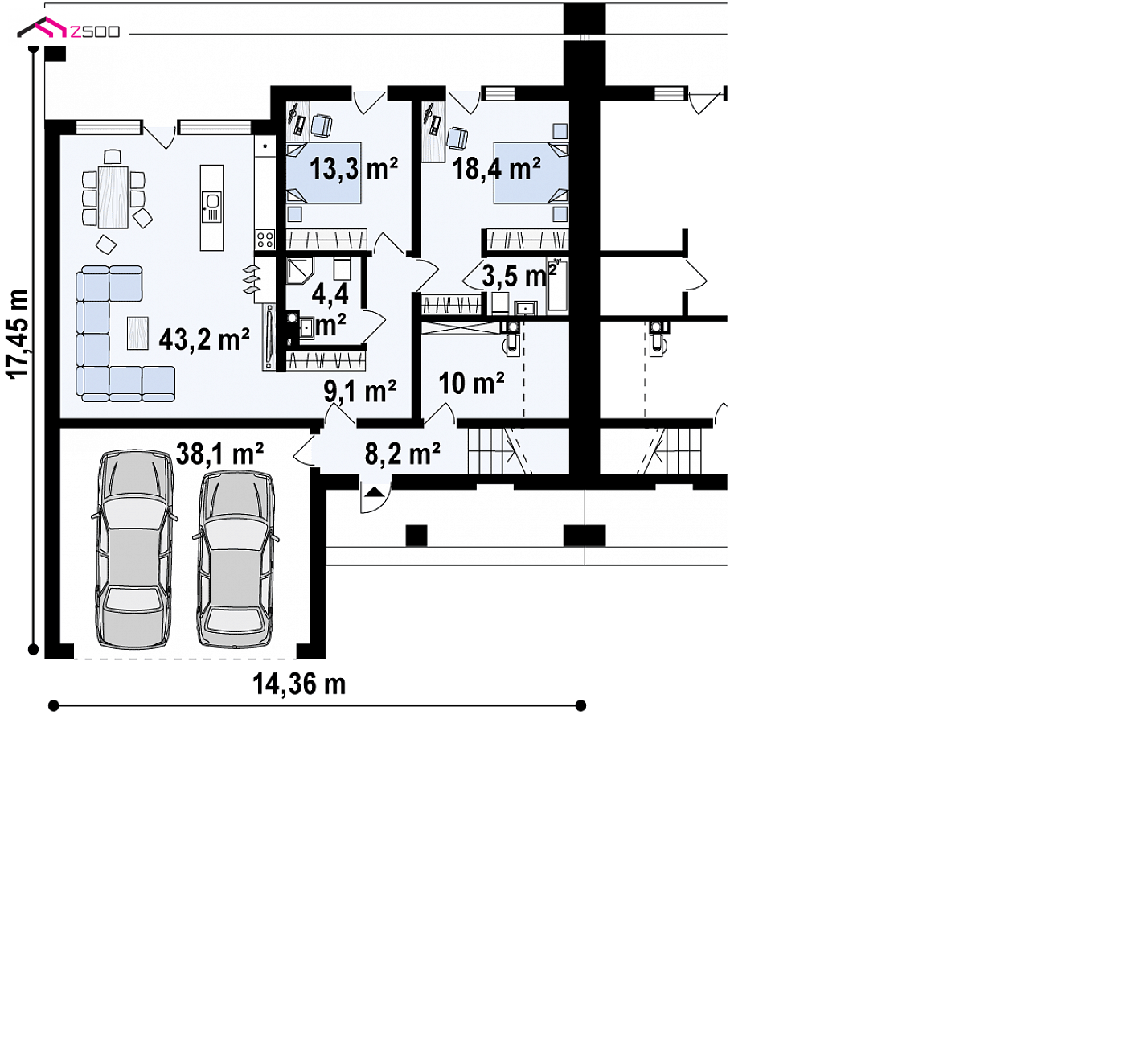

Ground 1184,9 / 1595,1 ft²

Sień
88,6 ft²
Pom. gosp.
107,9 ft²
Łazienka
37,9 ft²
Pokój
197,7 ft²
Pokój
143,1 ft²
Łazienka
47,3 ft²
Salon+kuchnia
465,0 ft²
Garaż
410,2 ft²
Hol
97,5 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Nowoczesna zabudowa bliźniacza z dwoma osobnymi mieszkaniami oraz garażem

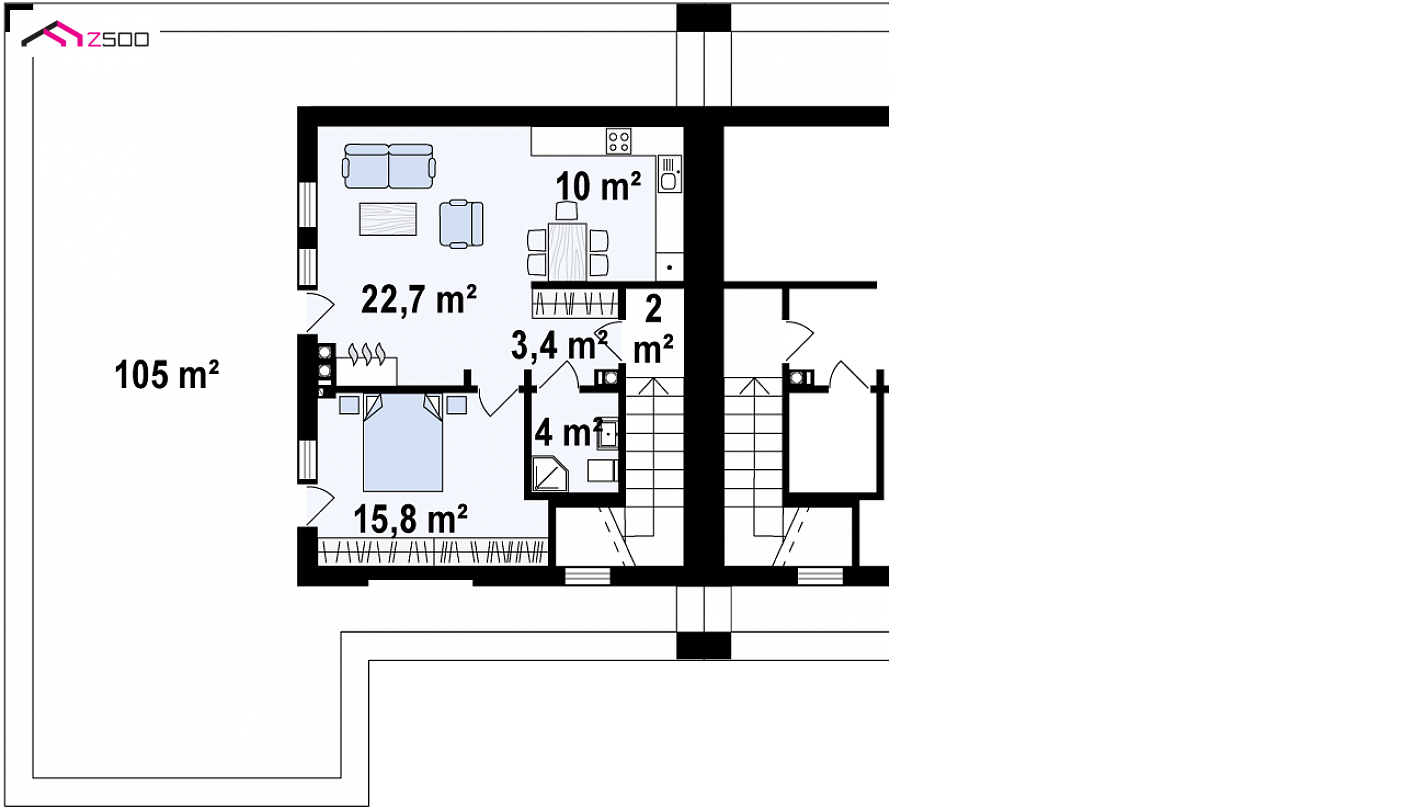

Floor 622,9 ft²

Sień
21,7 ft²
Kuchnia
108,1 ft²
Salon
244,5 ft²
Pokój
169,5 ft²
Łazienka
42,7 ft²
Hol
36,4 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Nowoczesna zabudowa bliźniacza z dwoma osobnymi mieszkaniami oraz garażem

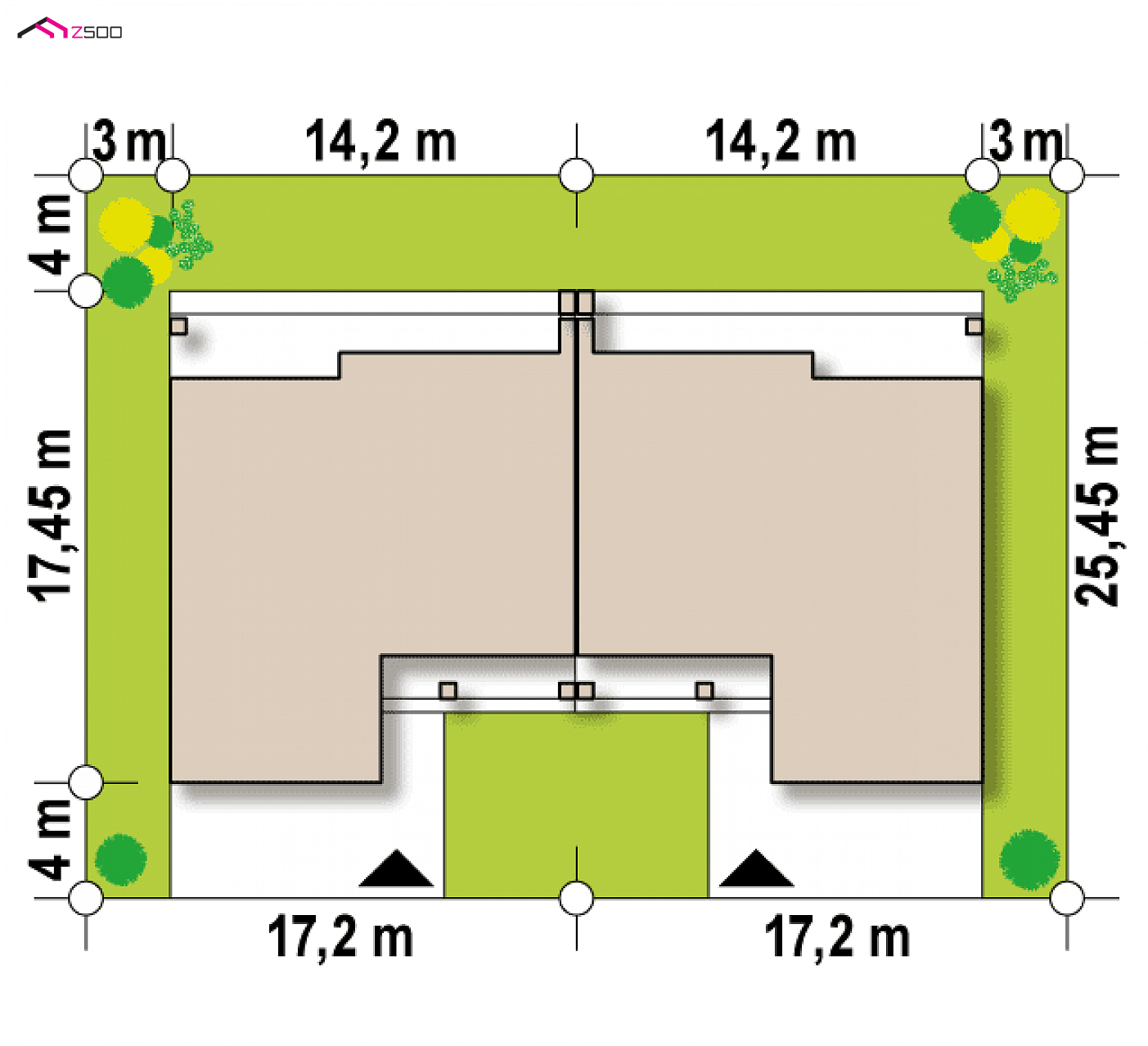

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
56,43 ft
length
83,5 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
46,59 ft

Area and dimensions

Usable / net
1807,8 / 2218,0 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1953,0 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
410,2 ft²
Cubic
19 479,6 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
23,95 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
672,21 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
56,43 x 83,5 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling
reinforced concrete
Roof
bituminous, foil, plate
technology
ķieģeļu

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
94,1 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
76,6 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
ķieģeļu
ķieģeļu
project's availability 3 work days

Zb16 to piętrowy dom z garażem dwustanowiskowym. Prosta, nowoczesna bryła została wzbogacona dużymi przeszkleniami, prostymi filarami oraz podcieniami. Płaski dach, jak i surowa kolorystyka elewacji dopełniają całość.

Wnętrze domu, zostało zaprojektowane jako dwa osobne mieszkania.

Na parterze zlokalizowano sypialnię główną z łazienką, mniejszy pokój gościnny, łazienkę oraz otwartą strefę dzienną, czyli salon z kuchnią. Z każdego pomieszczenia bezpośredni dostęp do ogrodu.

Druga kondygnacja budynku, czyli salon z kuchnią, łazienka oraz sypialnia. Mieszkanie posiada 100 metrowy taras, który jest największą zaletą dla przyszłych mieszkańców.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.
