Home project - Projekt do zabudowy bliźniaczej lub szeregowej z garażem.

Zb13

Projekt do zabudowy bliźniaczej lub szeregowej z garażem.
ķieģeļu
ķieģeļu
project's availability 3 work days

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
%}
Home project - Projekt do zabudowy bliźniaczej lub szeregowej z garażem.

Ground 844,4 / 1052,4 ft²

Salon+kuchnia
416,6 ft²
Pom. gosp.
84,3 ft²
Garaż
208,0 ft²
Sień
47,2 ft²
Gabinet
107,6 ft²
WC
61,0 ft²
Hol+schody
127,8 ft²
mirror
Click or touch on the image on the left to start the measure.

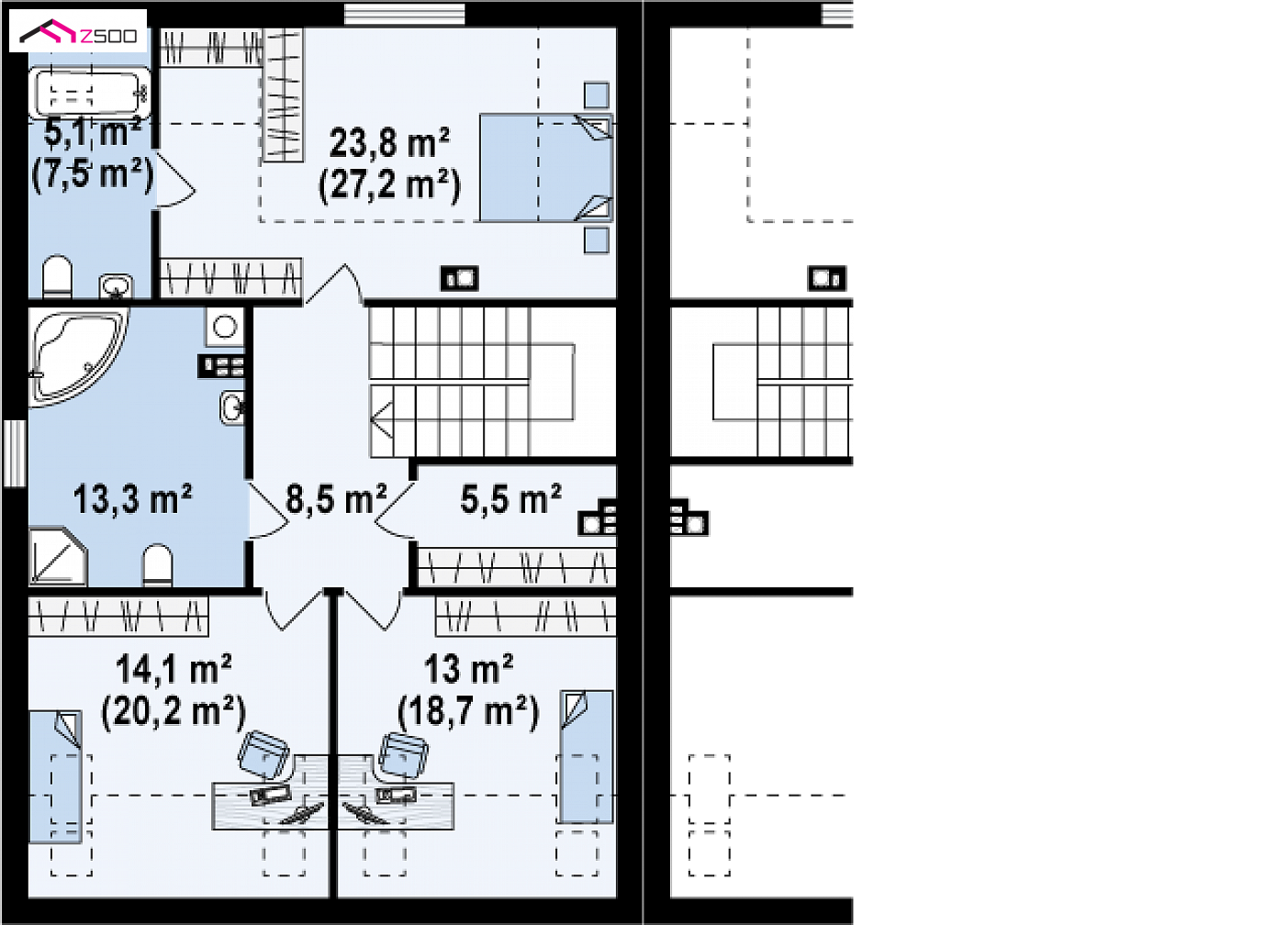

Home project - Projekt do zabudowy bliźniaczej lub szeregowej z garażem.

Garret 899,7 / 1088,7 ft²

Pokój
256,9 ft²
Łazienka
55,1 ft²
Hol
91,3 ft²
Garderoba
60,1 ft²
Pokój
139,8 ft²
Pokój
151,2 ft²
Łazienka
145,2 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project - Projekt do zabudowy bliźniaczej lub szeregowej z garażem.

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
54,27 ft
length
71,33 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
31,3 ft

Area and dimensions

Usable / net
1744,1 / 2141,1 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1300,7 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
208,0 ft²
Cubic
17 667,9 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
29,13 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
32° / 3°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 594,24 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
3,08 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
54,27 x 71,33 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling
beam and block
Roof
tile, Metal tile
technology
ķieģeļu

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
92,95 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
78,96 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
ķieģeļu
ķieģeļu
project's availability 3 work days

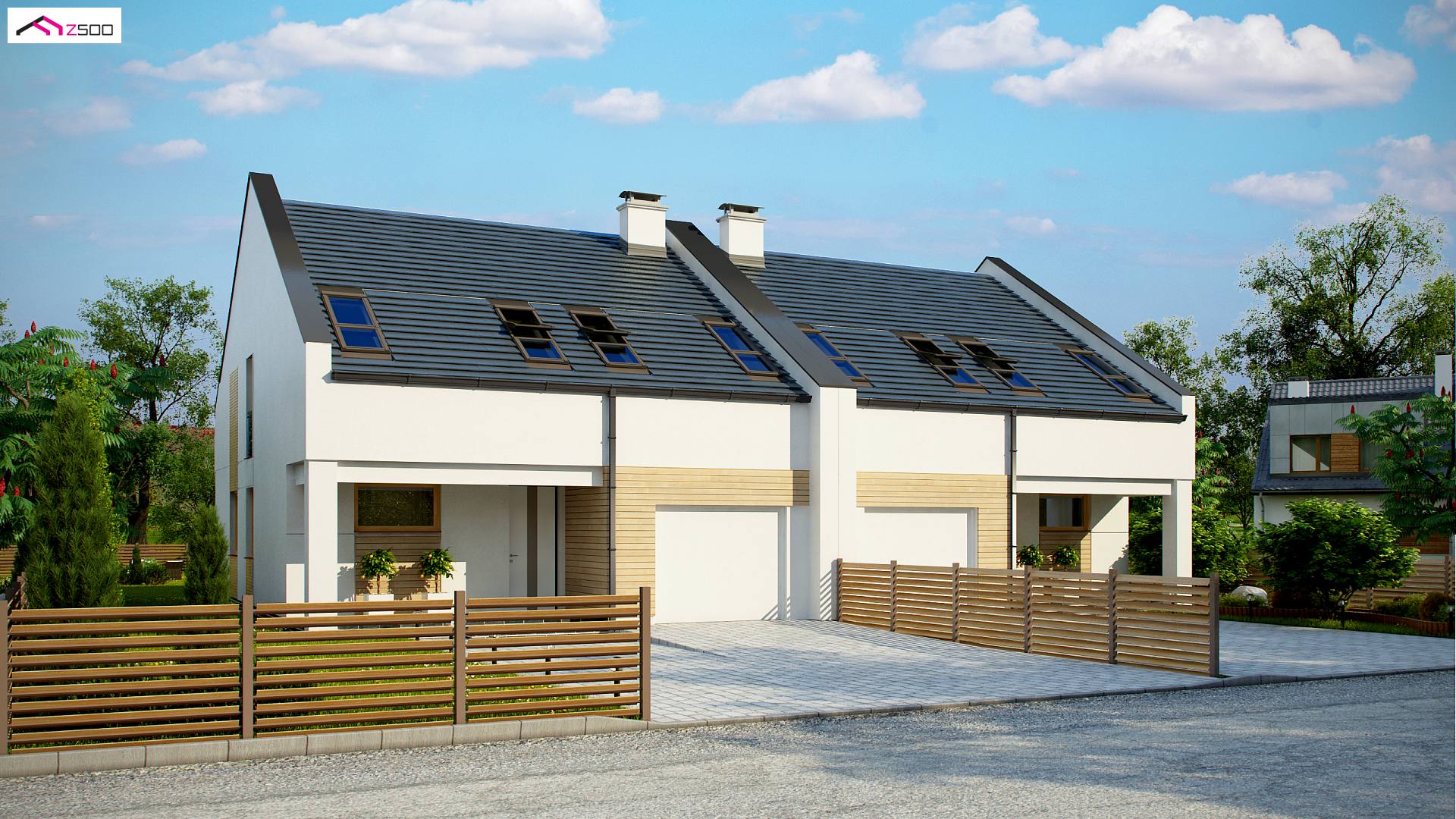

Zb13 to wyjątkowy piętrowy dom z garażem jednostanowiskowym w bryle. Prosta, atrakcyjna bryła z bogatym programem użytkowym została przykryta dachem dwuspadowym. Wykończenie elewacji nadaje mu niepowtarzalnego charakteru.

Wnętrze domu wyraźnie podzielono na strefę dzienną i nocną. Na parterze zaprojektowany został przestronny salon, który połączony jest z kuchnią oraz jadalnią. Kominek usytuowany jest w sercu domu - można podziwiać jego uroki z jadalni oraz z kanapy w salonie. Program strefy dziennej wzbogacono o gabinet oraz łazienkę z wanną.

Piętro to prywatna strefa domowników, tworzą ją trzy komfortowe sypialnie, ogólnodostępna łazienka oraz osobna garderoba. Master bedroom wyposażono we własną łazienkę oraz garderobę.

Garaż połączony jest bezpośrednio z domem poprzez wspólną sień z miejscem na długą szafę na okrycia wierzchnie. Dodatkowym atutem Zb13 jest taras przykryty pergolą, jest idealnym miejscem do wypoczynku.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.
