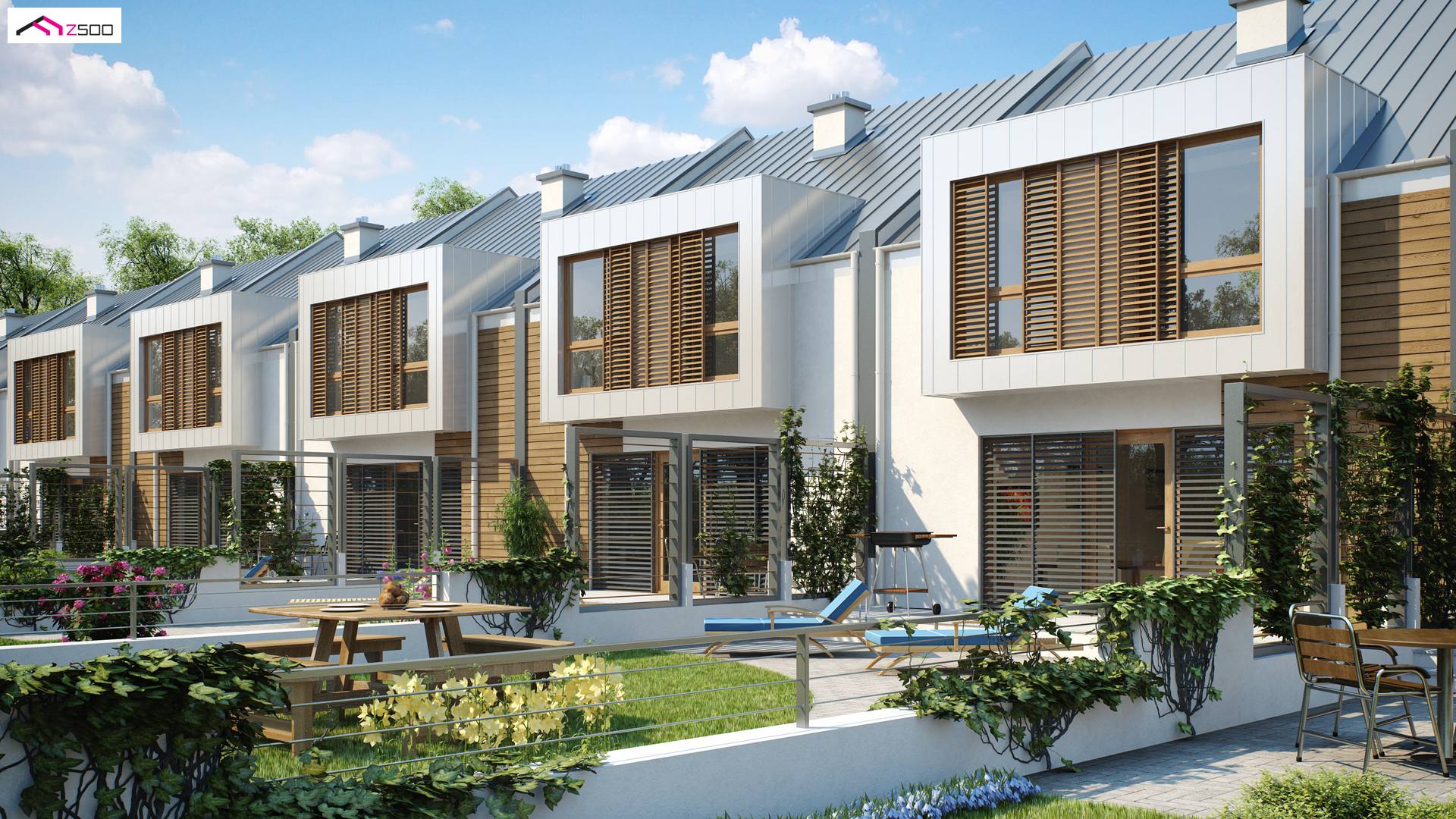

Home project Zs1 - Townhouses in a modern style, glazed dormer windows and an energy-saving shape.

Zs1 mirror image

Townhouses in a modern style, glazed dormer windows and an energy-saving shape.
brick
brick
brick
brick
mirror image
Home project Zs1 - Townhouses in a modern style, glazed dormer windows and an energy-saving shape.

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Townhouses in a modern style, glazed dormer windows and an energy-saving shape.

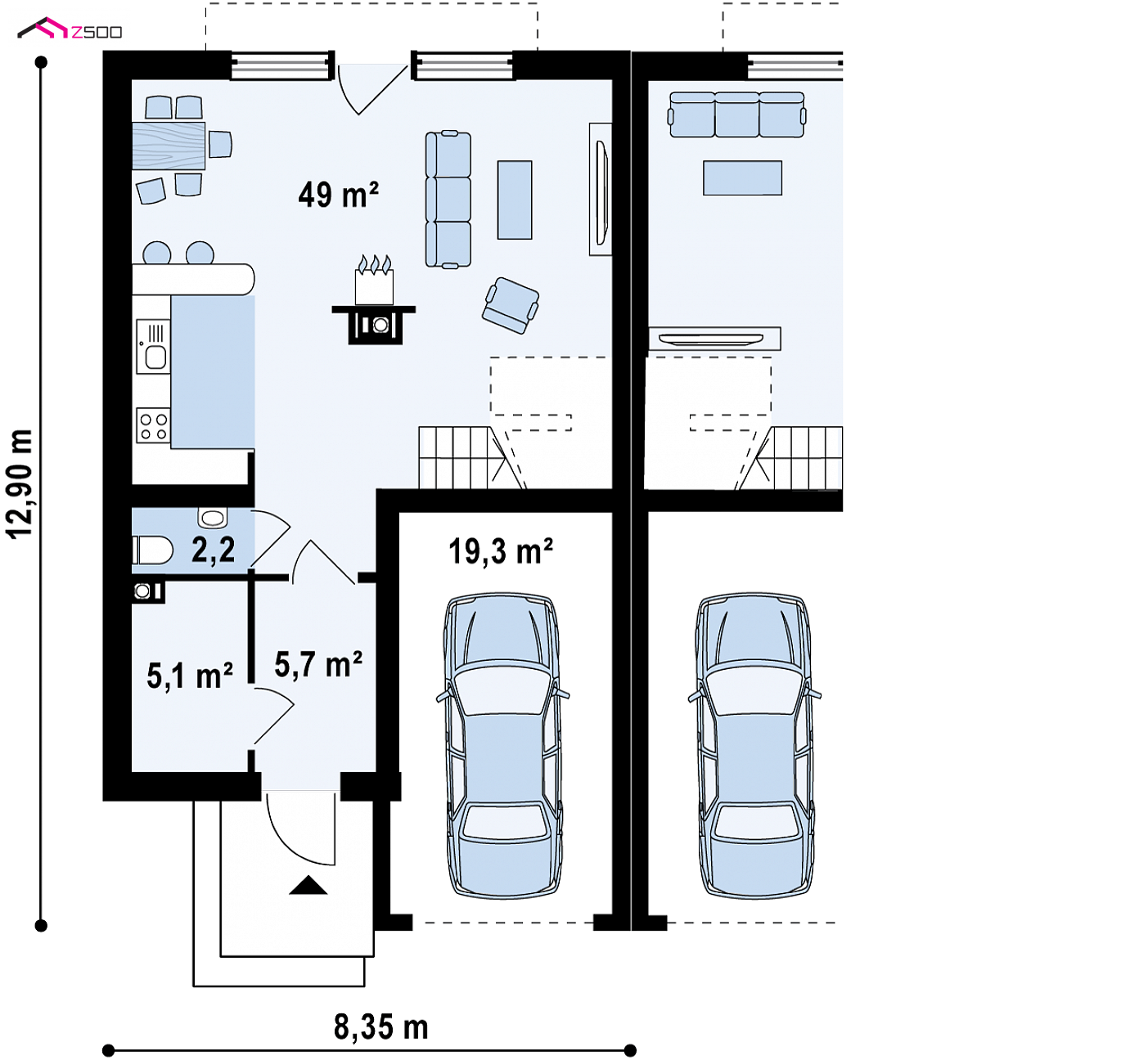

Ground 667,3 / 875,0 ft²

Sień
61,0 ft²
Pom. gosp.
54,9 ft²
WC
24,1 ft²
Salon+kuchnia
527,2 ft²
Garaż
207,7 ft²
check
area
check
distance
mirror
Click or touch on the image on the left to start the measure.
Home project  - Townhouses in a modern style, glazed dormer windows and an energy-saving shape.

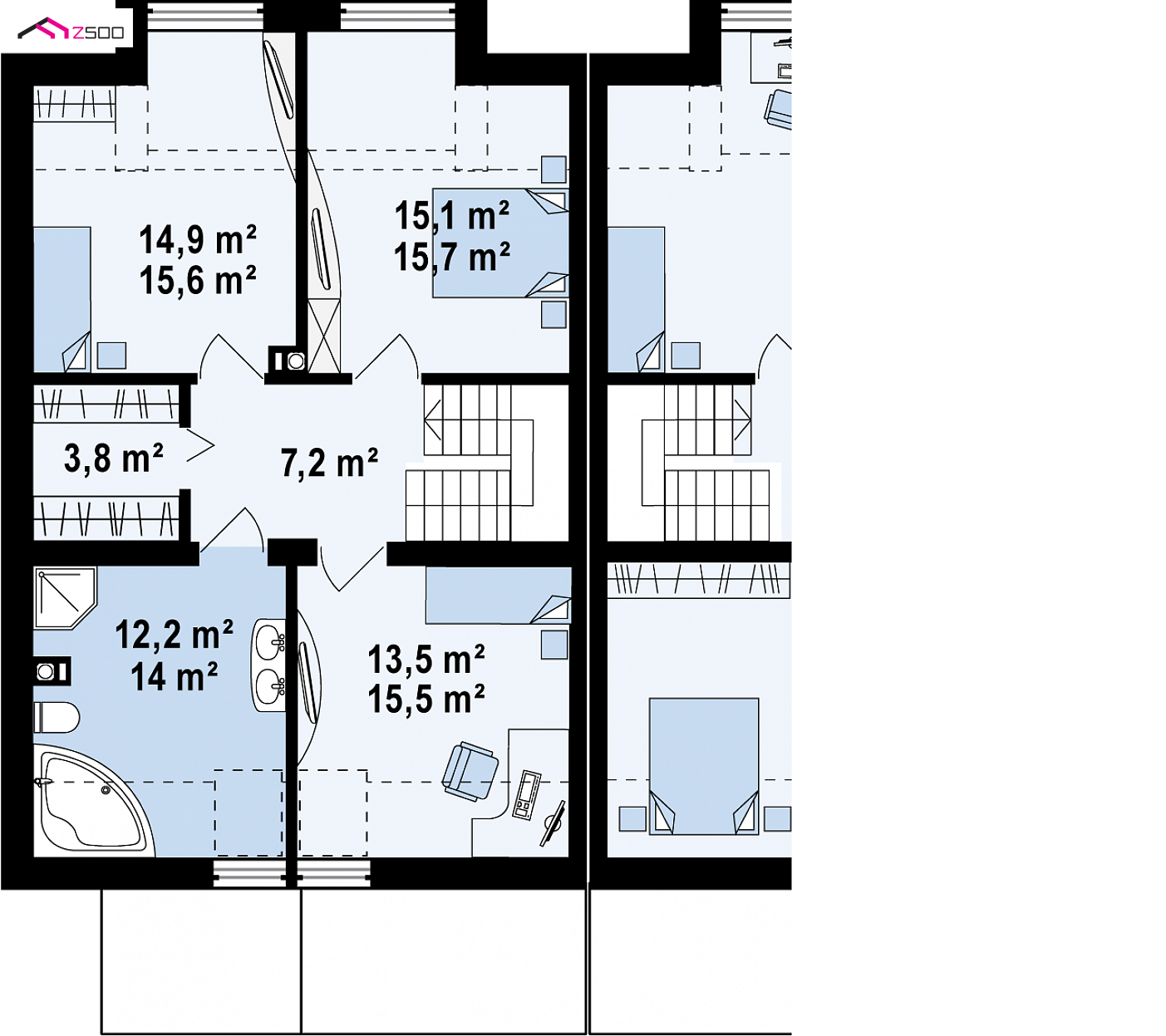

Garret 728,3 / 784,2 ft²

Hol
72,2 ft²
Pokój
166,5 ft²
Pokój
170,7 ft²
Garderoba
42,5 ft²
Łazienka
131,8 ft²
Pokój
144,6 ft²
check
area
check
distance
mirror
Click or touch on the image on the left to start the measure.
Home project  - Townhouses in a modern style, glazed dormer windows and an energy-saving shape.

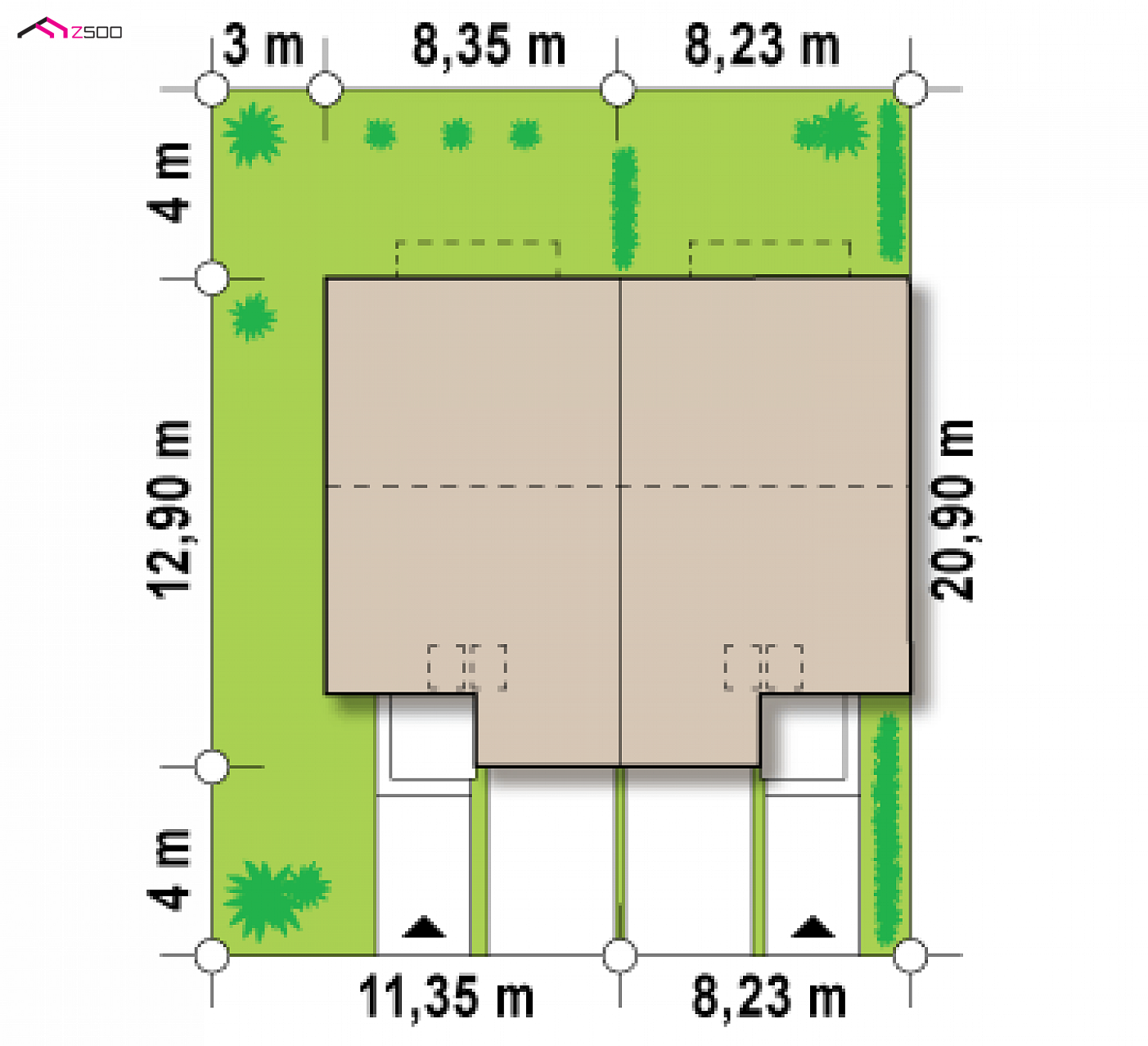

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
47,08 ft
length
68,57 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
27,4 ft

Area and dimensions

Usable / net
1395,5 / 1659,2 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1104,3 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
207,7 ft²
Cubic
14 072,9 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
30,48 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
35° / 5°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 106,85 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
5,41 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
47,08 x 68,57 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
beam and block
Roof
tile, Metal tile
technology
brick

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
93,2 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
86,9 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
home project Zs1 – interior arrangement, Townhouses in a modern style, glazed dormer windows and an energy-saving shape.
home project Zs1 – interior arrangement, Townhouses in a modern style, glazed dormer windows and an energy-saving shape.
home project Zs1 – interior arrangement, Townhouses in a modern style, glazed dormer windows and an energy-saving shape.
home project Zs1 – interior arrangement, Townhouses in a modern style, glazed dormer windows and an energy-saving shape.
home project Zs1 – interior arrangement, Townhouses in a modern style, glazed dormer windows and an energy-saving shape.
home project Zs1 – interior arrangement, Townhouses in a modern style, glazed dormer windows and an energy-saving shape.
home project Zs1 – interior arrangement, Townhouses in a modern style, glazed dormer windows and an energy-saving shape.
home project Zs1 – interior arrangement, Townhouses in a modern style, glazed dormer windows and an energy-saving shape.
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
brick
brick

Zs1 to nowoczesna propozycja domu w zabudowie segmentowej. Prosta konstrukcja oraz dwuspadowy dach czynią go tanią i łatwą w budowie inwestycją. Wykusz od strony ogrodu i naturalne, drewniane elementy elewacji uwydatniają nowatorski charakter zabudowy.

Część dzienną każdego segmentu stanowi przestronny, jasny salon z centralnie usytuowanym kominkiem. Otwarta kompozycja kuchni powiększa optycznie wnętrze mieszkania. Duże powierzchnie przeszkleń pozwalają na naturalne doświetlanie, oszczędność prądu oraz kumulację ciepła.

Na parterze do dyspozycji mieszkańców znajduje się również niewielka toaleta oraz podręczne pomieszczenie gospodarcze. Na piętrze znajdują się trzy przestronne sypialnie. Duża łazienka zapewni komfort codziennej toalety, a spora garderoba z łatwością pomieści ubrania domowników. Każdy segment posiada indywidualny garaż.

Projekt ZS1 może zostać wybudowany jako dom niskoenergetyczny, ponieważ był projektowany z takimi założeniami. Od północy niewiele przeszkleń (front) lub wcale (elewacja boczna). Zamiast tradycyjnego kominka można zastosować biokominek, który nie wymaga wyprowadzenia przewodu ponad dach.

Zs1to propozycja inwestycji, która gwarantuje sukces. Wpadająca w oko architektura domów przyciąga ciekawością. W zewnętrznych segmentach można wstawić okna lub wykusze utrzymane w stylu. Dom można postawić w technologii szkieletowejw bardzo szybkim czasie, zachowując wszelkie walory architektoniczno - funkcjonalne.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
