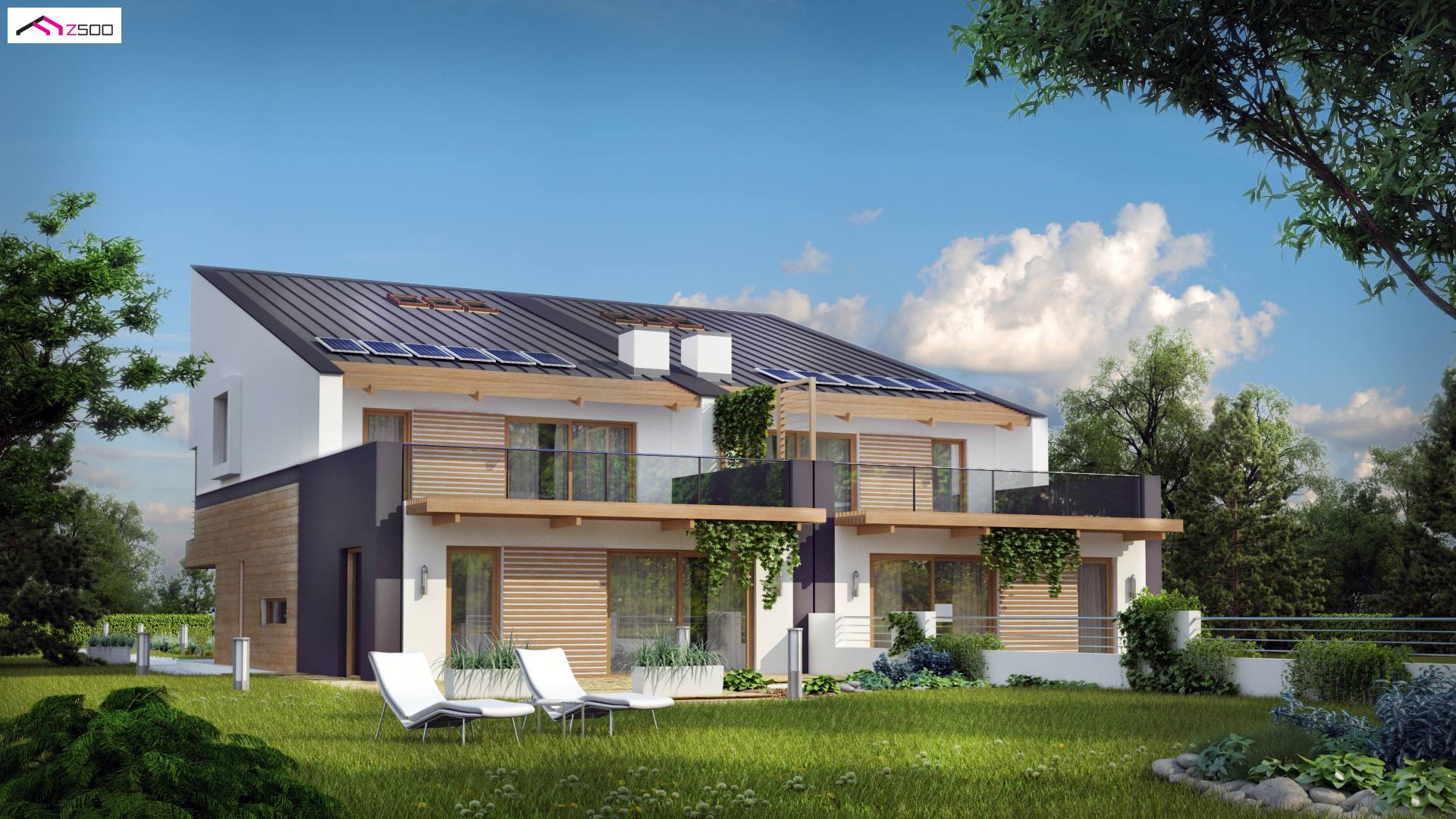

Home project Zb8

Zb8 mirror image

brick
brick
brick
brick
mirror image
Home project Zb8

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Projekt zabudowy bliźniaczej z garażem. Współczesny wygląd i rozsądne koszty budowy

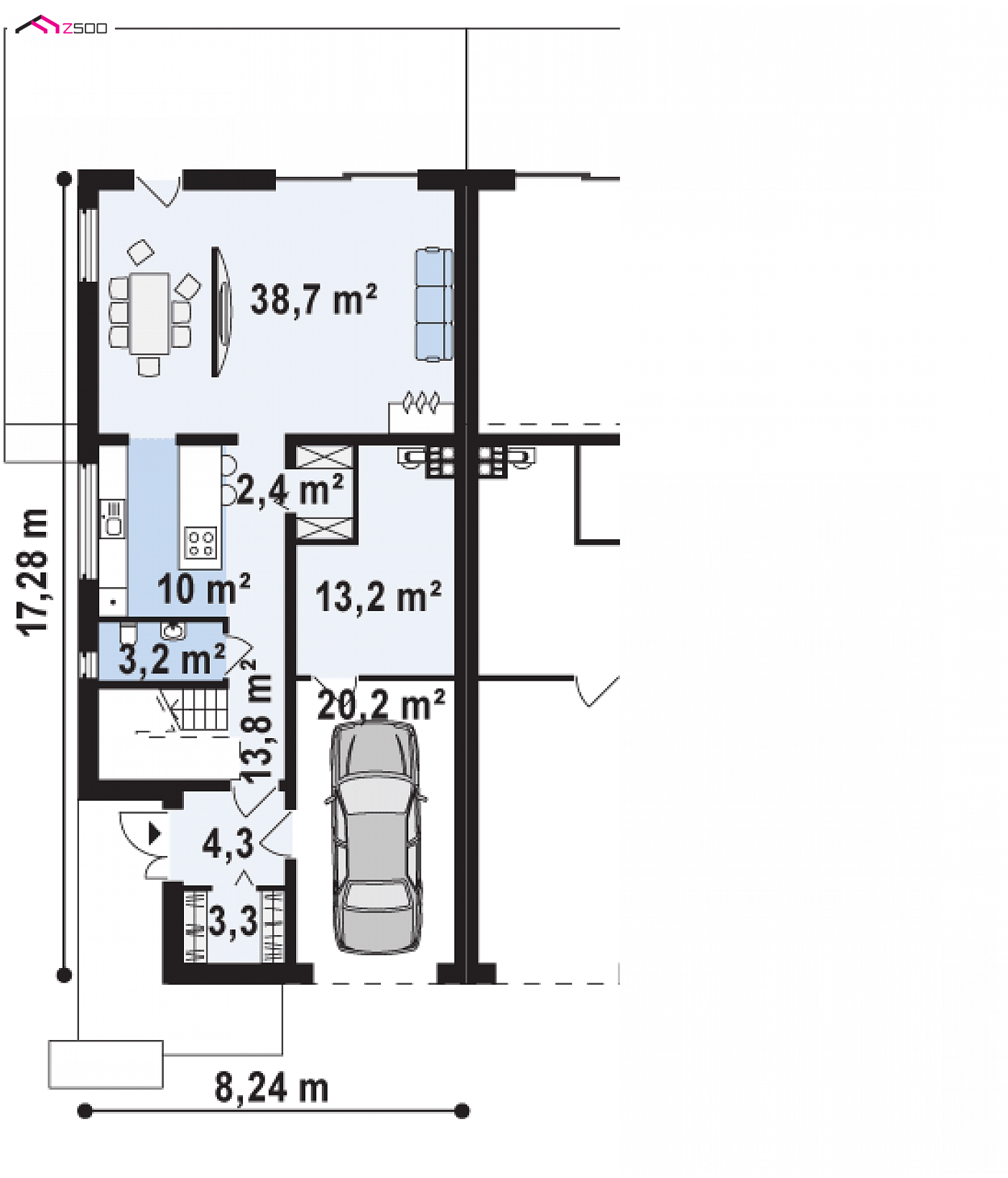

Ground 814,8 / 1174,3 ft²

Sień
46,3 ft²
Garderoba
35,5 ft²
Hol+schody
148,5 ft²
WC
34,4 ft²
Kuchnia
107,6 ft²
Salon+jadalnia
416,6 ft²
Garderoba
25,8 ft²
Garaż+pom. gosp.
359,5 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Projekt zabudowy bliźniaczej z garażem. Współczesny wygląd i rozsądne koszty budowy

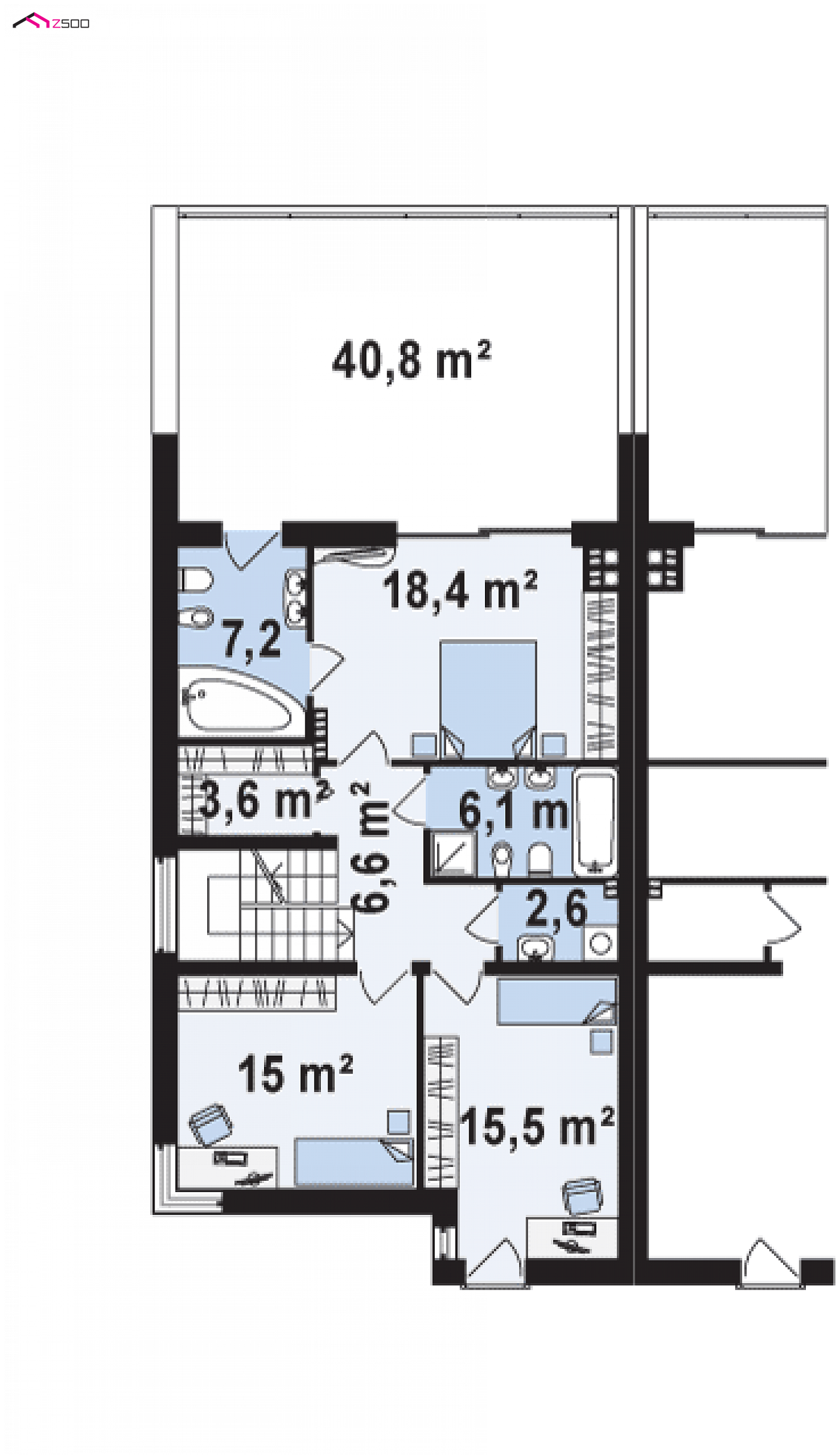

Floor 807,3 ft²

Hol
71,0 ft²
Pokój
161,5 ft²
Pokój
166,8 ft²
Pralnia
28,0 ft²
Łazienka
65,7 ft²
Garderoba
38,8 ft²
Pokój
198,1 ft²
Łazienka
77,5 ft²
Taras na piętrze
439,2 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Projekt zabudowy bliźniaczej z garażem. Współczesny wygląd i rozsądne koszty budowy

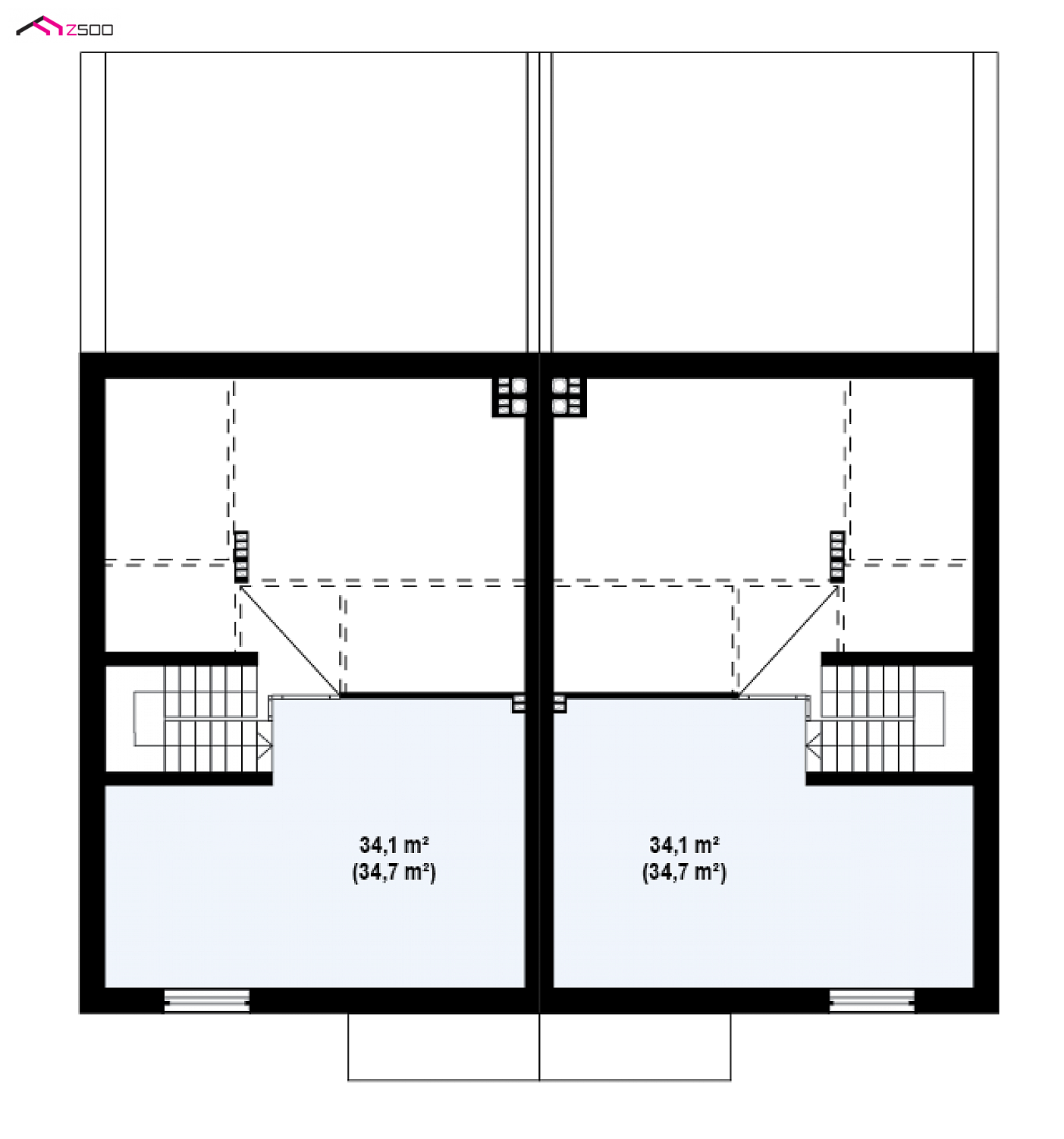

Attic 367,4 / 373,6 ft²

Poddasze
367,4 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Projekt zabudowy bliźniaczej z garażem. Współczesny wygląd i rozsądne koszty budowy

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
50 ft
length
82,94 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
27,03 ft

Area and dimensions

Usable / net
1989,5 / 2355,3 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1494,0 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
359,5 ft²
Cubic
20 441,2 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
34,19 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
18°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
987,05 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
50 x 82,94 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
beam and block
Roof
Metal tile, tile
technology
brick

Thermal insulation

heating system
gas
heating system - Type of heating provided for the project

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
