Zb6 mirror image

Dom z garażem do zabudowy bliźniaczej, z poddaszem i 4 wygodnymi sypialniami.

brick

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project

Ground 893,1 / 1167,1 ft²

Sień

39,6 ft²

Hol+schody

135,1 ft²

Gabinet

107,0 ft²

28,5 ft²

Kuchnia+spiżarka

118,2 ft²

Salon+jadalnia

443,5 ft²

Garaż

202,2 ft²

Pomieszczenie gospodarcze

71,9 ft²

Spiżarka

21,2 ft²

mirror

Click or touch on the image on the left to start the measure.

Garret 902,1 / 1052,6 ft²

Hol

54,8 ft²

Pokój

161,2 ft²

Pokój

166,5 ft²

Pokój

247,5 ft²

Pokój

167,0 ft²

Łazienka

81,6 ft²

Garderoba

23,6 ft²

mirror

Click or touch on the image on the left to start the measure.

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width

59,51 ft

length

71,33 ft

Dimensions of the front elevation

Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors

36,22 ft

Area and dimensions

Usable / net

1795,2 / 2219,7 ft²

Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.

Living area

1434,7 ft²

Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.

Garage area

202,2 ft²

Cubic

18 398,9 ft³

Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.

The height of the house

27,33 ft

The height of the house - height from ground level to the ridge or attic.

The angle of inclination of the roof

35°

The angle of inclination of the roof - the angle of the roof to the ground.

Roof area

1 625,35 ft²

Roof area - total roof area with the exception of roof windows.

Minimal plot

59,51 x 71,33 ft

Technology and construction

Walls

aerated concrete, ceramics, silicates

Ceiling (ground floor)

beam and block

Roof

Metal tile, plate

technology

brick

Thermal insulation

heating system

gas, ERV

heating system - Type of heating provided for the project

Primary energy (Ep)

85,1 kWh/ft²/year

Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.

Final energy (Ek)

64,6 kWh/ft²/year

Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.

bezpośredni kontakt z architektem konsultacje z projektantem
najszybsza bezpłatna wysyłka oszczędzasz 20 zł
zgoda autorska na zmiany w projekcie
wygodna teczka na dokumenty
gratis do każdego projektu zestawy projektów dodatkowych

brick

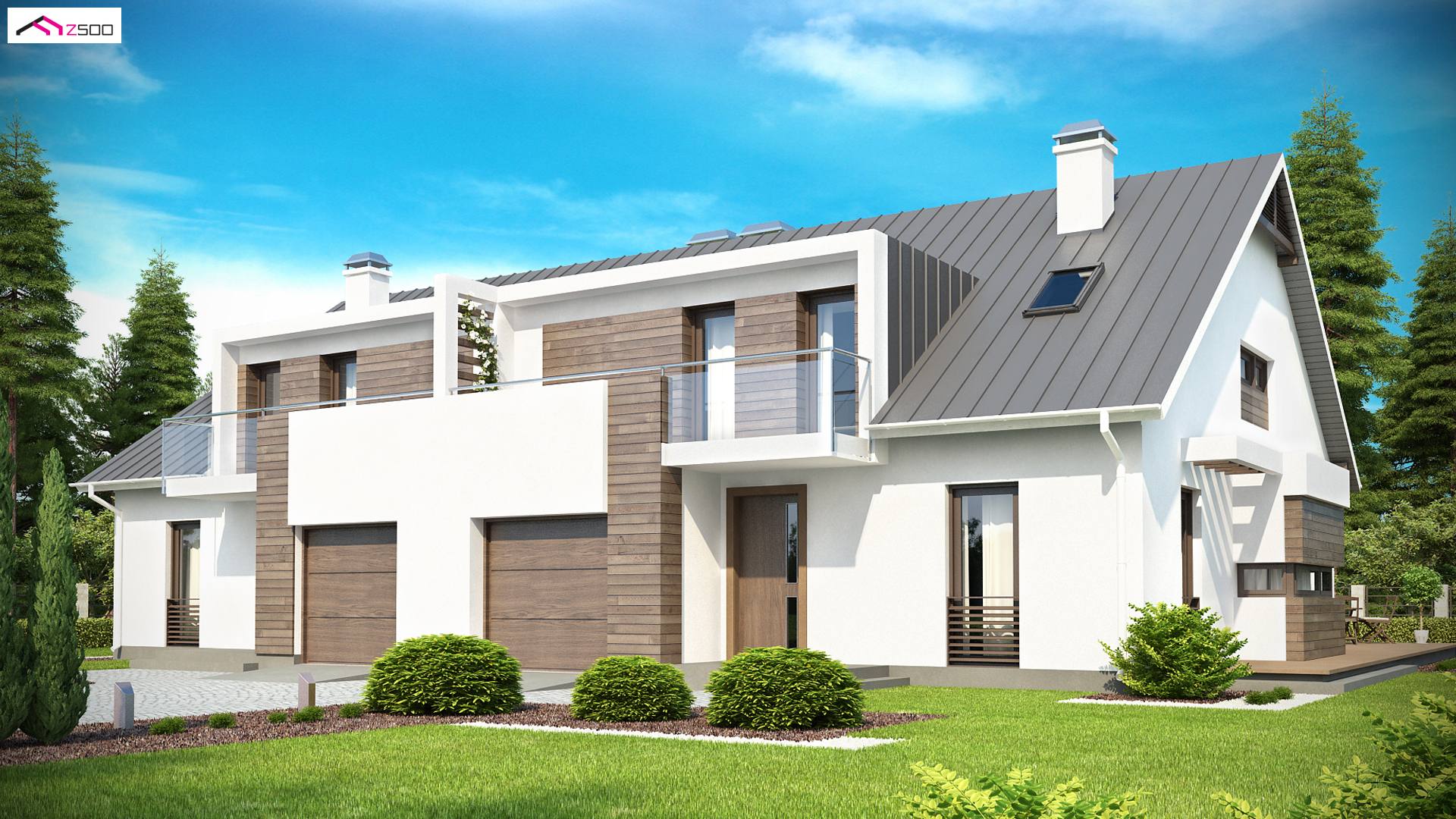

Zb6 to wersja bliźniacza domu z116. Klasyczna bryła budynku wzbogacona jest przez nowoczesne lukarny oraz subtelny wykusz. Jasne barwy ścian doskonale współgrają z naturalnym, ciemnym drewnem.

Sercem domu Zb6 jest przestronny, jasny salon. Duże przeszklenia pozwalają na swobodne przenikanie promieni słońca. Dzięki temu salon jest widny i naturalnie doświetlony. Otwarta kompozycja kuchni doskonale powiększa całe pomieszczenie. Poprzez umiejscowienie blatu w wykuszu zyskujemy dodatkową przestrzeń, z której widok prowadzi na pięknie urządzony ogród. Podręczna spiżarka jest idealnym miejscem na przechowywanie domowych przetworów. Na parterze znajduje się również wygodny pokój gościnny oraz komfortowa toaleta. Garaż z pomieszczeniem gospodarczym posiada bezpośrednie wejście do domu.

Piętro tworzą aż cztery przestronne sypialnie z miejscem na duże szafy. Przeszklenia w łazience powodują jej naturalne doświetlenie, a spore wymiary dają prawdziwy komfort użytkowania.
