Home project Zx156 D - Współczesny dom z dachem 2-spadowym otoczony tarasem z płaskim zadaszeniem.

Zx156 D mirror image

Współczesny dom z dachem 2-spadowym otoczony tarasem z płaskim zadaszeniem.
wooden
NEW!
wooden
NEW!
mirror image
Home project Zx156 D - Współczesny dom z dachem 2-spadowym otoczony tarasem z płaskim zadaszeniem.
Home project Zx156 D - Współczesny dom z dachem 2-spadowym otoczony tarasem z płaskim zadaszeniem.
Home project Zx156 D - Współczesny dom z dachem 2-spadowym otoczony tarasem z płaskim zadaszeniem.
Home project Zx156 D - Współczesny dom z dachem 2-spadowym otoczony tarasem z płaskim zadaszeniem.

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Współczesny dom z dachem 2-spadowym otoczony tarasem z płaskim zadaszeniem.

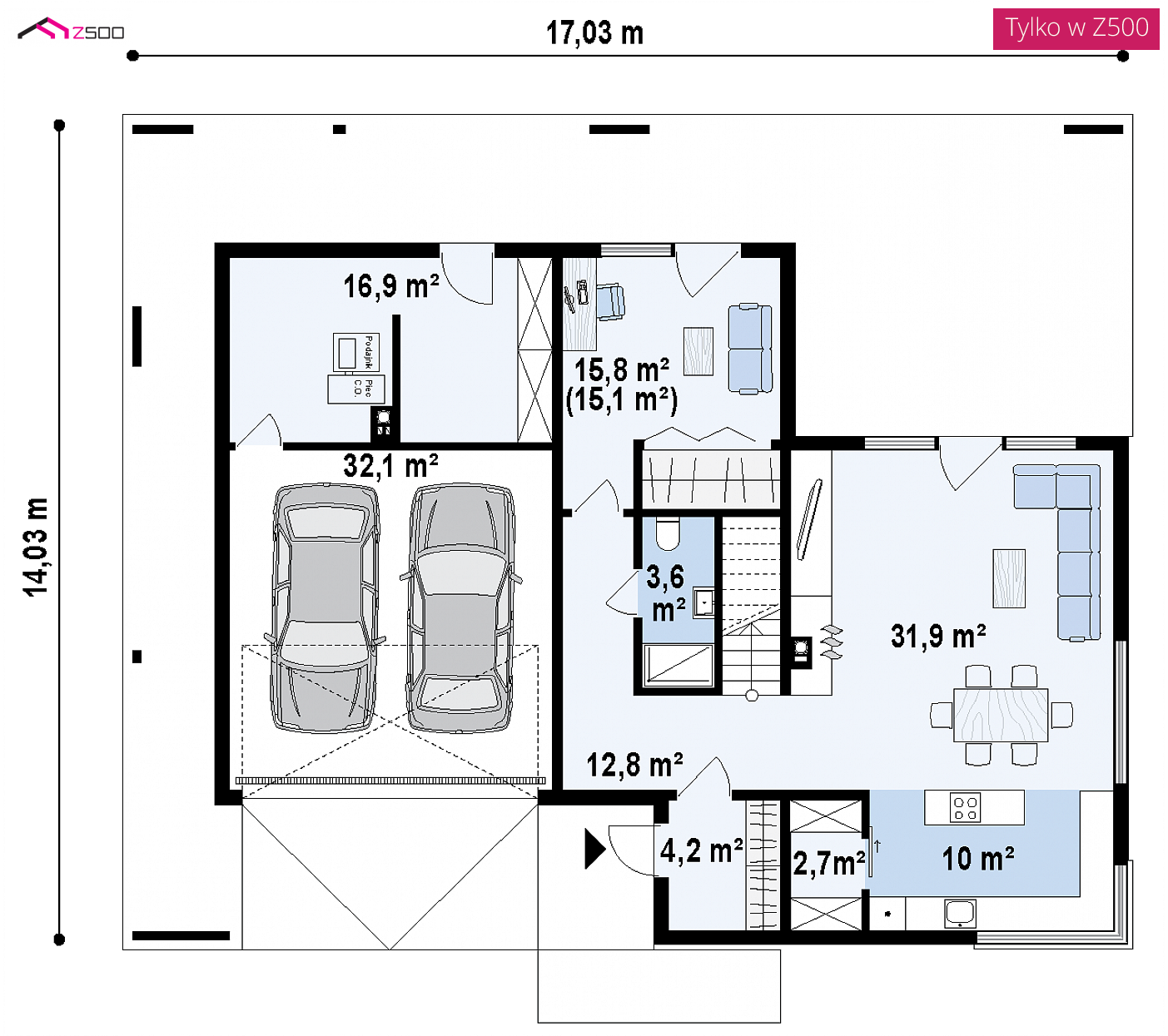

Ground 864,0 / 1399,5 ft²

Sień
45,5 ft²
Hol+schody
138,0 ft²
Garaż
345,8 ft²
Pomieszczenie gospodarcze
182,1 ft²
Gabinet
162,5 ft²
Łazienka
38,3 ft²
Salon+jadalnia
342,8 ft²
Kuchnia
108,0 ft²
Spiżarka
28,9 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Współczesny dom z dachem 2-spadowym otoczony tarasem z płaskim zadaszeniem.

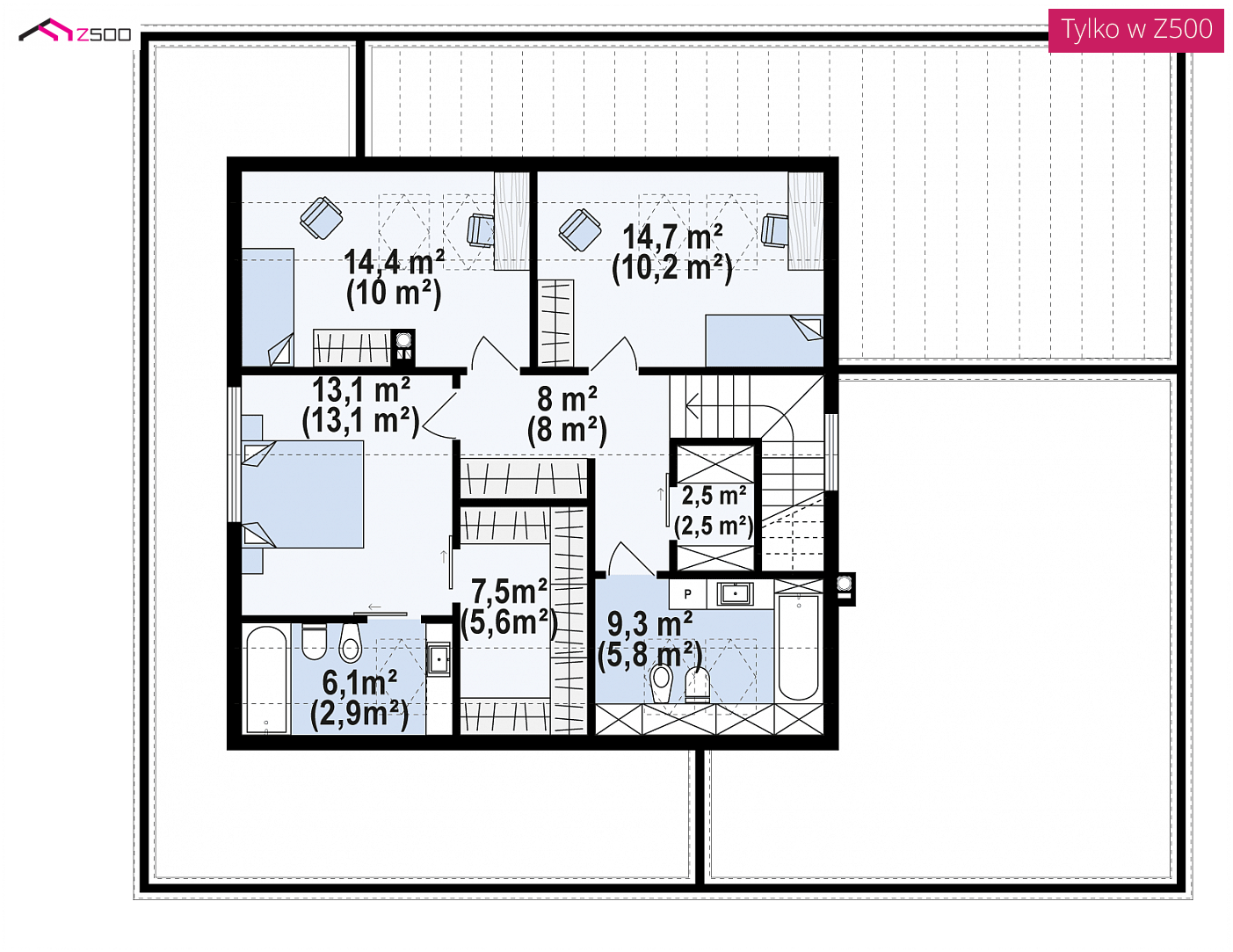

Garret 626,6 / 815,5 ft²

Hol
86,5 ft²
Pokój
110,2 ft²
Pokój
107,9 ft²
Pokój
142,0 ft²
Łazienka
31,0 ft²
Garderoba
60,1 ft²
Łazienka
62,4 ft²
Schowek
26,5 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Współczesny dom z dachem 2-spadowym otoczony tarasem z płaskim zadaszeniem.

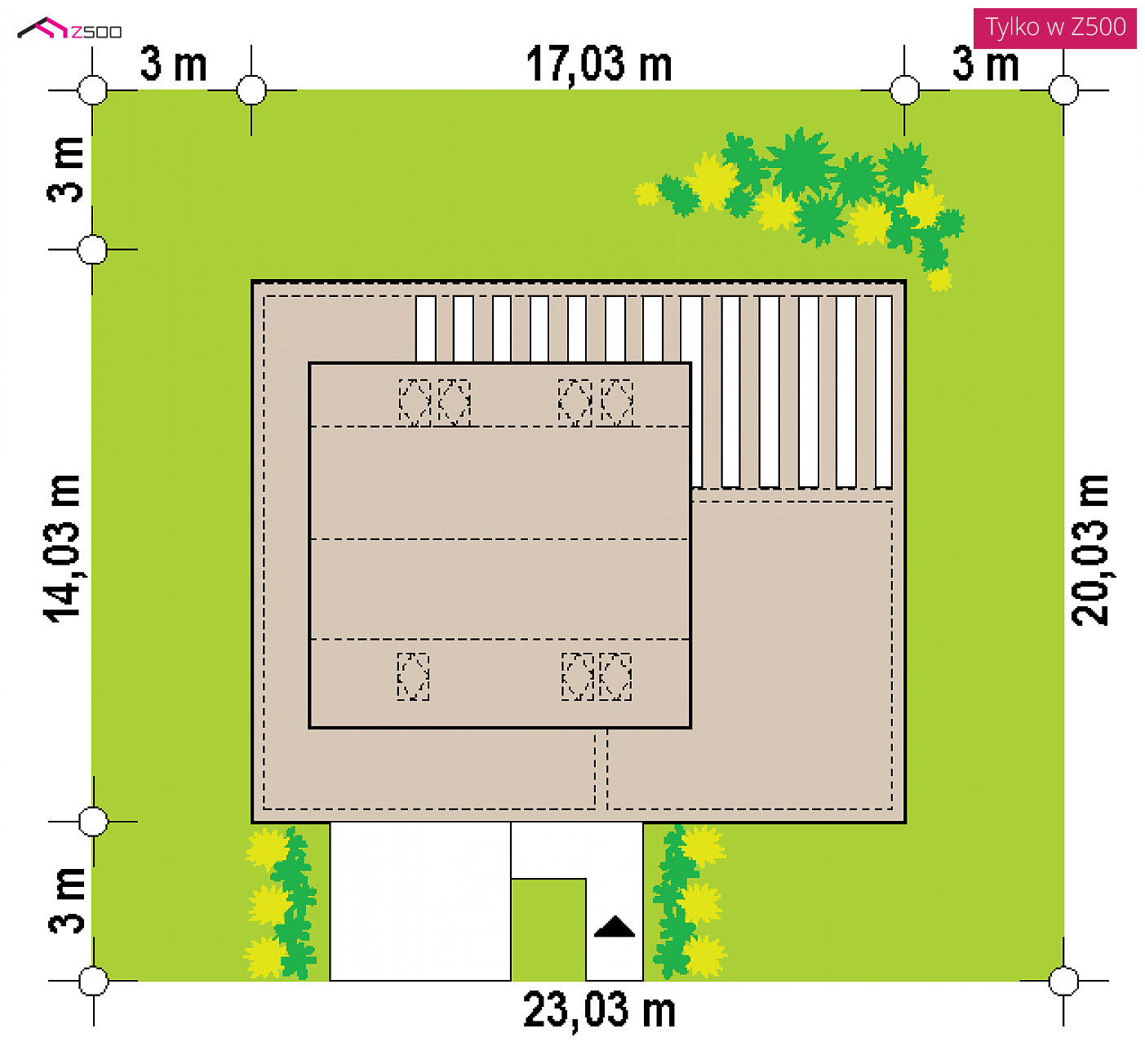

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
74,21 ft
length
65,68 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
55,87 ft

Area and dimensions

Usable / net
1490,6 / 2215,0 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1736,2 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
345,8 ft²
Cubic
20 235,3 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
29,2 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
40°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
2 227,59 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
3,28 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
74,21 x 65,68 ft


Technology and construction

Walls
timber frame
Ceiling (ground floor)
wooden
Roof
Metal tile, bituminous
technology
wooden

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
wooden
NEW!

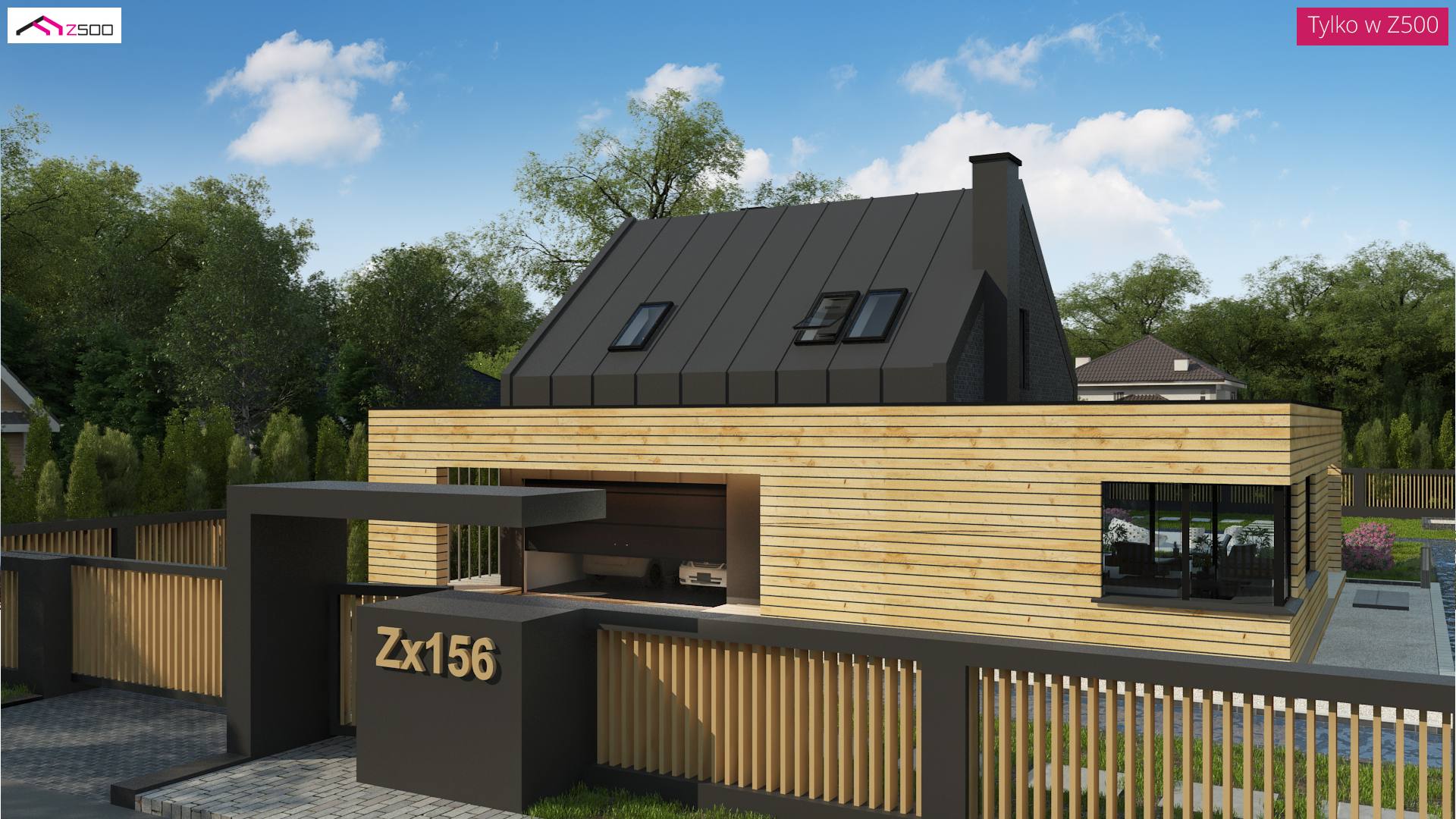

Zx156 D jest propozycją domu współczesnego z nowoczesną kolorystyką oraz materiałami elewacyjnymi. Z zewnątrz budynek wygląda jak połączenie dwóch brył. Wewnętrzna, ciemna z poddaszem użytkowym i dachem dwuspadowym oraz zewnętrzna, parterowa z dachem płaskim pokryta drewnem elewacyjnym.

Na parterze architekt umieścił otwartą część dzienną z dużymi przeszkleniami. Z salonu wyjdziemy na zadaszony taras, gdzie w ciepłe dni możemy podejmować gości. Część techniczna, garaż na dwa samochody oraz przestronne PG z miejscem do przechowywania dostępne z zewnątrz znajdziemy w lewej części budynku. Dodatkowym atutem będzie przestronny gabinet od ogrodu jak i łazienka dla gości.

Poddasze domu to prywatne miejsce gospodarzy. Znajdziemy tu dużą łazienkę i 3 przestronne sypialnie z czego główna posiada własną garderobę oraz łazienkę.

animation 360 degrees

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
