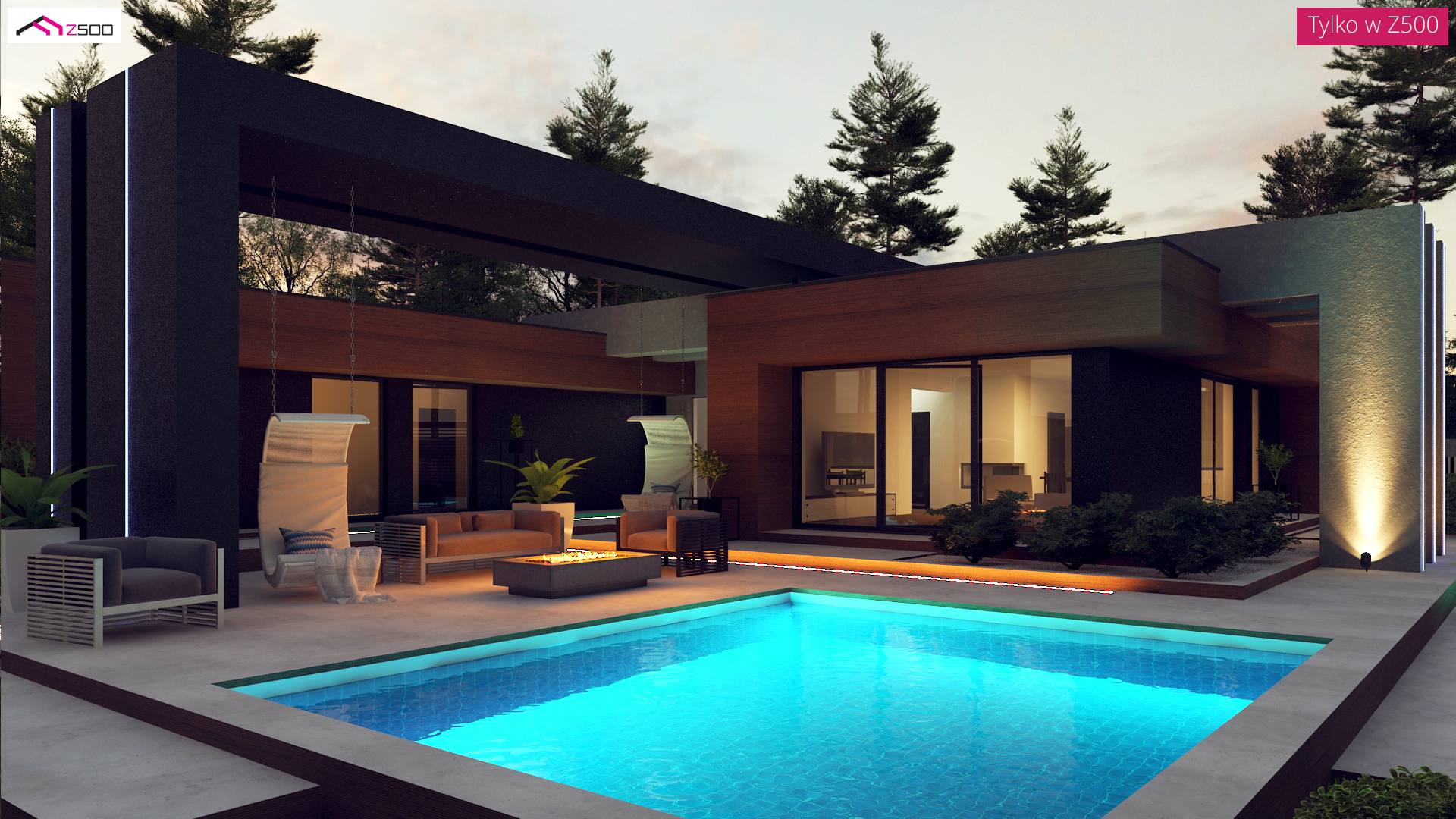

Home project Zx158

Zx158 mirror image

brick
NEW!
project's availability 3 work days
$4 670
brick
NEW!
project's availability 3 work days
mirror image
$4 670
Home project Zx158
Home project Zx158
Home project Zx158
Home project Zx158
Home project Zx158
Home project Zx158

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Nowoczesny dom parterowy na planie litery

Ground 1675,3 / 2120,1 ft²

Sień
61,3 ft²
Garderoba
32,2 ft²
WC
25,2 ft²
Spiżarka
30,5 ft²
Kuchnia
102,3 ft²
Salon+kuchnia
392,7 ft²
Hol
148,5 ft²
Hol
125,1 ft²
Pokój
140,6 ft²
Garderoba
47,4 ft²
Łazienka
40,3 ft²
Łazienka
104,7 ft²
Pokój
149,2 ft²
Pokój
149,2 ft²
Gabinet
127,9 ft²
Garaż
373,2 ft²
Pomieszczenie gospodarcze
72,9 ft²
check
area
check
distance
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Nowoczesny dom parterowy na planie litery

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
88,39 ft
length
97,64 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
65,81 ft

Area and dimensions

Usable / net
1675,3 / 2120,1 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2735,8 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
372,8 ft²
Cubic
19 657,2 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
16,57 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
2 330,71 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
88,39 x 97,64 ft


Technology and construction

Walls
aerated concrete
Ceiling (ground floor)
reinforced concrete
Roof
foil, bituminous
technology
brick

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project

view color variants

view color variants

view 3D interactive model

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
