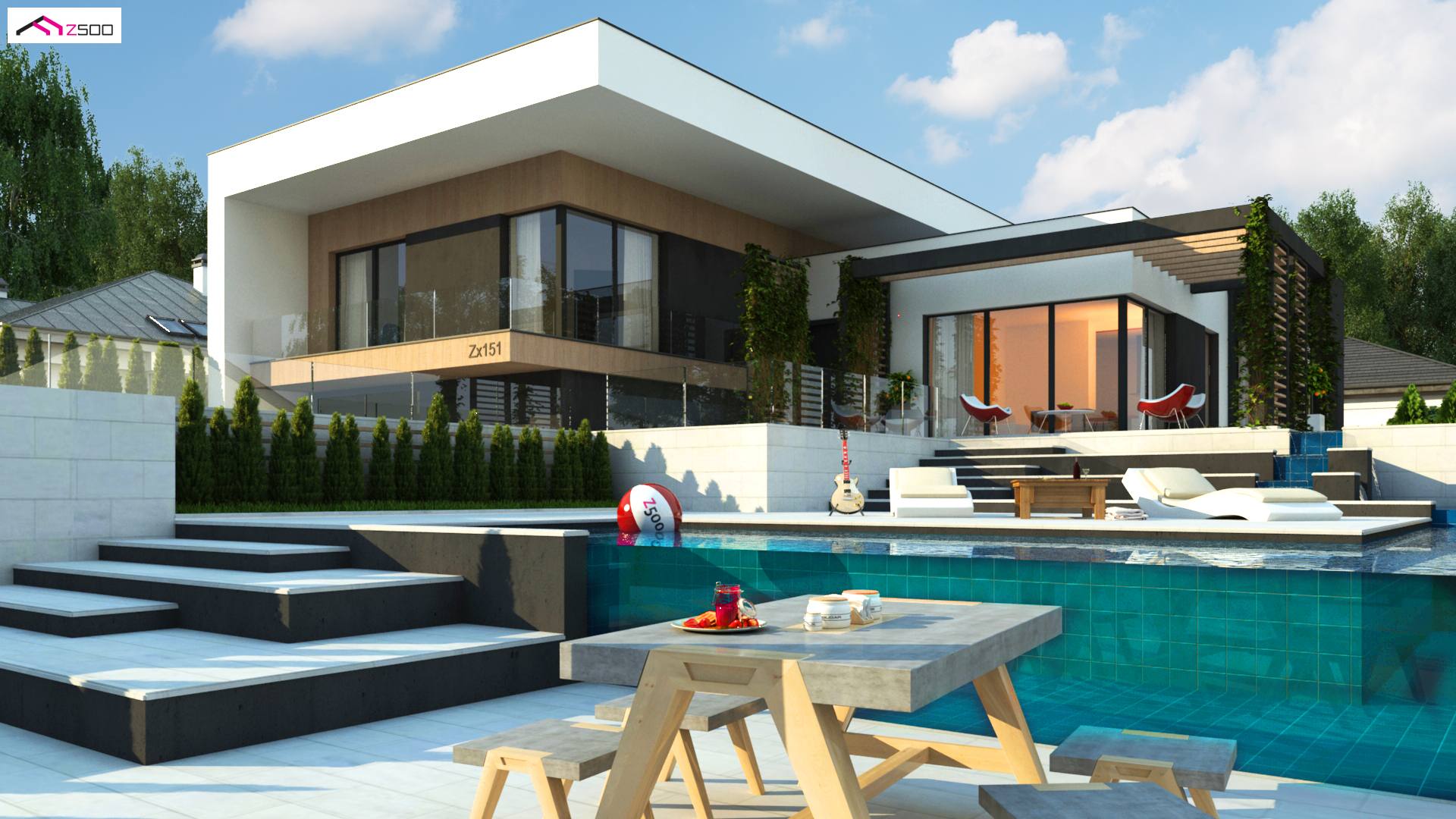

Home project Zx151 HB

Zx151 HB mirror image

H-BLOCK
NEW!
H-BLOCK
NEW!
mirror image
Home project Zx151 HB
Home project Zx151 HB
Home project Zx151 HB
Home project Zx151 HB

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project

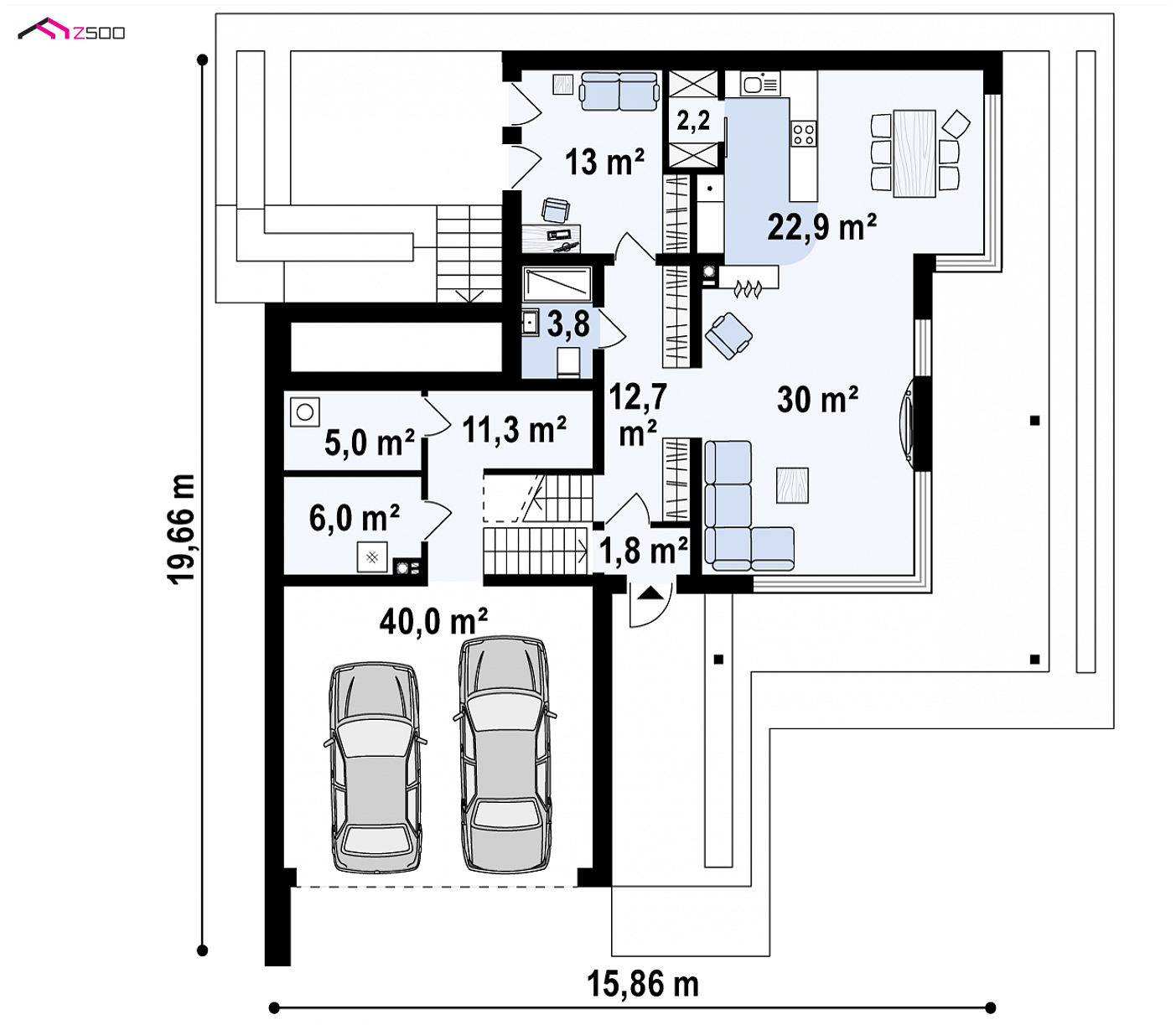

Home project  - Nowoczesny dom z półpiętrem

Ground 1106,3 / 1601,8 ft²

Sień
19,8 ft²
Hol+schody
136,8 ft²
Łazienka
40,5 ft²
Gabinet
139,9 ft²
Kuchnia+jadalnia
246,8 ft²
Spiżarka
24,0 ft²
Salon
323,1 ft²
Hol+schody
121,2 ft²
Pralnia
54,1 ft²
Pomieszczenie gospodarcze
64,7 ft²
Garaż
430,8 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.

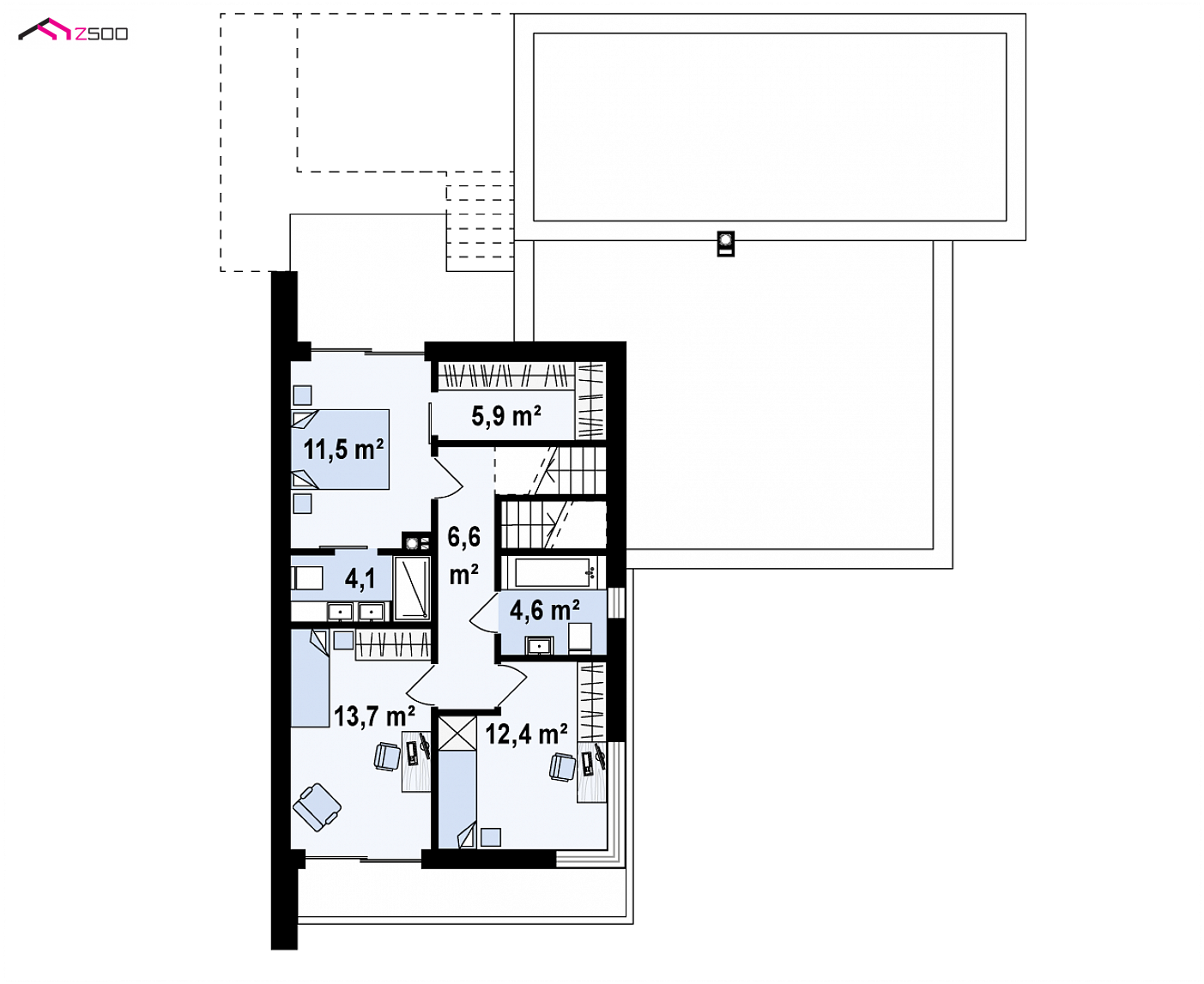

Home project  - Nowoczesny dom z półpiętrem

Floor 632,3 ft²

Hol
71,3 ft²
Łazienka
49,7 ft²
Pokój
132,9 ft²
Pokój
147,3 ft²
Pokój
123,3 ft²
Łazienka
44,6 ft²
Garderoba
63,3 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Nowoczesny dom z półpiętrem

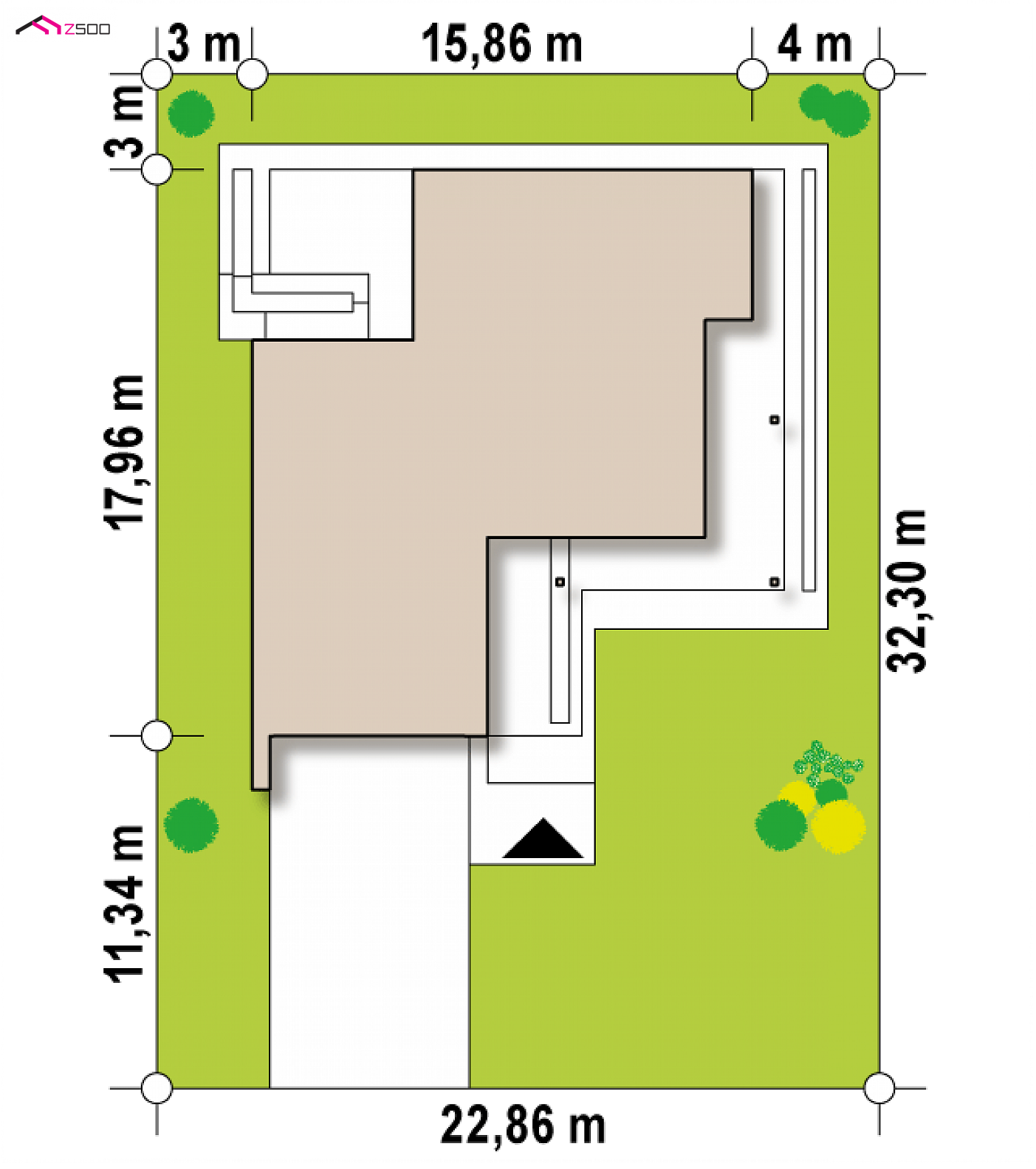

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
75 ft
length
105,97 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
52,03 ft

Area and dimensions

Usable / net
1738,6 / 2234,1 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2098,3 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
430,8 ft²
Cubic
21 400 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
18,41 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
2 070,12 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
75 x 105,97 ft


Technology and construction

Walls
H-BLOCK
Ceiling (ground floor)
H-BLOCK
Roof
foil, bituminous
technology
H-BLOCK

Thermal insulation

heating system
heat pump, ERV, floor heating
heating system - Type of heating provided for the project
