Home project Zx154 - A modern house with an area of ​​over 2000 sqft with vertical gardens

Zx154 mirror image

A modern house with an area of ​​over 2000 sqft with vertical gardens
brick
brick
brick
brick
mirror image
Home project Zx154 - A modern house with an area of ​​over 2000 sqft with vertical gardens
Home project Zx154 - A modern house with an area of ​​over 2000 sqft with vertical gardens
Home project Zx154 - A modern house with an area of ​​over 2000 sqft with vertical gardens
Home project Zx154 - A modern house with an area of ​​over 2000 sqft with vertical gardens

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - A modern house with an area of ​​over 2000 sqft with vertical gardens

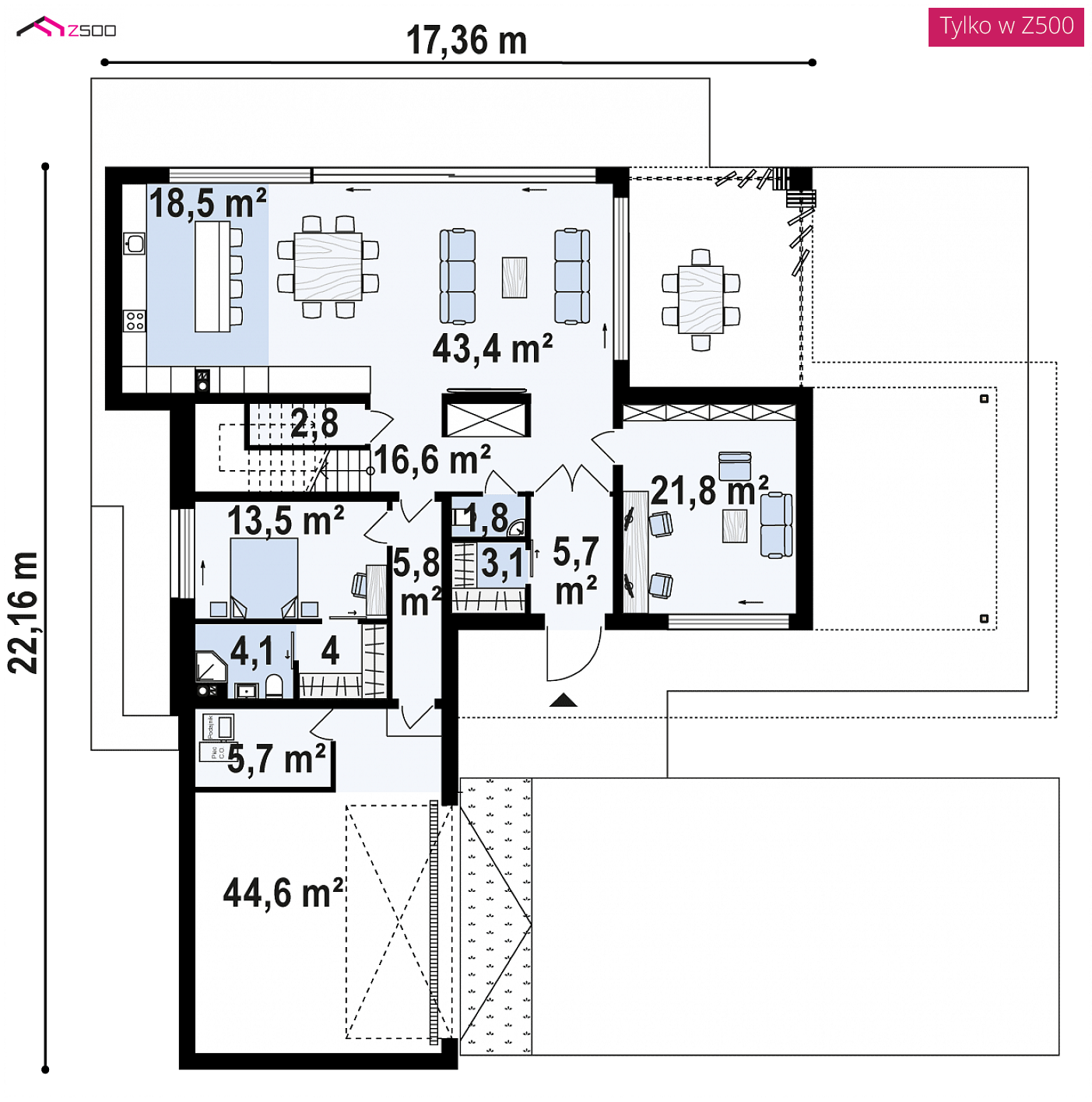

Ground 1533,0 / 2074,1 ft²

Sień
61,6 ft²
Garderoba
33,5 ft²
Hol+schody
195,5 ft²
WC
19,3 ft²
Schowek
30,4 ft²
Biblioteka
234,6 ft²
Salon+jadalnia
466,9 ft²
Kuchnia
196,9 ft²
Hol
62,5 ft²
Pokój
145,1 ft²
Garderoba
42,6 ft²
Łazienka
44,2 ft²
Garaż
479,8 ft²
Pomieszczenie gospodarcze
61,4 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - A modern house with an area of ​​over 2000 sqft with vertical gardens

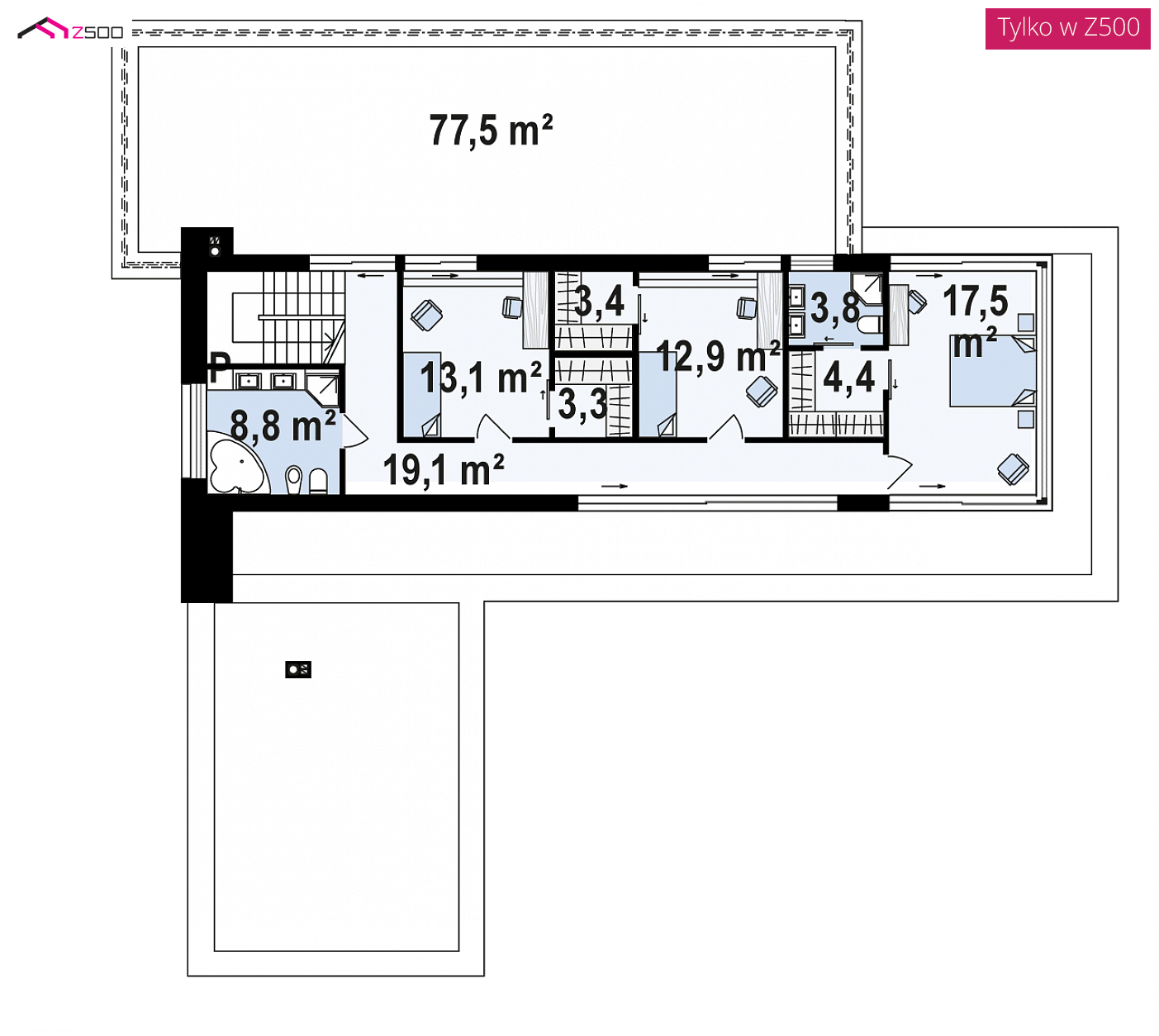

Floor 930,9 ft²

Hol
208,4 ft²
Łazienka
94,2 ft²
Pokój
141,2 ft²
Garderoba
36,0 ft²
Garderoba
36,2 ft²
Pokój
138,8 ft²
Łazienka
40,7 ft²
Garderoba
47,4 ft²
Pokój
188,2 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - A modern house with an area of ​​over 2000 sqft with vertical gardens

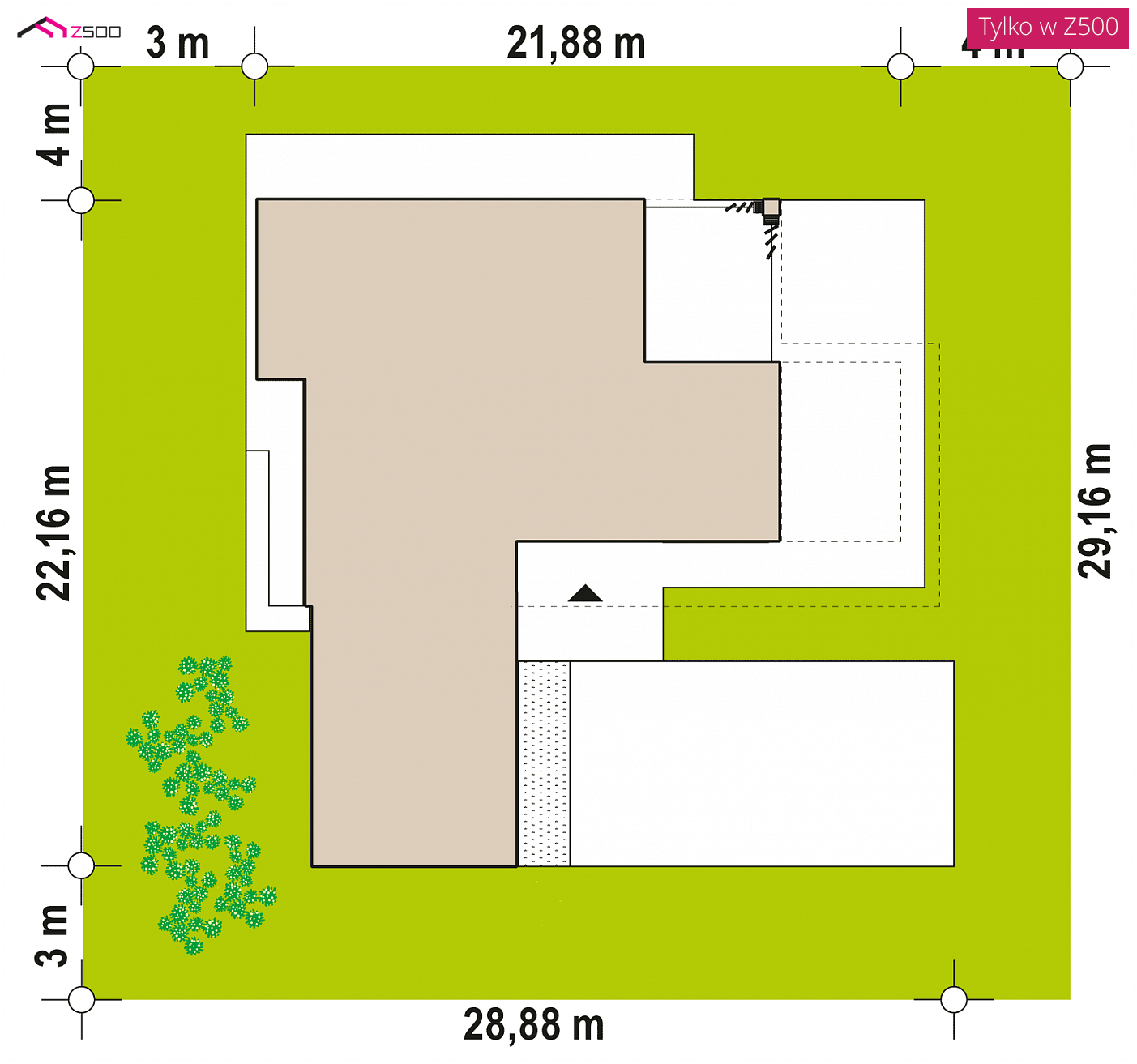

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
94,69 ft
length
95,67 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
76,64 ft

Area and dimensions

Usable / net
2463,9 / 3005,0 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2858,9 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
479,8 ft²
Cubic
28 931,2 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
25,1 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
2 141,05 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
94,69 x 95,67 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
reinforced concrete
Roof
bituminous, foil
technology
brick

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
93,25 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
78,95 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
home project Zx154 – interior arrangement, A modern house with an area of ​​over 2000 sqft with vertical gardens
home project Zx154 – interior arrangement, A modern house with an area of ​​over 2000 sqft with vertical gardens
home project Zx154 – interior arrangement, A modern house with an area of ​​over 2000 sqft with vertical gardens
home project Zx154 – interior arrangement, A modern house with an area of ​​over 2000 sqft with vertical gardens
home project Zx154 – interior arrangement, A modern house with an area of ​​over 2000 sqft with vertical gardens
home project Zx154 – interior arrangement, A modern house with an area of ​​over 2000 sqft with vertical gardens
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
brick
brick

Zx154 to przestronny nowoczesny dom dla wymagających. Elewacja budynku została zaprojektowana w chłodnej bieli oraz ciemnym, grafitowym tynkiem umieszczonym we wnękach. |W całym domu zastosowano duże przeszklenia. Nie zapomniano o zadaszeniu wejścia jak i tarasów. W projekcie zastosowano stropodachy oraz pokazano możliwość zrobienia zielonej elewacji. Dom ma być nowoczesny, praktyczny ale również przyjazny środowisku.

W parterze zaprojektowano otwartą część dzienną przeszkloną na ogród. Lewe skrzydło to garaż na dwa samochody i pomieszczenie gospodarcze. Znalazło sie tu również miejsce na sypialnię z garderobą oraz łazienką. Może pełnić rolę sypialni głównej, miejsca dla starszych rodziców, którzy z nami mieszkają lub części mieszkalnej dla służby. Przy salonie, wytyczono pomieszczenie rekreacyjne. Ze względu na potrzeby może pełnić funkcję biblioteki, gabinetu czy pokoju zabaw np. bilard.

Piętro domu to 3 sypialnie z czego jedna główna została umieszczona na końcu korytarza i przeszklona z 3 stron. Każdy pokój posiada garderobę a dużą łazienke spokojnie można nazwać pokojem kąpielowym.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
