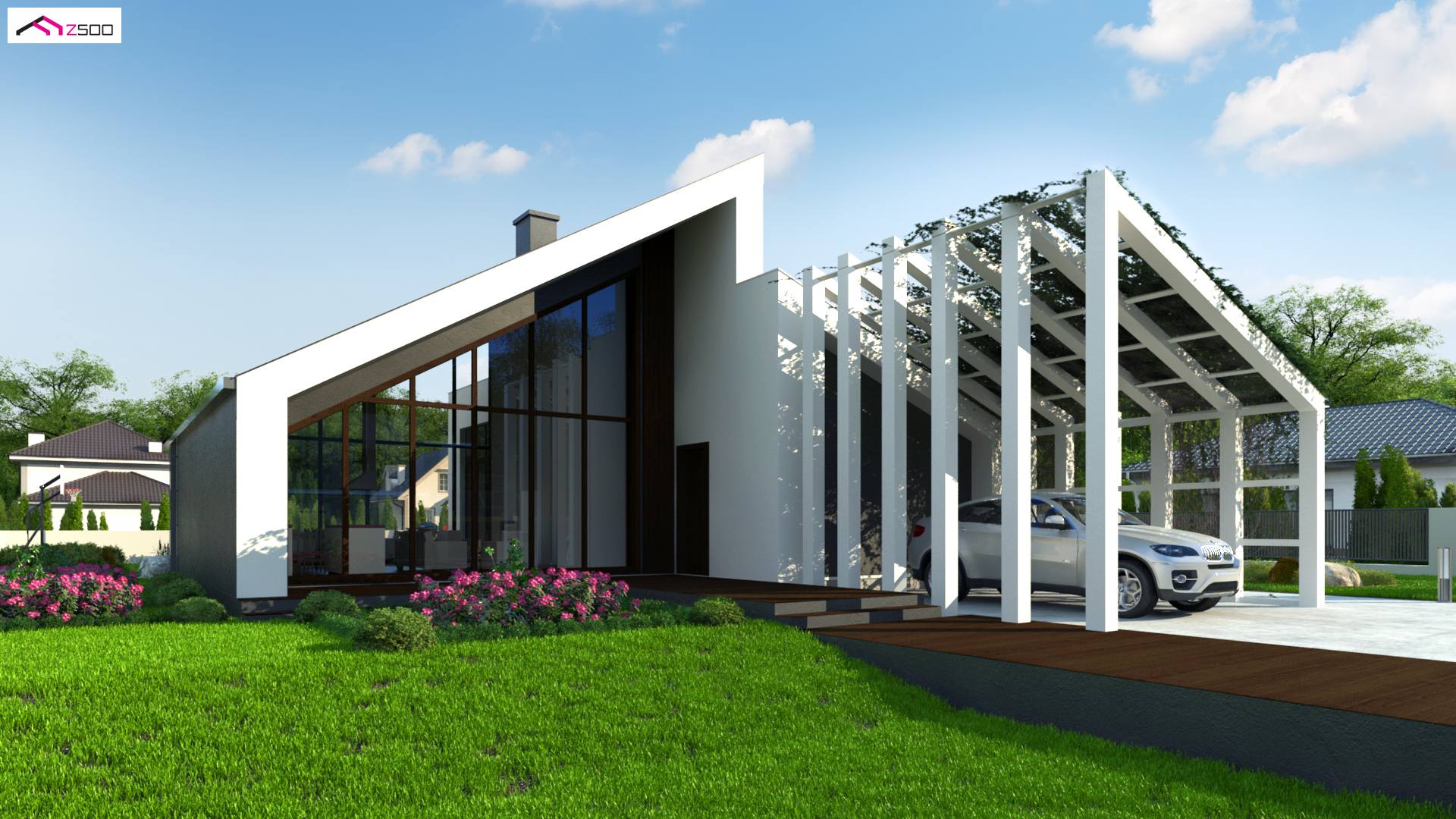

Home project Zx201 - A modern house with a spacious living room and large glazing

Zx201 mirror image

A modern house with a spacious living room and large glazing
brick
brick
brick
brick
mirror image
Home project Zx201 - A modern house with a spacious living room and large glazing
Home project Zx201 - A modern house with a spacious living room and large glazing
Home project Zx201 - A modern house with a spacious living room and large glazing
Home project Zx201 - A modern house with a spacious living room and large glazing
Home project Zx201 - A modern house with a spacious living room and large glazing
Home project Zx201 - A modern house with a spacious living room and large glazing

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - A modern house with a spacious living room and large glazing

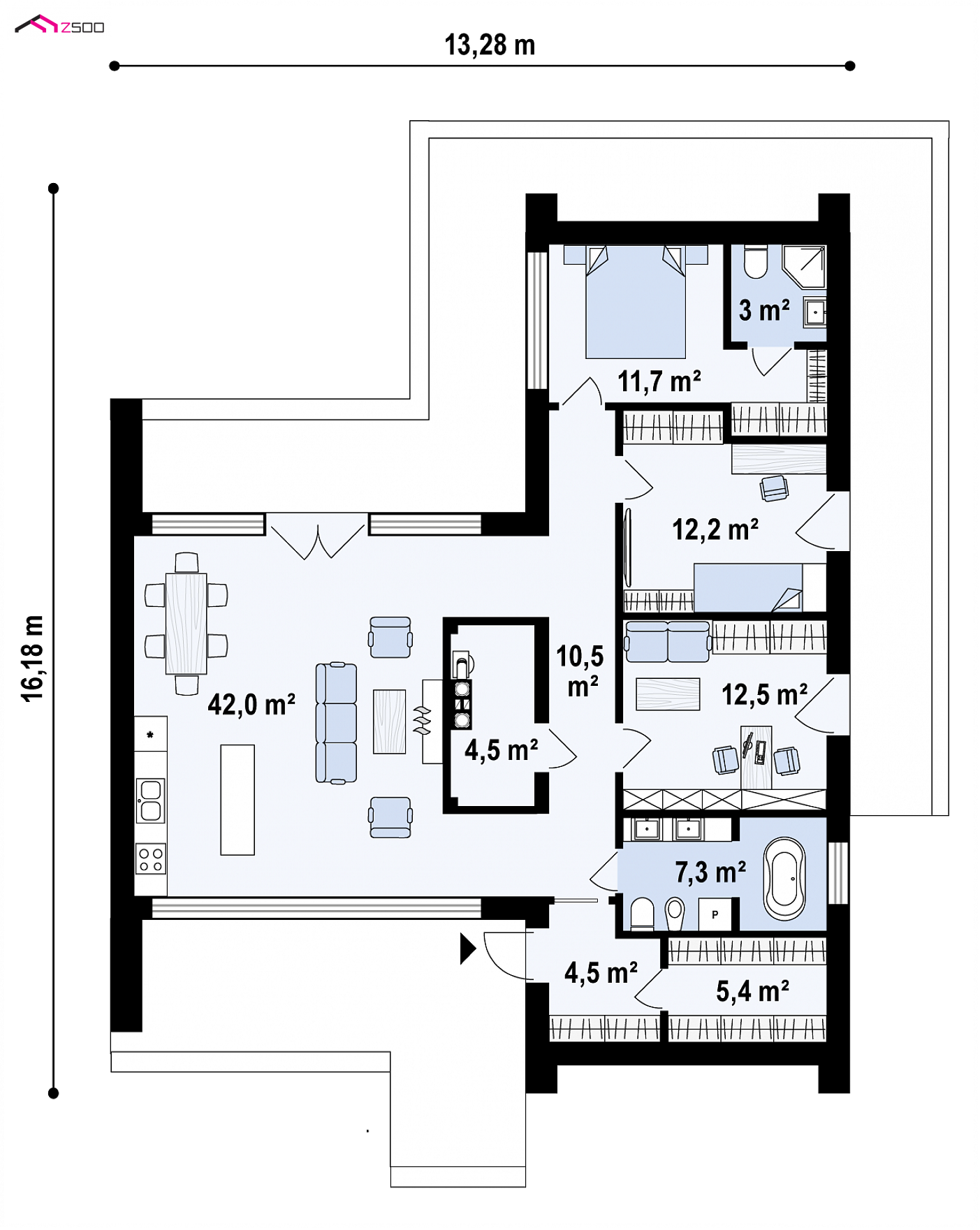

Ground 1174,1 / 1223,0 ft²

Sień
48,0 ft²
Garderoba
57,6 ft²
Hol
112,8 ft²
Łazienka
78,8 ft²
Pomieszczenie gospodarcze
48,9 ft²
Pokój
134,8 ft²
Pokój
131,1 ft²
Pokój+garderoba
126,3 ft²
Łazienka
32,4 ft²
Salon+kuchnia
452,4 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - A modern house with a spacious living room and large glazing

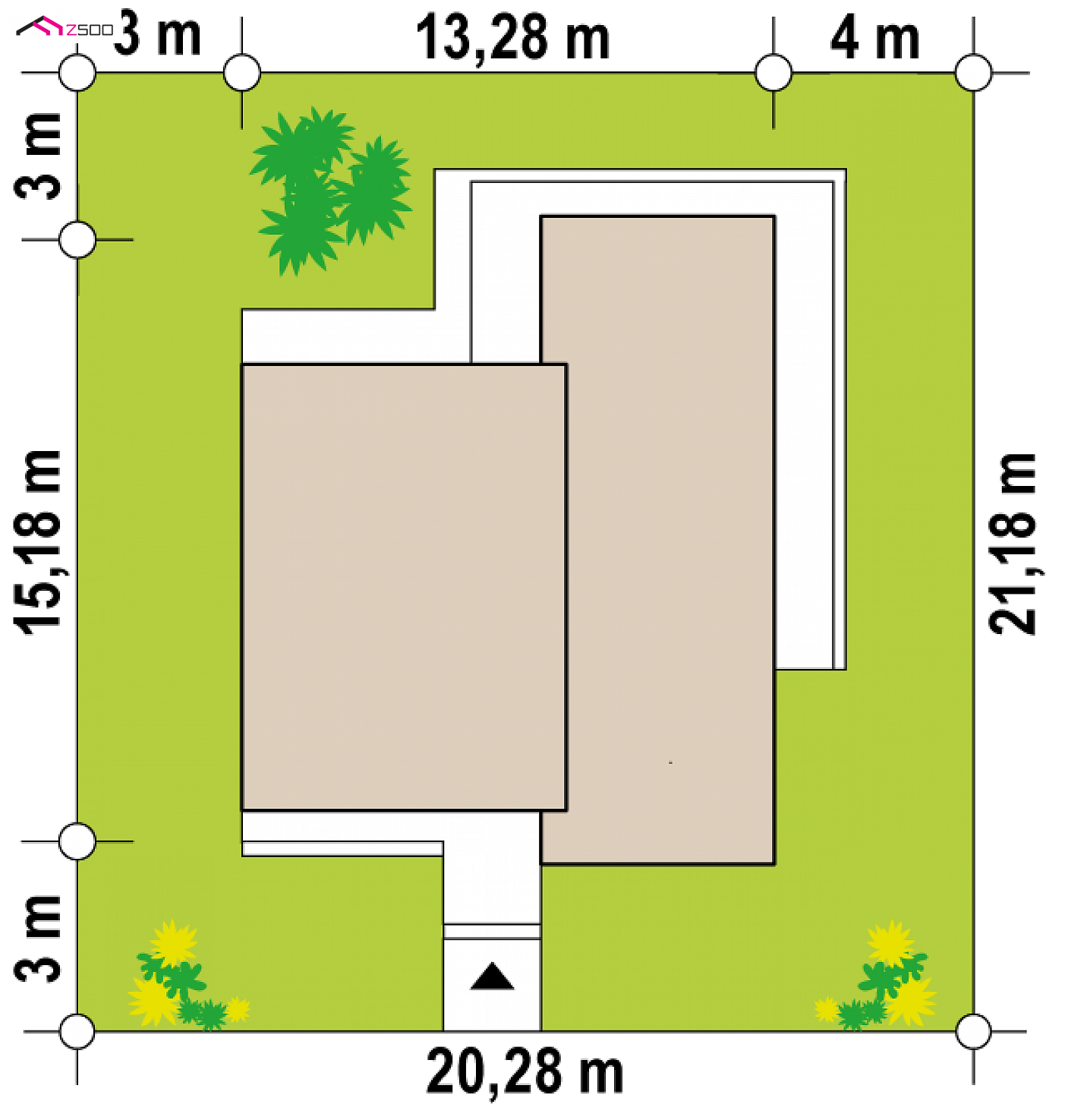

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
66,54 ft
length
69,49 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
43,57 ft

Area and dimensions

Usable / net
1174,1 / 1223,0 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1577,5 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Cubic
14 907 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
25,39 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
30° / 20°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
2 196,7 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
66,54 x 69,49 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
reinforced concrete
Roof
Metal tile, bituminous, foil, plate
technology
brick

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
91,25 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
76,45 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
home project Zx201 – interior arrangement, A modern house with a spacious living room and large glazing
home project Zx201 – interior arrangement, A modern house with a spacious living room and large glazing
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
brick
brick

Zx201 to nowoczesny, parterowy dom z dużymi przeszkleniami od strony frontu i ogrodu. Cechą charakterystyczną bryły jest wyraźny podział na dwie części, poprzez zastosowanie różnicy wysokości elewacji. Pierwsza część to strefa dzienna, natomiast druga to strefa wejściowa i nocna. Ten zabieg pozwolił na stworzenie nietypowej przestrzeni.

Niestandardowo pomieszczenie gospodarcze stało się elementem dekoracyjnym salonu, dzięki zastosowaniu kominka. Pokój znajdujący się na przeciwko pomieszczenia gospodarczego, może pełnić rolę gabinetu (gość nie przechodzi ani przez strefę dzienną ani nocną), dlatego zaletą jest również usytuowana w pobliżu łazienka.

Niezwykłe jest to, iż pomimo niewielkiego metrażu, w domu Zx201 jest możliwość zastosowania antresoli we wszystkich pokojach, dzięki temu otrzymujemy dodatkową przestrzeń. Kolejnym atutem domku jest możliwość dobudowania garażu zarówno od strony frontu jak i bocznej elewacji. Na wizualizacjach zaproponowano wiatę. Warto również wspomnieć, iż domek można zbliźniaczyć.

Projekt Zx201 jest stworzony dla ludzi ceniących sobie oryginalny wygląd oraz funkcjonalną przestrzeń zamkniętą w niewielkiej powierzchni.


ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
