Zx146 mirror image

brick

project's availability 3 work days

$4 470

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project

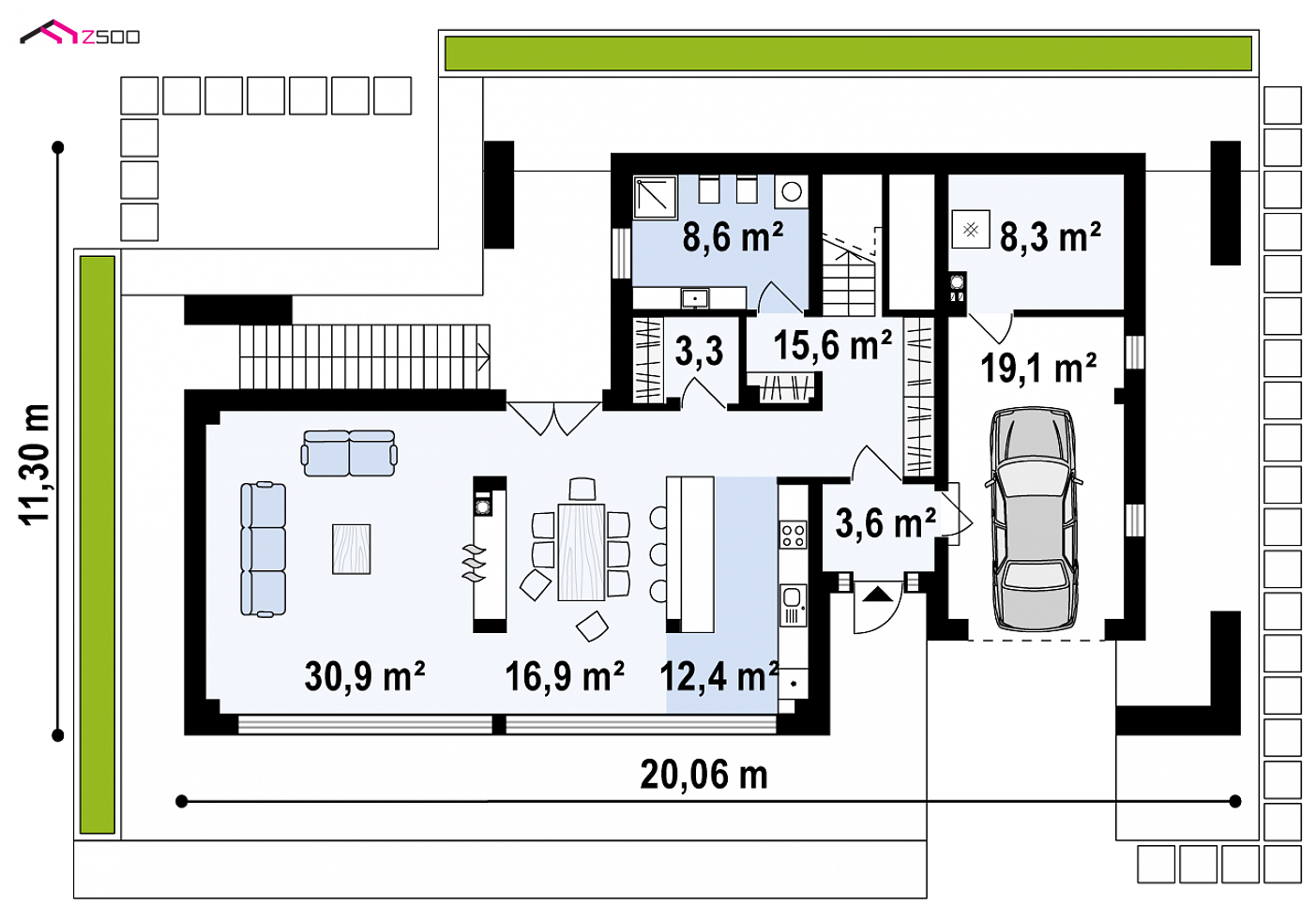

Ground 981,2 / 1276,5 ft²

Sień

38,2 ft²

Hol+schody

167,4 ft²

Łazienka

92,0 ft²

Spiżarka

36,0 ft²

Kuchnia

133,3 ft²

Jadalnia

181,7 ft²

Salon

332,7 ft²

Garaż

205,5 ft²

Pomieszczenie gospodarcze

89,8 ft²

mirror
imageDraw

Click or touch on the image on the left to start the measure.

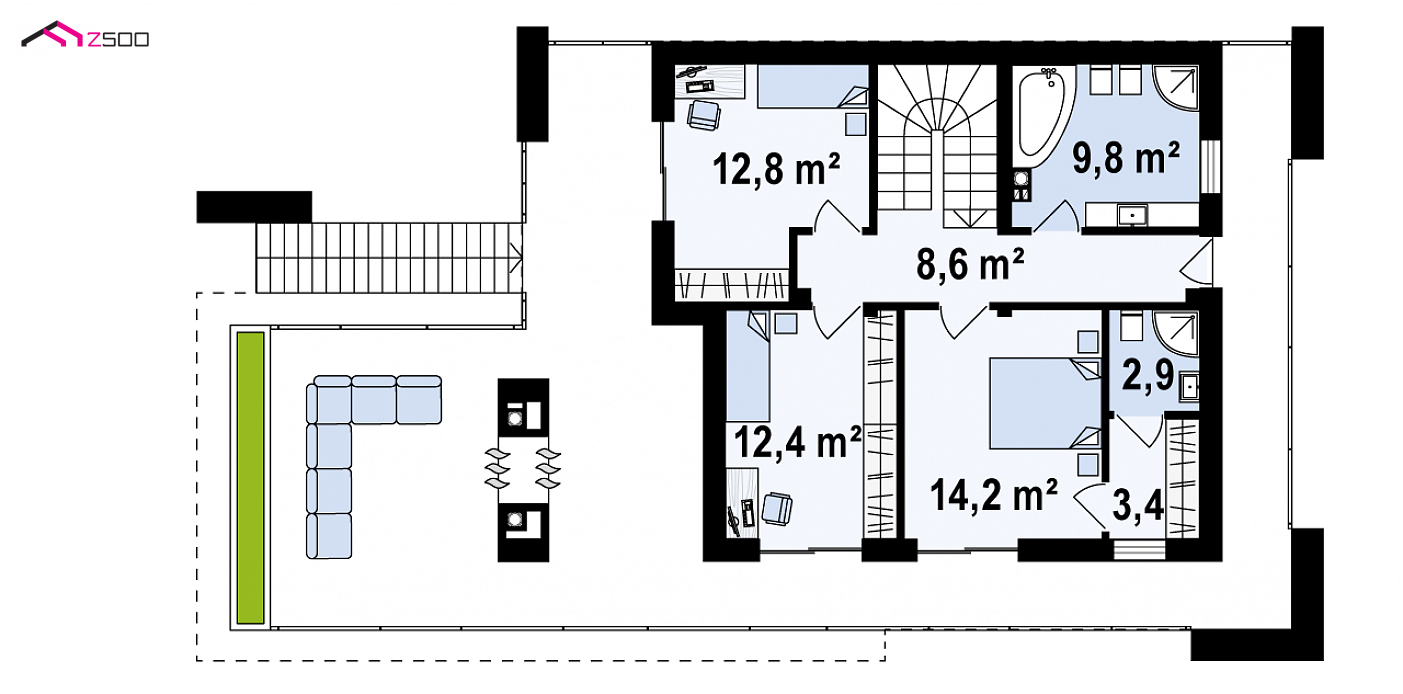

Floor 689,1 ft²

Hol

92,8 ft²

Łazienka

105,6 ft²

Pokój

132,9 ft²

Pokój

137,2 ft²

Pokój

153,1 ft²

Garderoba

36,5 ft²

Łazienka

31,0 ft²

mirror
imageDraw

Click or touch on the image on the left to start the measure.

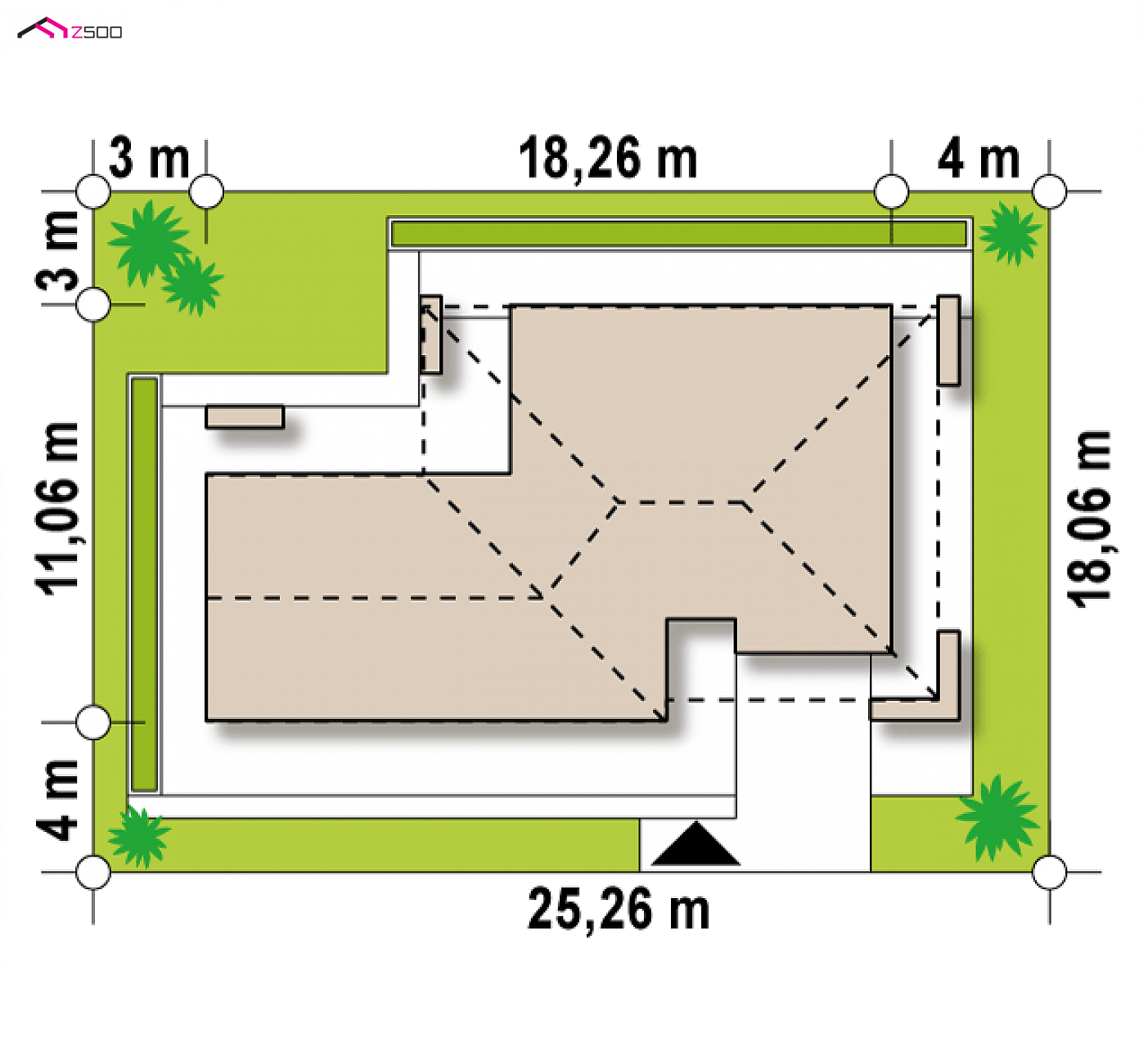

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width

82,87 ft

length

59,25 ft

Dimensions of the front elevation

Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors

65,81 ft

Area and dimensions

Usable / net

1670,3 / 1965,6 ft²

Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.

Living area

1697,6 ft²

Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.

Garage area

205,5 ft²

Cubic

18 797,6 ft³

Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.

The height of the house

26,57 ft

The height of the house - height from ground level to the ridge or attic.

The angle of inclination of the roof

2° / 2,86°

The angle of inclination of the roof - the angle of the roof to the ground.

Roof area

740,56 ft²

Roof area - total roof area with the exception of roof windows.

Minimal plot

82,87 x 59,25 ft

Technology and construction

Walls

aerated concrete, ceramics, silicates

Ceiling (ground floor)

reinforced concrete

Roof

bituminous

technology

brick

Thermal insulation

heating system

eco pea coal, solid fuel, ERV

heating system - Type of heating provided for the project

Primary energy (Ep)

89,8 kWh/ft²/year

Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.

Final energy (Ek)

77,7 kWh/ft²/year

Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
