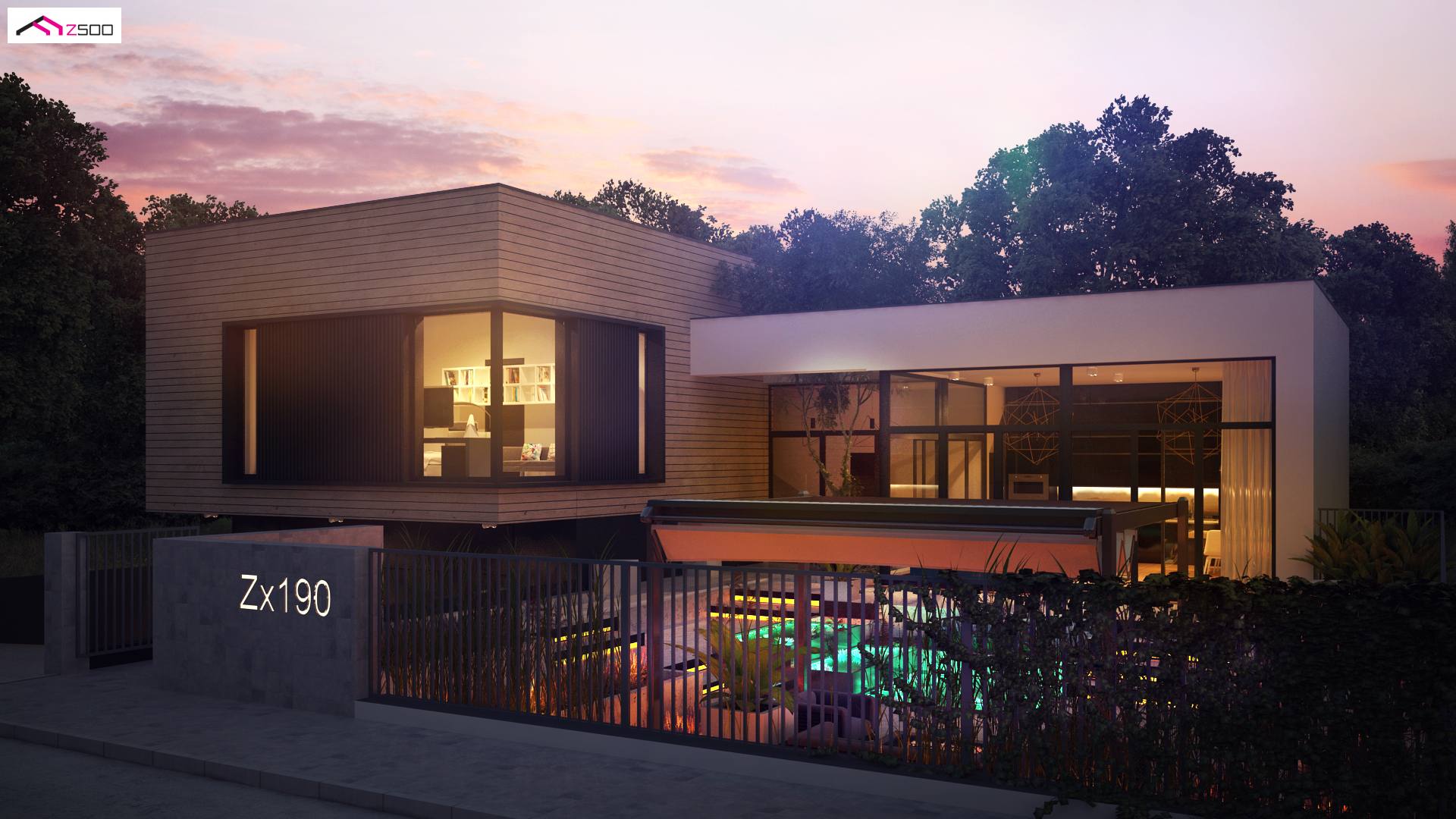

Home project Zx190

Zx190 mirror image

brick
brick
project's availability 3 work days
$4 170
brick
brick
project's availability 3 work days
mirror image
$4 170
Home project Zx190
Home project Zx190
Home project Zx190
Home project Zx190

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project

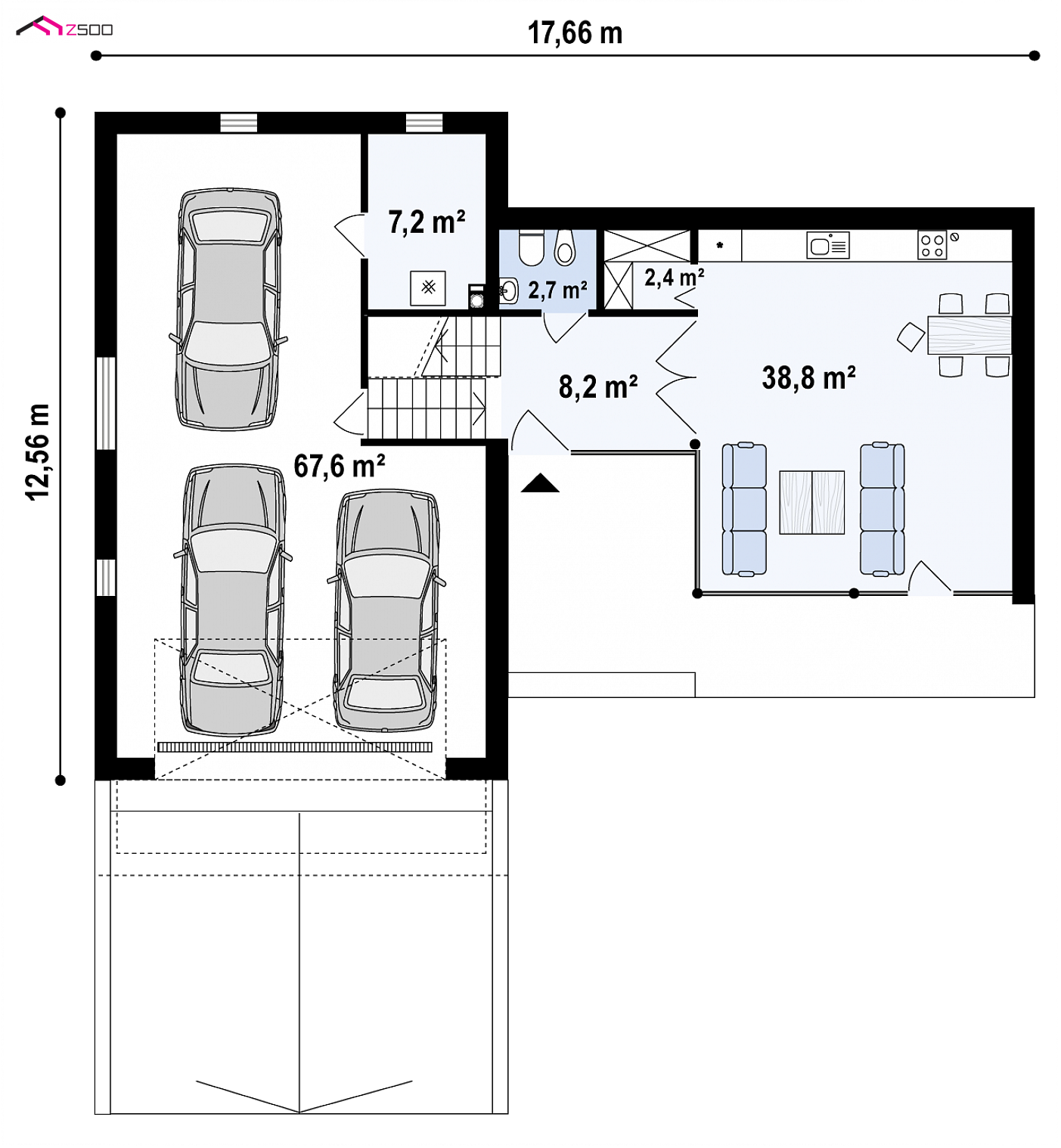

Home project  - Nowoczesny dom z salonem usytuowanym na frontową elewacje i garażem podziemnym

Ground 560,5 / 1366,5 ft²

Sień
88,6 ft²
Salon+jadalnia
417,4 ft²
Spiżarka
25,8 ft²
WC
29,4 ft²
Garaż
727,9 ft²
Pomieszczenie gospodarcze
77,0 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.

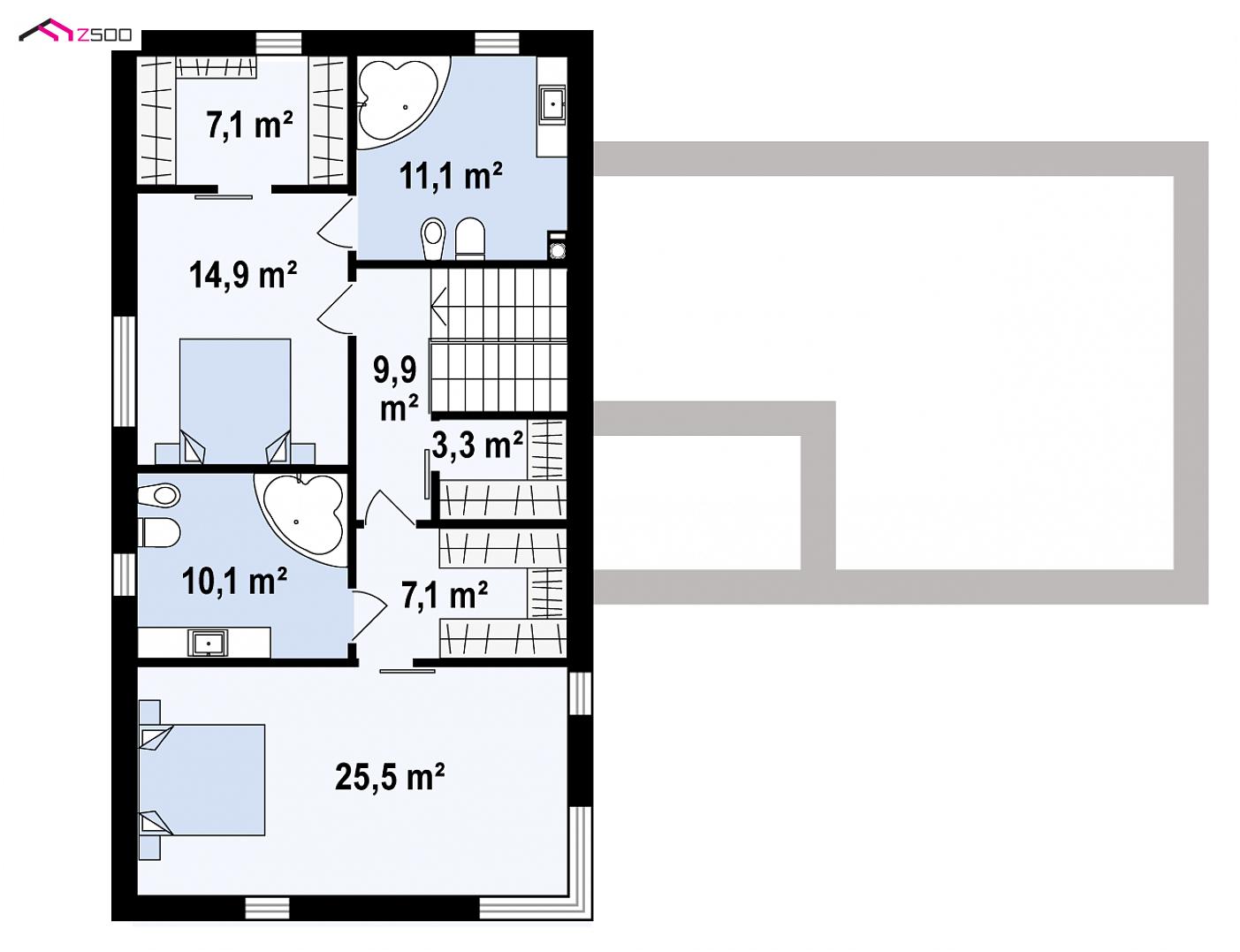

Home project  - Nowoczesny dom z salonem usytuowanym na frontową elewacje i garażem podziemnym

Floor 958,2 ft²

Hol+schody
106,7 ft²
Garderoba
35,6 ft²
Garderoba
76,6 ft²
Pokój
274,9 ft²
Łazienka
109,0 ft²
Pokój
159,8 ft²
Garderoba
76,5 ft²
Łazienka
118,9 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Nowoczesny dom z salonem usytuowanym na frontową elewacje i garażem podziemnym

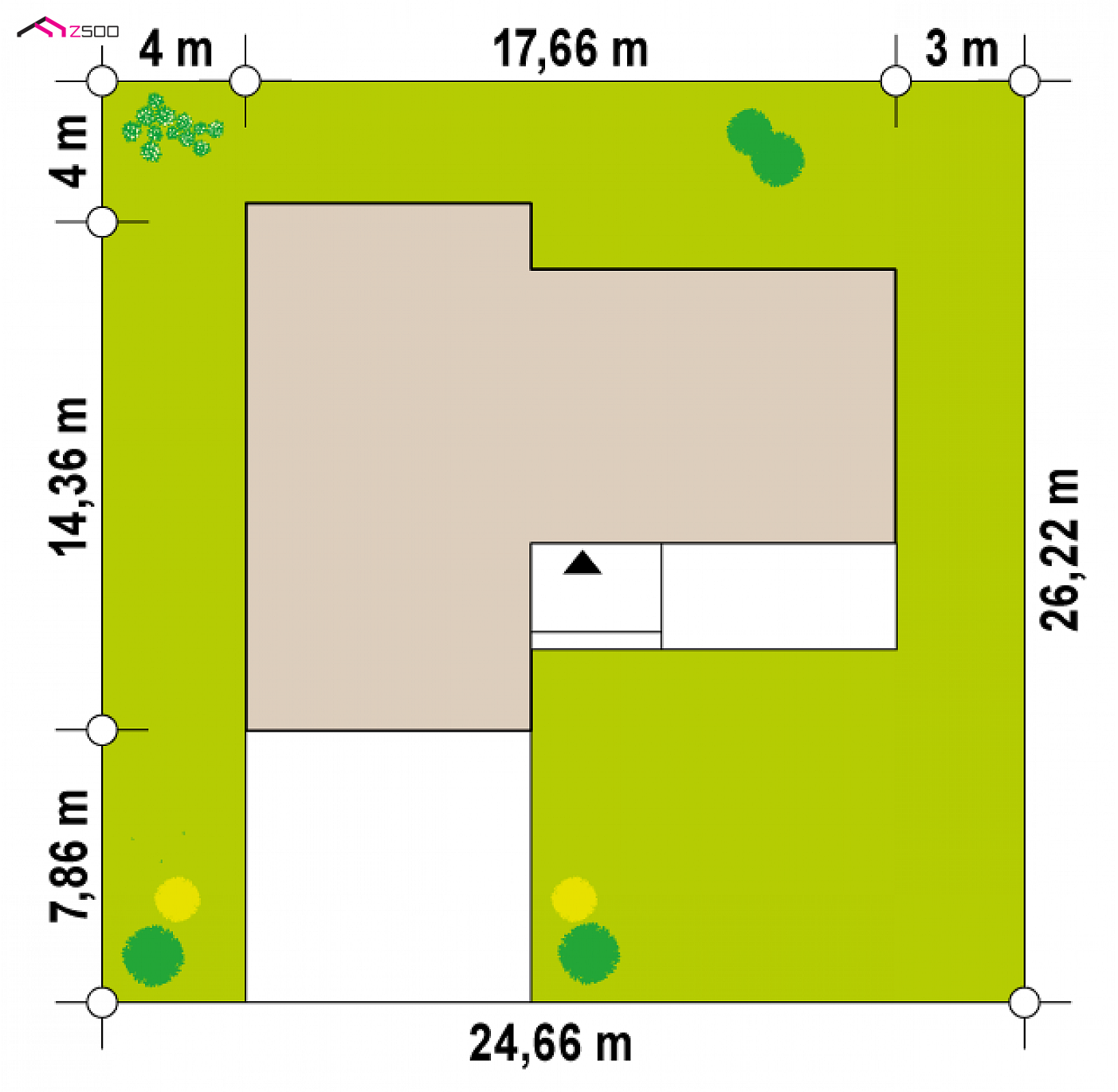

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
80,91 ft
length
86,02 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
57,94 ft

Area and dimensions

Usable / net
1518,7 / 2324,7 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1897,4 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
727,9 ft²
Cubic
23 133,2 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
20,34 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 485,42 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
80,91 x 86,02 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
reinforced concrete
Roof
foil, bituminous
technology
brick

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
92,75 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
75,67 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.

360-degrees animation

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
