Home project  - A modern one-story house with a glass garage visible from the living room

Zx188

A modern one-story house with a glass garage visible from the living room
ķieģeļu
concept
project's availability 23 work days

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
%}
Home project  - A modern one-story house with a glass garage visible from the living room

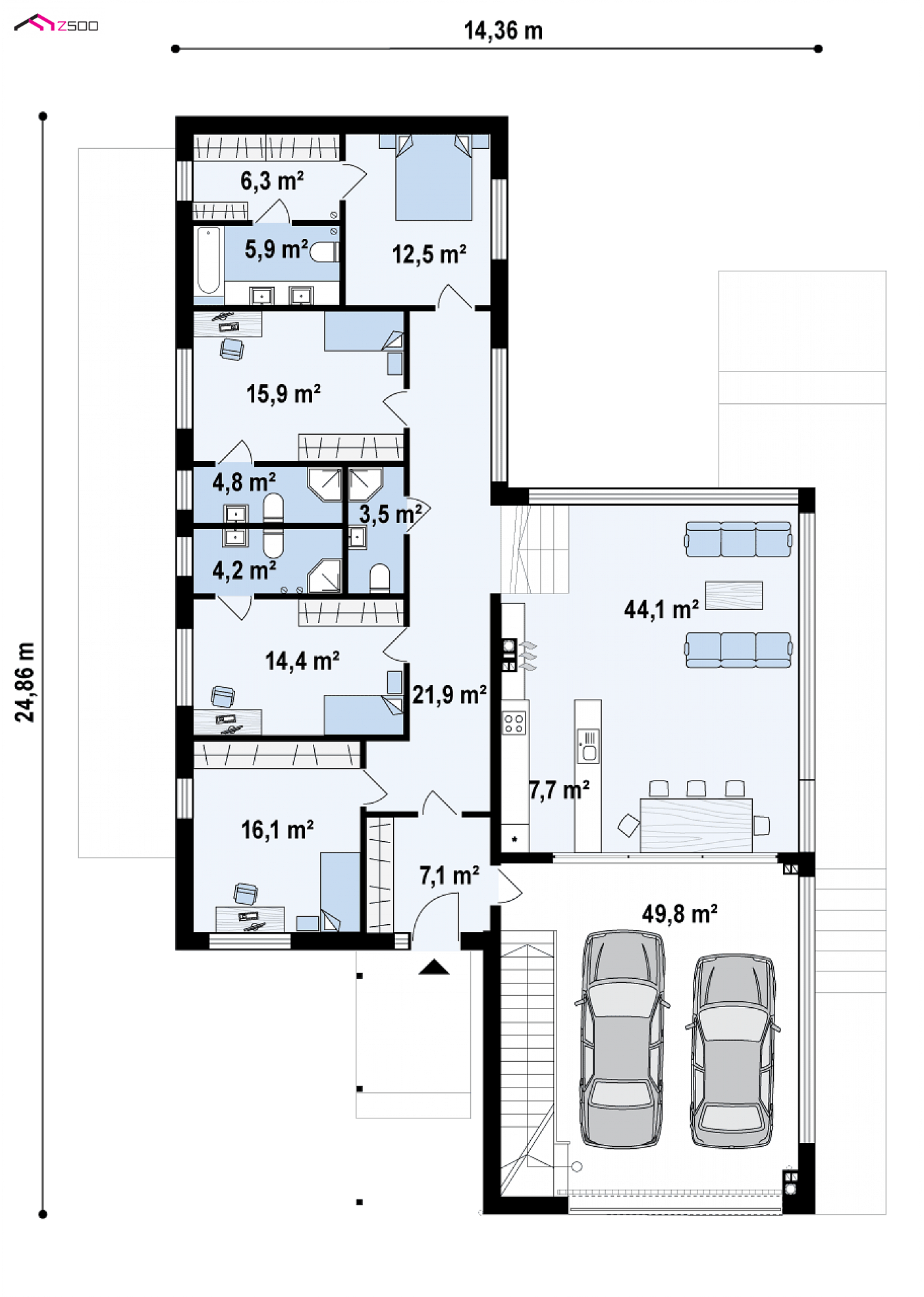

Ground 1628,2 / 2164,7 ft²

Salon+jadalnia
465,5 ft²
Kuchnia
82,8 ft²
Hol
185,9 ft²
Pokój
135,5 ft²
Pokój
171,5 ft²
Pokój
165,0 ft²
Garderoba
67,7 ft²
Łazienka
62,4 ft²
Gabinet
117,2 ft²
Hol
68,2 ft²
Hol
45,0 ft²
Sień
61,4 ft²
Garaż+pom. gosp.
536,6 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - A modern one-story house with a glass garage visible from the living room

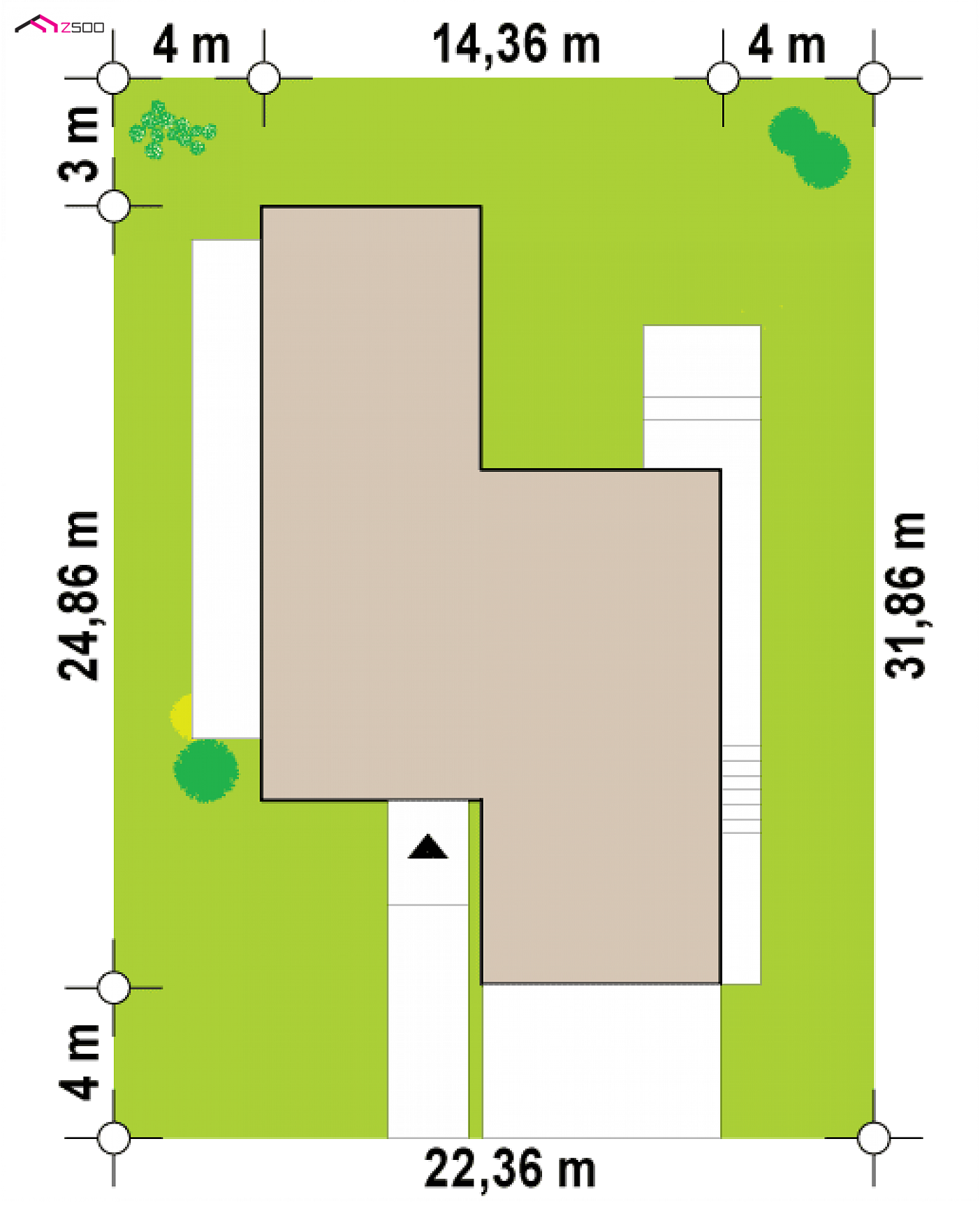

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
73,36 ft
length
107,81 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
47,11 ft

Area and dimensions

Usable / net
1979,7 / 2622,7 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2766,3 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
536,6 ft²
The height of the house
14,11 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
4 553,13 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
73,36 x 107,81 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling
reinforced concrete
Roof
bituminous
technology
ķieģeļu

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
ķieģeļu
concept
project's availability 23 work days

Propozycja częściowo podpiwniczonego, nowoczesnego, parterowego domu z płaskim dachem, dużymi przeszkleniami i basenem w części ogrodowej.

Unikalność w dedykowanym projekcie stanowi przeszklony od strony salonu garaż, dzięki czemu każdy kolekcjoner będzie mógł podziwiać swoje cudeńka z wnętrza domu, przy czym bezpośredni dostęp do garażu zabezpieczono przeszkleniami, aby woń „oleju eterycznego” i benzyny nie przenikały do wnętrza domu.

Elewację wykończono w dwóch chłodnych kolorach – bieli i szarości.

Wnętrza składają się z dwóch poziomów. Na poziomie -1 umiejscowiono część techniczną i relaksacyjną. Pomieszczenie gospodarcze, warsztat/salę gimnastyczną, oraz saunę i łazienkę. Saunę można zaadaptować na inne pomieszczenie.

Poziom 0 to przestronny, widny salon z aneksem kuchennym i ciepłym kominkiem w części reprezentacyjnej.

Z czterech pokoi mogących pełnić różną funkcję, dwa z nich posiadają prywatne łazienki i garderoby, więc idealnie nadają się na sypialnie. Sypialnia rodziców zlokalizowana jest od strony zielonego ogrodu, powyżej poziomu tarasu, co skutkuje ucztą dla naszych oczu.

Projekt pozornie może wydawać się trudny to wykonania, jednak został dokładnie przemyślany konstrukcyjnie, dzięki czemu jest łatwy w budowie.

animation 360 degrees

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
