Home project Zx116 HB

Zx116 HB mirror image

H-BLOCK
NEW!
H-BLOCK
NEW!
mirror image
Home project Zx116 HB
Home project Zx116 HB
Home project Zx116 HB
Home project Zx116 HB
Home project Zx116 HB
Home project Zx116 HB

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Komfortowy dom parterowy w technologii H-Block firmy Solcraft

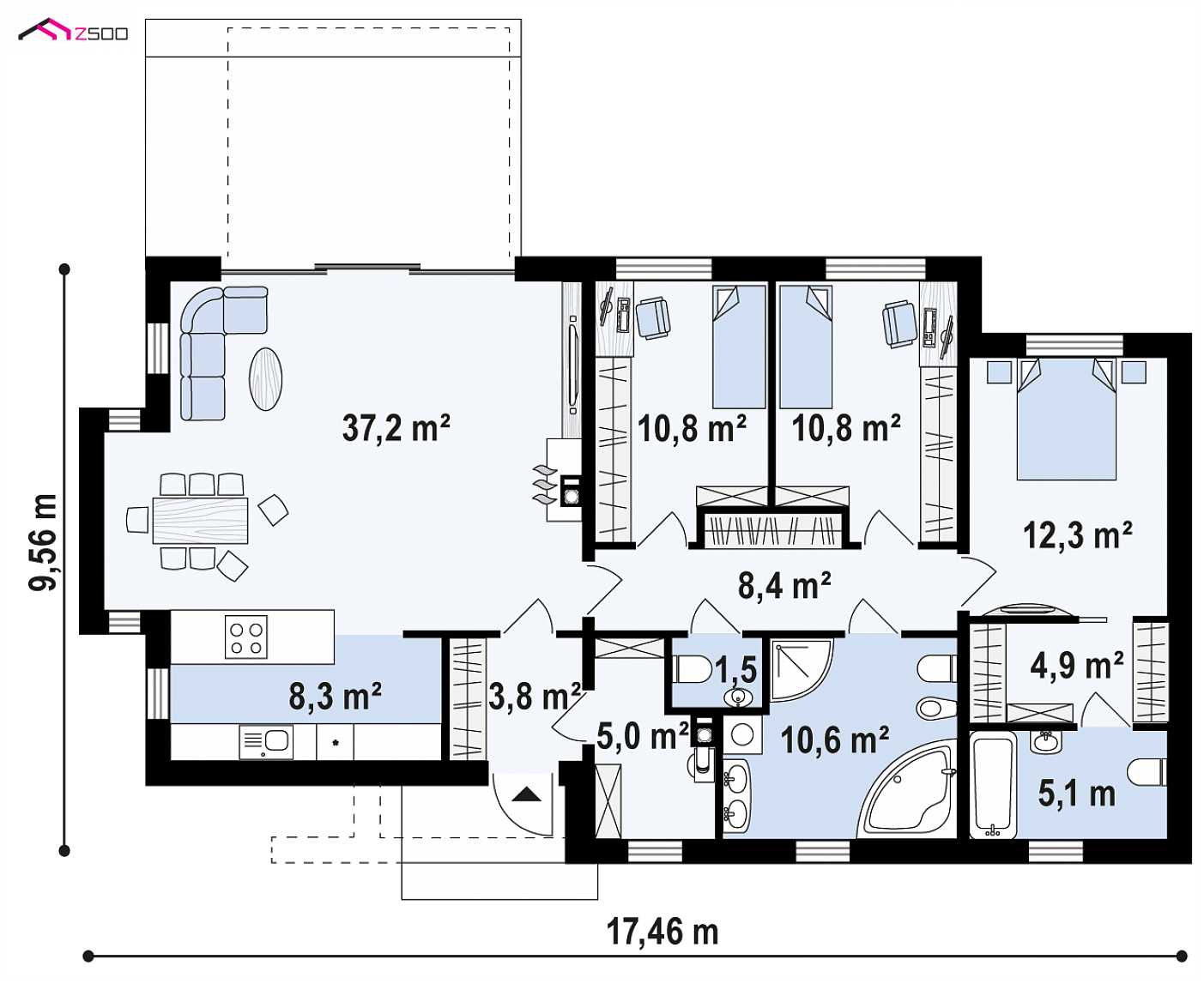

Ground 1274,3 ft²

Salon
400,3 ft²
Sień
40,5 ft²
Pom. gosp.
53,8 ft²
WC
15,7 ft²
Łazienka
113,9 ft²
Łazienka
54,9 ft²
Garderoba
52,3 ft²
Pokój
132,3 ft²
Pokój
115,7 ft²
Pokój
115,7 ft²
Kuchnia
88,9 ft²
Hol
90,3 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Komfortowy dom parterowy w technologii H-Block firmy Solcraft

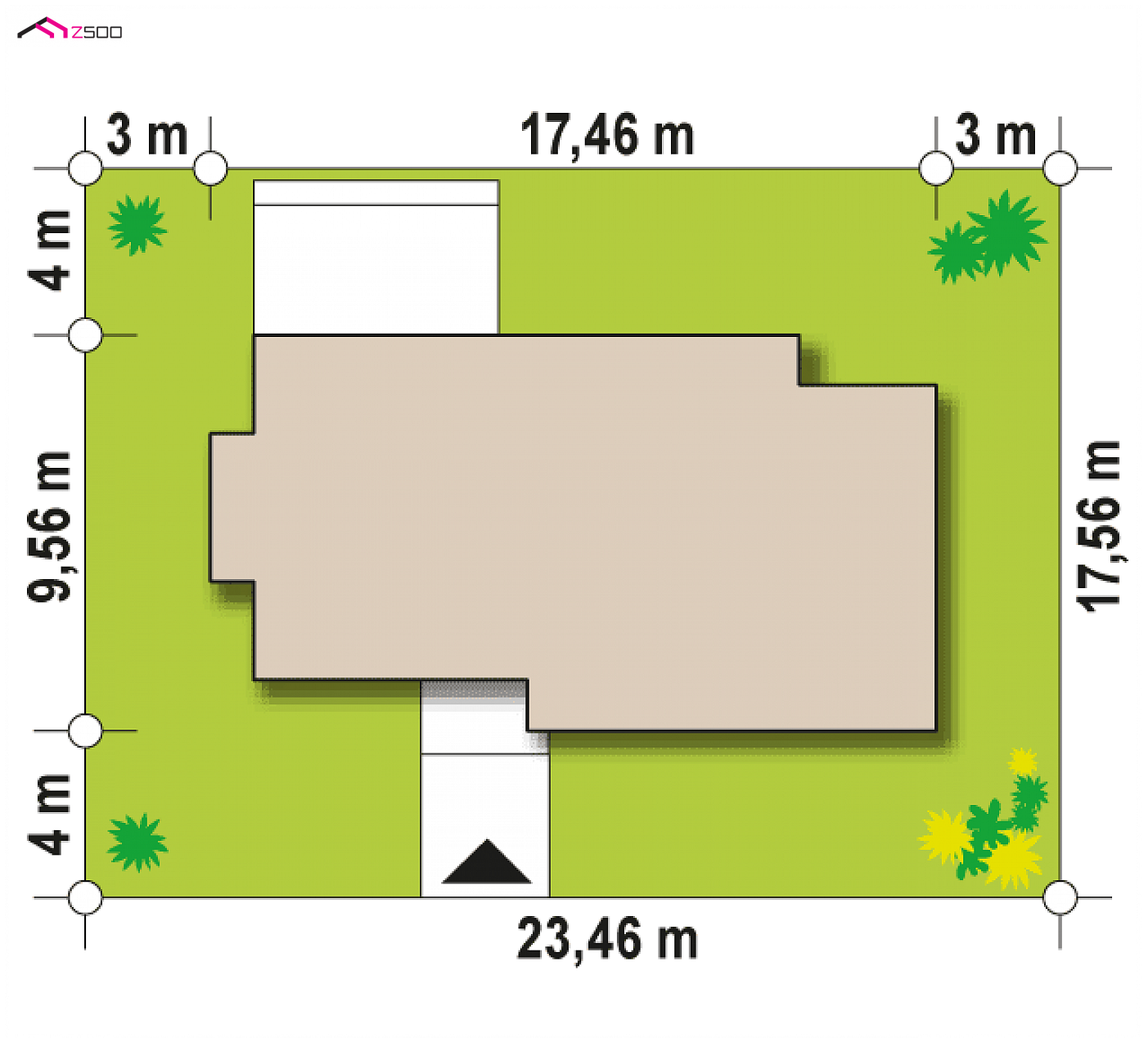

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
76,97 ft
length
57,61 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
57,28 ft

Area and dimensions

Usable / net
1274,3 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1604,3 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Cubic
12 557,9 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
14,93 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 387,47 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
76,97 x 57,61 ft


Technology and construction

Walls
H-BLOCK
Ceiling (ground floor)
H-BLOCK
Roof
bituminous
technology
H-BLOCK

Thermal insulation

heating system
heat pump, ERV, floor heating
heating system - Type of heating provided for the project

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
