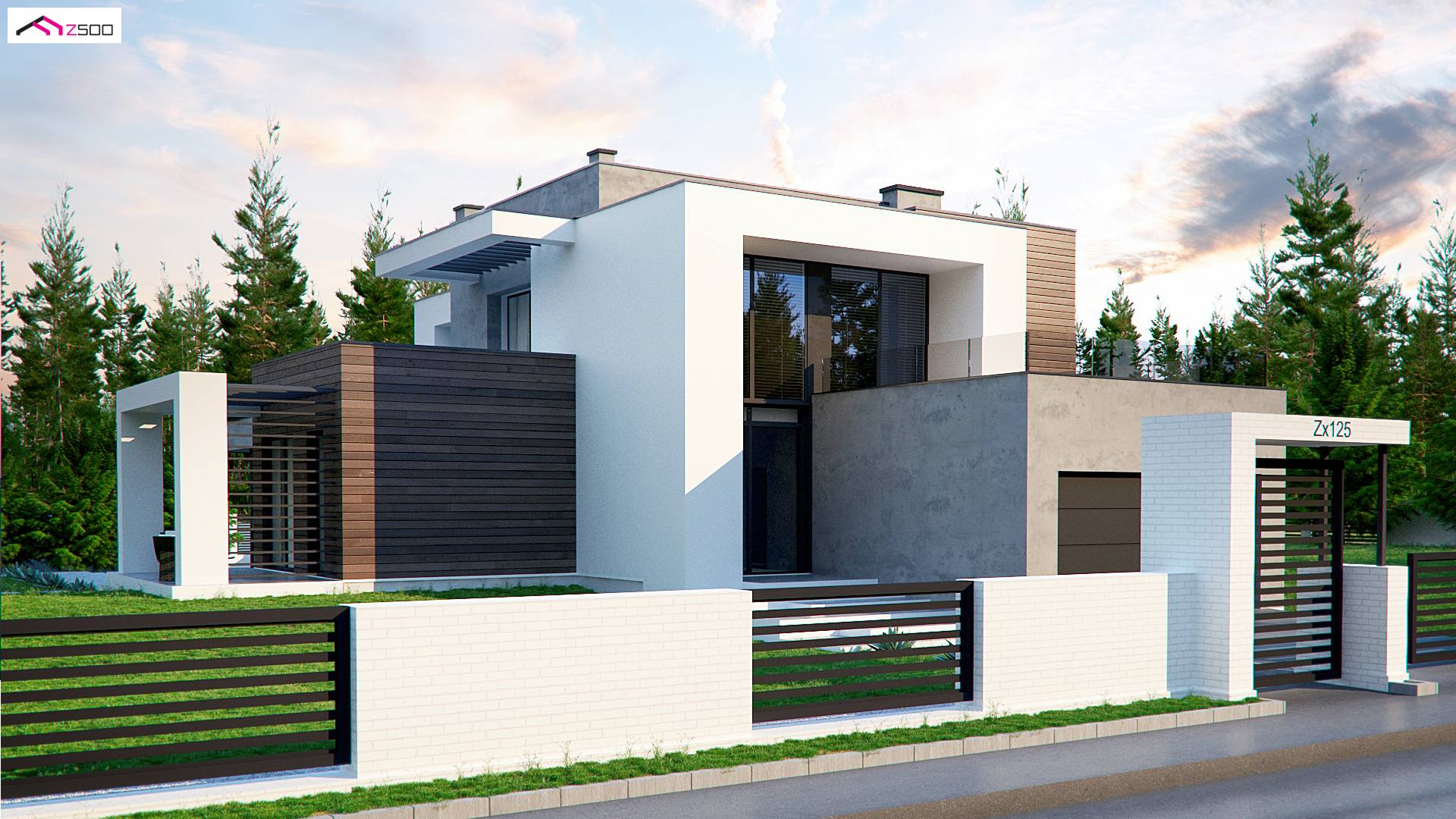

Home project Zx125

Zx125 mirror image

brick
brick
project's availability 3 work days
$7 070
brick
brick
project's availability 3 work days
mirror image
$7 070
Home project Zx125
Home project Zx125
Home project Zx125
Home project Zx125

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Nowoczesna piętrowa rezydencja z dużymi przeszkleniami i zadaszonymi tarasami.

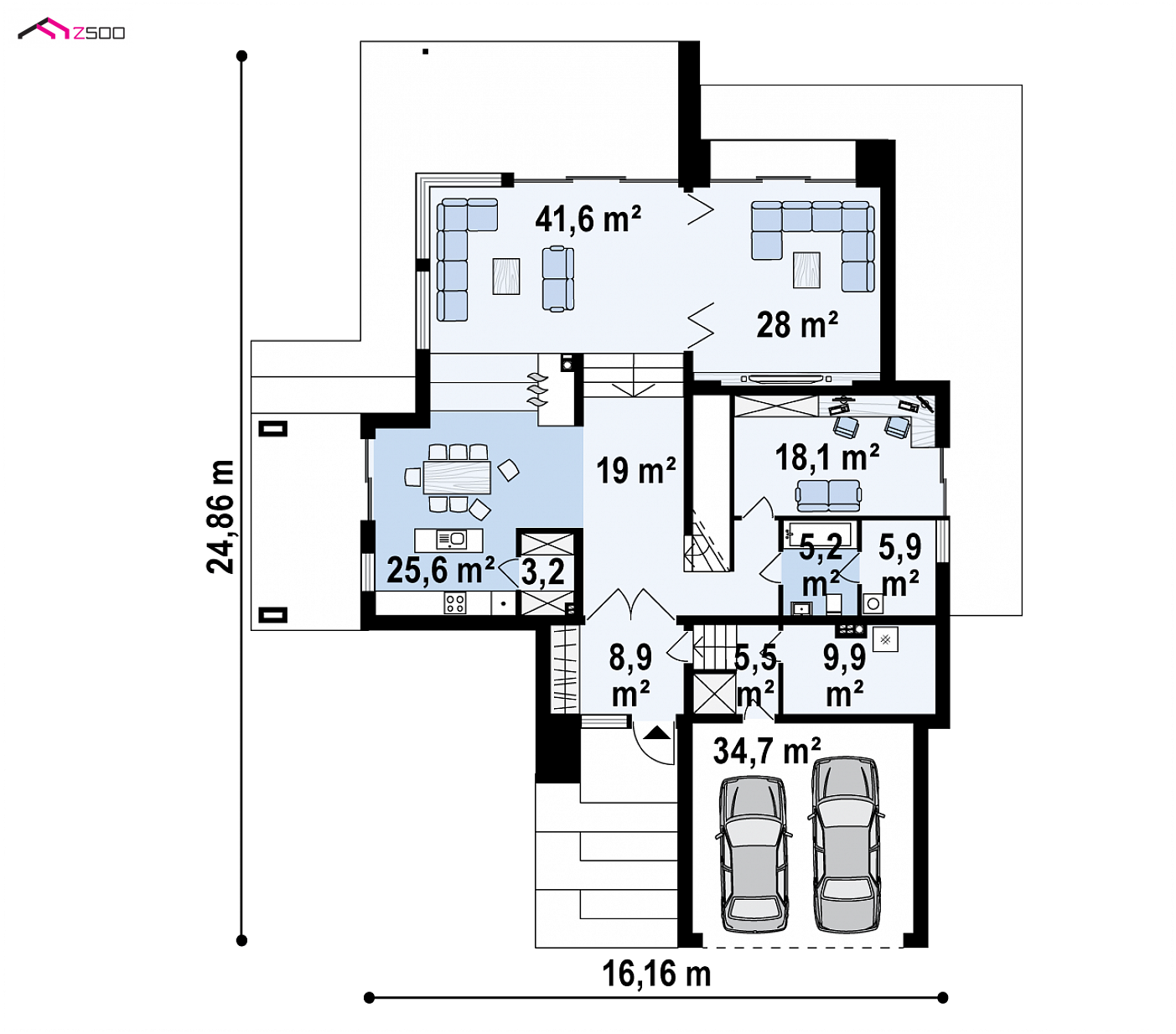

Ground 1734,7 / 2214,2 ft²

Sień
95,6 ft²
Hol
204,6 ft²
Spiżarka
34,0 ft²
Kuchnia+jadalnia
275,8 ft²
Salon
448,2 ft²
Pokój rekreacyjny
301,0 ft²
Gabinet
195,4 ft²
Łazienka
56,5 ft²
Pralnia
64,1 ft²
Pomieszczenie gospodarcze
106,4 ft²
Hol
59,6 ft²
Garaż
373,2 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Nowoczesna piętrowa rezydencja z dużymi przeszkleniami i zadaszonymi tarasami.

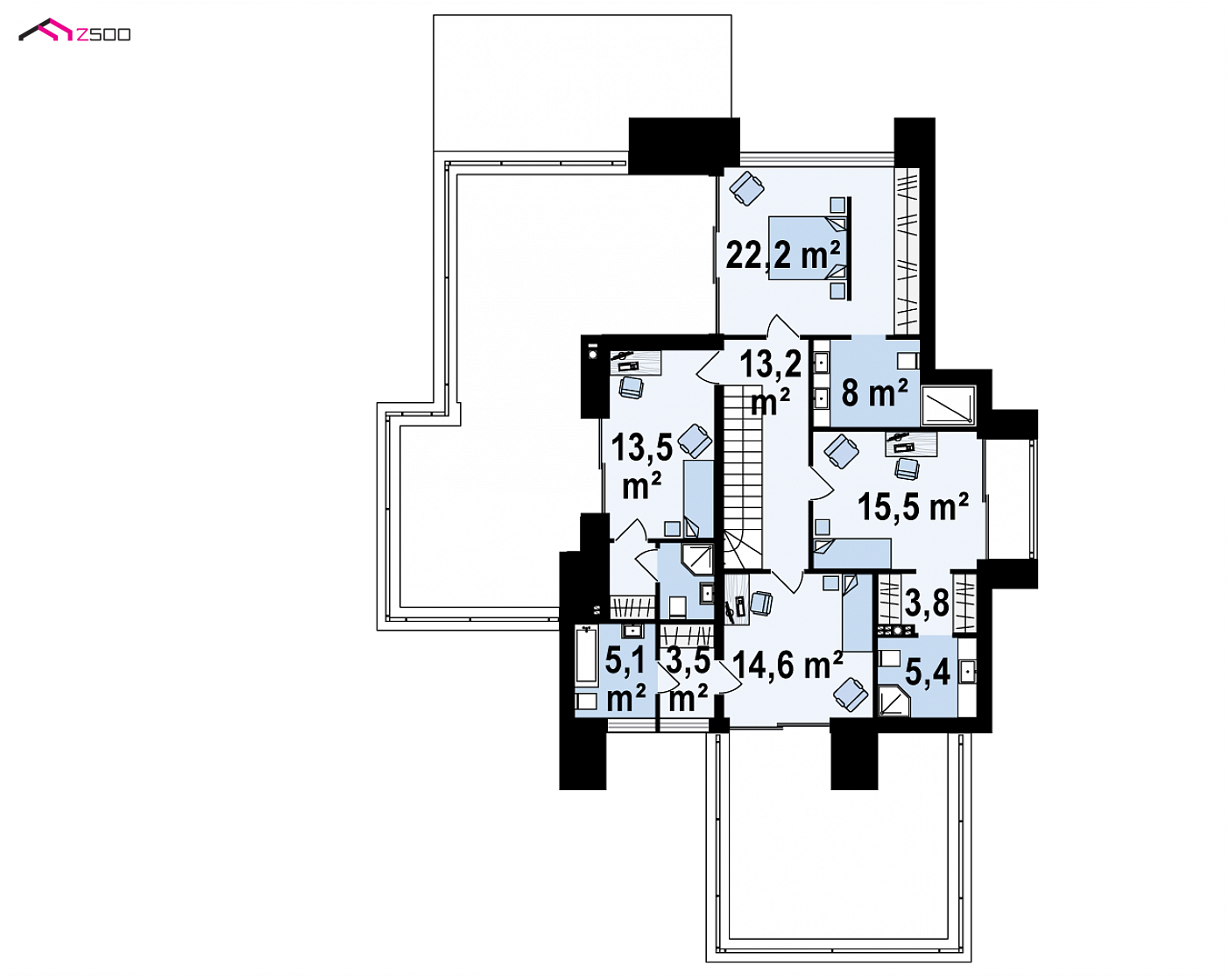

Floor 1183,6 ft²

Hol+schody
142,3 ft²
Pokój+garderoba
238,7 ft²
Łazienka
86,2 ft²
Pokój
166,6 ft²
Garderoba
40,8 ft²
Łazienka
58,2 ft²
Pokój
157,7 ft²
Garderoba
37,2 ft²
Łazienka
54,7 ft²
Łazienka
30,4 ft²
Garderoba
25,3 ft²
Pokój
145,4 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Nowoczesna piętrowa rezydencja z dużymi przeszkleniami i zadaszonymi tarasami.

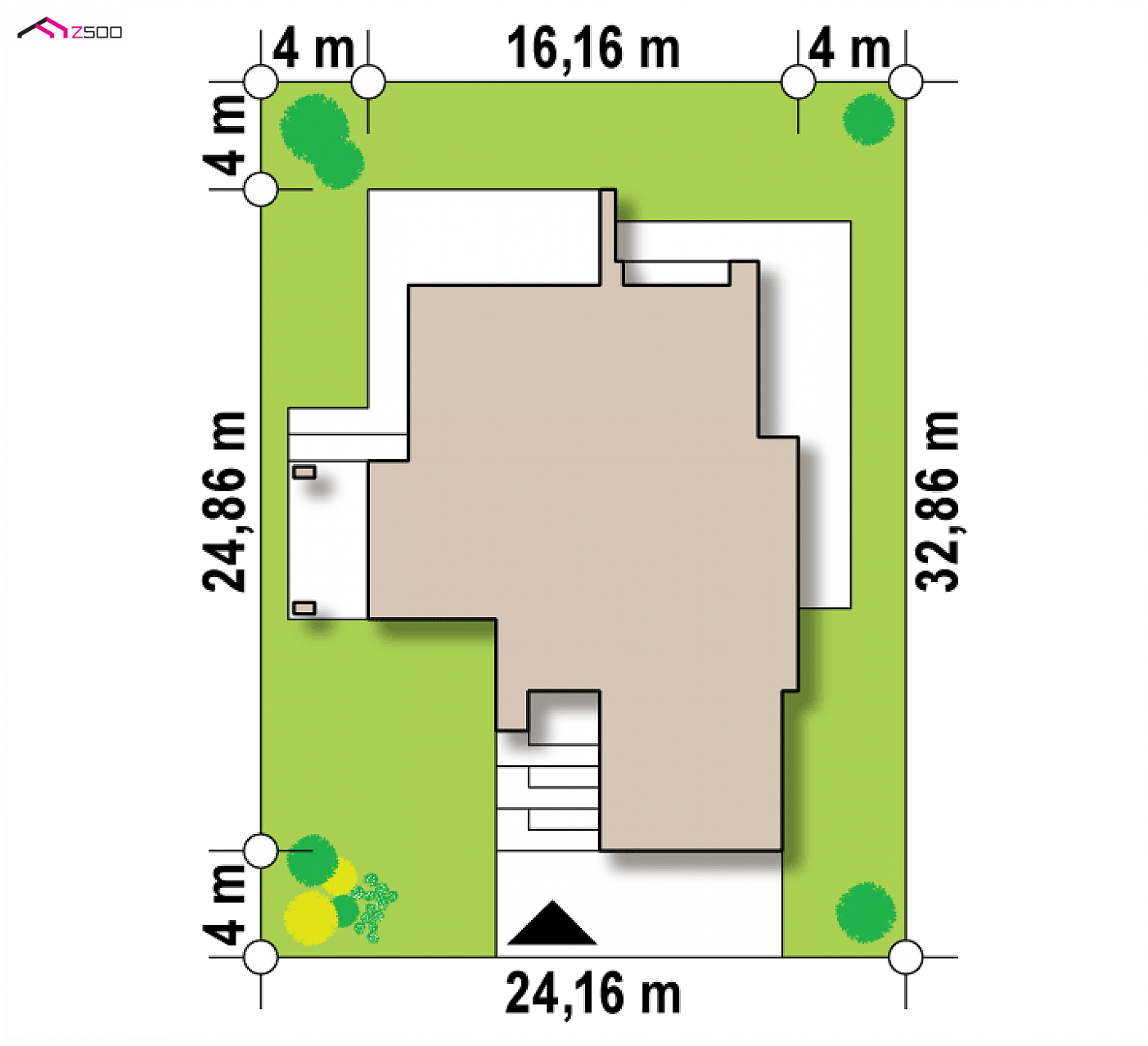

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
79,27 ft
length
96 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
53,02 ft

Area and dimensions

Usable / net
2918,3 / 3397,8 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2958,7 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
373,2 ft²
Cubic
35 417,4 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
29,3 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 130,75 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
79,27 x 96 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
beam and block
Roof
plate, foil, bituminous
technology
brick

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project

360-degrees animation

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
