Home project  - A modern one-story house with usable space, around 900 sqft

Zx57

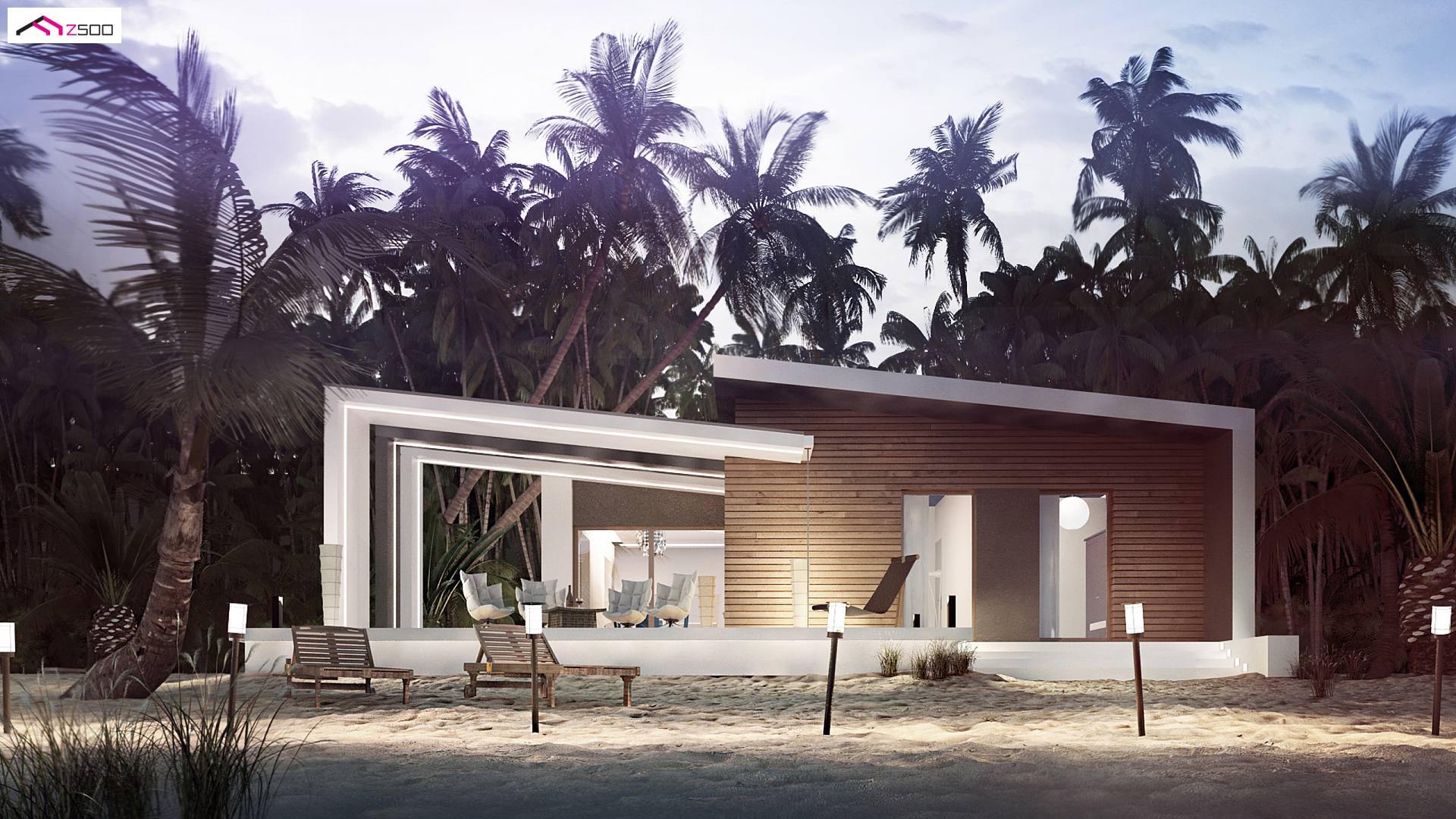

A modern one-story house with usable space, around 900 sqft
ķieģeļu
ķieģeļu
project's availability 3 work days

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
%}
Home project  - A modern one-story house with usable space, around 900 sqft

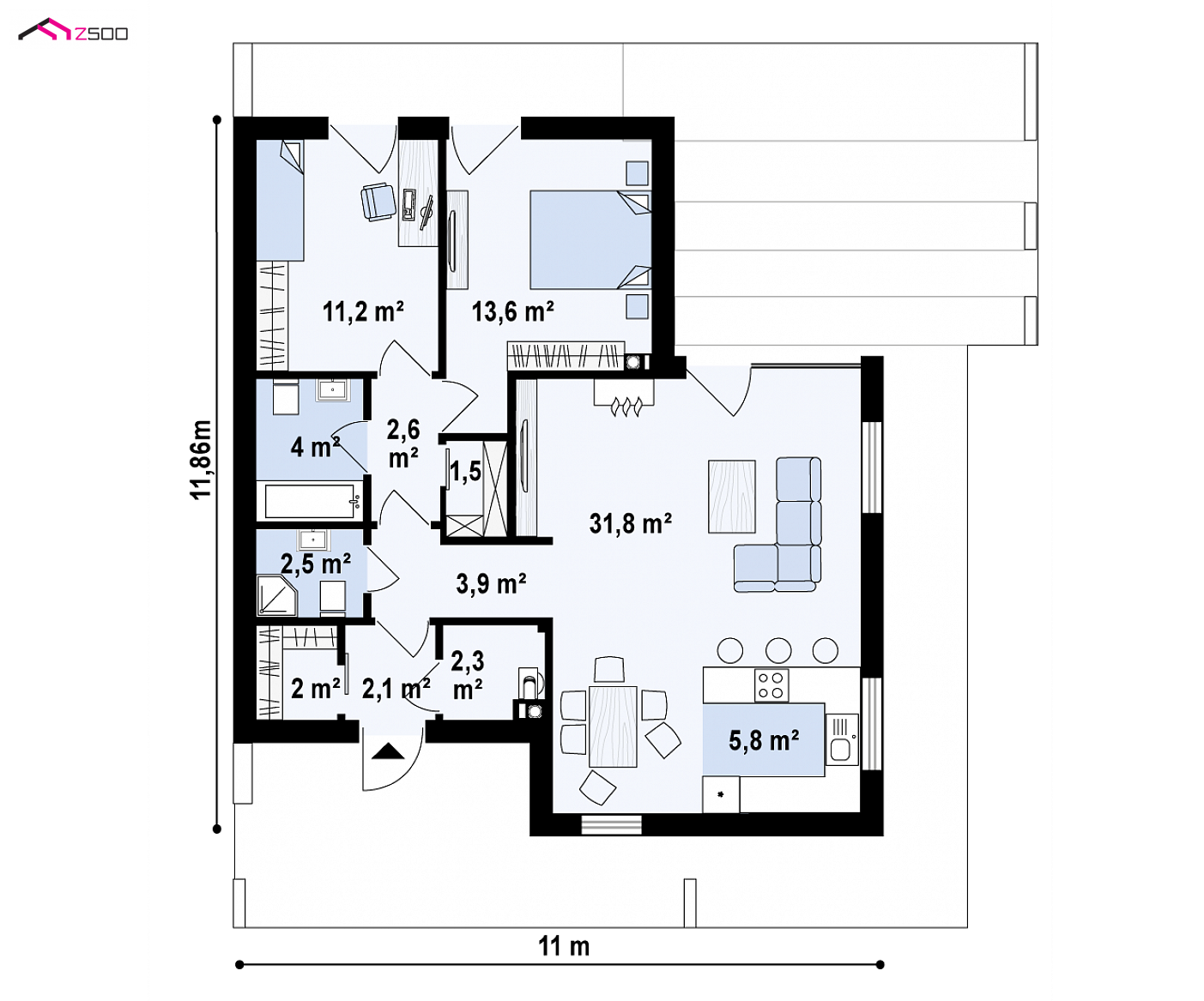

Ground 895,3 ft²

Sień
22,7 ft²
Pom. gosp.
24,8 ft²
Garderoba
21,7 ft²
Hol
41,6 ft²
Łazienka
27,0 ft²
Łazienka
43,4 ft²
Pokój
120,6 ft²
Pokój
146,4 ft²
Hol
27,6 ft²
Salon+jadalnia
341,8 ft²
Kuchnia
62,0 ft²
Schowek
15,9 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - A modern one-story house with usable space, around 900 sqft

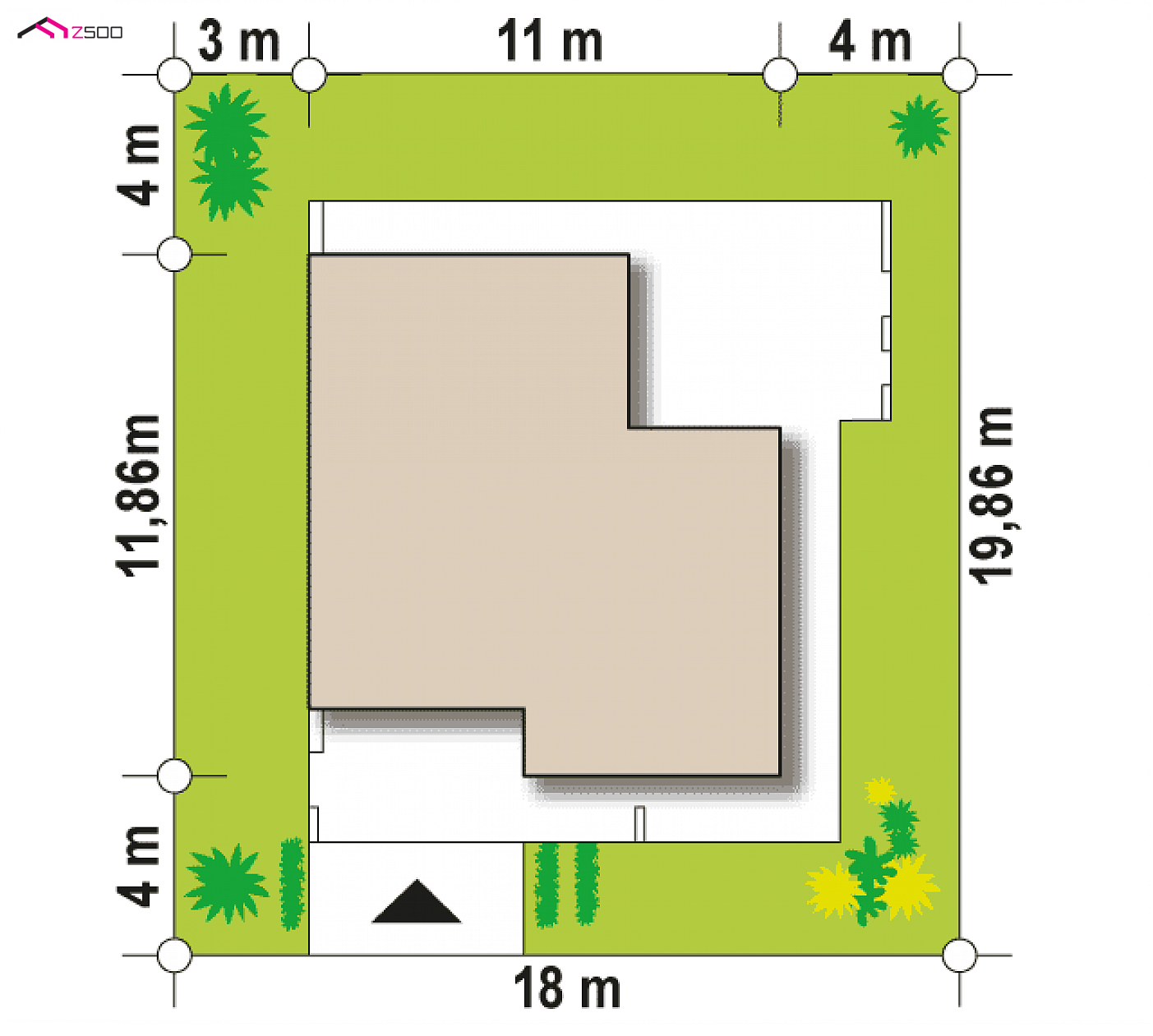

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
59,06 ft
length
65,16 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
36,09 ft

Area and dimensions

Usable / net
895,3 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1191,9 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Cubic
8 433,14 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
14,86 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
6° / 2°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 556,57 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
59,06 x 65,16 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling
reinforced concrete
Roof
bituminous, plate
technology
ķieģeļu

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
89,33 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
74,17 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
ķieģeļu
ķieģeļu
project's availability 3 work days

Zx57 to nowoczesny i funkcjonalny dom o niepowtarzalnej formie architektonicznej. Jego wnętrze zostało tak zaprojektowane by zawrzeć wszystkie potrzebne pomieszczenia oraz oddzielić strefę nocną od dziennej. Dom nawiązuje do najnowszych trendów w architekturze rezydencjonalnej. Połączenie bieli, szarości oraz jasnego drewna to jeden z elementów charakterystycznych dla tego typu architektury.

Jedną z zalet domu jest obszerny salon połączony z kuchnią, jadalnią oraz wyjściem na zadaszony taras. Salon posiada duże przeszklenia, które są łagodnym przejściem między salonem a zewnętrznym tarasem otwartym na ogród. W strefie nocnej znajdują się dwie wygodne sypialnie oraz  łazienka. Każdy z pokoi posiada wyjście na ogród. Istnieje możliwość łatwego dostawienia garażu z bezpośrednim wejściem do domu.

Projekt Zx57 jest domem wyróżniającym się z otoczenia oryginalnymi prostymi detalami.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
