Home project  - A modern design for individualists who value style and uniqueness.

Zx27

A modern design for individualists who value style and uniqueness.
ķieģeļu
NEW!
project's availability 20 work days

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
%}
Home project  - A modern design for individualists who value style and uniqueness.

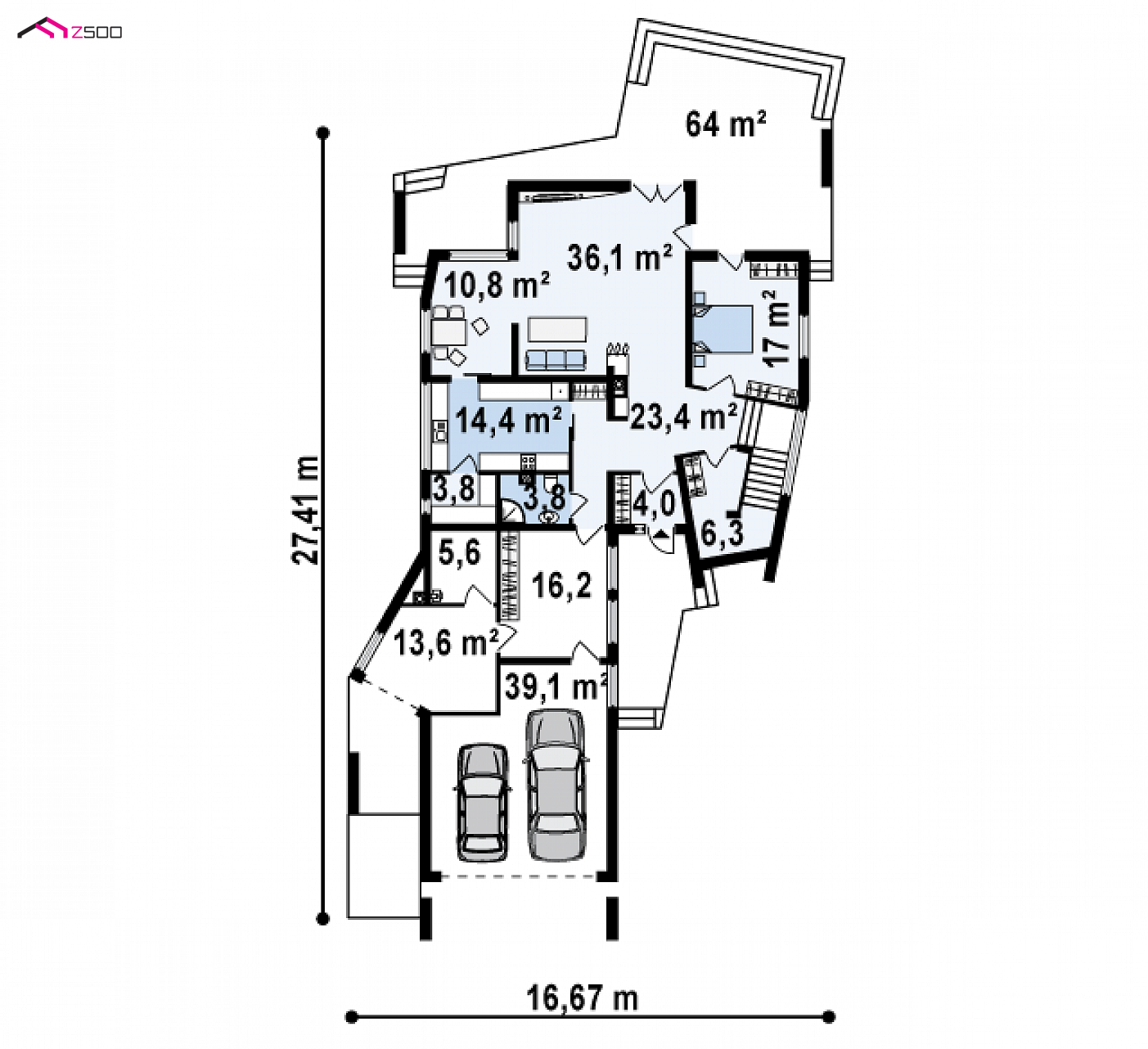

Ground 1400,4 / 2027,9 ft²

Sień
44,1 ft²
Hol+schody
178,7 ft²
Garderoba
67,8 ft²
Pokój
184,1 ft²
Salon+jadalnia
514,5 ft²
Kuchnia
155,0 ft²
Spiżarka
40,9 ft²
Łazienka
40,9 ft²
Pom. gosp.
174,4 ft²
Garaż+pom. gosp.
627,5 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - A modern design for individualists who value style and uniqueness.

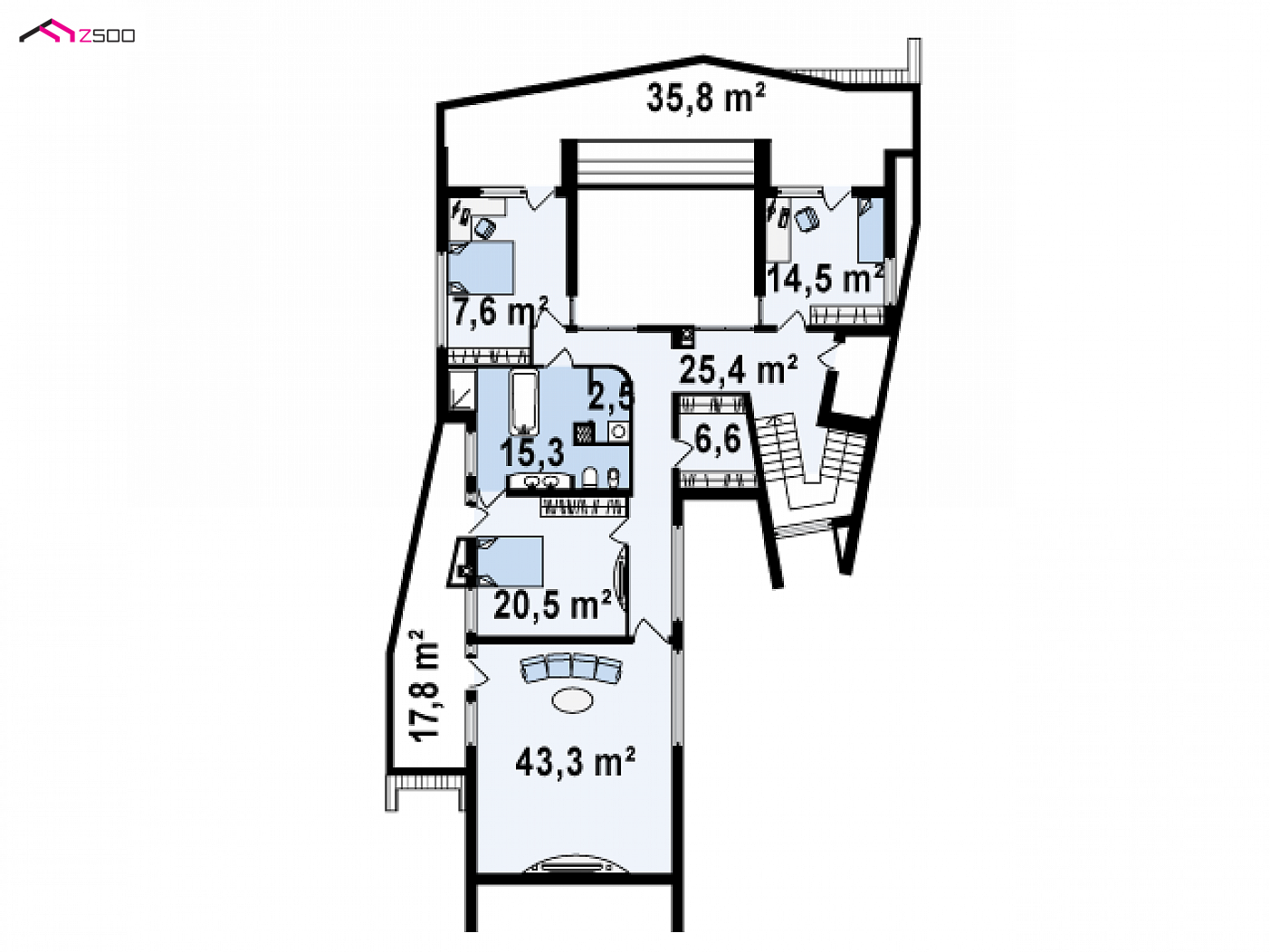

Floor 1685,6 ft²

Balkon
32,3 ft²
Hol
275,6 ft²
Pokój
161,5 ft²
Balkon
406,9 ft²
Pokój
193,8 ft²
Balkon
191,6 ft²
Łazienka
166,8 ft²
Pralnia
26,9 ft²
Garderoba
70,0 ft²
Pokój
226,0 ft²
Pokój rekreacyjny
472,5 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - A modern design for individualists who value style and uniqueness.

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
87,5 ft
length
126,02 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
no data

Area and dimensions

Usable / net
3086,0 / 3713,6 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2539,2 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
627,5 ft²
Cubic
39 810,2 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
31,99 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
2 368,06 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
87,5 x 126,02 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling
reinforced concrete
Roof
bituminous, foil, plate
technology
ķieģeļu

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
ķieģeļu
NEW!
project's availability 20 work days

Zx27 to atrakcyjny projekt o nowoczesnej architekturze odważnie nawiązujący do najlepszej zachodniej awangardy. Dynamiczna, niestandardowa forma z pewnością przypadnie do gustu odważnym, ceniącym nowatorskie rozwiązania i unikalność.

Na parterze znajdzie się miejsce dla dwóch aut, dwóch motocykli oraz obszerne zaplecze gospodarcze. Zadaszone wejście prowadzi do przestronnego holu z nietypowymi schodami. Strefę dzienną tworzy salon częściowo połączony z aneksem jadalnym. Z obu pomieszczeń można swobodnie przedostać się na duży zadaszony taras. Kuchnię zaprojektowano jako oddzielne pomieszczenie i wyposażono w spiżarnię. Na parterze zaplanowano także dodatkowy pokój, wygodną łazienkę z prysznicem oraz garderobę pod schodami.

Strefę nocną na pietrze tworzą 3 duże sypialnie, każda z wyjściem na balkon, salon kąpielowy połączony z pralnią, garderoba. Kolejnym elementem wyróżniającym ten projekt jest przestronny audio room oraz  przeszklony sufit nad salonem.

animation 360 degrees

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
