Home project Zx14 - Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.

Zx14 mirror image

Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.
brick
brick
brick
brick
mirror image
Home project Zx14 - Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.
Home project Zx14 - Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.

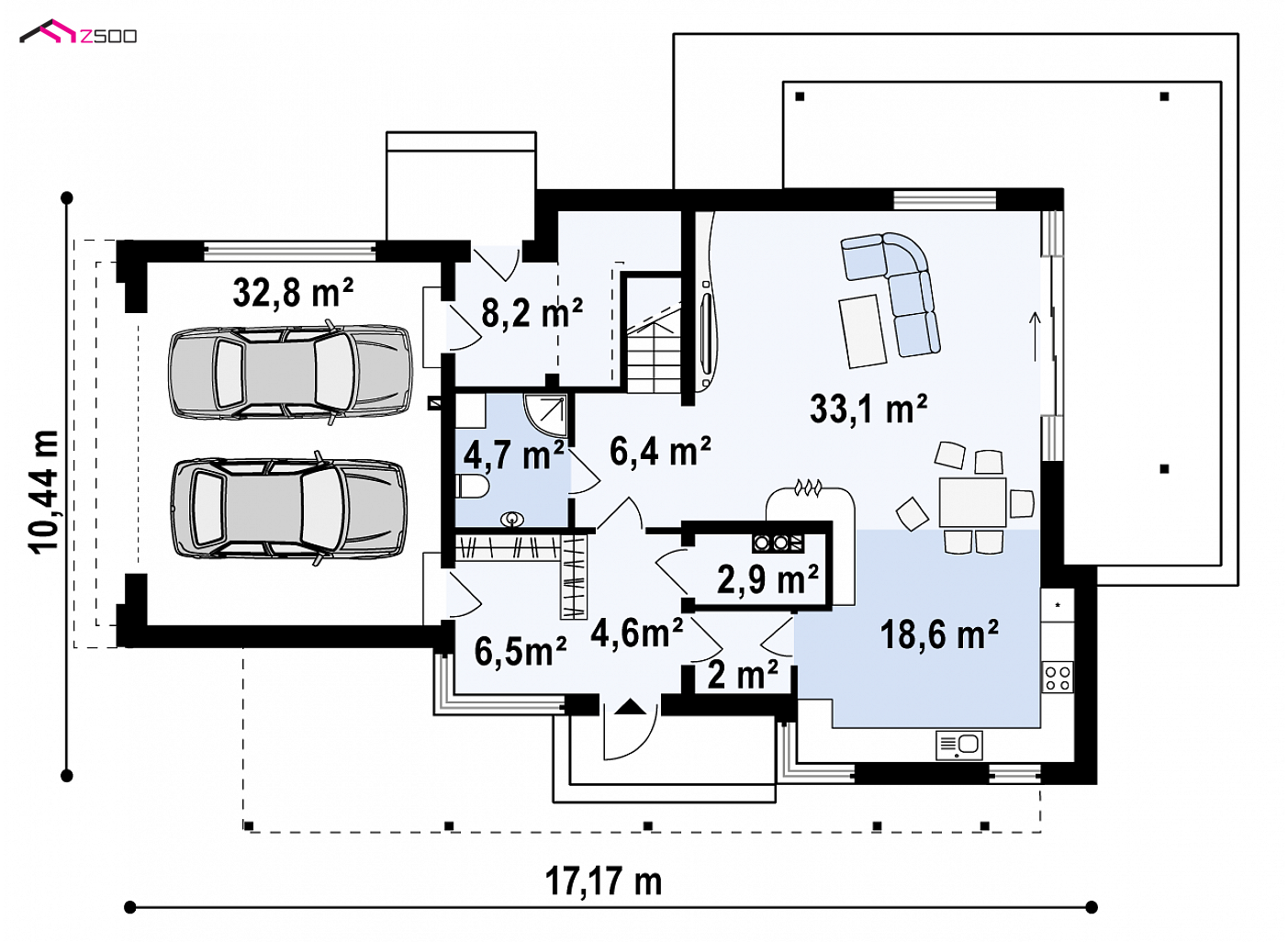

Ground 937,0 / 1289,7 ft²

Kuchnia
200,6 ft²
Salon+jadalnia
356,2 ft²
Spiżarka
21,9 ft²
Pom. gosp.
31,5 ft²
Garderoba
69,4 ft²
Sień
49,9 ft²
WC
50,1 ft²
Hol
68,7 ft²
Pom. gosp.
88,7 ft²
Garaż
352,7 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.

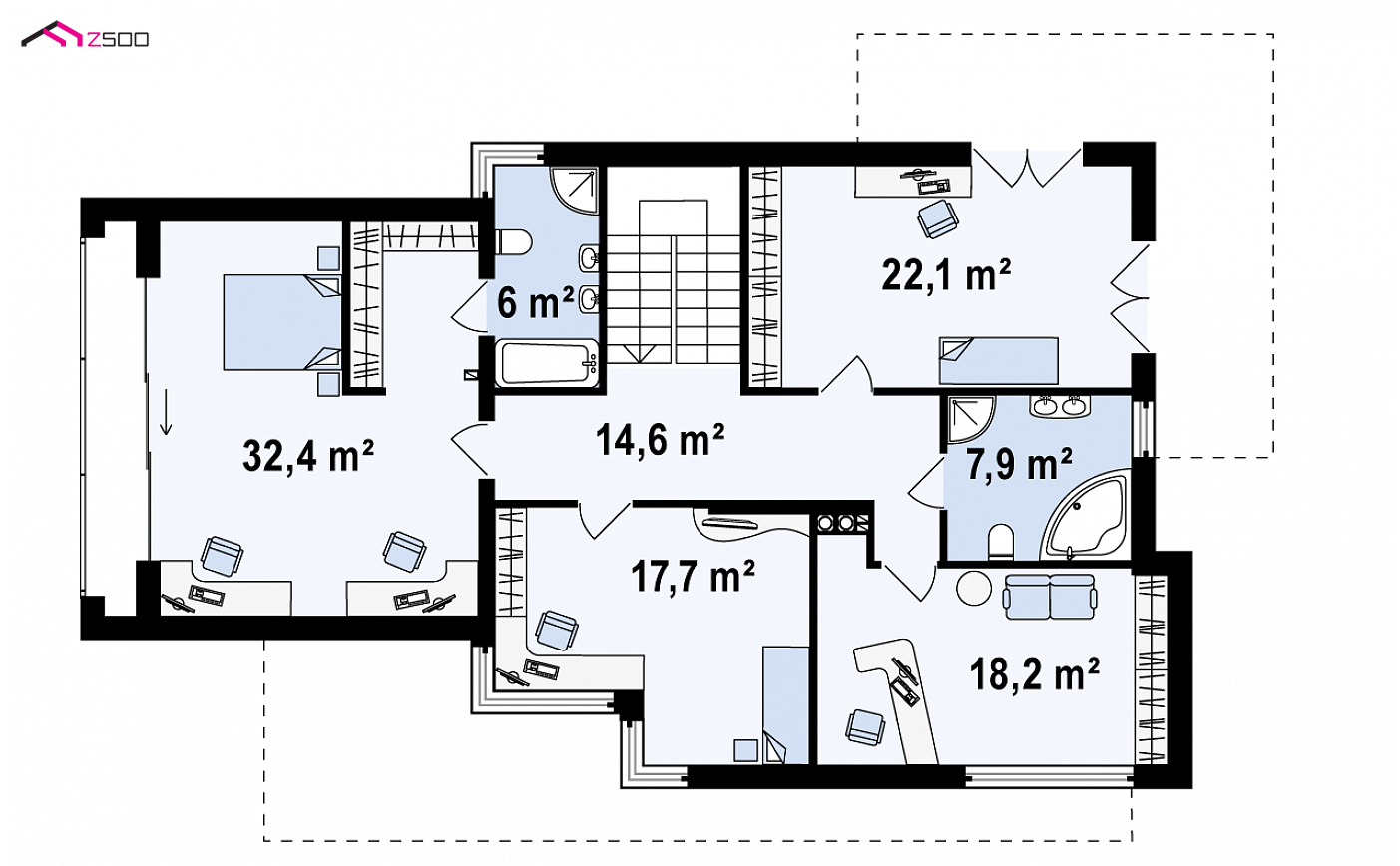

Floor 1281,1 ft²

Pokój
196,1 ft²
Pokój
190,6 ft²
Pokój
238,1 ft²
Pokój+garderoba
348,3 ft²
Łazienka
65,0 ft²
Łazienka
85,4 ft²
Hol
157,6 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.

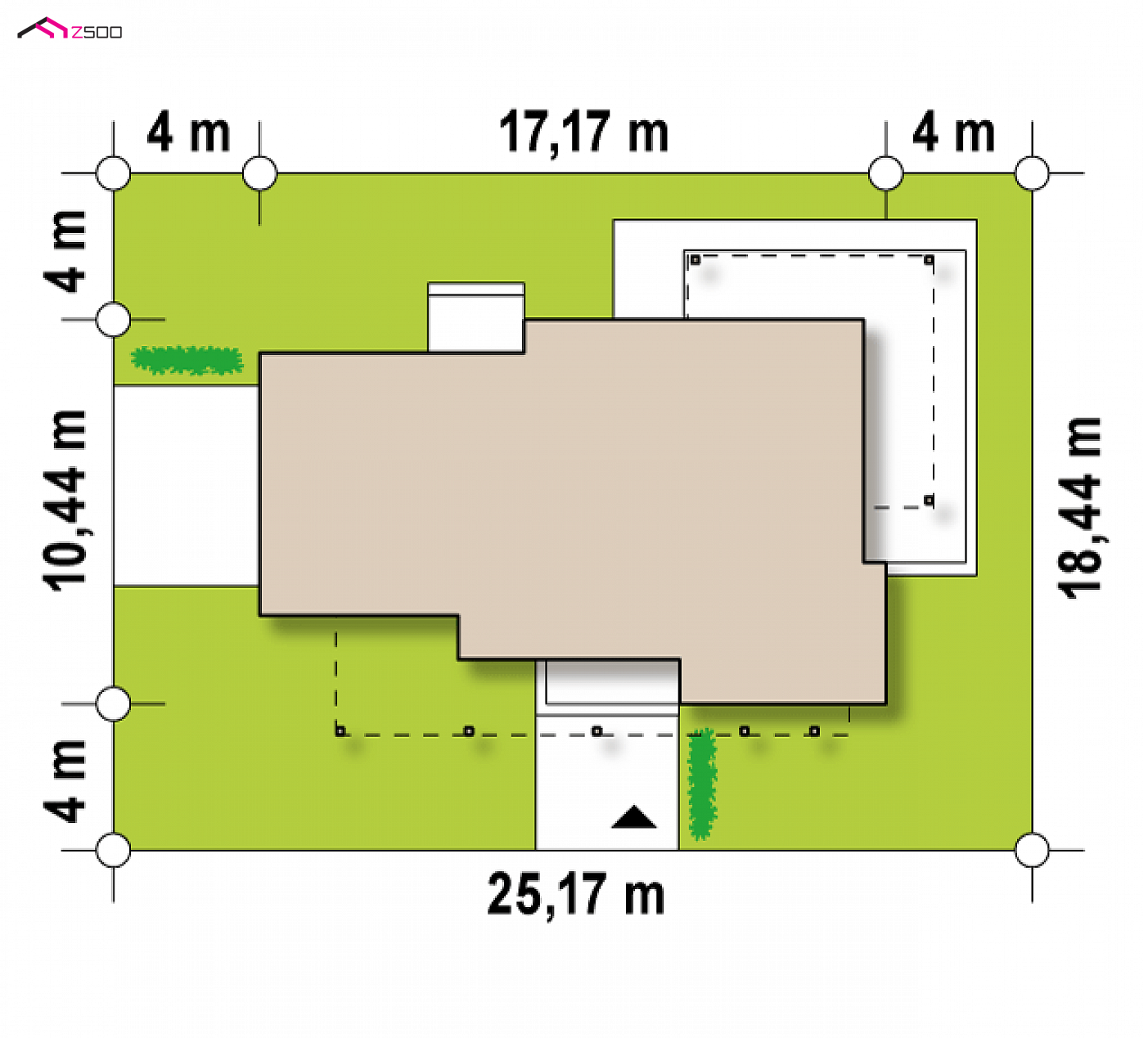

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
82,58 ft
length
60,5 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
56,33 ft

Area and dimensions

Usable / net
2218,1 / 2570,9 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1717,9 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
352,7 ft²
Cubic
22 526,9 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
25,39 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
4° / 2°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 641,5 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
82,58 x 60,5 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling (ground floor)
reinforced concrete
Roof
bituminous, foil
technology
brick

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
71,9 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
59,9 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
home project Zx14 – interior arrangement, Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.
home project Zx14 – interior arrangement, Nowoczesny dom piętrowy z garażem od frontu i przestronnym wnętrzem.
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
brick
brick

Zx14 to innowacyjny projekt piętrowego domu z licznymi przeszkleniami, dzięki którym otoczenie stanowi naturalne dopełnienie przestrzeni wnętrz. Ciekawa podłużna i kubiczna bryła, wzbogacona została elementami z drewna i kamienia. Garaż na dwa stanowiska oraz boczne wejście pozwolą usytuować dom także na wąskiej działce.

Wnętrze domu to przede wszystkim przestronny, jasny salon. Kuchnia symbolicznie oddzielona jest od reszty pomieszczenia, funkcjonalną jadalnią. Pomieszczenie między kuchnią, a sienią - stworzone jest z myślą o ułatwieniu wnoszenia zakupów lub jako schowek. Garaż połączony jest z pomieszczeniem gospodarczym oraz z ogrodem poprzez niezależne wejście.

Na piętrze znajdują się cztery przestronne, wygodne sypialnie. Wszystkie mają komfortowe wymiary oraz duże okna z pięknym widokiem. Największa sypialnia ma osobną łazienkę oraz prywatną garderobę i niesamowity panoramiczny widok na otaczający krajobraz.

animation 360 degrees

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
