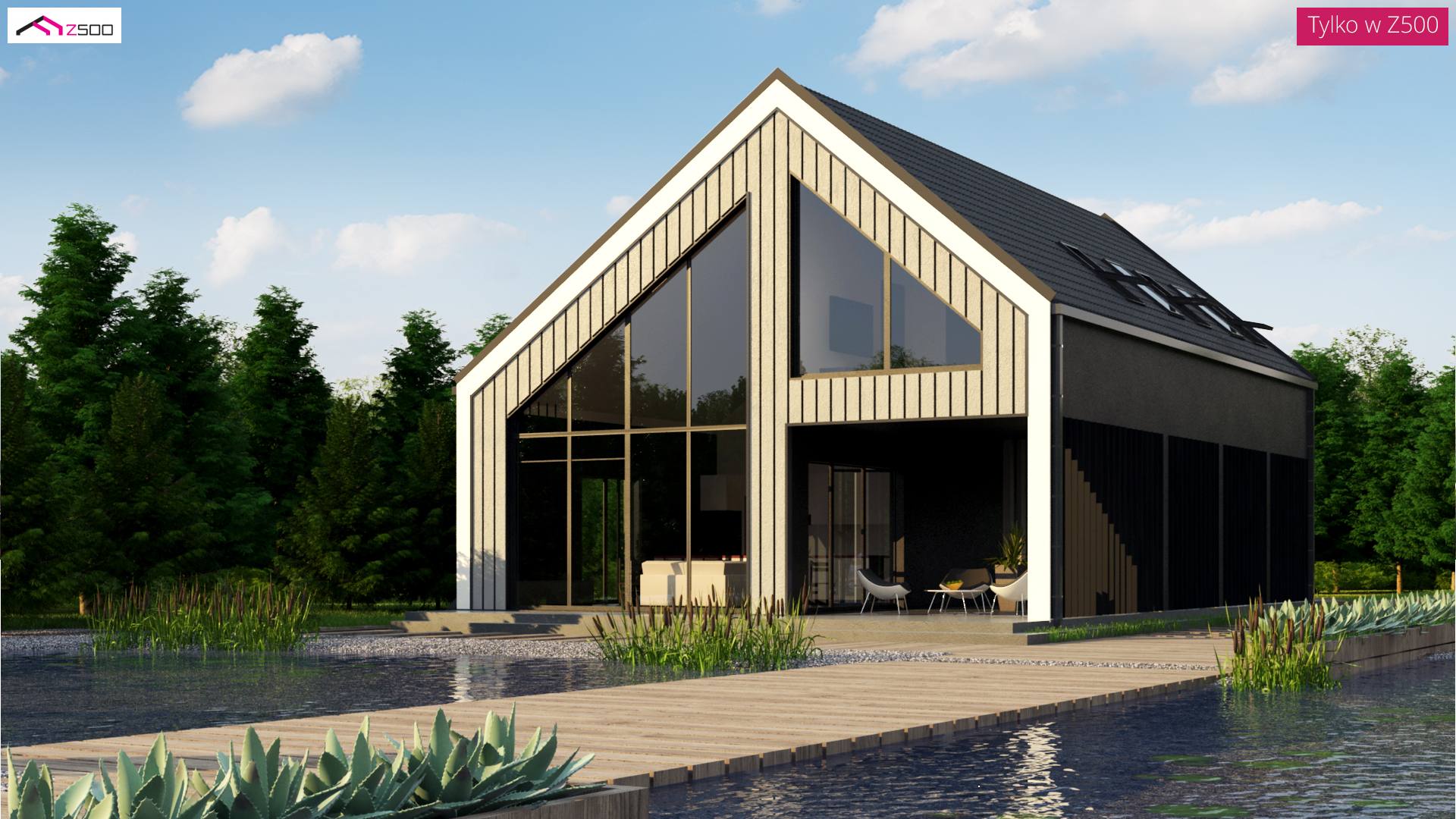

Home project  - Dom z antresolą, zadaszonym tarasem, główną sypialnią i przestronnym salonem

Z445 D

Dom z antresolą, zadaszonym tarasem, główną sypialnią i przestronnym salonem
project's availability 18 work days

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Dom z antresolą, zadaszonym tarasem, główną sypialnią i przestronnym salonem

Ground 714,5 / 787,2 ft²

68,2 ft²
Pomieszczenie gospodarcze
72,7 ft²
66,2 ft²
49,2 ft²
53,0 ft²
114,7 ft²
363,2 ft²
Click or touch on the image on the left to start the measure.
Home project  - Dom z antresolą, zadaszonym tarasem, główną sypialnią i przestronnym salonem

Garret 757,8 / 866,6 ft²

113,2 ft²
137,9 ft²
134,0 ft²
133,8 ft²
164,7 ft²
45,2 ft²
29,0 ft²
Click or touch on the image on the left to start the measure.
Home project  - Dom z antresolą, zadaszonym tarasem, główną sypialnią i przestronnym salonem

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

60,76 ft
69,29 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
34,51 ft

Area and dimensions

Usable / net
1472,3 / 1653,8 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
966,0 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
15 676,9 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
26,44 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
35° / 40°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 940,84 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
2,76 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
60,76 x 69,29 ft

Technology and construction

timber frame
wooden, trusses
tile, Metal tile, bituminous, plate

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
project's availability 18 work days

Projekt Z445 jest propozycją domu o prostej bryle z ciekawym układem wnętrza.

Ideą było stworzenie domu na wąską działkę i wykorzystanie jego kształtu w taki sposób, by znalazło się miejsce na taras i stanowiska dla dwóch samochodów bez konieczności budowy garażu i dodatkowego zadaszenia. Taki zabieg udało się uzyskać, dzięki podzieleniu domu na dwie strefy.

Układ wnętrza.
Część dzienna czyli parter, ciągnie się przez dwie kondygnacje (otrzymujemy antresolę i otwarty hol na piętrze) oraz strefę nocną, w której została wydzielona główna sypialnia z łazienką i garderobą, 2 pokoje oraz duża łazienka. Strefa nocna służy również jako "zadaszenie" nad tarasem.

Atutem jest duże pomieszczenie gospodarcze oraz spiżarka.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
