Home project Z448 D - Domek w technologii drewnianej na małą działkę

Z448 D mirror image

Domek w technologii drewnianej na małą działkę
wooden
concept
wooden
concept
mirror image
Home project Z448 D - Domek w technologii drewnianej na małą działkę
Home project Z448 D - Domek w technologii drewnianej na małą działkę
Home project Z448 D - Domek w technologii drewnianej na małą działkę
Home project Z448 D - Domek w technologii drewnianej na małą działkę

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Domek w technologii drewnianej na małą działkę

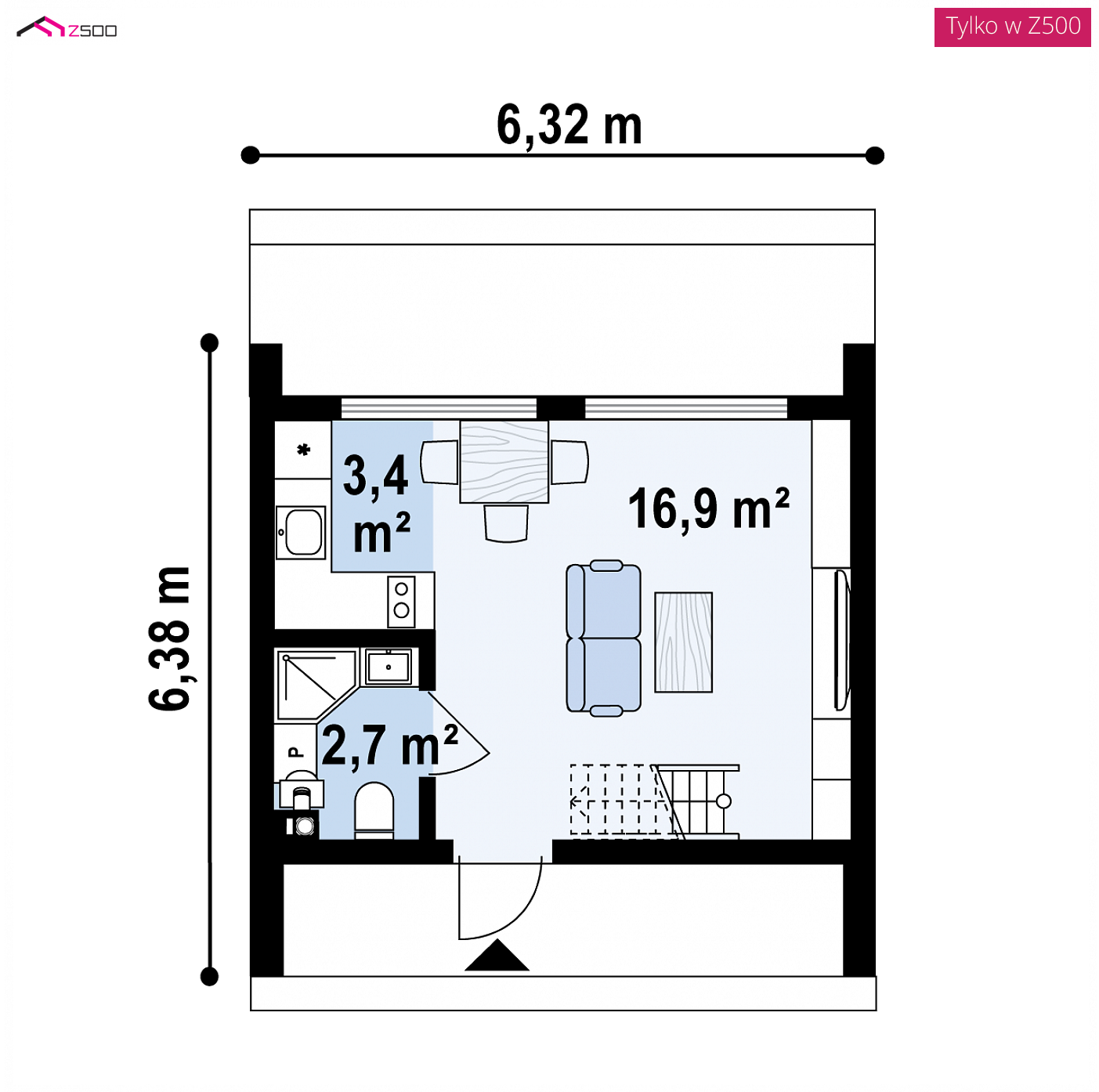

Ground 257,4 ft²

Salon+jadalnia
182,0 ft²
Hol
9,7 ft²
Łazienka
29,0 ft²
Kuchnia
36,7 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Domek w technologii drewnianej na małą działkę

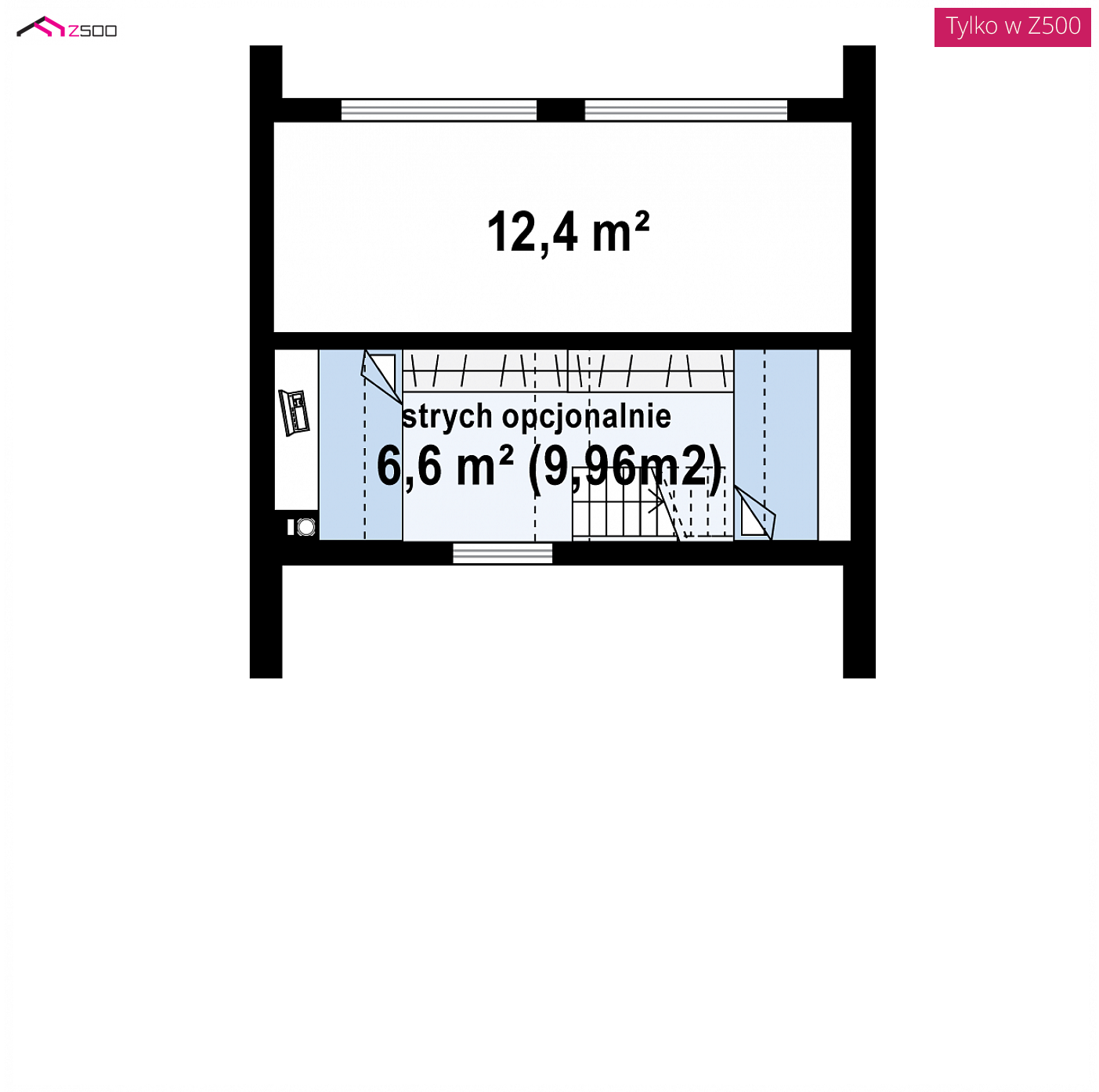

Garret optional

Attic optional - means that the project possible adapt stories above the ceiling for the living area, utility or attic, depending on the final destination space directly under the roof. Adapting stories requires each application to design the necessary modifications, ie. Design, architectural and installation to be carried out at the stage of Adaptation Project to the plot by authorized persons.

Pokój
70,9 ft²
Antresola
133,5 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Domek w technologii drewnianej na małą działkę

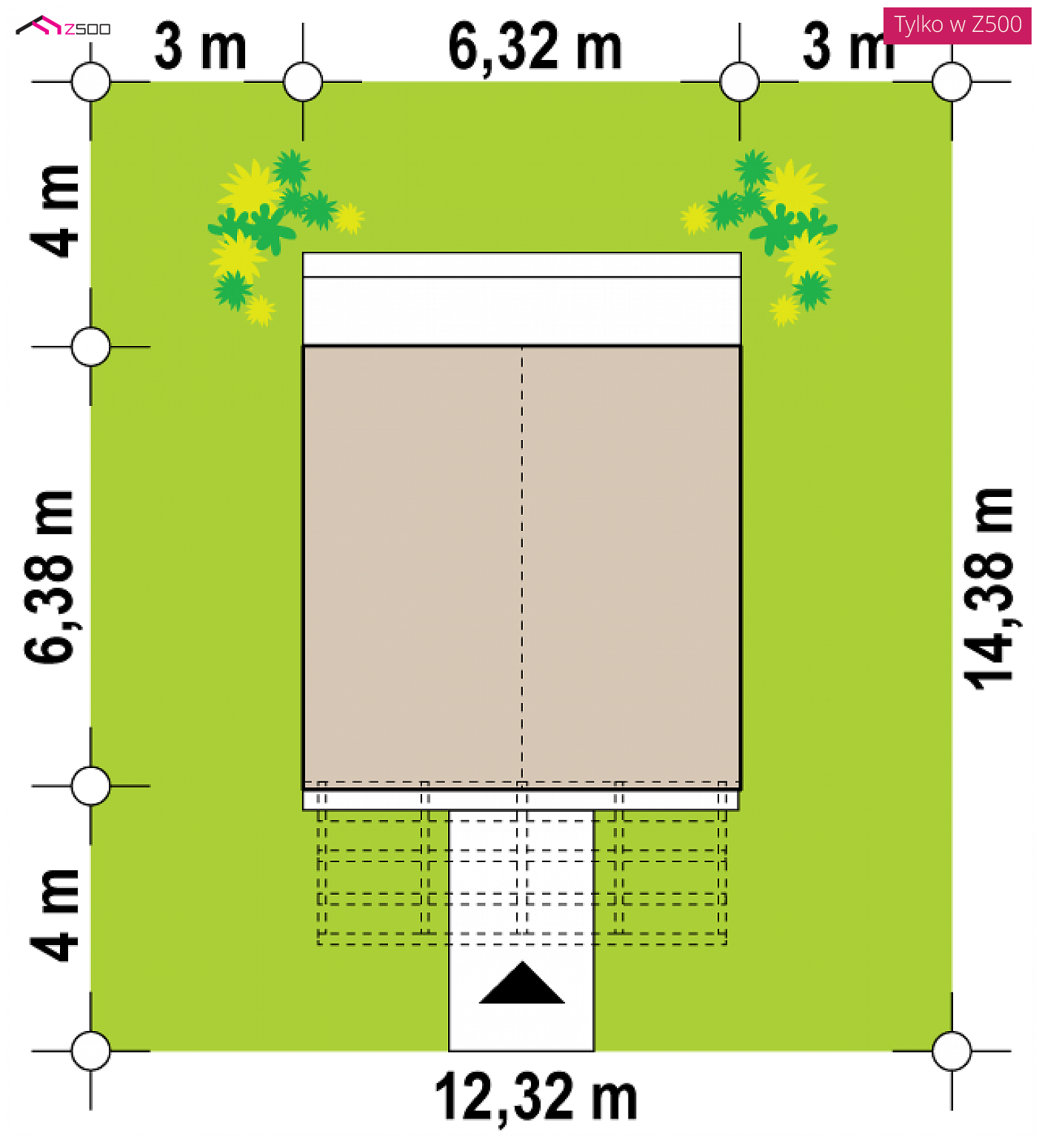

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
40,42 ft
length
47,18 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
20,73 ft

Area and dimensions

Usable / net
257,4 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
332,5 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Cubic
4 498,03 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
19,95 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
30°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
40,42 x 47,18 ft


Technology and construction

Walls
timber frame
Ceiling (ground floor)
wooden
Roof
tile, Metal tile, bituminous, foil, plate
technology
wooden

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
wooden
concept

view color variants

view color variants

view 3D interactive model

Projekt Z448 D to przykład domu, który dzięki swojej niewielkiej powierzchni, zmieści się na bardzo małej działce. Atutem jest to, iż wybudowanie tak małego domku, nie trzeba długo czekać. Jego wyjątkowość polega na niestandardowym podejściu - pomimo małej powierzchni, czuć w nim przestrzeń dzięki antresoli. Przez przeszklenia tylnej elewacji, można podziwiać piękno przyrody.

Taki domek sprawdzi się również jako inwestycja pod wynajem - na mazurach, w górach, nad morzem lub innej działce, której przestrzeń można wykorzystać nieco inaczej niż standardowo. Dzięki tak niewielkim wymiarom można postawić nie jeden, a kilka domków na niedużej działce.

UWAGA! Przy szerokości działki mniejszej niż 16 m, minimalne wymiary działki wynoszą tylko 9,32 m! W związku z powierzchnią zabudowy < niż 35 m2, domek może być na zgłoszenie. Do zgłoszenia należy dołączyć oświadczenie, o którym mowa w art. 32 ust. 4 pkt 2 Prawo Budowlane, oraz, w zależności od potrzeb, odpowiednie szkice lub rysunki, a także pozwolenia, uzgodnienia i opinie wymagane odrębnymi przepisami.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
