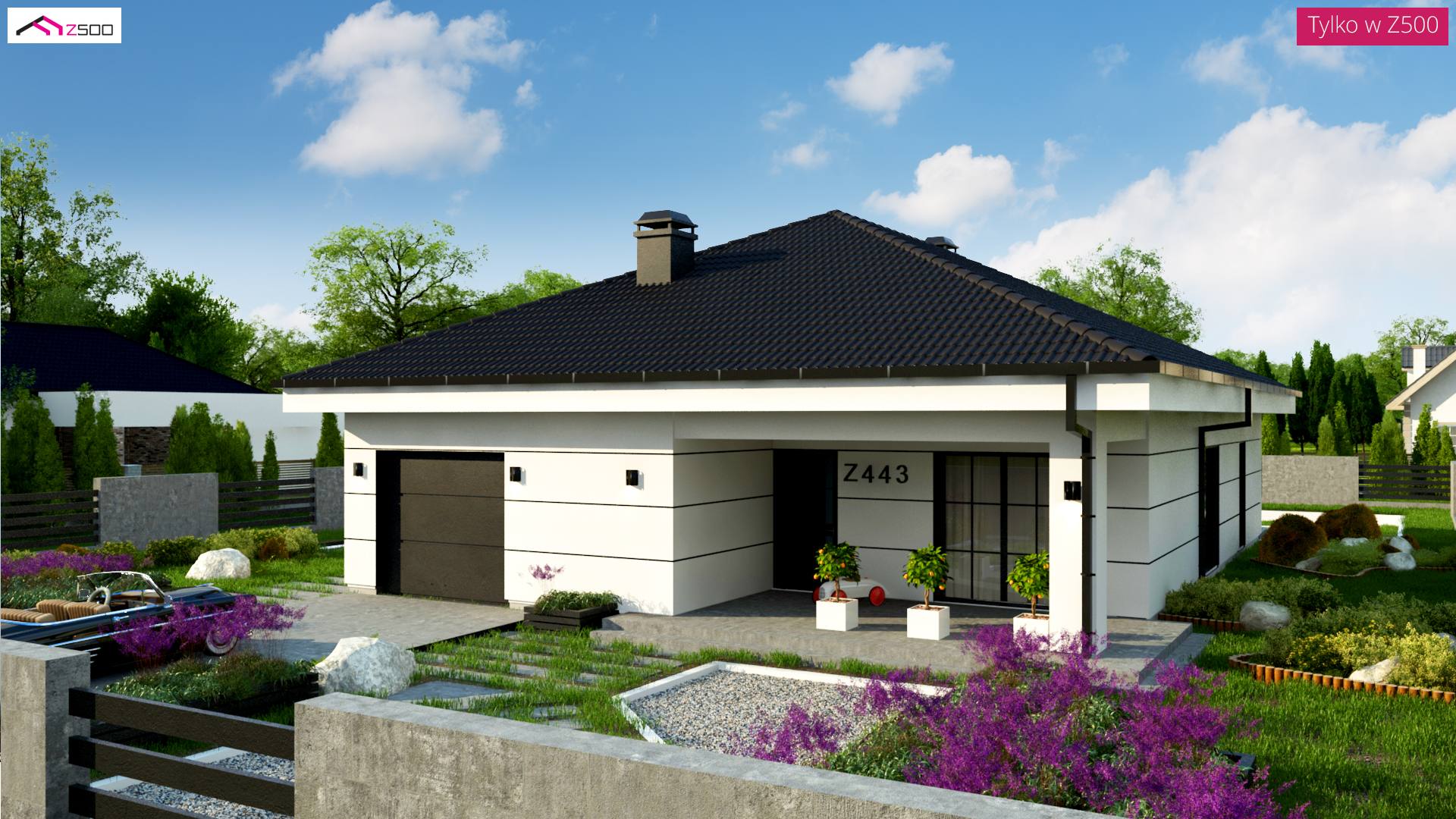

Home project Z443 D -

Z443 D mirror image

mirror image
Home project Z443 D -
Home project Z443 D -
Home project Z443 D -
Home project Z443 D -

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  -

Ground 1359,9 / 1644,4 ft²

27,2 ft²
42,5 ft²
Pomieszczenie gospodarcze
71,5 ft²
207,5 ft²
106,7 ft²
18,2 ft²
17,1 ft²
85,0 ft²
373,8 ft²
155,5 ft²
96,8 ft²
143,3 ft²
219,5 ft²
48,4 ft²
Click or touch on the image on the left to start the measure.
Home project  -

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

66,34 ft
82,74 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
40,42 ft

Area and dimensions

Usable / net
1359,9 / 1644,4 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1896,1 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
211,5 ft²
16 291 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
22,6 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
3 150,38 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
66,34 x 82,74 ft

Technology and construction

timber frame
Ceiling (ground floor)
tile, Metal tile, plate

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
90,05 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
76,05 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
home project Z443 D – interior arrangement,
home project Z443 D – interior arrangement,
home project Z443 D – interior arrangement,
home project Z443 D – interior arrangement,
home project Z443 D – interior arrangement,
home project Z443 D – interior arrangement,
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych

Projekt Z443 D to dom dla osób ceniących sobie nowoczesność w prostym wydaniu. Dzięki charakterystycznemu przesunięciu bryły, został zachowany wyraźny podział na strefę dzienną i nocną. Dodatkowo ten zabieg pozwolił na stworzenie zadaszenia nad wejściem i tarasem. Podcięcia i boniowanie sprawiły, że bryła stała się ciekawa i niestandardowa.

Niewątpliwym atutem tego domu jest prywatna sypialnia, która posiada łazienkę, dużą szafę lub możliwość garderoby oraz wyjście na taras. Niestandardowe w projekcie Z443 jest to, iż domownicy mają wygodny dostęp do głównej garderoby, która znajduje się pomiędzy garażem a sienią.

Dużym atutem domu Z443 D jest prosta konstrukcja.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
