Home project Z442 D -

Z442 D mirror image

wooden
NEW!
wooden
NEW!
mirror image
Home project Z442 D -
Home project Z442 D -
Home project Z442 D -
Home project Z442 D -

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project

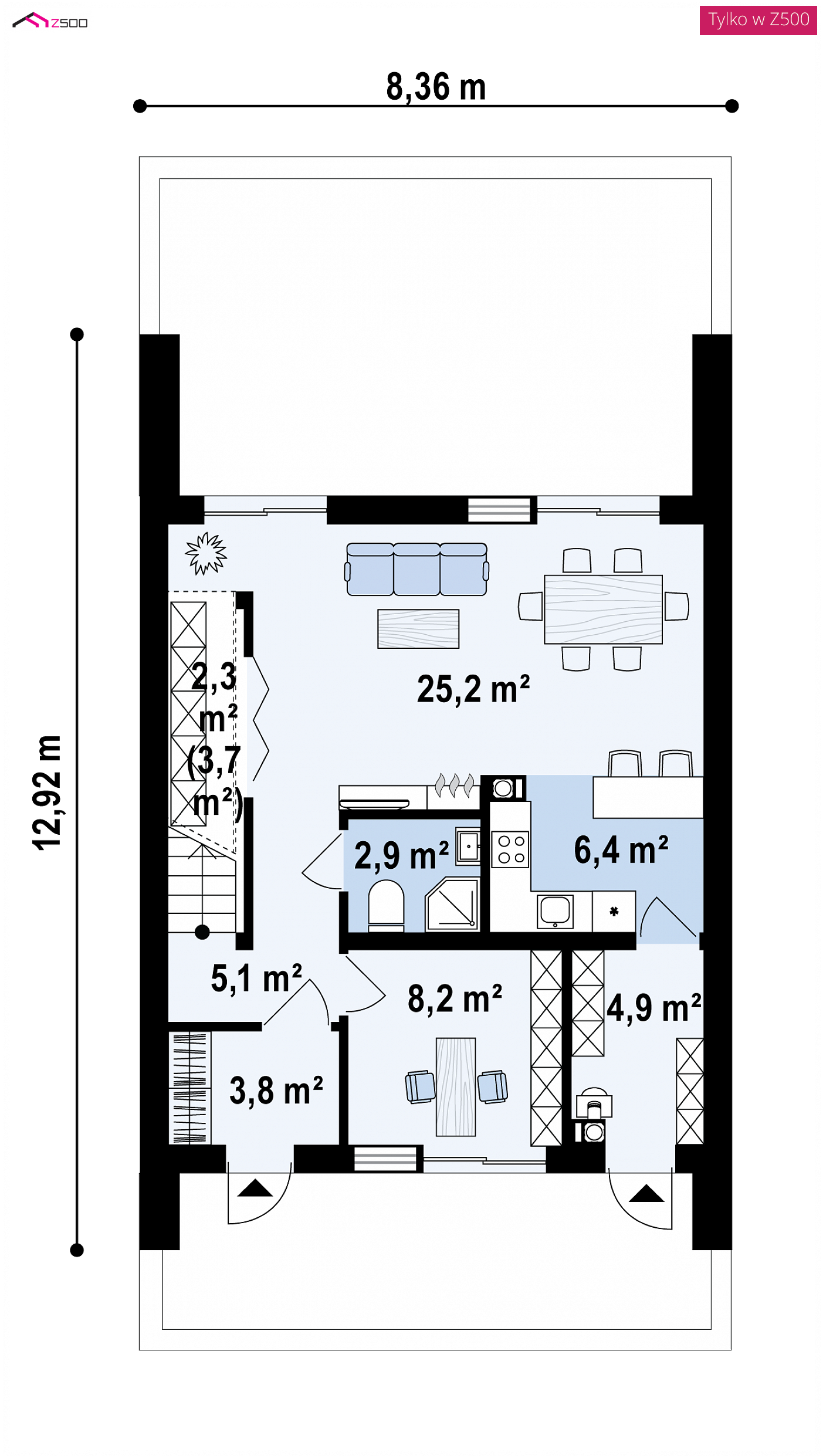

Home project  -

Ground 580,0 / 633,0 ft²

Sień
41,1 ft²
Hol
54,4 ft²
Gabinet
88,5 ft²
Pomieszczenie gospodarcze
53,1 ft²
Kuchnia
69,3 ft²
Łazienka
31,4 ft²
Salon+jadalnia
270,9 ft²
Schowek
24,3 ft²
mirror
Click or touch on the image on the left to start the measure.

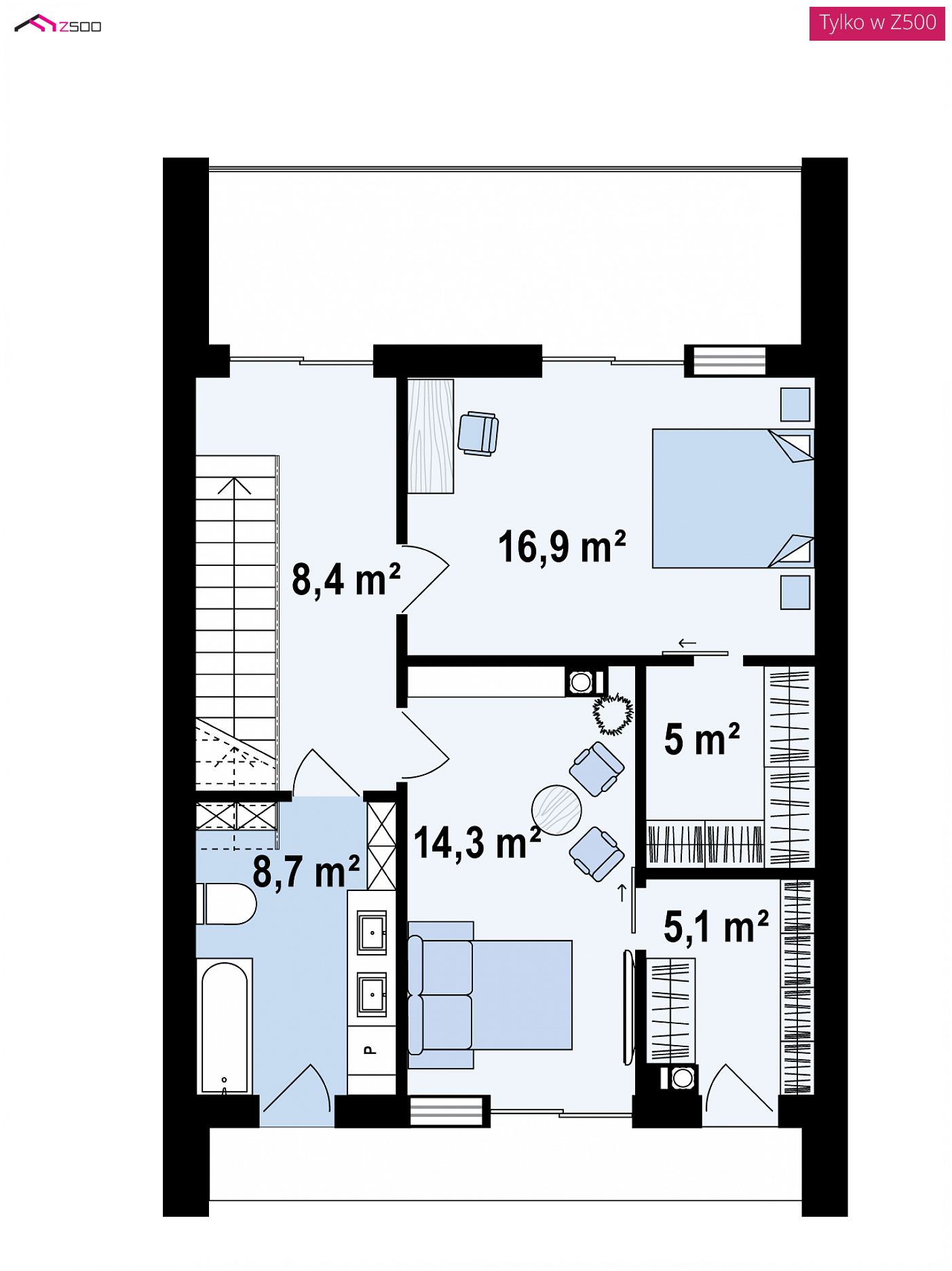

Home project  -

Garret 628,2 / 606,7 ft²

Hol
90,2 ft²
Pokój
153,9 ft²
Garderoba
55,3 ft²
Łazienka
93,4 ft²
Pokój
181,5 ft²
Garderoba
53,8 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  -

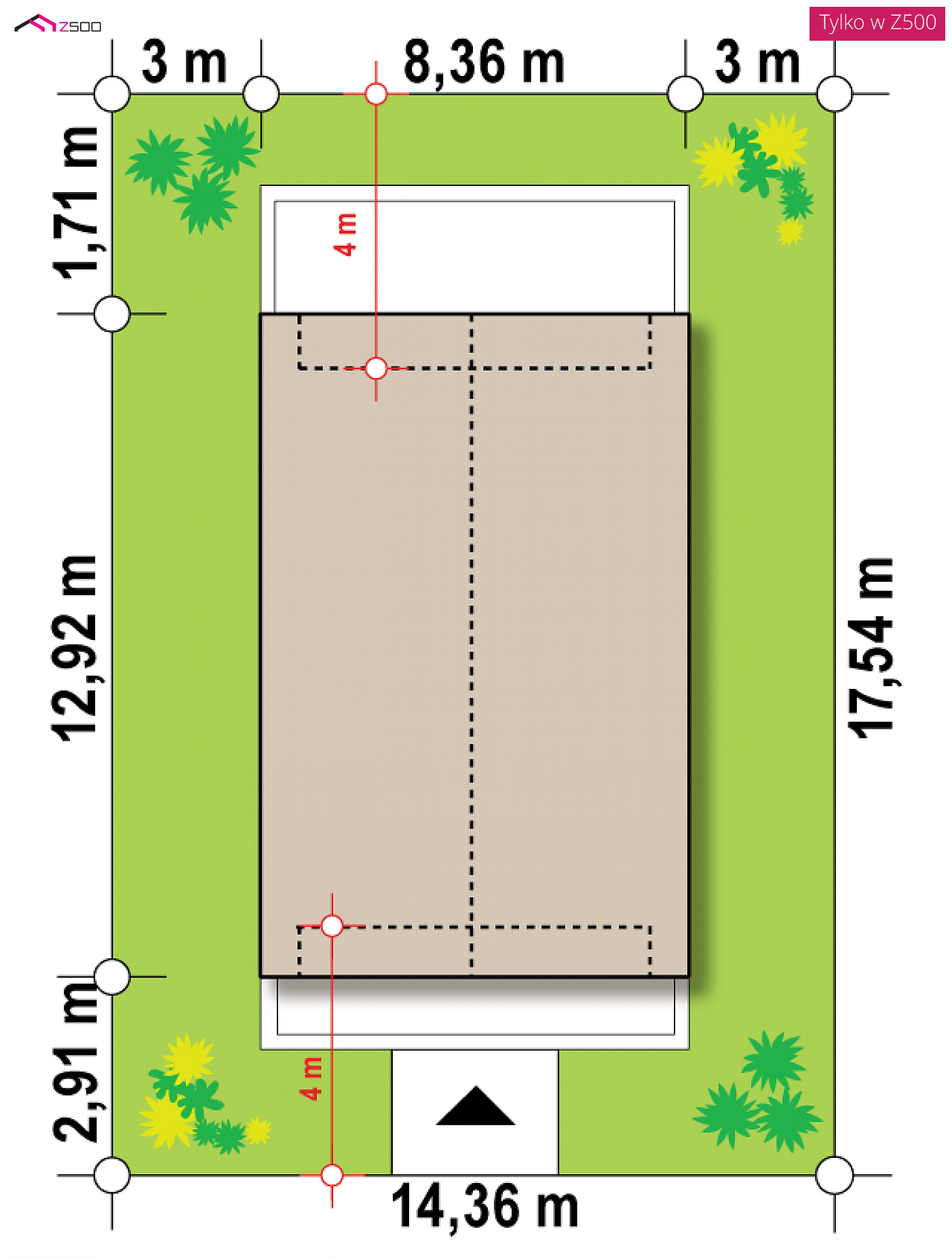

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
47,11 ft
length
57,55 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
27,43 ft

Area and dimensions

Usable / net
1208,1 / 1239,7 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
The height of the house
29,95 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
40°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
3 127,78 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
6,89 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
47,11 x 57,55 ft


Technology and construction

Walls
timber frame
Ceiling (ground floor)
Roof
plate
technology
wooden

Thermal insulation

heating system
gas, chimney, ERV
heating system - Type of heating provided for the project
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
wooden
NEW!

Projekt Z442 D jest stworzony dla ludzi ceniących sobie nowoczesność w "małym wydaniu". Rozwiązaniem dość nietypowym są dwa pokoje na poddaszu - każdy z nich posiada własną garderobę i wyjście na w pełni zadaszony balkon. Przestrzeń pod schodami -często niewykorzystywana- tutaj okazała się idealnym miejscem na schowek z przesuwnymi lub składanymi drzwiami. Dodatkowo na parterze znajduje się pomieszczenie, które może pełnić rolę pokoju gościnnego lub gabinetu (usytuowanie go w pobliżu wejścia do domu i łazienki jest bardzo komfortowe).

Atutem domu Z442 D jest mała powierzchnia użytkowa i funkcjonalność. Dodatkowo jeżeli działka ma szerokość 16 m lub mniej, to domek można odsunąć od granicy działki o 1,5 m, ponieważ nie posiada on okien bocznych - zyskujemy więc dodatkową powierzchnię na zagospodarowanie terenu lub miejsce na samochód. W efekcie najmniejsza szerokość działki może wynosić 11,36 m.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
