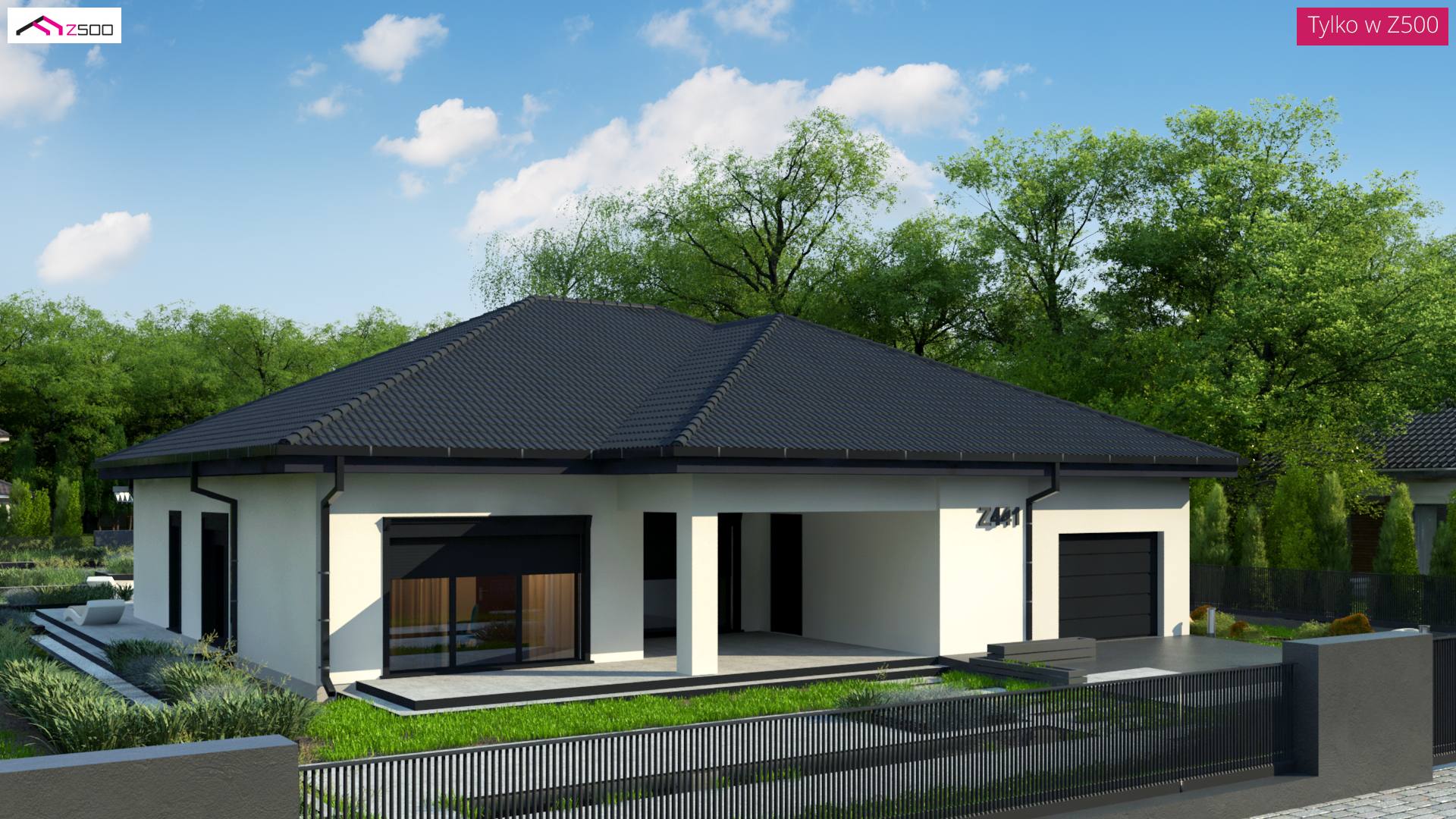

Home project Z441 D - Dom parterowy z przestronnym salonem i otwartą kuchnią

Z441 D mirror image

Dom parterowy z przestronnym salonem i otwartą kuchnią
wooden
NEW!
wooden
NEW!
mirror image
Home project Z441 D - Dom parterowy z przestronnym salonem i otwartą kuchnią
Home project Z441 D - Dom parterowy z przestronnym salonem i otwartą kuchnią
Home project Z441 D - Dom parterowy z przestronnym salonem i otwartą kuchnią
Home project Z441 D - Dom parterowy z przestronnym salonem i otwartą kuchnią

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Dom parterowy z przestronnym salonem i otwartą kuchnią

Ground 1567,2 / 1863,9 ft²

Sień
55,1 ft²
Garderoba
56,0 ft²
Garaż
251,7 ft²
Pomieszczenie gospodarcze
40,4 ft²
Hol
57,9 ft²
Hol
54,0 ft²
Hol
66,0 ft²
Spiżarka
43,6 ft²
Kuchnia
160,7 ft²
Salon+jadalnia
390,1 ft²
Pokój
183,6 ft²
Garderoba
29,9 ft²
Łazienka
42,7 ft²
Pokój
149,3 ft²
Gabinet
146,0 ft²
WC
29,5 ft²
Łazienka
67,5 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Dom parterowy z przestronnym salonem i otwartą kuchnią

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
77,3 ft
length
87,76 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
53,54 ft

Area and dimensions

Usable / net
1567,2 / 1863,9 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
2160,9 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
255,8 ft²
Cubic
18 471 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
23,72 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
25°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
3 943,14 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
77,3 x 87,76 ft


Technology and construction

Walls
timber frame
Ceiling (ground floor)
trusses
Roof
tile, Metal tile, plate
technology
wooden

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
wooden
NEW!

Projekt Z441 D to propozycja domu tradycyjnego z dachem wielospadowym. To co wyróżnia projekt to nietypowy układ. Atutem jest osobne wejście do gabinetu oraz duża garderoba. Część nocna jest wyraźnie oddzielona od części dziennej, co stwarza intymny klimat. Zaletą jest przestronny salon z wyjściem na taras.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
