Home project Z440 D - Mały dom, duże możliwości...

Z440 D mirror image

Mały dom, duże możliwości...
mirror image
Home project Z440 D - Mały dom, duże możliwości...
Home project Z440 D - Mały dom, duże możliwości...
Home project Z440 D - Mały dom, duże możliwości...
Home project Z440 D - Mały dom, duże możliwości...

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Mały dom, duże możliwości...

Ground 698,2 / 760,3 ft²

45,2 ft²
Pomieszczenie gospodarcze
60,0 ft²
99,1 ft²
120,8 ft²
55,4 ft²
51,1 ft²
82,3 ft²
228,8 ft²
Click or touch on the image on the left to start the measure.
Home project  - Mały dom, duże możliwości...

Garret 346,5 / 388,3 ft²

56,9 ft²
75,8 ft²
73,0 ft²
43,6 ft²
97,2 ft²
Click or touch on the image on the left to start the measure.
Home project  - Mały dom, duże możliwości...

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

53,64 ft
60,1 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
26,51 ft

Area and dimensions

Usable / net
1044,6 / 1148,5 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
897,6 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
12 764,1 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
29,33 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 863,45 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
4,56 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
53,64 x 60,1 ft

Technology and construction

timber frame
Ceiling (ground floor)
tile, Metal tile, plate

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
90,15 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
75,25 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych

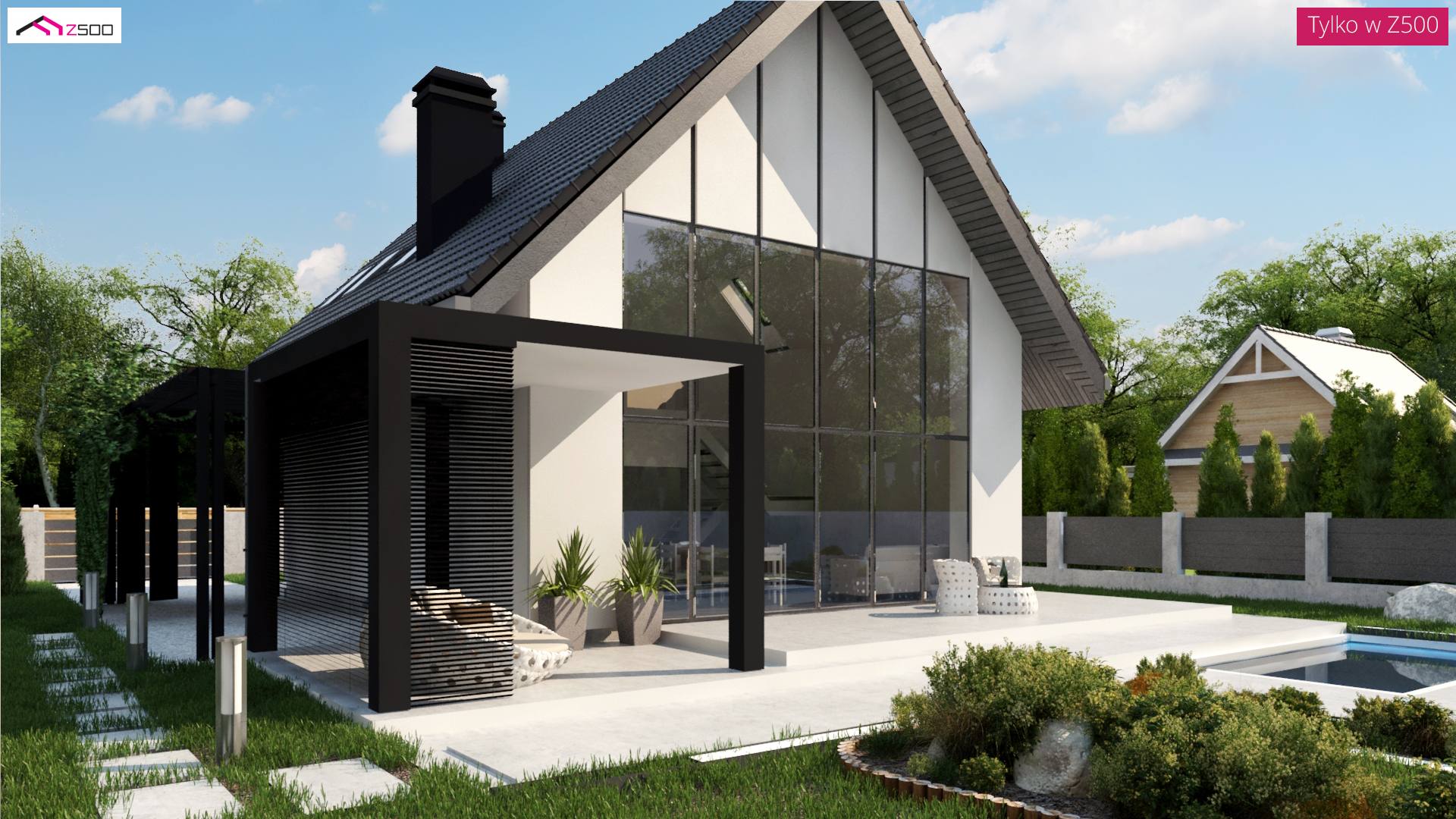

Projekt domuZ440 D to przykład wykorzystania małej przestrzeni w taki sposób, by stworzyć coś unikatowego. Charakterystyczne są tutaj duże przeszklenia od ogrodu oraz pustka nad salonem.

Na parterze dobrym rozwiązaniem jest gabinet z możliwością adaptacji na pokój gościnny lub sypialnię. Hol - miejsce kojarzone z wąskim, mało atrakcyjnym łącznikiem do innych pomieszczeń-tutaj "oddycha", dzięki zastosowaniu w strefie dziennej dużych przeszkleń, przez które rozciąga się piękny widok na ogród. Niestandardowym rozwiązaniem jest wykorzystanie schodów, które stają się elementem dekoracyjnym salonu.

Na poddaszu znajdują się 3 pokoje i łazienka. Atutem tego projektu jest możliwość przearanżowania przestrzeni w taki sposób, aby stworzyć dwa pokoje oddzielone od siebie holem i łazienką (dzięki połączeniu pokoi o metrażach 8,01 m2 i 8,00 m2 mogłaby powstać sypialnia z garderobą).

W związku z tym, iż domek nie ma okien na elewacjach bocznych, istnieje możliwość dobudowania garażu- alternatywą może być wiata pokazana na wizualizacjach.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
