Home project  - Piętrowy dom ze sporym pomieszczeniem gospodarczym, także na wąską działkę.

Z297 D

Piętrowy dom ze sporym pomieszczeniem gospodarczym, także na wąską działkę.
koka
koka
project's availability 3 work days

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
%}
Home project  - Piętrowy dom ze sporym pomieszczeniem gospodarczym, także na wąską działkę.

Ground 539,2 / 538,5 ft²

Sień
31,7 ft²
Hol+schody
83,6 ft²
Łazienka
48,4 ft²
Kuchnia
79,7 ft²
Salon+jadalnia
224,2 ft²
Pom. gosp.
71,6 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Piętrowy dom ze sporym pomieszczeniem gospodarczym, także na wąską działkę.

Floor 477,0 ft²

Hol
50,7 ft²
Łazienka
53,2 ft²
Pokój
109,2 ft²
Pokój
106,7 ft²
Pokój
120,1 ft²
Garderoba
37,1 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Piętrowy dom ze sporym pomieszczeniem gospodarczym, także na wąską działkę.

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
45,01 ft
length
55,71 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
22,05 ft

Area and dimensions

Usable / net
1016,1 / 1015,5 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
649,6 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Cubic
8 828,67 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
26,8 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
30°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 098,03 ft²
Roof area - total roof area with the exception of roof windows.
Minimal plot
45,01 x 55,71 ft


Technology and construction

Walls
timber frame
Ceiling
wooden, trusses
Roof
tile, Metal tile
technology
koka

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
94,8 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
84,4 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
koka
koka
project's availability 3 work days

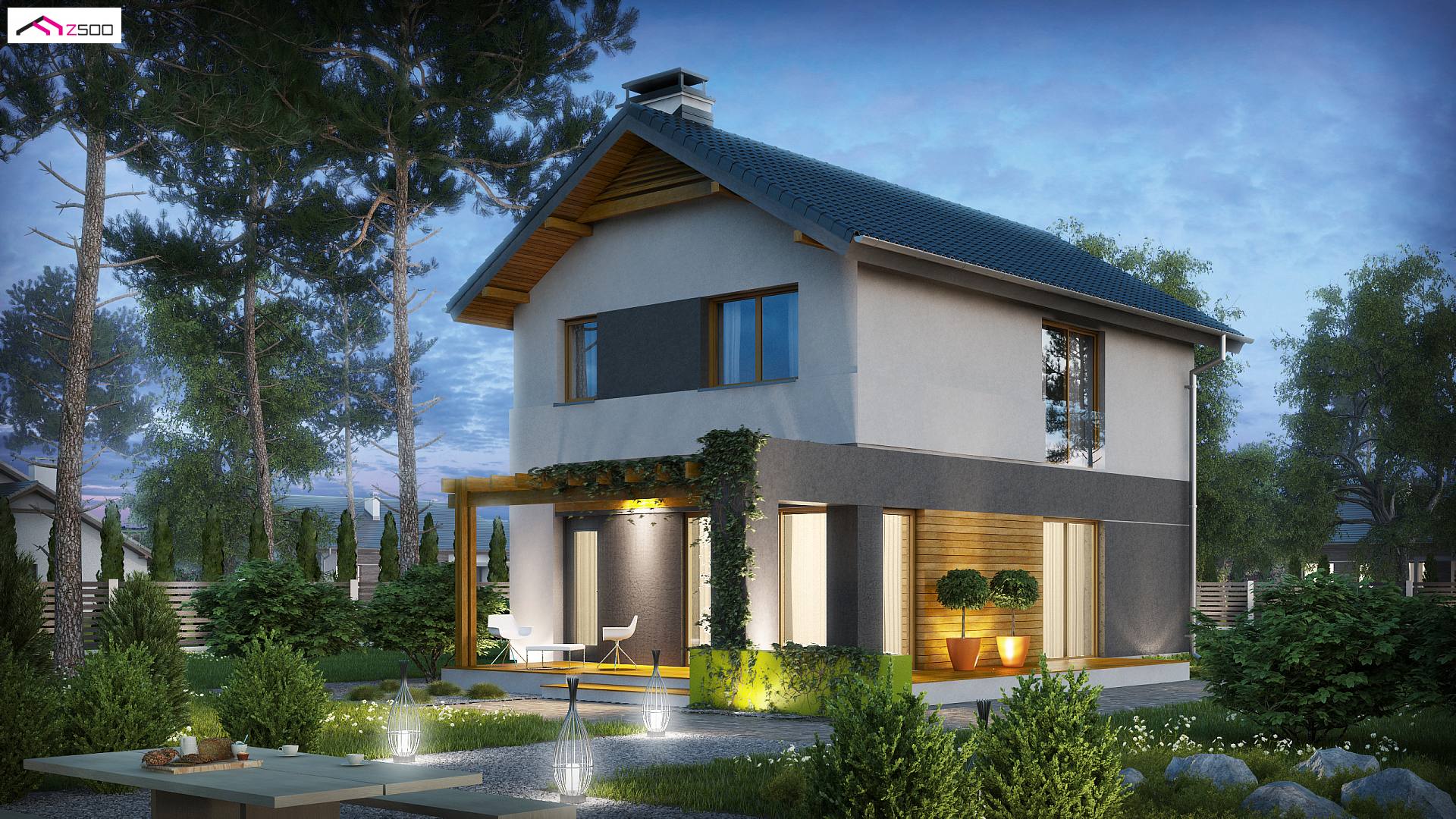

Z297 to kompaktowy projekt o prostej, zwartej bryle z dachem dwuspadowym. Ze względu na niewielką szerokość frontu zmieści się na bardzo wąskiej działce. Zaletą projektu jest piętro o pełnej wysokości, bez skosów.

Przy stosunkowo niewielkiej powierzchni 93mkw, projekt oferuje szeroki program funkcjonalny. Na parterze znajduje się strefa reprezentacyjna - kuchnia połączona z jadalnią oraz salonem. Spora kotłownia z wyjściem na ogród przylega do salonu-wspólny przewód kominowy to rozsądne i oszczędne rozwiązanie. Na parterze zaprojektowano także wygodną łazienkę z oknem.Piętro to prywatna strefa domowników. Znajdują się tam trzy podobnych rozmiarów sypialnie. Pokój rodziców posiada dodatkowo osobną garderobę oraz wyjście na balkon. W holu przewidziano również miejsce na pojemną szafę. W łazience z oknem zmieści się wanna a także pralka.

Z297 spodoba się wielbicielom nowoczesnego stylu. Ciekawe dodatki oraz wykończenie elewacji nadają mu niepowtarzalnego charakteru.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.
