Home project  - Kompaktowy dom parterowy z trzema sypialniami przykryty dachem kopertowym.

Z273

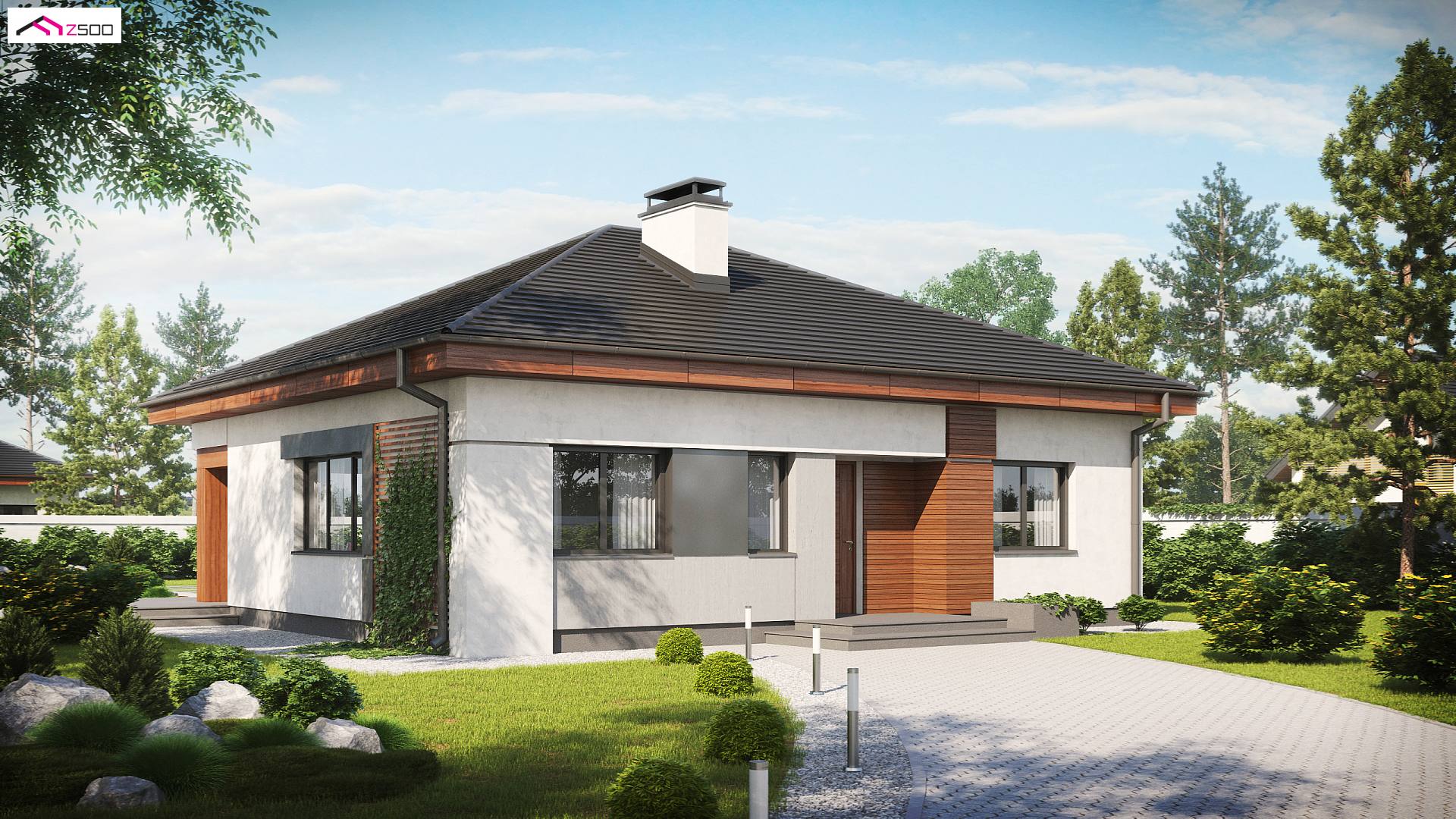

Kompaktowy dom parterowy z trzema sypialniami przykryty dachem kopertowym.
ķieģeļu
ķieģeļu
project's availability 3 work days

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
%}
Home project  - Kompaktowy dom parterowy z trzema sypialniami przykryty dachem kopertowym.

Ground 968,8 / 1004,4 ft²

Sień
45,2 ft²
Łazienka
64,9 ft²
Kuchnia
86,0 ft²
Pokój
127,0 ft²
Pomieszczenie gospodarcze
35,6 ft²
Łazienka
28,3 ft²
Hol
66,3 ft²
Salon+jadalnia
281,7 ft²
Pokój
140,2 ft²
Pokój
129,2 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Kompaktowy dom parterowy z trzema sypialniami przykryty dachem kopertowym.

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
66,08 ft
length
60,66 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
39,83 ft

Area and dimensions

Usable / net
968,8 / 1004,4 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1255,7 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Cubic
8 733,32 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
21,33 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
25°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 851,39 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
1,8 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
66,08 x 60,66 ft


Technology and construction

Walls
aerated concrete, ceramics, silicates
Ceiling
wooden, trusses
Roof
tile, Metal tile, plate
technology
ķieģeļu

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
94,4 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
81,1 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
ķieģeļu
ķieģeļu
project's availability 3 work days

Z273 to kompaktowy dom parterowy o prostej bryle przekrytej dachem kopertowym.

Do domu wchodzimy z podcienia wejściowego. W sieni zaplanowano miejsce na pojemną szafę. Dalej możemy dostać się na lewo do części reprezentacyjnej lub na prawo do strefy prywatnej domowników. Część dzienna to komfortowy salon z jadalnią, centralnie umieszczonym kominkiem, dużymi przeszkleniami oraz wyjściem na zadaszony taras. Całość dopełnia ustawna, wygodna kuchnia. W drugiej części domu zaprojektowano trzy podobnej wielkości pokoje. Dwie łazienki podniosą komfort użytkowania. Duża z oknem, mniejszą w razie potrzeby można zamienić na garderobę, spiżarnię czy podręczny schowek.

Zaletą projektu jest prosta konstrukcja - tylko jedna ściana konstrukcyjna wewnątrz pozwala na niemal dowolną aranżację wnętrza. Plusem jest też jeden pion kominowy, co obniża koszt realizacji.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
