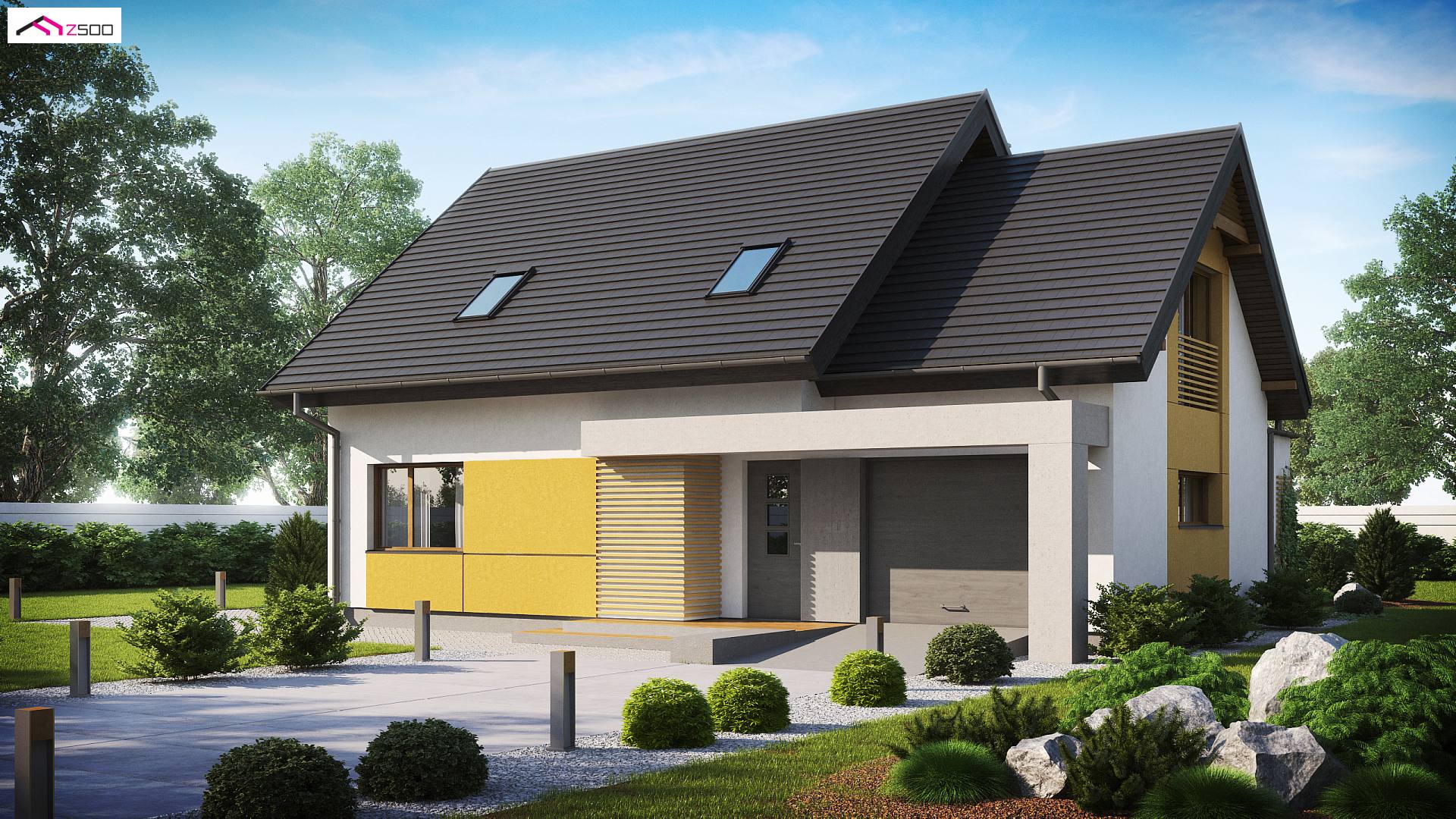

Home project Z219 D

Z219 D mirror image

wooden
concept
project's availability 20 work days
$2 970
wooden
concept
project's availability 20 work days
mirror image
$2 970
Home project Z219 D
Home project Z219 D
Home project Z219 D
Home project Z219 D

Talk to the architect who designed the house

(718) 810-5358

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Wygodny dom z poddaszem użytkowym, dużą kuchnią oraz kotłownią na paliwo stałe.

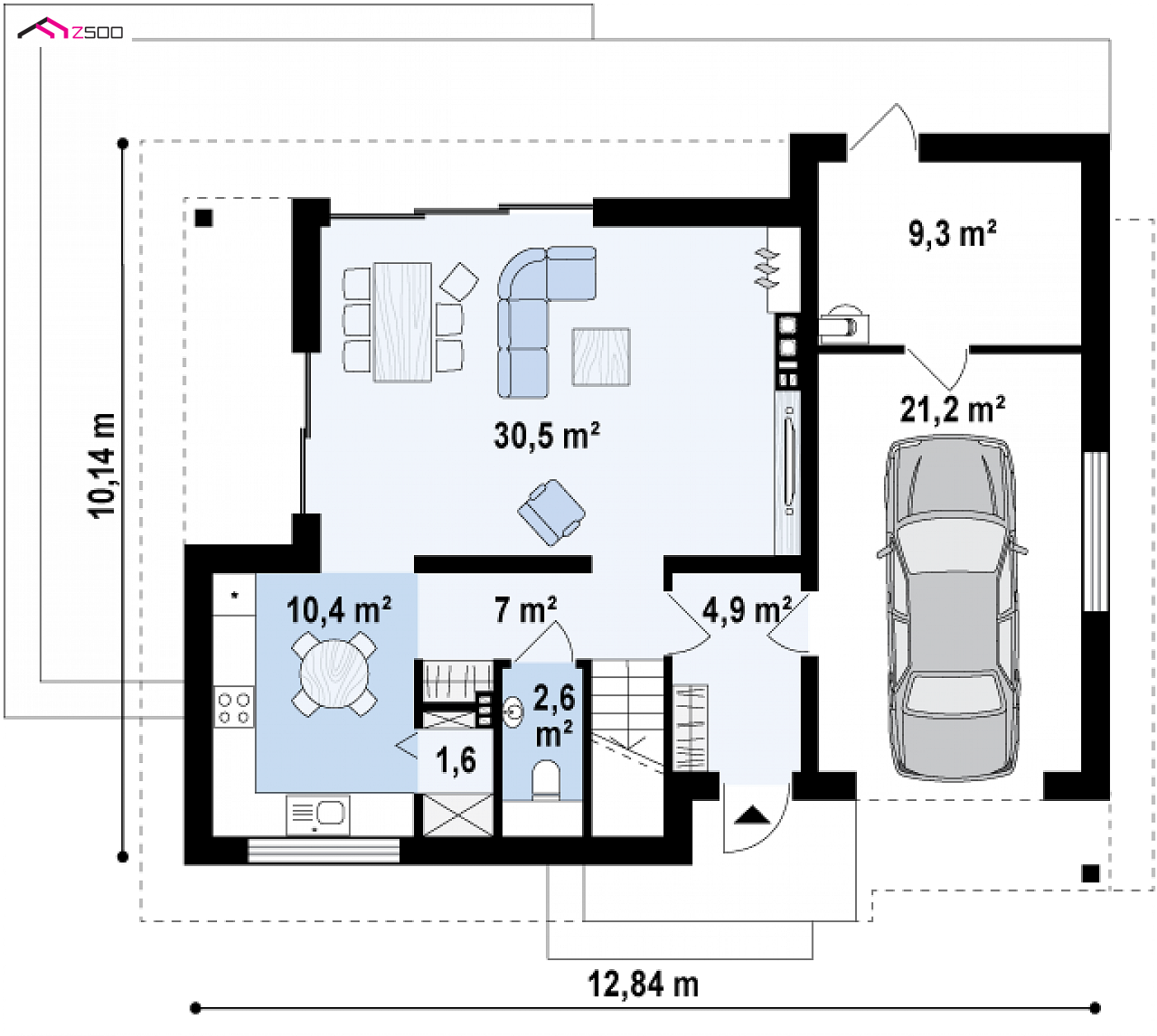

Ground 613,5 / 942,2 ft²

Salon+jadalnia
328,7 ft²
Sień
52,5 ft²
Hol+schody
74,9 ft²
WC
28,2 ft²
Spiżarka
17,3 ft²
Kuchnia
111,8 ft²
Garaż
228,5 ft²
Garaż+pom. gosp.
100,1 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Wygodny dom z poddaszem użytkowym, dużą kuchnią oraz kotłownią na paliwo stałe.

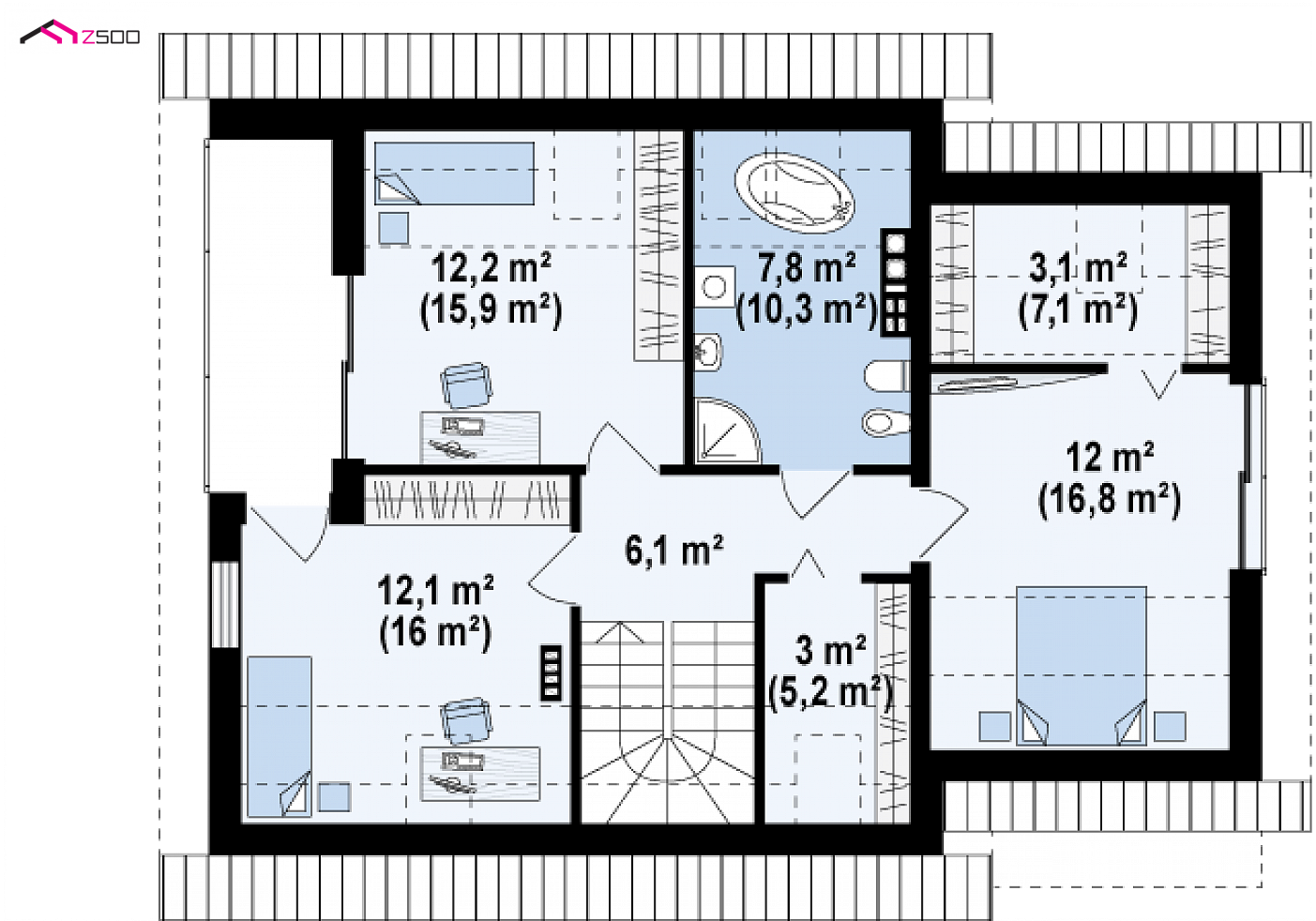

Garret 607,1 / 833,7 ft²

Hol
65,7 ft²
Garderoba
32,3 ft²
Pokój
129,6 ft²
Garderoba
33,3 ft²
Pokój
130,9 ft²
Pokój
131,2 ft²
Łazienka
84,2 ft²
mirror
Draw

Click or touch on the image on the left to start the measure.
Draw sketch on image and click save icon.
Sketch has been sent.
Home project  - Wygodny dom z poddaszem użytkowym, dużą kuchnią oraz kotłownią na paliwo stałe.

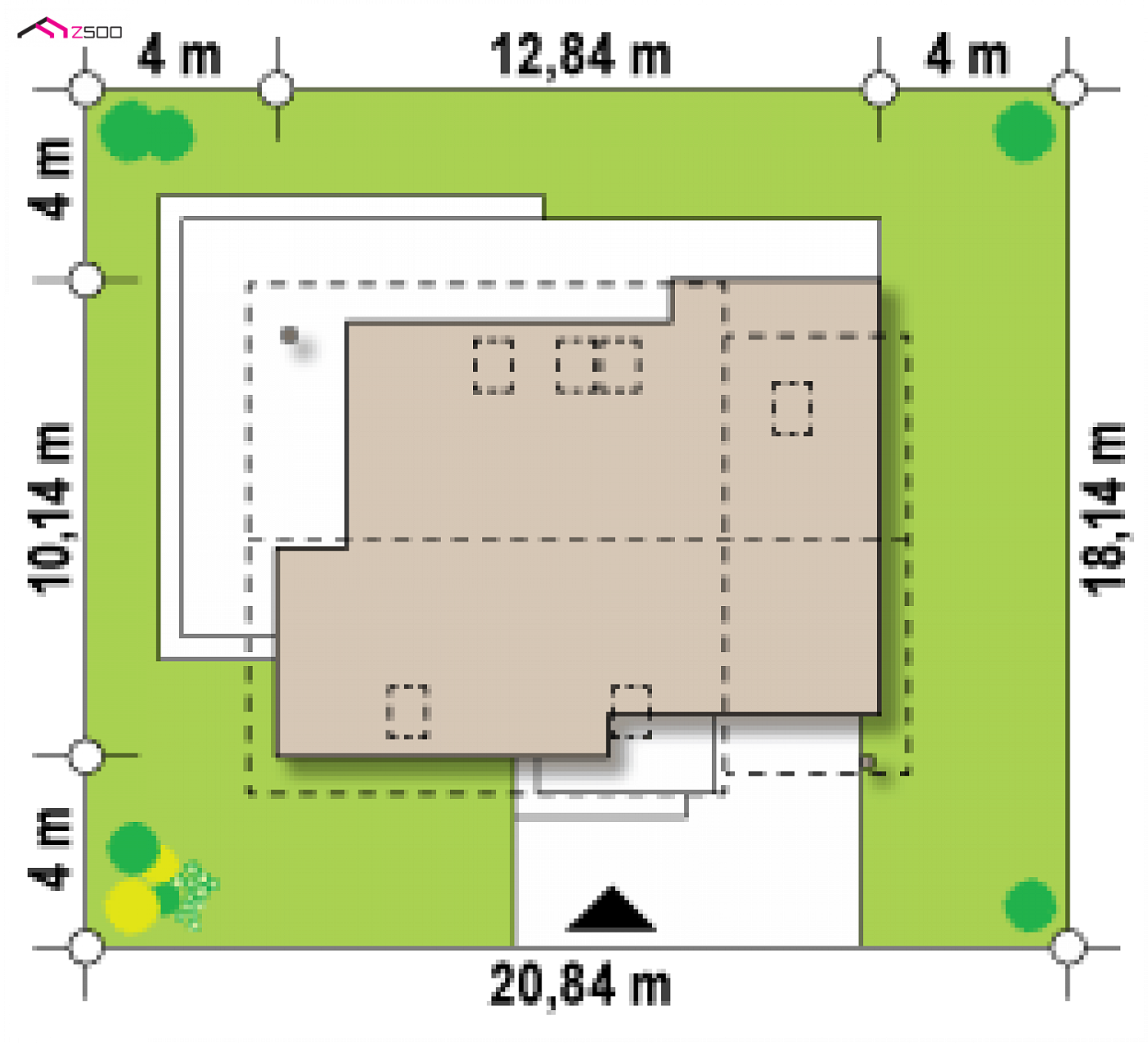

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
68,37 ft
length
59,51 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
42,13 ft

Area and dimensions

Usable / net
1220,6 / 1775,8 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
1213,6 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
328,6 ft²
Cubic
14 168,6 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
27,26 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
40°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
2 038,47 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
3,28 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
68,37 x 59,51 ft


Technology and construction

Walls
timber frame
Ceiling (ground floor)
wooden
Roof
Metal tile, tile
technology
wooden

Thermal insulation

heating system
solid fuel, ERV
heating system - Type of heating provided for the project
home project Z219 D – interior arrangement, Wygodny dom z poddaszem użytkowym, dużą kuchnią oraz kotłownią na paliwo stałe.
home project Z219 D – interior arrangement, Wygodny dom z poddaszem użytkowym, dużą kuchnią oraz kotłownią na paliwo stałe.
home project Z219 D – interior arrangement, Wygodny dom z poddaszem użytkowym, dużą kuchnią oraz kotłownią na paliwo stałe.
home project Z219 D – interior arrangement, Wygodny dom z poddaszem użytkowym, dużą kuchnią oraz kotłownią na paliwo stałe.
home project Z219 D – interior arrangement, Wygodny dom z poddaszem użytkowym, dużą kuchnią oraz kotłownią na paliwo stałe.
home project Z219 D – interior arrangement, Wygodny dom z poddaszem użytkowym, dużą kuchnią oraz kotłownią na paliwo stałe.
home project Z219 D – interior arrangement, Wygodny dom z poddaszem użytkowym, dużą kuchnią oraz kotłownią na paliwo stałe.
home project Z219 D – interior arrangement, Wygodny dom z poddaszem użytkowym, dużą kuchnią oraz kotłownią na paliwo stałe.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
