Home project Z216 D - Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze

Z216 D mirror image

Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze
wooden
wooden
wooden
wooden
mirror image
Home project Z216 D - Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
Home project  - Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze

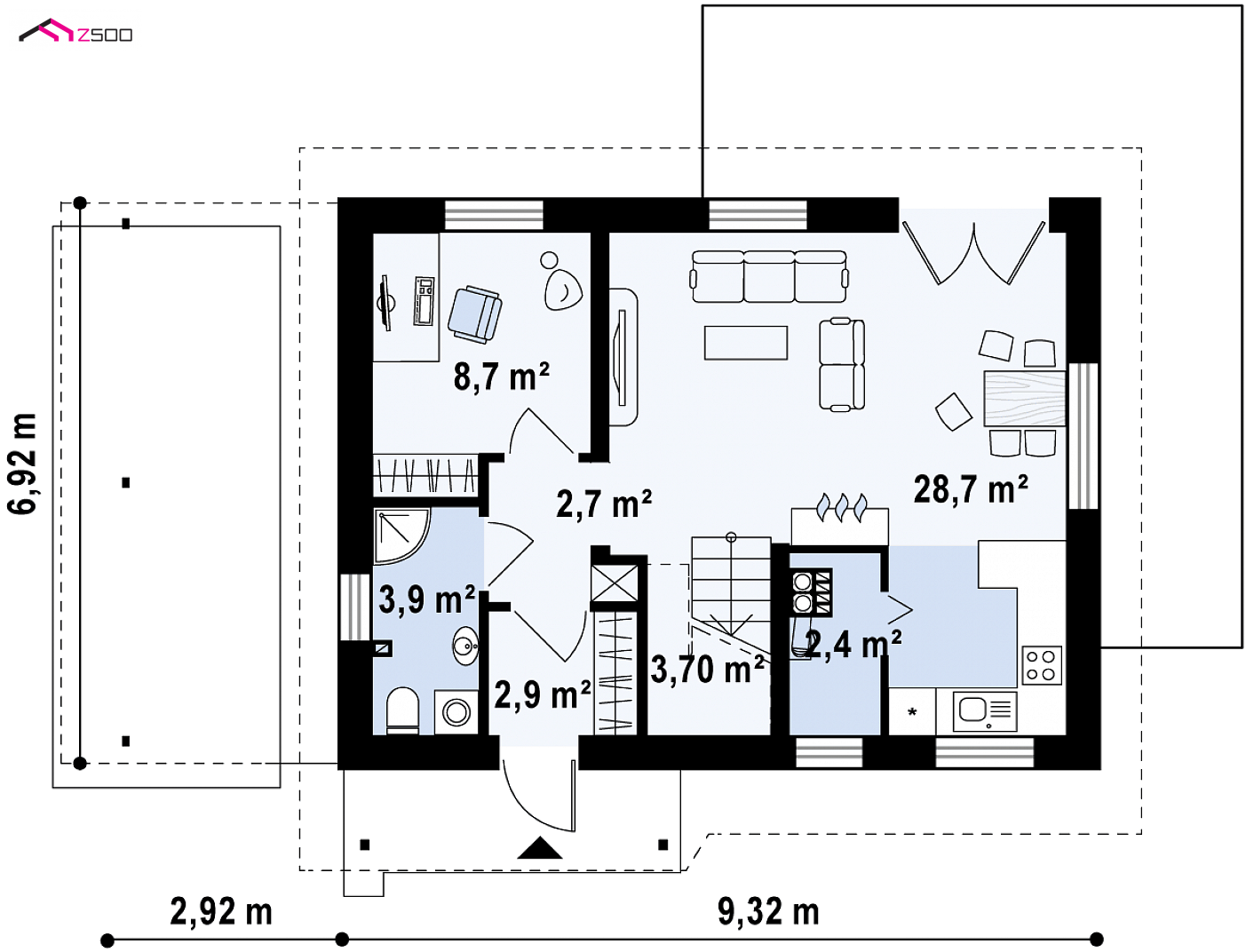

Ground 572,2 ft²

Sień
31,7 ft²
Hol
29,1 ft²
Łazienka
43,4 ft²
Gabinet
93,7 ft²
Salon+kuchnia
308,5 ft²
Pom. gosp.
26,2 ft²
Hol+schody
39,8 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze

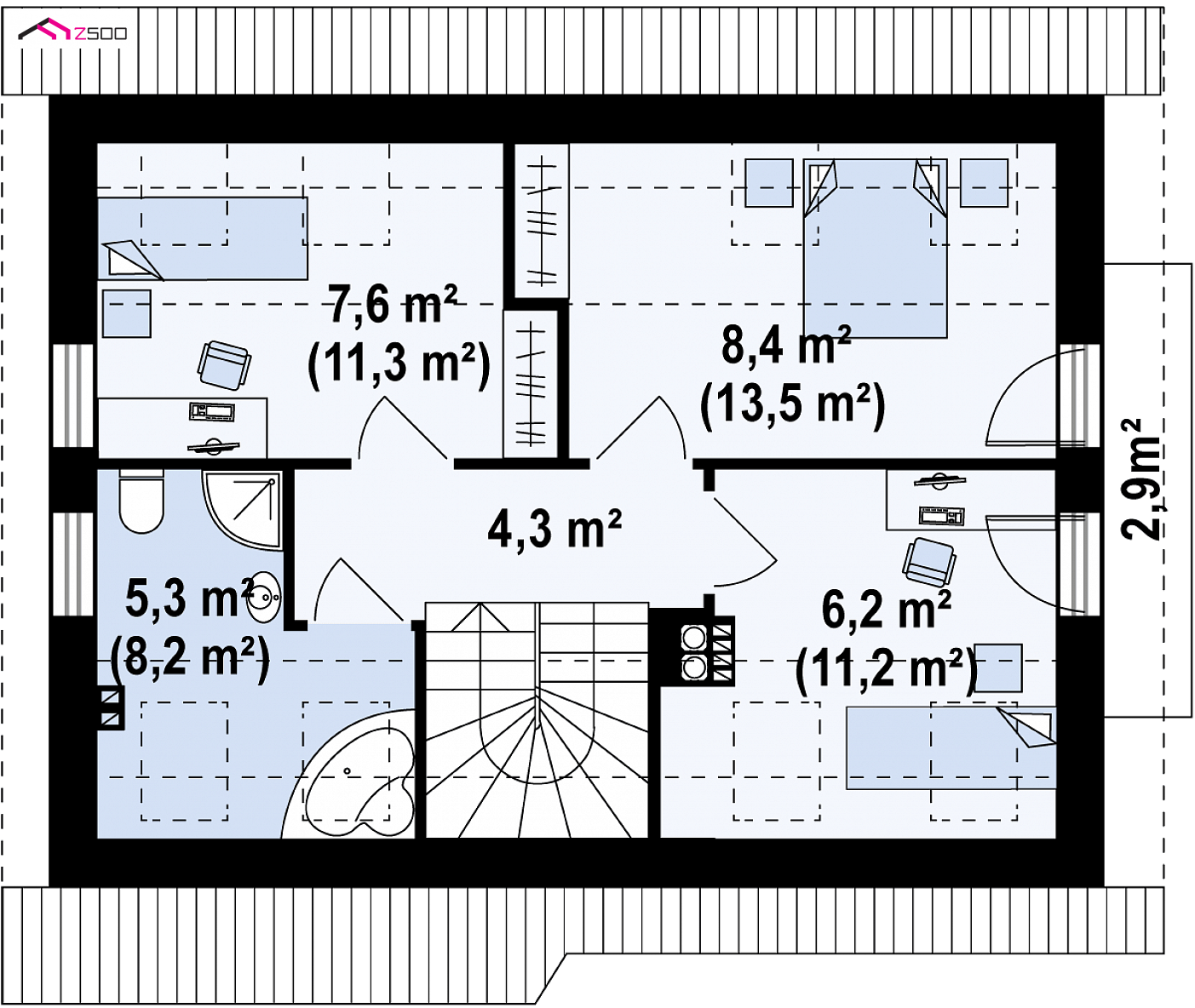

Garret 343,3 / 523,5 ft²

Hol
46,6 ft²
Pokój
81,7 ft²
Pokój
90,2 ft²
Pokój
66,8 ft²
Łazienka
57,9 ft²
Balkon
31,2 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze

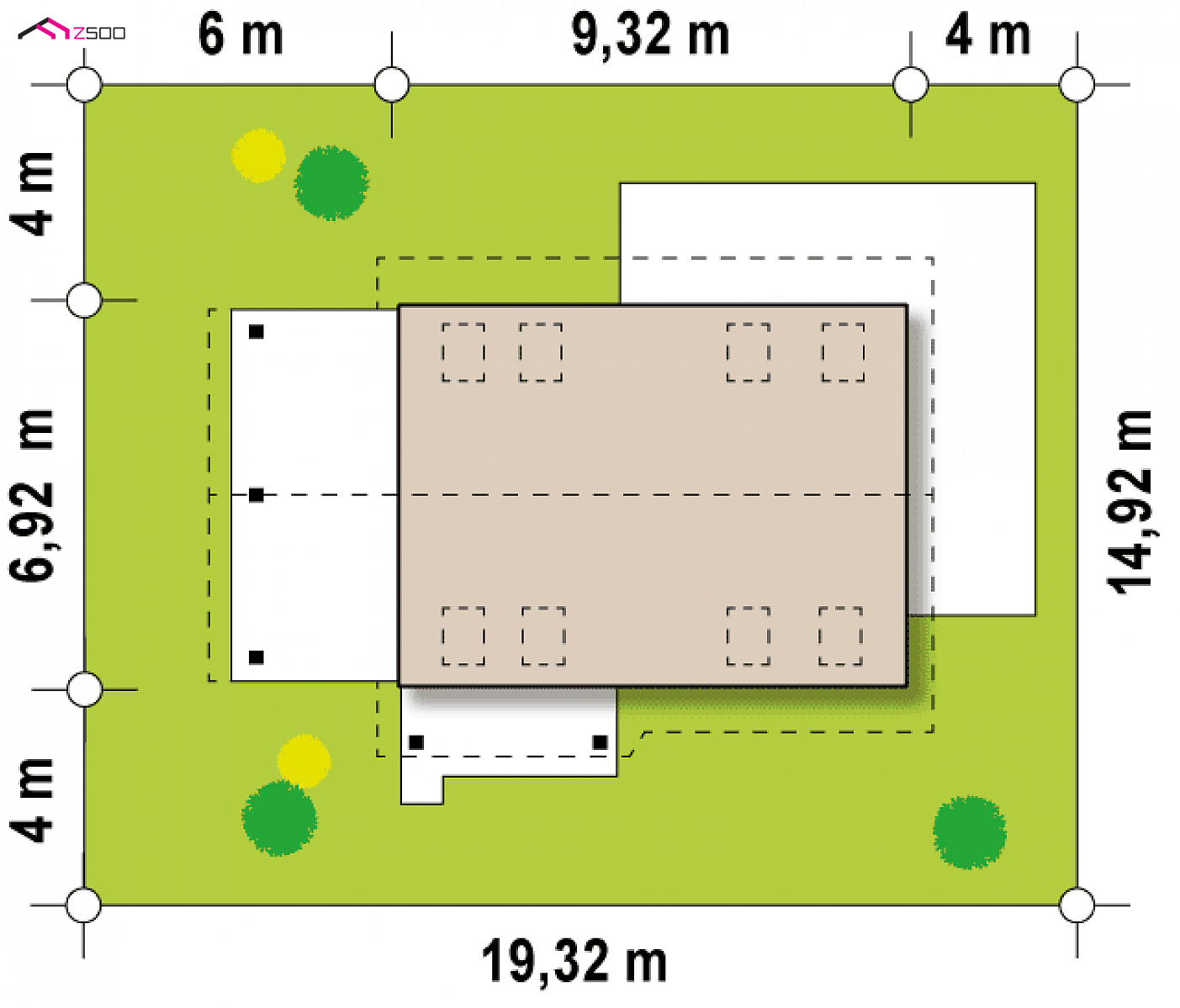

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
60,1 ft
length
48,95 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
30,58 ft

Area and dimensions

Usable / net
915,5 / 1095,7 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
694,2 ft²
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Cubic
8 623,84 ft³
Cubic: The volume of the room, or floor area multiplied by the height of the floor. To calculate the volume of the assumed height measured from the floor - from the bottom floor or to the bottom of the flat roof.
The height of the house
24,21 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
40° / 6°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 485,42 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
3,08 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
60,1 x 48,95 ft


Technology and construction

Walls
timber frame
Ceiling (ground floor)
wooden
Roof
tile, Metal tile
technology
wooden

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
Primary energy (Ep)
94,6 kWh/ft²/year
Primary energy (Ep) - the amount of energy extracted at source and needed to meet the demand for home heating, domestic hot water, air conditioning, mechanical ventilation.
Final energy (Ek)
80,3 kWh/ft²/year
Final energy (Ek) - the amount of energy that must be purchased to ogrzawania home, domestic hot water, mechanical ventilation, and air conditioning. More specifically, it is the energy per 1 m² per year.
home project Z216 D – interior arrangement, Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze
home project Z216 D – interior arrangement, Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze
home project Z216 D – interior arrangement, Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze
home project Z216 D – interior arrangement, Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze
home project Z216 D – interior arrangement, Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze
home project Z216 D – interior arrangement, Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze
home project Z216 D – interior arrangement, Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze
home project Z216 D – interior arrangement, Tani w realizacji, ekonomiczny w utrzymaniu, wygodny dom z gabinetem na parterze
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
wooden
wooden

To niewielki i bardzo funkcjonalny projekt domu. Zgrabna, prosta bryła jest szybka i łatwa w budowie. Warto zwrócić uwagę również na funkcjonalną wiatę garażową.

Zadaszone wejście prowadzi do wygodnej sieni z miejscem na sporą szafę. Strefa dzienna, to przede wszystkim jasny, przestronny salon. Otwarta kuchnia posiada praktyczną spiżarkę na wszystkie podręczne produkty. Szerokie wyjście balkonowe prowadzi na obszerny, częściowo zadaszony taras. Parter stanowi również wygodny pokój gościnny oraz funkcjonalna łazienka. Piętro to część nocna domu. Są tu trzy przestronne sypialnie oraz naturalnie doświetlona, wygodna łazienka.

Projekt jest doskonałą propozycją dla osób poszukujących funkcjonalnego i prostego w budowie domu. Całość przykryta dwuspadowym dachem sprawia, że dom jest tanią i ekonomiczną inwestycją.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
