Home project  - Kompaktowy dom z garażem i wykuszem, ekonomiczny w budowie.

Z124 D

Kompaktowy dom z garażem i wykuszem, ekonomiczny w budowie.
koka
concept
project's availability 18 work days

Talk to the architect who designed the house

+1 (917) 942 9815

Mon - Fri: 8:00 - 19:00

ask about the project
%}
Home project  - Kompaktowy dom z garażem i wykuszem, ekonomiczny w budowie.

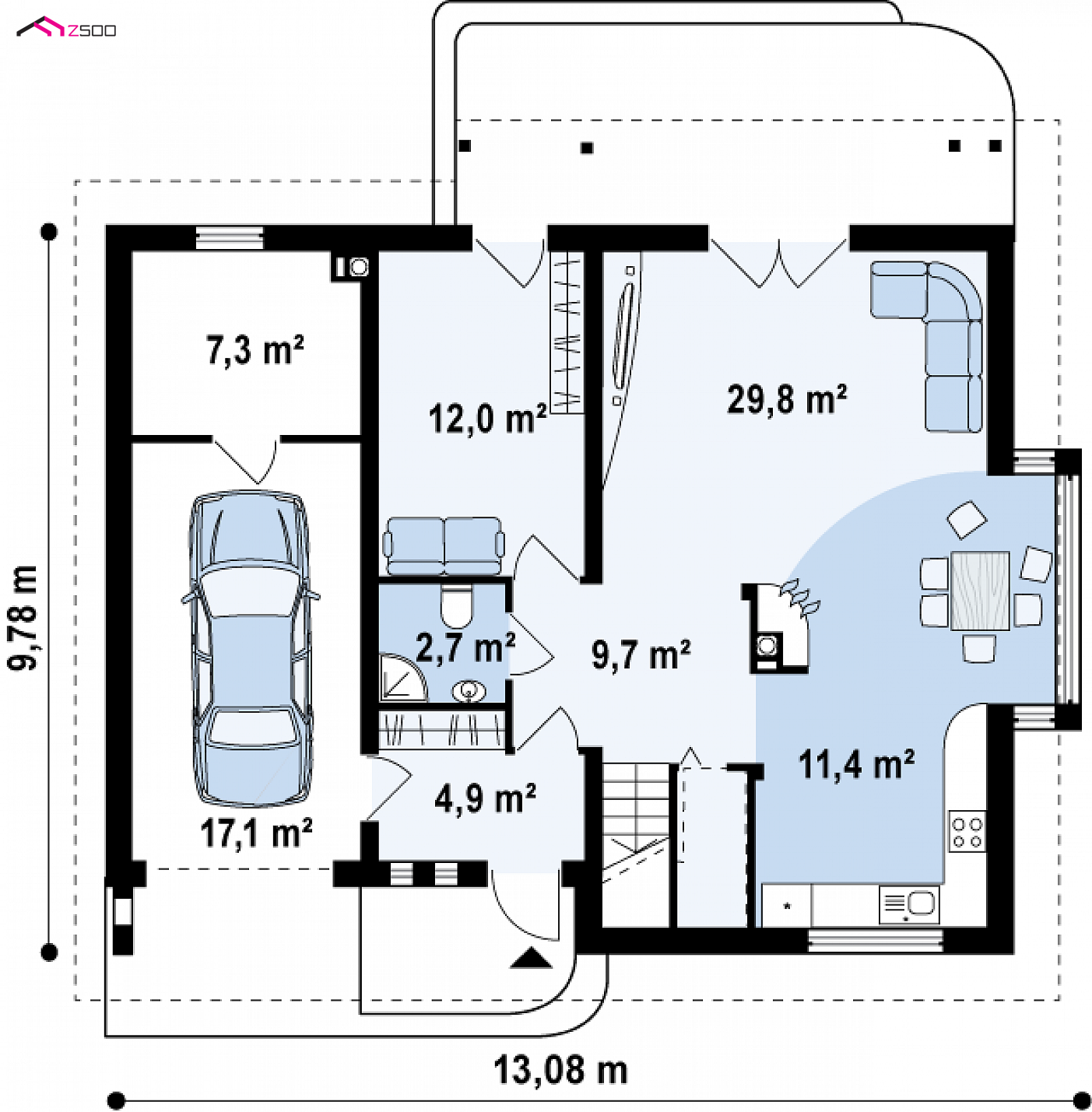

Ground 758,8 / 1021,2 ft²

Sień
52,3 ft²
Hol
104,8 ft²
Kuchnia
101,0 ft²
Salon+jadalnia
321,1 ft²
Pokój
128,6 ft²
Łazienka
29,0 ft²
Garaż
262,4 ft²
Spiżarka
22,0 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Kompaktowy dom z garażem i wykuszem, ekonomiczny w budowie.

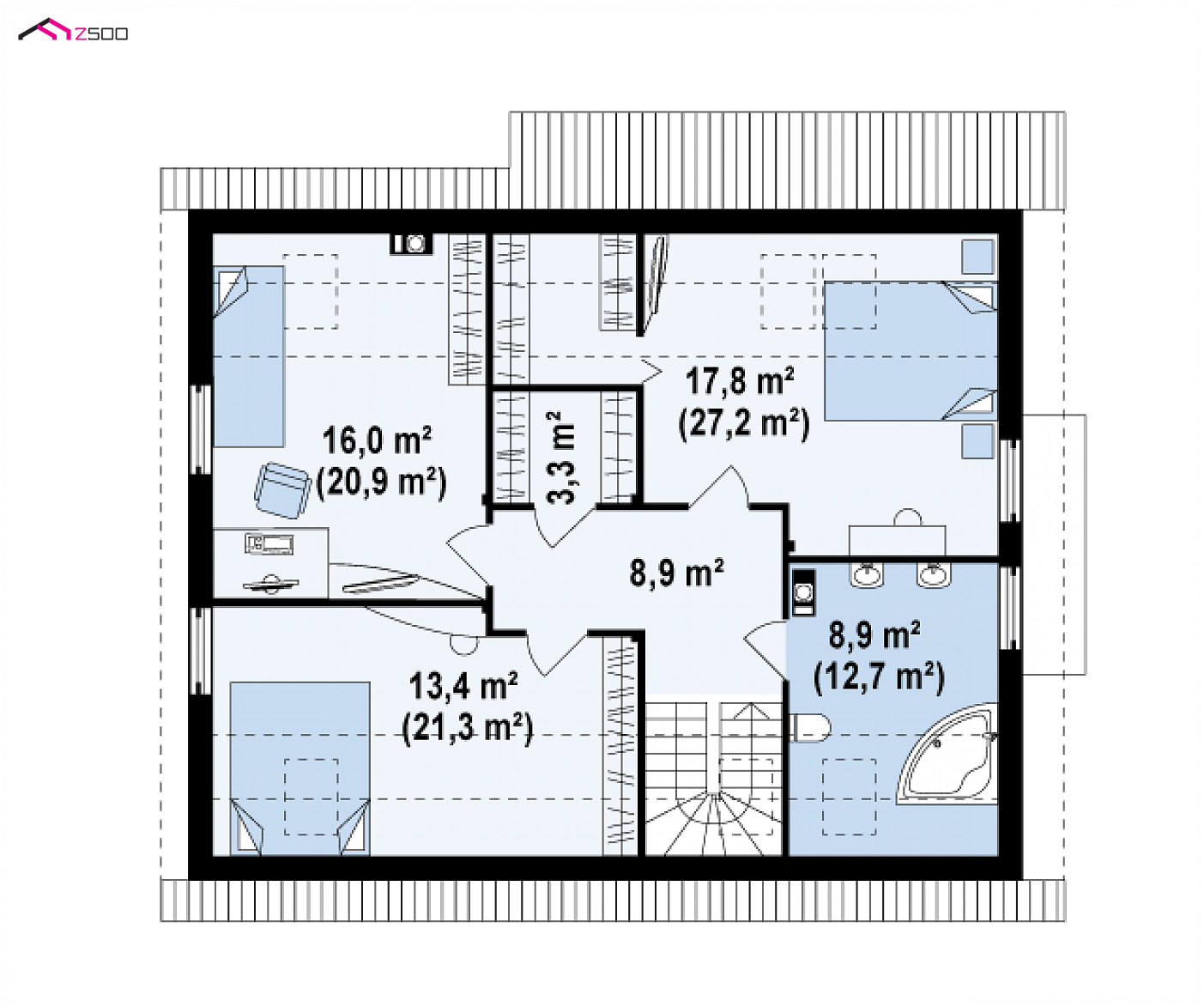

Garret 735,5 / 1014,8 ft²

Hol
95,8 ft²
Pokój
171,4 ft²
Pokój
144,5 ft²
Pokój
172,6 ft²
Garderoba
35,5 ft²
Łazienka
95,3 ft²
Garderoba
20,6 ft²
mirror
Click or touch on the image on the left to start the measure.
Home project  - Kompaktowy dom z garażem i wykuszem, ekonomiczny w budowie.

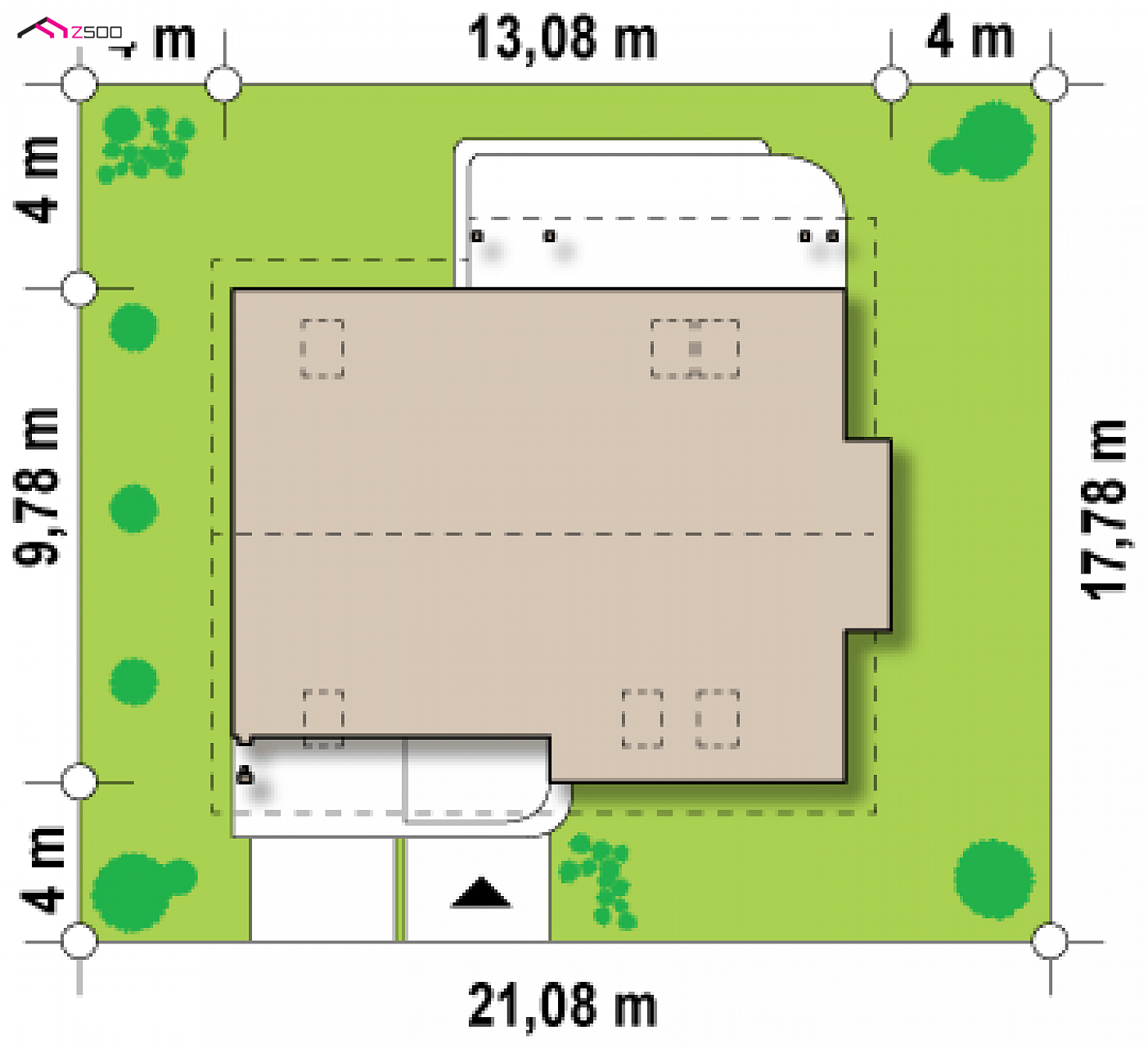

Minimal plot - dimensions, which must have a plot that house could be placed in accordance with the
Minimal plot

width
69,16 ft
length
55,05 ft
Dimensions of the front elevation
Dimensions of the front elevation - the dimensions of the front façade of the building along with the retaining wall surfaces excluding windows and doors
42,91 ft

Area and dimensions

Usable / net
1494,3 / 2036,0 ft²
Usable: Area of all rooms except for the technical room, garage, utility room, attic. When sizes does not include plaster and wall coverings.
Net area: This is the area of all rooms of the building measured at floor level, taking into account plaster and wall cladding. Does not diminish the floor area of variable height - eg. In the attic. To put it simply - so as to spread in all areas of the carpet on the floor.
Living area
Living area: Is a surface contour of the exterior walls of the building. For building area is not included: the underground part of the building, ramp car, external stairs, porches, canopies over the entrances, galleries and all floor. But it takes into account eg. Conservatories or other elements of the build.
Garage area
262,4 ft²
The height of the house
26,51 ft
The height of the house - height from ground level to the ridge or attic.
The angle of inclination of the roof
38°
The angle of inclination of the roof - the angle of the roof to the ground.
Roof area
1 990,79 ft²
Roof area - total roof area with the exception of roof windows.
The height of a dwarf wall
2,46 ft
The height of a dwarf wall - wall additions were made at the rally (the top of the building), enhancing the roof in order to increase the usable space of the attic.
Minimal plot
69,16 x 55,05 ft


Technology and construction

Walls
timber frame
Ceiling
wooden, trusses
Roof
tile, Metal tile
technology
koka

Thermal insulation

heating system
gas, ERV
heating system - Type of heating provided for the project
  • bezpośredni kontakt z architektem konsultacje z projektantem
  • najszybsza bezpłatna wysyłka oszczędzasz 20 zł
  • zgoda autorska na zmiany w projekcie
  • wygodna teczka na dokumenty
  • gratis do każdego projektu zestawy projektów dodatkowych
koka
concept
project's availability 18 work days

Z124 to niezwykle stylowa propozycja domu jednorodzinnego. Klasyczną, prostą bryłę budynku zdobią jasne elementy z naturalnego drewna. Dachówka w ciemnej kolorystyce dodaje mu elegancji i gustownego charakteru.

Projekt Z124 odznacza się wyjątkowo komfortowym układem pomieszczeń. Główną częścią jest przestronny, jasny salon. Wykusz urozmaica wnętrze i wydziela z przestrzeni aneks jadalny. Kuchnia zaprojektowana w kompozycji otwartej doskonale powiększa całe pomieszczenie. W centralnym miejscu strefy dziennej zaplanowano kominek, który nadaje wnętrzu przytulnego i ciepłego charakteru. Na poddaszu znajdują się trzy przestronne sypialnie, garderoba oraz komfortowa łazienka z miejscem na dużą wannę. Pokój gospodarzy posiada własną garderobę.

Z124 to idealna propozycja dla wszystkich szukających domu o wysmakowanej formie i funkcjonalnych rozwiązaniach. Nowoczesne elementy elewacji i ciekawy koloryt, tworzą spójną, harmonijna całość.

ArchiCAD - a specialized CAD graphic software

Insight into the virtual image of the investment - (3D model, 4D, 5D) showing the picture of the planned state of the actual object in the surrounding environment, or automatic detection of discrepancies during design help to avoid problems at the implementation stage and consequently the occurence of additional unforseen costs.

BIM facilitates the modification of the project - conceptual changes introduced in the project are applied to the 3D model and are automatically reflected in the quantitative reports and project documentation.

Facilitates cooperation at the design stage - in a well-developed and efficient system, designers collect and exchange data, cooperating and sharing the necessary information. BIM technology is already used at the stage of creating the project. Thanks to this, all participants of the investment process are able to check virtually all the technical aspects of the planned implementation before the heavy equipment starts work.

adaptation and changes to the project

Do you want to build a house based on this project but you need to make some changes?

Use our Adaptation Studio services:

  • free evaluation of changes and adaptations
  • over 100 proven architects throughout Poland
  • the best price offer for changes and adaptations
